Plan 510210WDY

Exclusive

Exclusive Brick-clad House Plan with Mother-in-Law Suite

Heated S.F.
7,054
Beds
6
Baths
6
Stories
2
Cars
3

Floor Plan

Plan 510210WDY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 510210WDY

M-F 9am-5pm EST |

1-203-761-8500

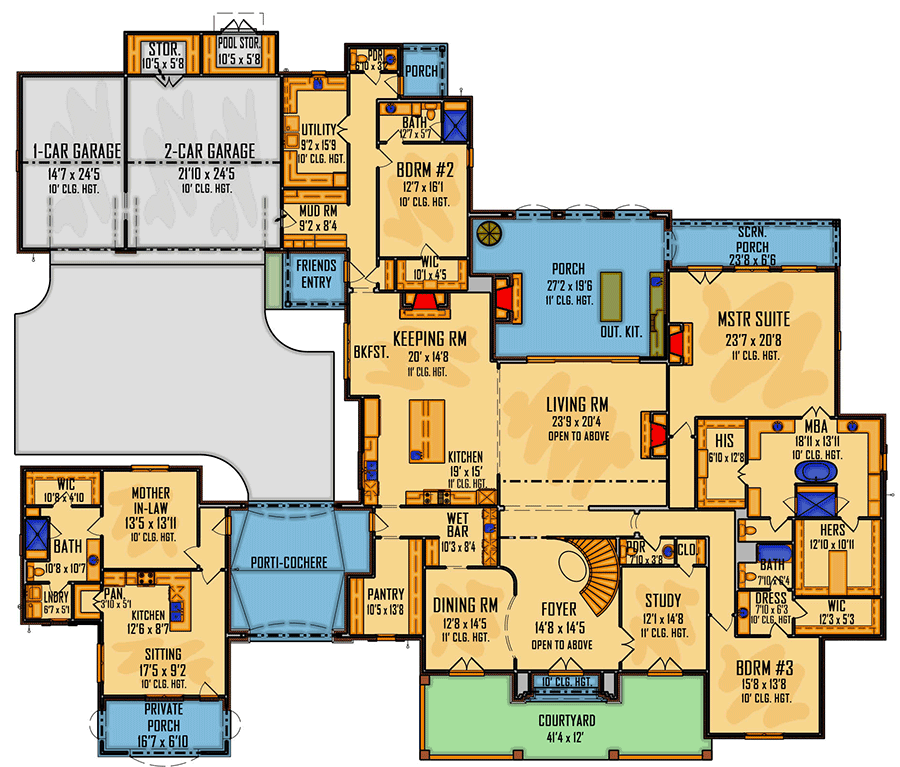

Main Level

Plan 510210WDY: Exclusive Brick-clad House Plan with Mother-in-Law Suite - Floor Plan - Main Level - Country, European, French Country, Southern

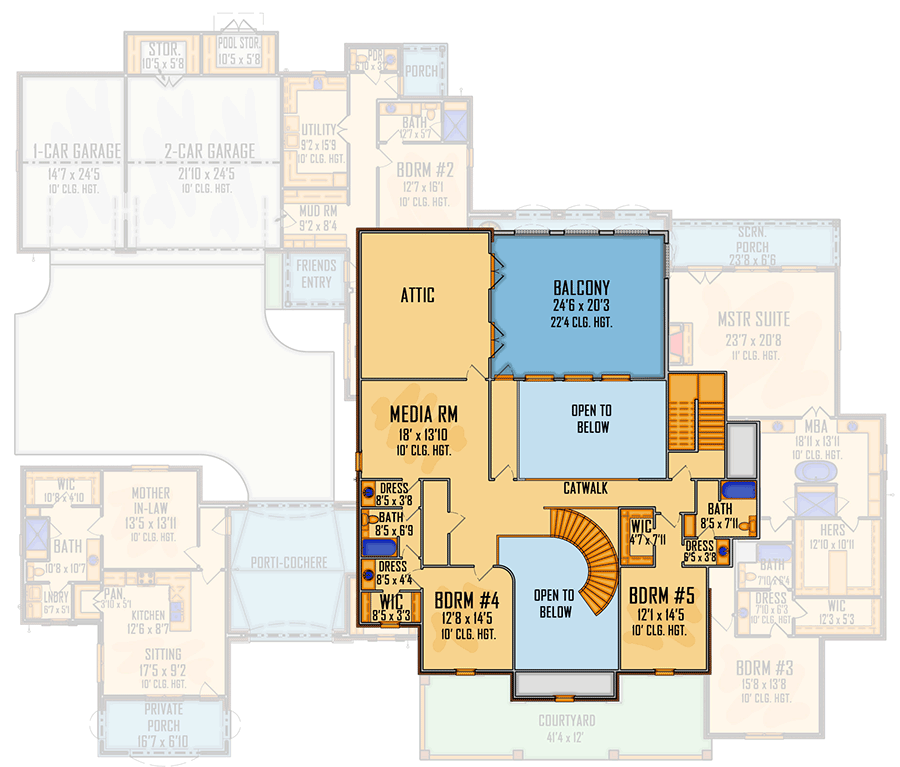

2nd Floor

Plan 510210WDY: Exclusive Brick-clad House Plan with Mother-in-Law Suite - Floor Plan - 2nd Floor - Country, European, French Country, Southern

Plan Details

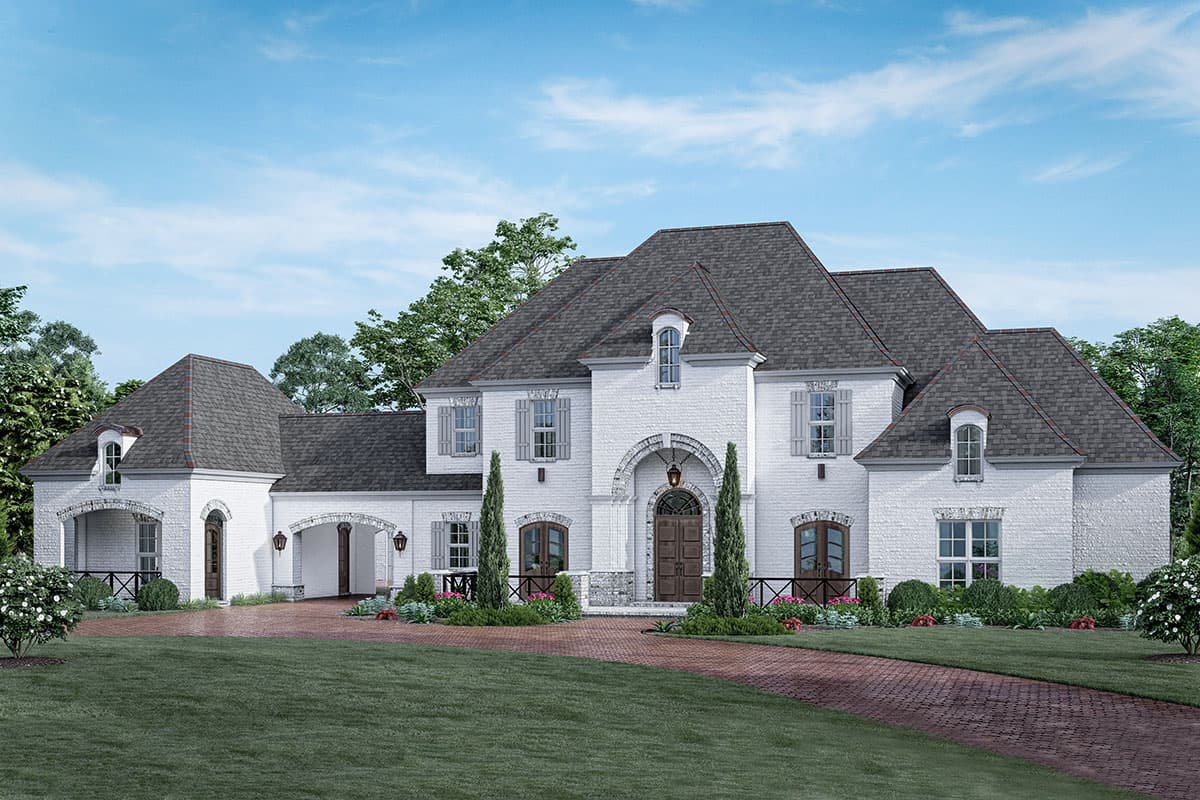

  • The stunning exterior of this exclusive brick-clad house plan features arched entryways, accompanied by matching dormer windows. The porte-cochere connects the private mother-in-law suite to the main home.
  • Four fireplaces help to create warm and inviting living spaces throughout the home, while a quiet study off the foyer provides a relaxing space for the work-at-home resident.
  • The master suite boasts a screened porch, his and hers closets, and a freestanding tub in front of the 5-fixture bathroom. The remaining bedrooms are set apart from each other in order to provide each family member with privacy.
  • Family and friends will enjoy their stay in this mother-in-law suite, which includes a kitchen, living room, private porch, and laundry in the full bathroom.
  • Dedicated storage space in the 3-car garage neighbors a pool storage room, while just inside, the mudroom awaits your outdoor gear.

What's Included

  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

7,054 sq. ft.

1st Floor

4,589 sq. ft.

2nd Floor

1,462 sq. ft.

Bonus

387 sq. ft.

Porch, Combined

1,535 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

6

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

123' 4"

Depth

103' 5"

Max Ridge Height

41' 0"

Garage

Type

Attached

Area

1404 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Architectural Style

Country

European

French Country

Southern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Home Office

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Porte Cochere

Two Story Great Room

Plan Collections

Exclusive

Home Office

Luxury

Multi-Generational
