Exclusive Bungalow House Plan With Wraparound Deck

Plan 77629FB

  • 1,276

    Heated s.f.

  • 1-2

    Beds

  • 1 - 2

    Baths

  • 1

    Stories

  • This charming and cozy Cottage house plan, exclusive to Architectural Designs, comes with a big fireplace and wraparound deck.
  • The front entry opens to the foyer and main floor kitchen area and gives you views that extend to the open living area and deck on the right and back of the home.
  • The living room has a fireplace centered on the back wall flanked by windows overlooking the deck. French doors open to a gazebo-like covered deck.
  • The optional finished lower level gives you another bedroom and a second kitchen and a laundry area. French doors open to the covered patio if you build it on a sloping lot.

The plan includes:

  • cover page
  • foundation plan
  • main floor plan
  • second floor plan

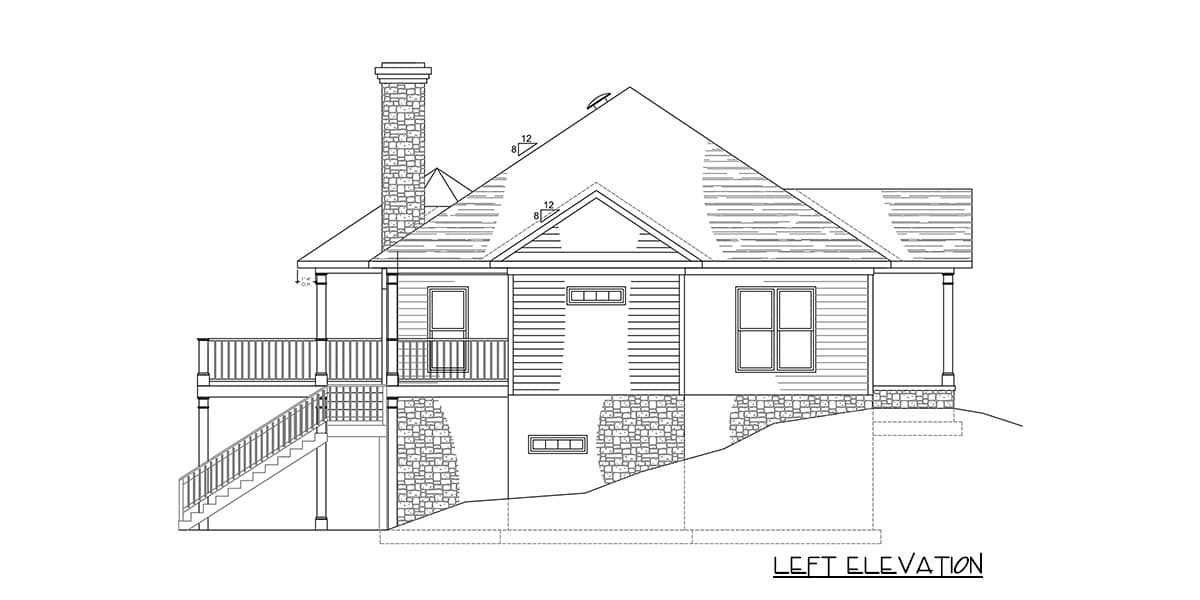

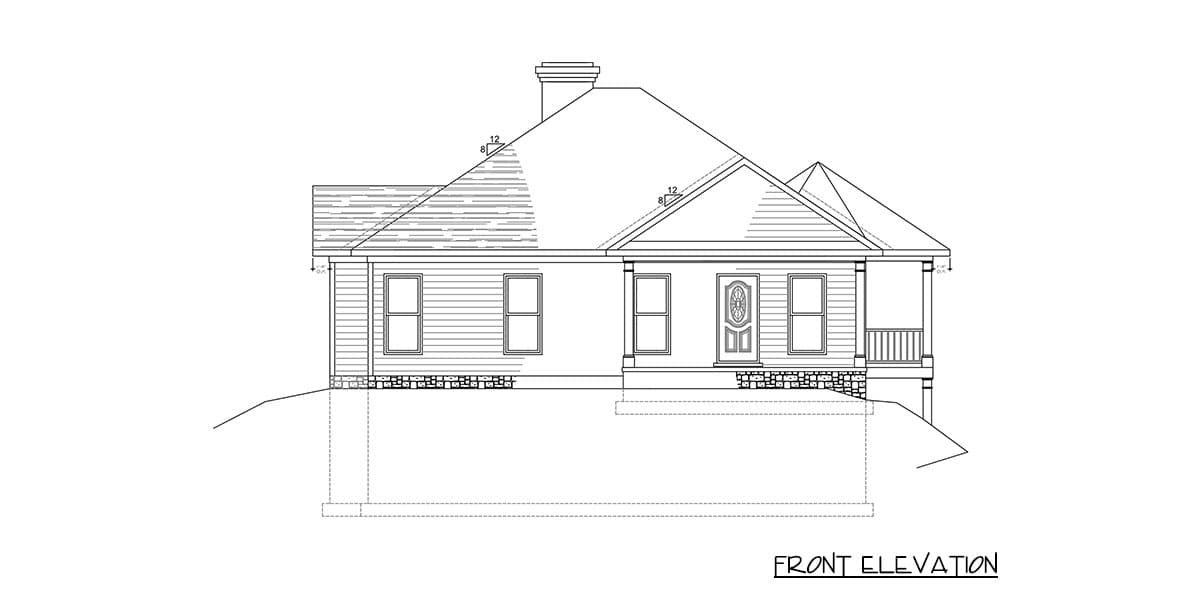

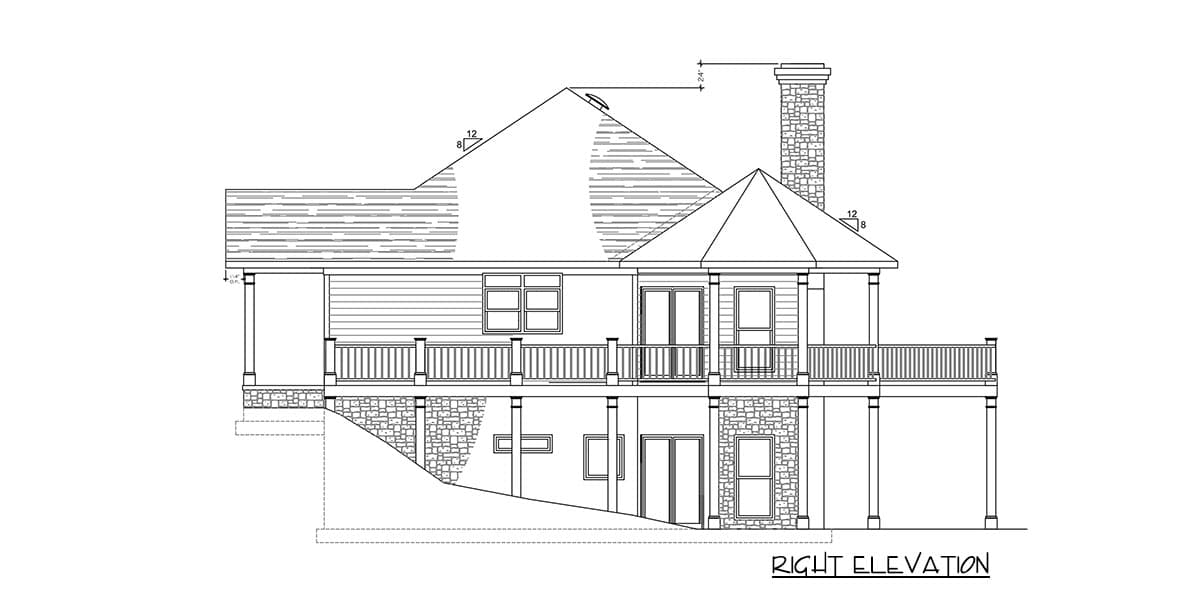

  • all four elevation views
  • one section view
  • enlarged construction details
  • electrical layout
  • and roof plan if needed

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally whe

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

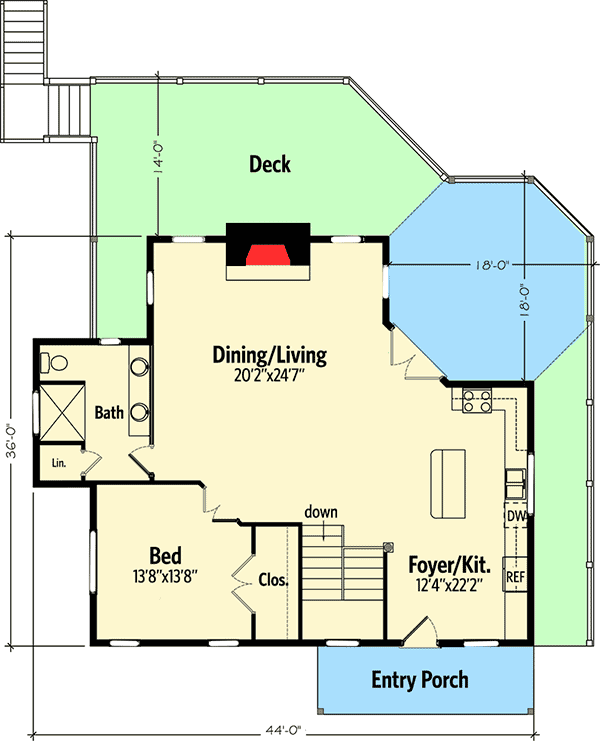

Exclusive Bungalow House Plan With Wraparound Deck - 77629FB floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

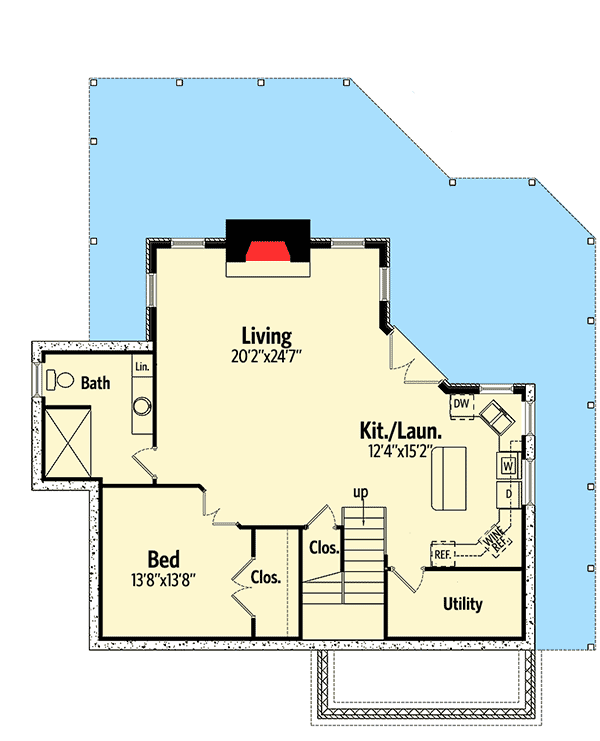

Exclusive Bungalow House Plan With Wraparound Deck - 77629FB floor plan - Lower Level
