Plan 48613FM Exclusive Country Craftsman Home Plan with Split Bedrooms and Study

Exclusive Country Craftsman Home Plan with Split Bedrooms and Study

Plan 48613FM

  • 2,185

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Enjoy the comforts of one-level living with this Country Craftsman home plan, exclusive to Architectural Designs.
  • Once inside, a formal study is located to the left of the foyer. Two bedrooms line the right side of the foyer, separated by a compartmentalized bath that they share.
  • Towards the rear, discover an open kitchen that flows into the dining and living areas. A fireplace anchors the rear wall, framed by windows that overlook the covered patio.
  • Retreat to the master bedroom for peace and quiet, and find a custom wood plank ceiling, 5-fixture bathroom, and a walk-in closet that connects to the laundry room.
  • A mudroom greets you when entering from the 3-car garage, complete with a coat closet and built-in bench.
  • Related Plan: Get a slightly smaller version with house plan 48610FM (1,888 sq.ft.)

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan

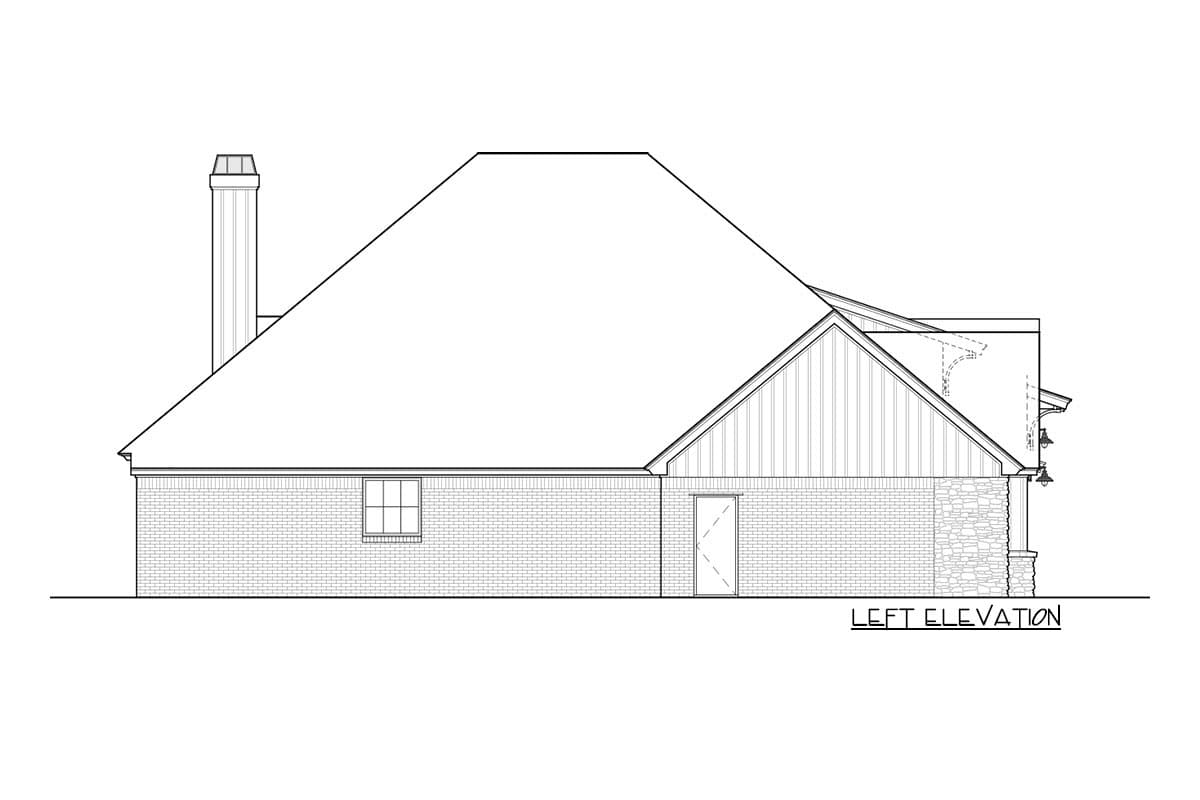

Front and Left Elevation

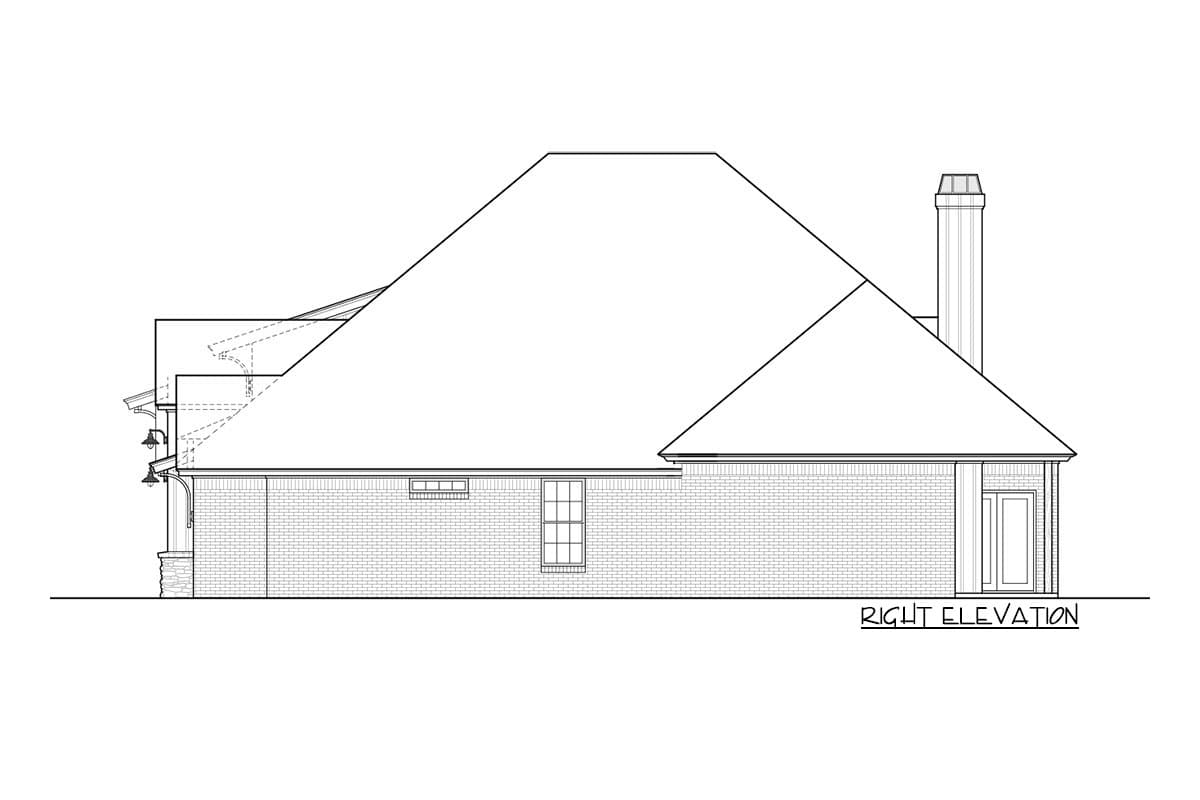

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

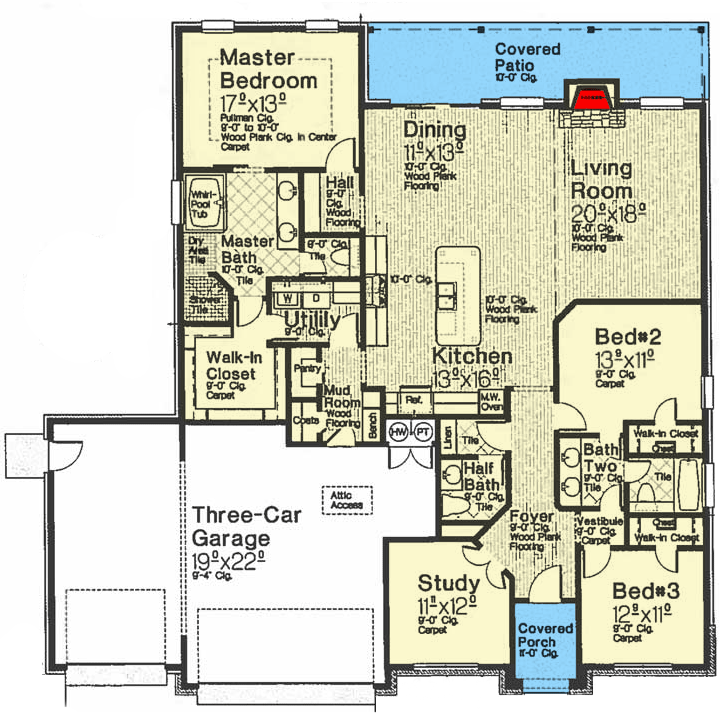

Exclusive Country Craftsman Home Plan with Split Bedrooms and Study - 48613FM floor plan - Main Level

Plan details

Exclusive Country Craftsman Home Plan with Split Bedrooms and Study

  • 2,185

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,045
  • 8 Sets $1,185
  • PDF - Single-Build $1,335
  • CAD - Single-Build $2,015
  • View all purchase option online

About This Plan

  • Enjoy the comforts of one-level living with this Country Craftsman home plan, exclusive to Architectural Designs.
  • Once inside, a formal study is located to the left of the foyer. Two bedrooms line the right side of the foyer, separated by a compartmentalized bath that they share.
  • Towards the rear, discover an open kitchen that flows into the dining and living areas. A fireplace anchors the rear wall, framed by windows that overlook the covered patio.
  • Retreat to the master bedroom for peace and quiet, and find a custom wood plank ceiling, 5-fixture bathroom, and a walk-in closet that connects to the laundry room.
  • A mudroom greets you when entering from the 3-car garage, complete with a coat closet and built-in bench.
  • Related Plan: Get a slightly smaller version with house plan 48610FM (1,888 sq.ft.)

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,185 sq. ft.
  • 1st Floor: 2,185 sq. ft.
  • Covered Patio: 218 sq. ft.
  • Porch, Front: 47 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 61' 0"
  • Depth: 61' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 781 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
