Exclusive Craftsman House Plan with 2-Story Great Room
Heated S.F.
2,326
Beds
3
Baths
2.5
Stories
2
Cars
3
Photos
What's Included
Plan Details
  • This 3-bed Craftsman house plan, available exclusively at Architectural Designs, gives you a one-car garage stepped back from the two-car garage and a with timber supports.
  • Inside, the foyer leads you to the 2-story great room with views extending across the deck and to the kitchen and dining room.
  • The kitchen island gives you seating and work space. Unloading groceries is a breeze with access to the garage steps away.
  • A private study is located off the foyer.
  • The master suite has dual vanities and walk-in closets and the laundry conveniently located right off the bath. Upstairs, two bedrooms share a bath.
What's Included
This plan has 8 sheets as follows:
  1. Cover sheet with notes
  2. Plan elevations
  3. Foundation plan
  4. First floor plan
  5. Second floor plan
  6. Building sections
  7. Details
  8. Reinforcing notes
What's Not Included
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive Craftsman House Plan with 2-Story Great Room

  • 2,326

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

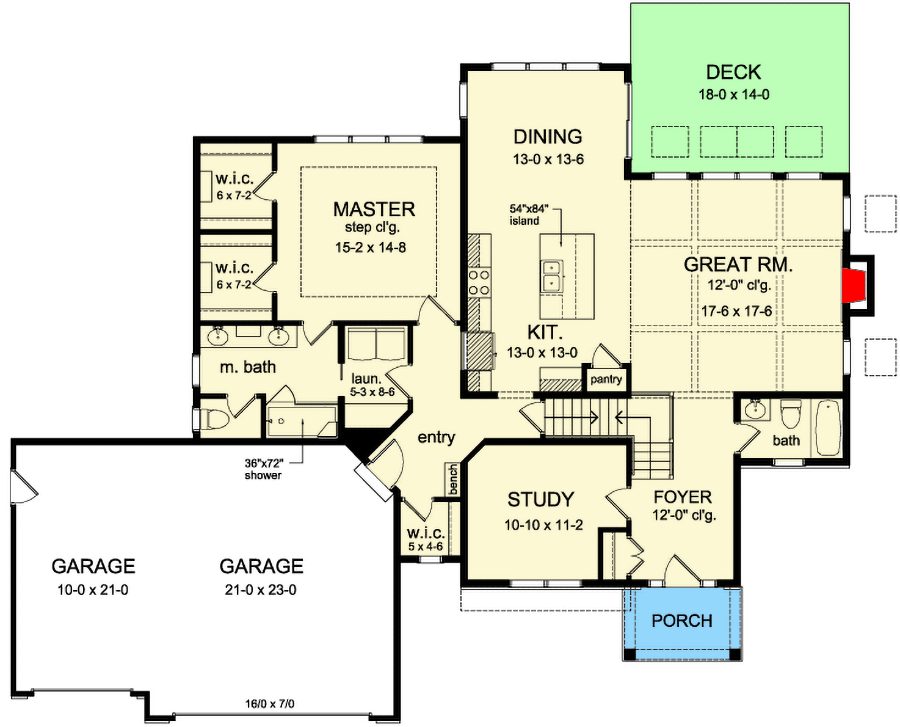

  • Main Level

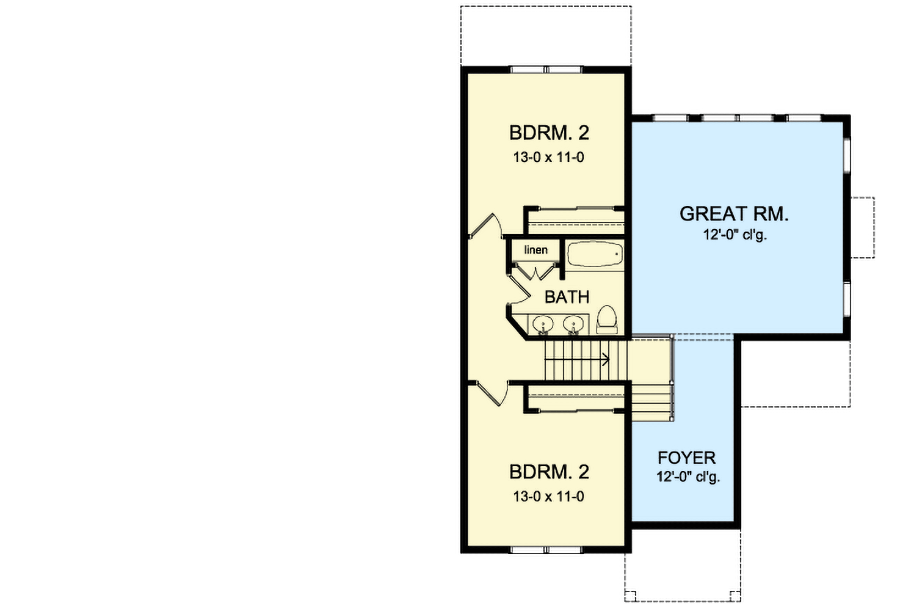

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,326 sq. ft.
  • 1st Floor: 1,743 sq. ft.
  • 2nd Floor: 583 sq. ft.

Dimensions

  • Width: 69' 0"
  • Depth: 54' 0"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Area: 698 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick And Truss
