Plan 48616FM Exclusive Craftsman House Plan with Split Bedrooms

2,522 3-4 3 1-2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive Craftsman House Plan with Split Bedrooms

Plan 48616FM

  • 2,522

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • 3

    Cars

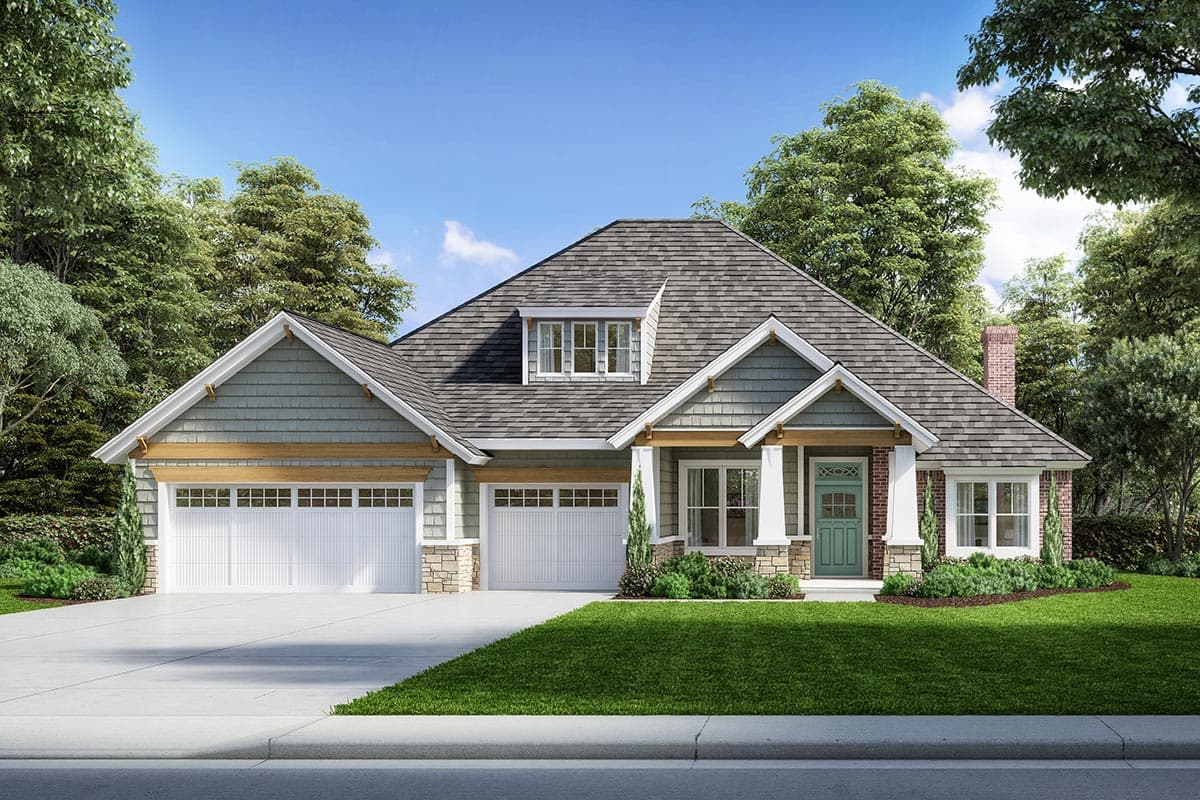

  • Tapered columns add a classic Craftsman element to this exclusive house plan, which features a private master suite, quiet study, and 3-car garage.
  • From the foyer, french doors to the left lead to a study with a dry bar, while the hallway to the right grants access to two bedrooms that share a Jack-and-Jill bath.
  • A fireplace anchors the rear wall of the great room, where an oversized opening leads to the eat-in kitchen. The large kitchen island serves as a natural conversation hub, and includes a double-bowl sink and wine cooler.
  • The serene master suite offers a true getaway for the homeowner, and features a 5-fixture bathroom and a walk-in closet that connects to the laundry room
  • The second-level game room adds 242 square feet, while the media room adds 369 square feet.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan

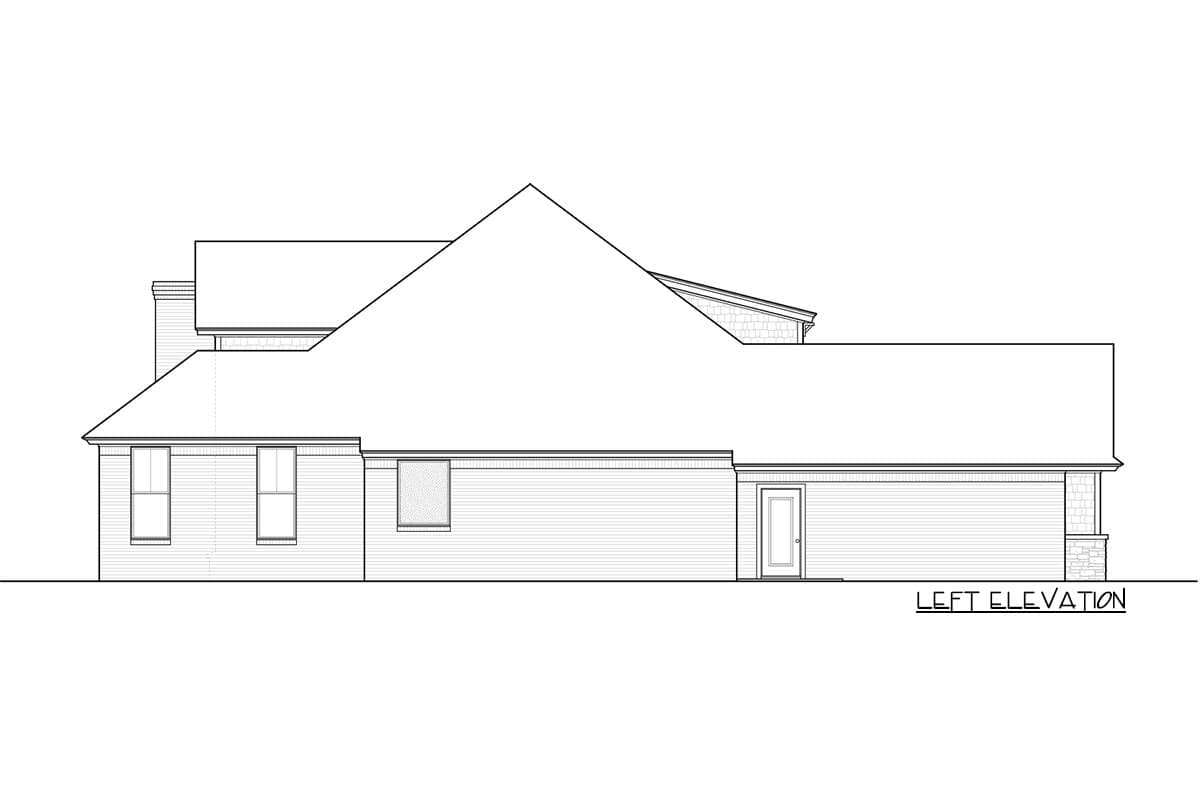

Front and Left Elevation

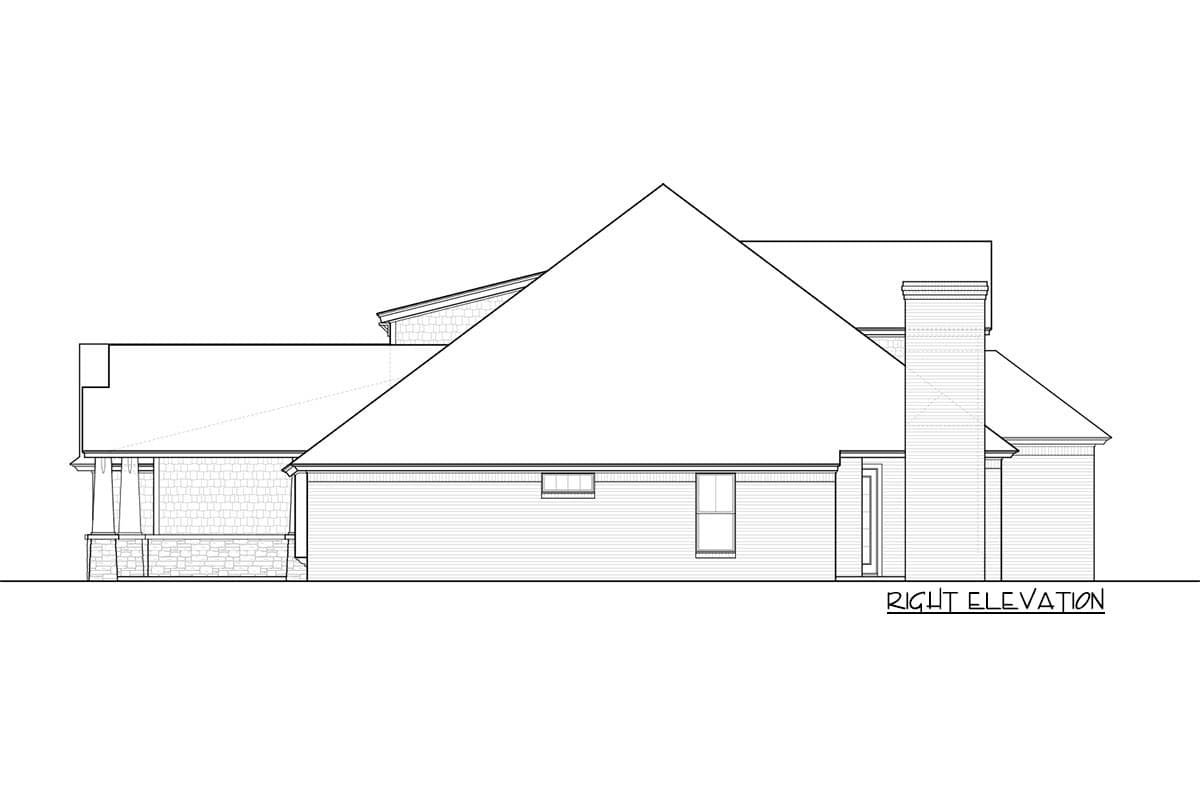

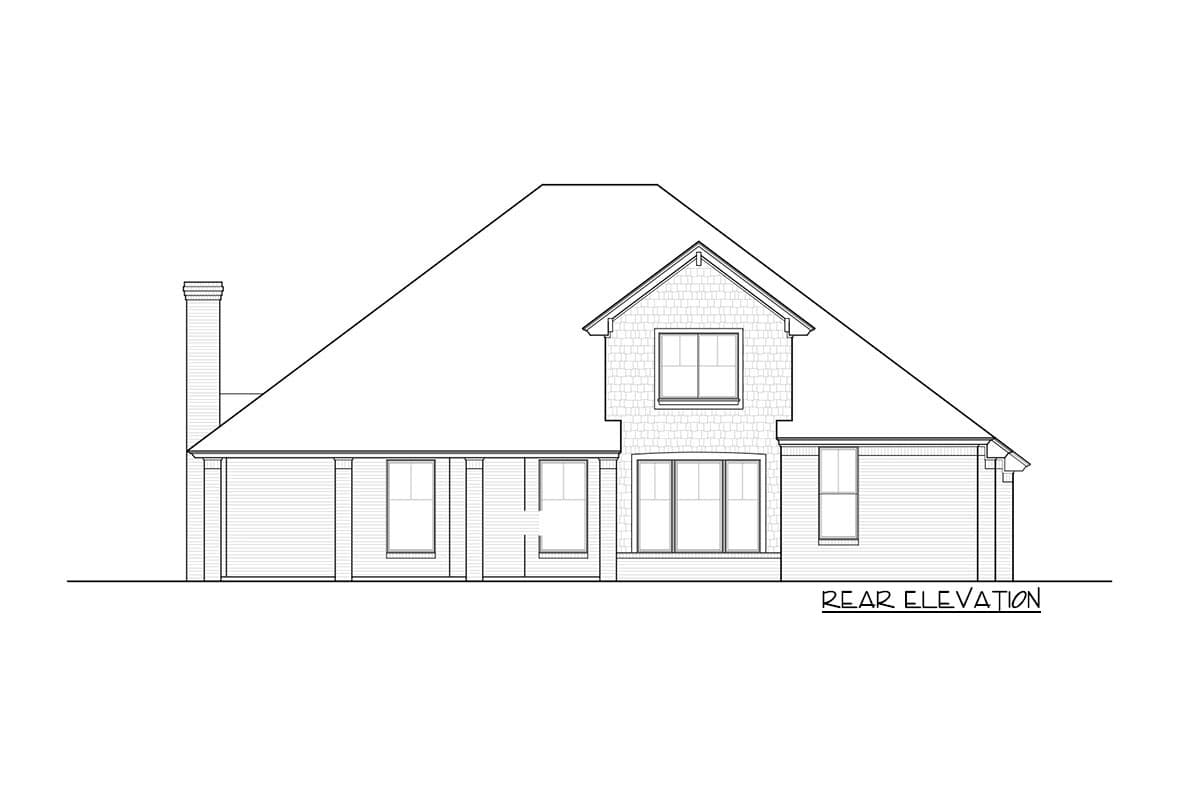

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

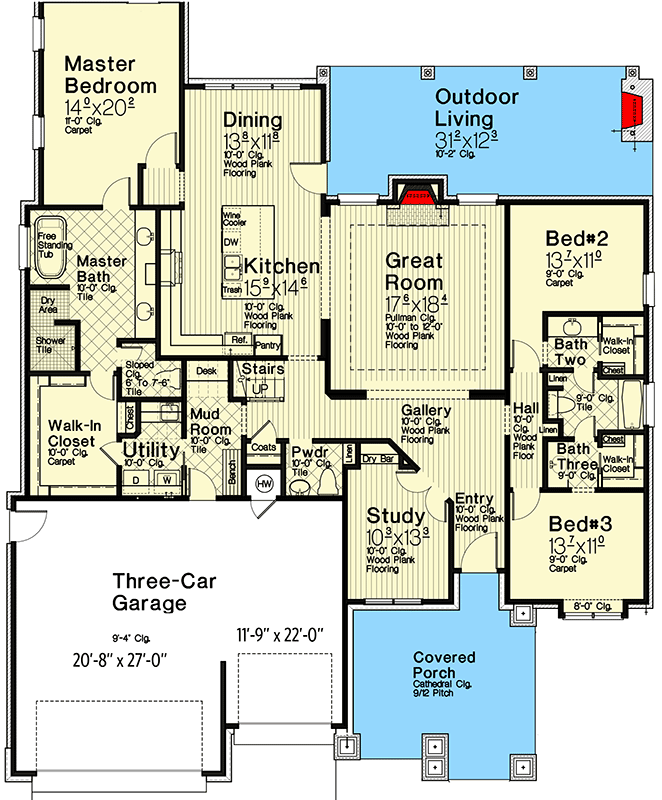

Exclusive Craftsman House Plan with Split Bedrooms - 48616FM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

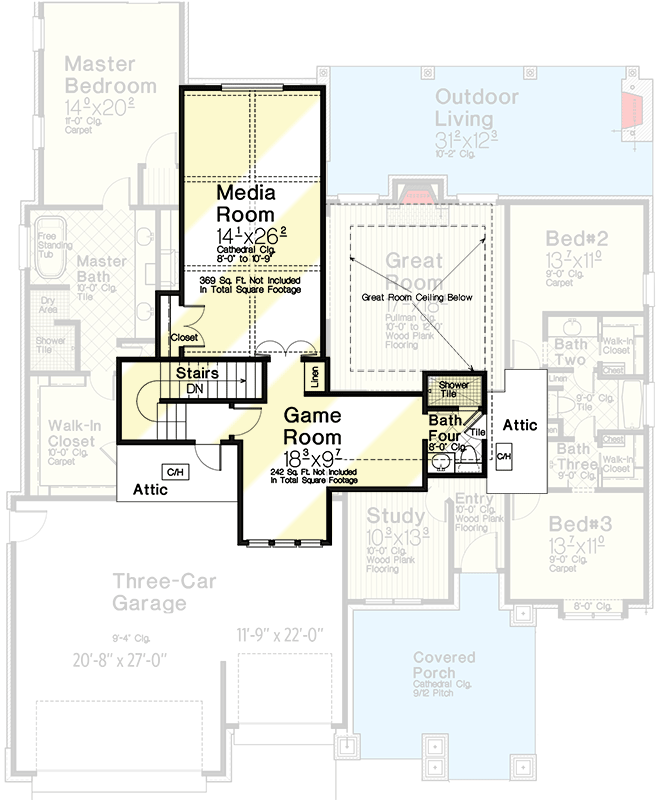

Exclusive Craftsman House Plan with Split Bedrooms - 48616FM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,522 sq. ft.
  • 1st Floor: 2,522 sq. ft.
  • Bonus: 708 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 62' 4"
  • Depth: 75' 11"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 815 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Great Room Pullman 10' 0" to 12' 0"
Master Bedroom 11' 0"
Master Bath 10' 0"
Kitchen 10' 0"
Dining Room 10' 0"
Bedroom 2 9' 0"
Bedroom 3 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Exclusive Craftsman House Plan with Split Bedrooms

  • 2,522

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,195
  • 8 Sets $1,335
  • PDF - Single-Build $1,485
  • PDF - Unlimited Build $1,985
  • CAD - Single-Build $2,270
  • CAD - Unlimited Build $3,270
  • View all purchase option online

About This Plan

  • Tapered columns add a classic Craftsman element to this exclusive house plan, which features a private master suite, quiet study, and 3-car garage.
  • From the foyer, french doors to the left lead to a study with a dry bar, while the hallway to the right grants access to two bedrooms that share a Jack-and-Jill bath.
  • A fireplace anchors the rear wall of the great room, where an oversized opening leads to the eat-in kitchen. The large kitchen island serves as a natural conversation hub, and includes a double-bowl sink and wine cooler.
  • The serene master suite offers a true getaway for the homeowner, and features a 5-fixture bathroom and a walk-in closet that connects to the laundry room
  • The second-level game room adds 242 square feet, while the media room adds 369 square feet.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,522 sq. ft.
  • 1st Floor: 2,522 sq. ft.
  • Bonus: 708 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 62' 4"
  • Depth: 75' 11"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 815 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
Plan 48616FM
