Plan 48521FM Exclusive European House Plan with Two Rec Rooms

Exclusive European House Plan with Two Rec Rooms

Plan 48521FM

  • 4,236

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This stately European house plan, exclusive to Architectural Designs, offers both first floor and second floor rec rooms - one for the kids and one for the adults!
  • A huge gallery hallway leads back to the wide open main living space where you can cook, eat and watch TV in the same big great room area.
  • The covered outdoor area has a grilling station for outdoor dining.
  • There's a secluded first floor guest suite in back and a magnificent master bedroom on the opposite side of the home.
  • Not only do you get a spacious private bathroom, you also get an enormous walk-in closet with a built-in chest of drawers.
  • The second floor rec room opens to a huge covered deck and an open rail hallway lets you look down into the foyer below.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation
Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

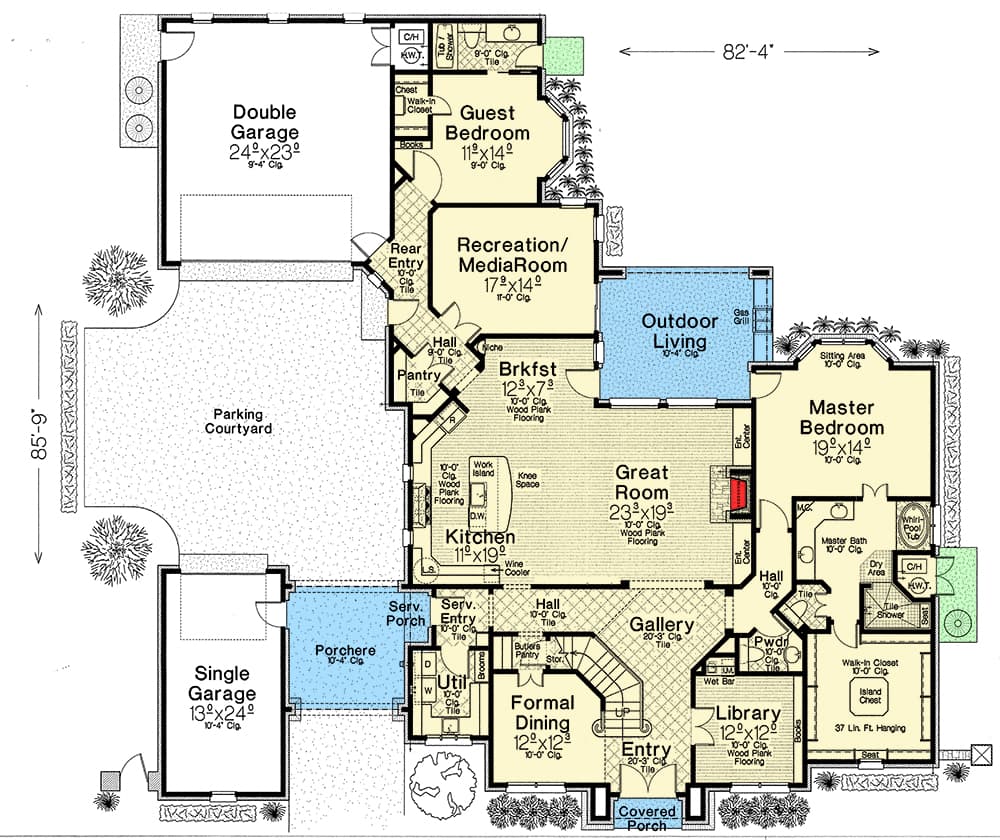

Exclusive European House Plan with Two Rec Rooms - 48521FM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

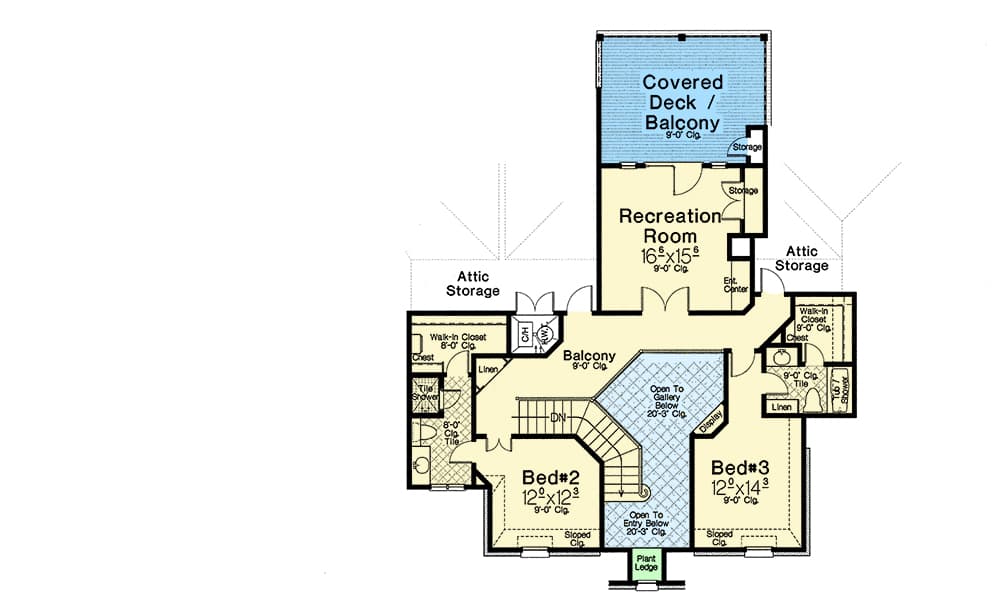

Exclusive European House Plan with Two Rec Rooms - 48521FM floor plan - 2nd Floor

Plan details

Exclusive European House Plan with Two Rec Rooms

  • 4,236

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,795
  • 8 Sets $1,935
  • PDF - Single-Build $2,085
  • PDF - Unlimited Build $2,585
  • CAD - Single-Build $3,290
  • CAD - Unlimited Build $4,290
  • View all purchase option online

About This Plan

  • This stately European house plan, exclusive to Architectural Designs, offers both first floor and second floor rec rooms - one for the kids and one for the adults!
  • A huge gallery hallway leads back to the wide open main living space where you can cook, eat and watch TV in the same big great room area.
  • The covered outdoor area has a grilling station for outdoor dining.
  • There's a secluded first floor guest suite in back and a magnificent master bedroom on the opposite side of the home.
  • Not only do you get a spacious private bathroom, you also get an enormous walk-in closet with a built-in chest of drawers.
  • The second floor rec room opens to a huge covered deck and an open rail hallway lets you look down into the foyer below.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,236 sq. ft.
  • 1st Floor: 3,130 sq. ft.
  • 2nd Floor: 1,106 sq. ft.
  • Deck: 247 sq. ft.
  • Porch, Front: 54 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 82' 4"
  • Depth: 85' 9"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 1018 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 18 on 12
  • Framing Type: Stick
