Plan 77605FB

Exclusive

Exclusive Farmhouse Plan for a Sloping Lot
Heated S.F.
3,584
Beds
3 - 4
Baths
3.5 - 5.5
Stories
2
Cars
2
Floor Plan

Plan 77605FB

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 77605FB

1-800-854-7852

1-262-521-4596

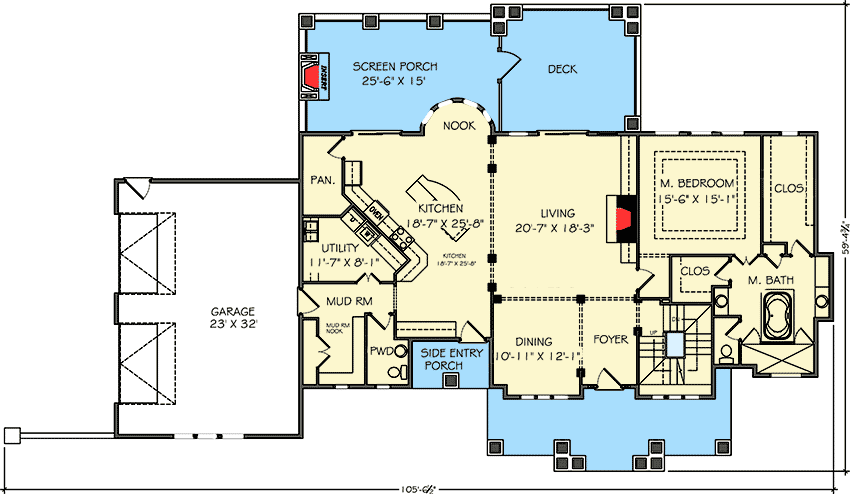

Main Level
floor plan image Main Level

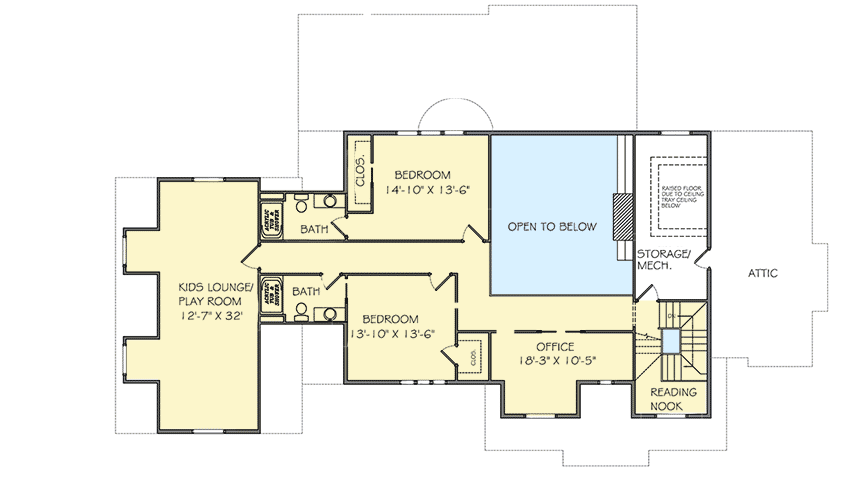

2nd Floor
floor plan image 2nd Floor

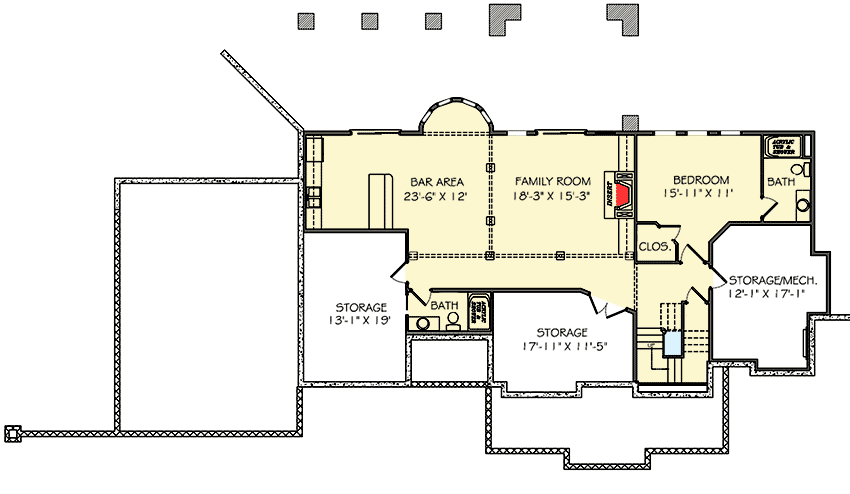

Lower Level
floor plan image Lower Level
Plan Details

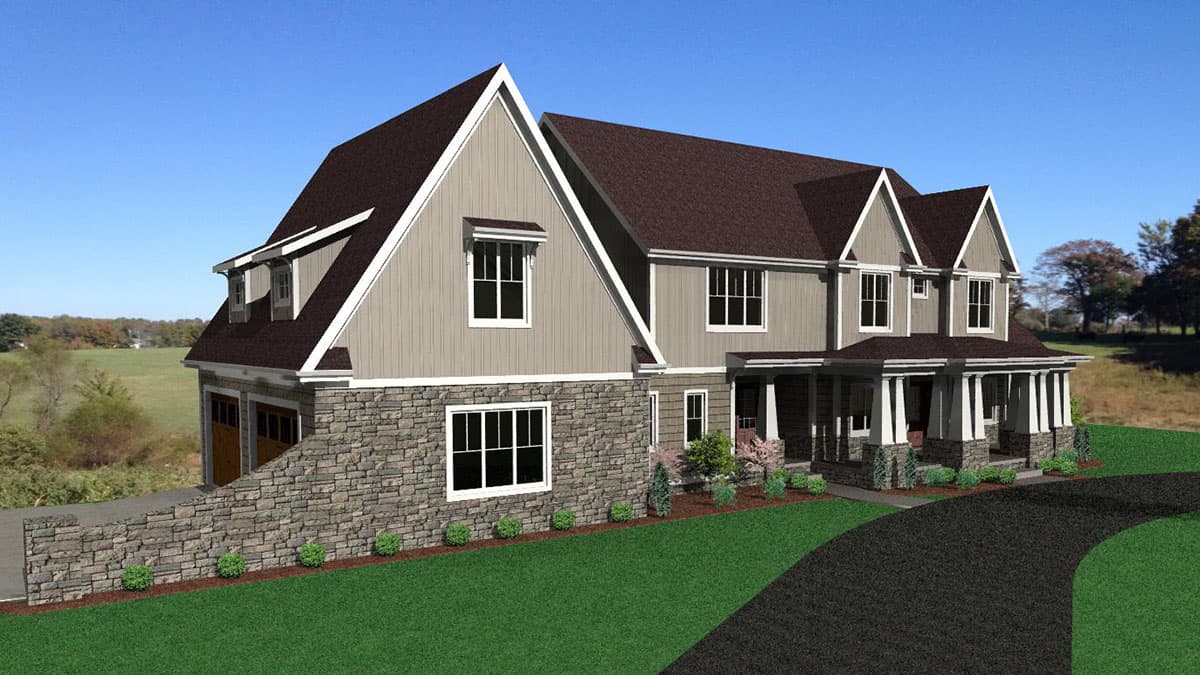

  • A mix of stone, shakes and board and battan siding really highlight the lovely features of this exclusive Farmhouse home plan.
  • Interior columns are used instead of walls to keep the sightlines open on the first floor.
  • From the angled kitchen island you can survey almost the whole floor.
  • A stunning master suite on this level offers a double tray ceiling, huge walk-in closet and a spa-like bathroom with a grand soaking tub right in the middle.
  • Catch some sun on the deck or enjoy the fireplace in the screened porch.
  • There's a reading nook on the landing on the way up to the second floor.
  • Two big bedrooms lie close to the enormous kids lounge plus office space with sliding pocket doors.
  • Finish the lower level when you're ready to expand and gain an extra 2,065 square feet of living space.
  • The roof has a 12:12 primary pitch and an 18:12 secondary pitch.
What's Included

  • Cover page
  • Foundation plan
  • Floor Plan
  • Elevations
  • Section View
  • Construction details
  • Electrical Layout
  • Roof Plan (if needed)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,584 sq. ft.

1st Floor

2,150 sq. ft.

2nd Floor

1,434 sq. ft.

Optional Lower Level

2,065 sq. ft.

Porch, Combined

975 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3, 4, or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

105' 6"

Depth

59' 4"

Max Ridge Height

39' 0"

Garage

Type

Attached

Area

778 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Living Room

Second Story

0' 0''

Master Bedroom

Tray

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

18 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Square Footage Breakdown

Total Heated Area

3,584 sq. ft.

1st Floor

2,150 sq. ft.

2nd Floor

1,434 sq. ft.

Optional Lower Level

2,065 sq. ft.

Porch, Combined

975 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3, 4, or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

105' 6"

Depth

59' 4"

Max Ridge Height

39' 0"

Garage

Type

Attached

Area

778 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Living Room

Second Story

0' 0''

Master Bedroom

Tray

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

18 on 12

Framing Type

Stick And Truss

Architectural Style
