Plan 77647FB

Exclusive

Exclusive French Country Home Plan with Large Walk-in Pantry

Heated S.F.
3,700
Beds
3 - 4
Baths
2.5 - 3.5
Stories
2
Cars
3

Floor Plan

Plan 77647FB

Main Level
Main Level
Bonus Room
Bonus Room

Plan 77647FB

M-F 9am-5pm EST |

1-203-761-8500

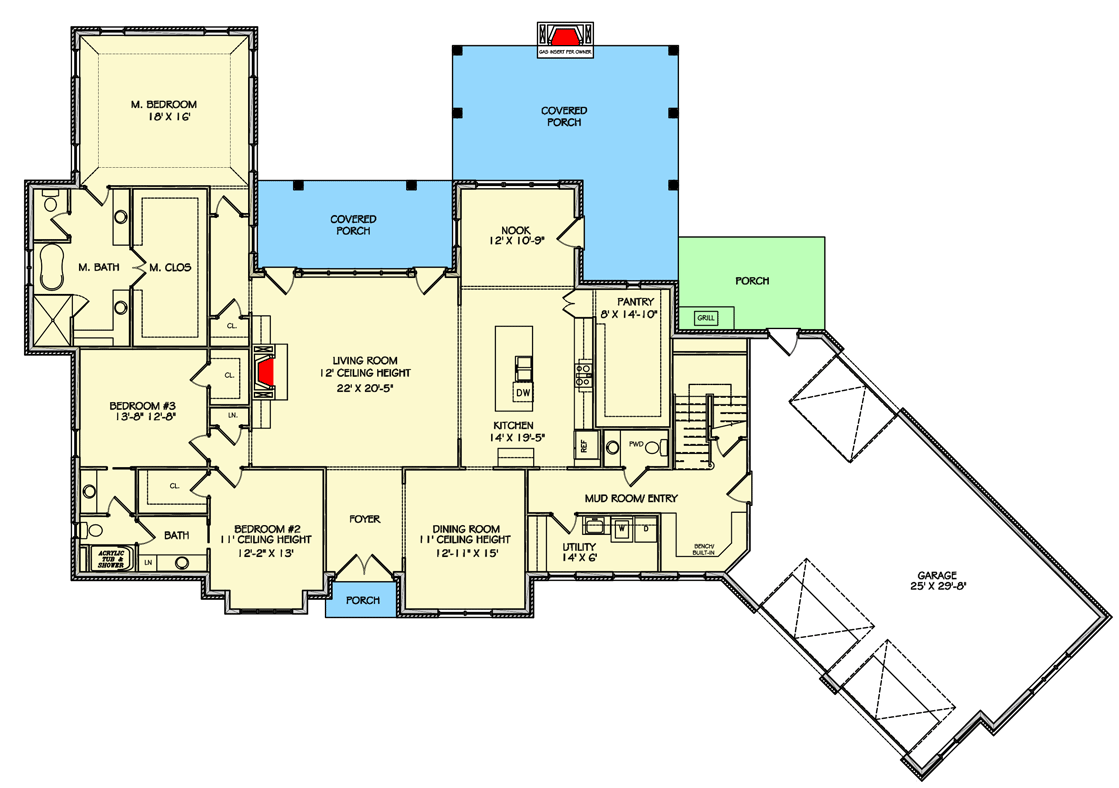

Main Level

Plan 77647FB: Exclusive French Country Home Plan with Large Walk-in Pantry - Floor Plan - Main Level - European, French Country

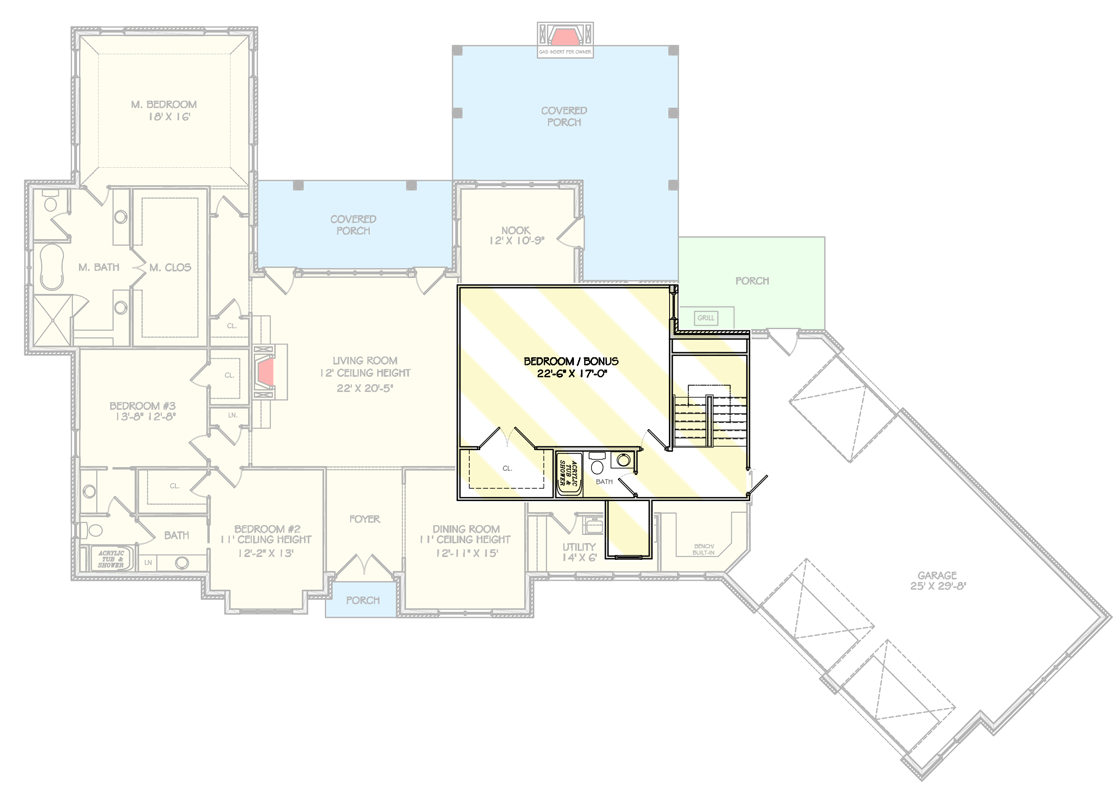

Bonus Room

Plan 77647FB: Exclusive French Country Home Plan with Large Walk-in Pantry - Floor Plan - Bonus Room - European, French Country

Plan Details

  • Stone accents lie beneath sweeping eaves on the exterior of this French Country home plan that is exclusive to Architectural Designs.
  • A fireplace serves as the focal point in the great room (12' ceiling height) and side by side windows provide views onto the covered porch.
  • The gourmet kitchen features a lengthy island, along with a hidden walk-in pantry with natural light and plenty of storage space. A breakfast nook protrudes from the rear of the home, while a formal dining area off the foyer provides a quiet space for more intimate meals.
  • A tray ceiling crowns the master bedroom that is joined by a 5-fixture bath with a freestanding tub, toilet room, and a walk-in closet. Two family bedrooms complete the left side of the home and share a Jack-and-Jill bath.
  • The double garage extends at an angle and offers an overhead door to the backyard. A spacious mudroom greets you when entering, while a staircase guides you to the upstairs bonus room / bedroom.

What's Included

  • Cover page
  • Foundation plan
  • Floor Plan
  • Elevations
  • Section View
  • Construction details
  • Electrical Layout
  • Roof Plan (if needed)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,700 sq. ft.

1st Floor

3,118 sq. ft.

2nd Floor

582 sq. ft.

Porch, Rear

691 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

116' 11"

Depth

81' 1"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

1037 sq. ft.

Count

3 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

16 on 12

Framing Type

Stick And Truss

Architectural Style

European

French Country

Special Features

Angled Garage

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,700 sq. ft.

1st Floor

3,118 sq. ft.

2nd Floor

582 sq. ft.

Porch, Rear

691 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

116' 11"

Depth

81' 1"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

1037 sq. ft.

Count

3 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

16 on 12

Framing Type

Stick And Truss

Architectural Style

European

French Country

Special Features

Angled Garage

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Exclusive
