Plan 48535FM Exclusive French Country House Plan With Exercise Cabana

5,267 4 4.5 2 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive French Country House Plan With Exercise Cabana

Plan 48535FM

  • 5,267

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Loaded with high end features, this luxury French Country house plan boasts a wine closet, an exercise cabana, lots of built-ins and an in-law apartment over the two car garage.
  • There's even a windowless safe room off the garage for stormy weather.
  • In the gourmet kitchen, you get a huge island that adds lots of counter space and storage, in addition to the walk-in pantry.
  • The vaulted and beamed great room is a sight to behold and offers a wet bar for entertaining and a built-in media center.
  • The master suite is massive and features a tray ceiling, cozy fireplace and two spacious walk-in closets.
  • For the in-laws, there's a private apartment over the garage with its own deck and sitting area.
  • The kids have the second floor of the main house to themselves with a big rec room to let off steam.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan

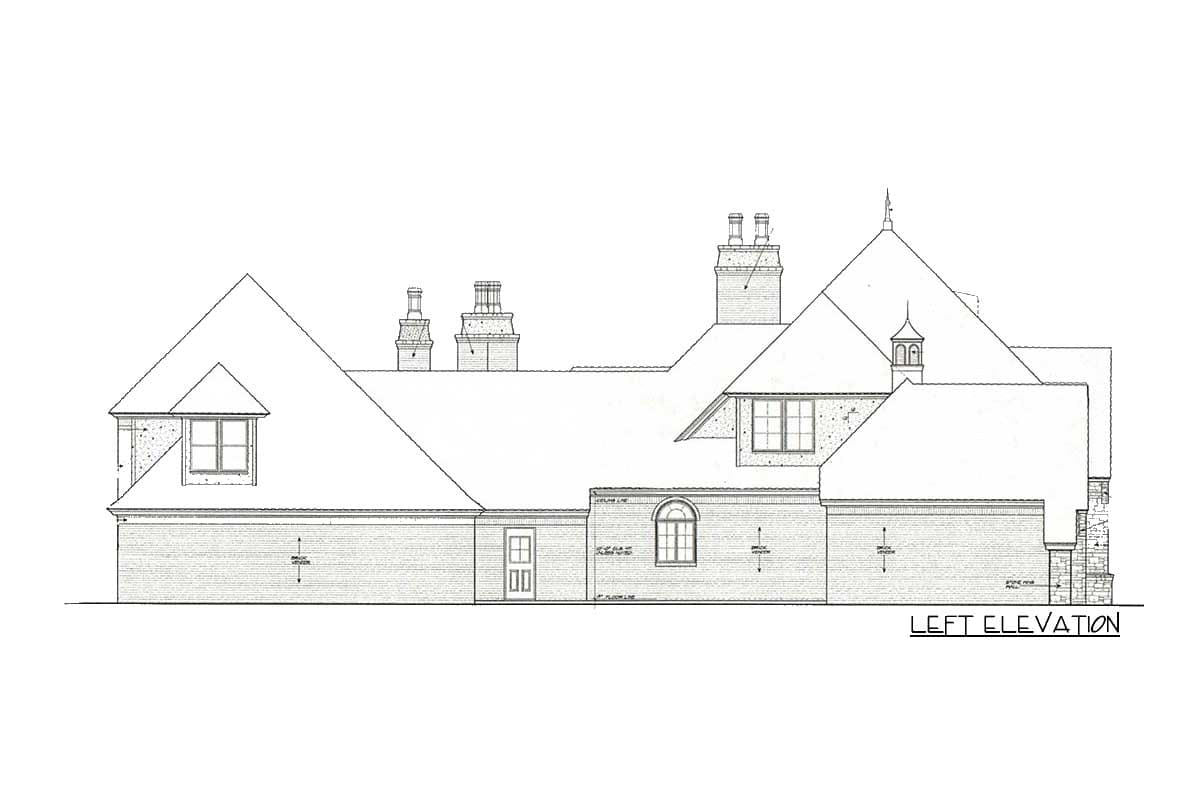

Front and Left Elevation

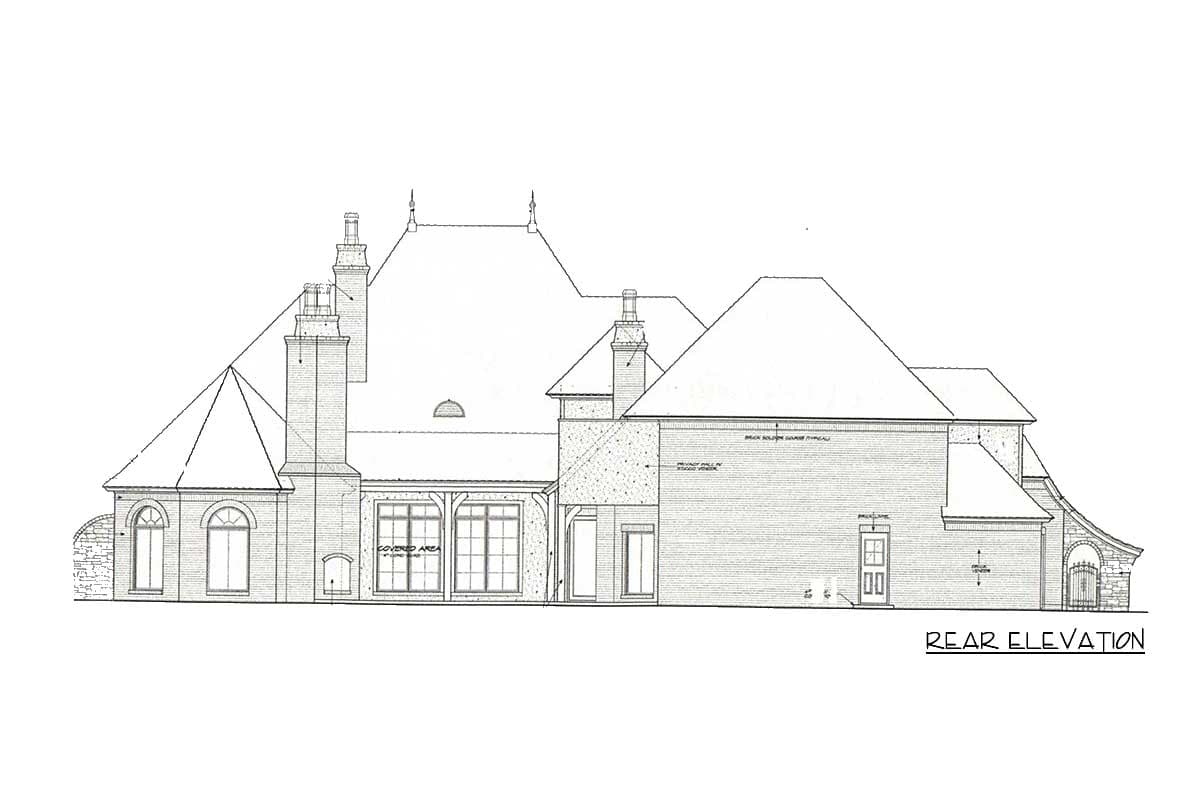

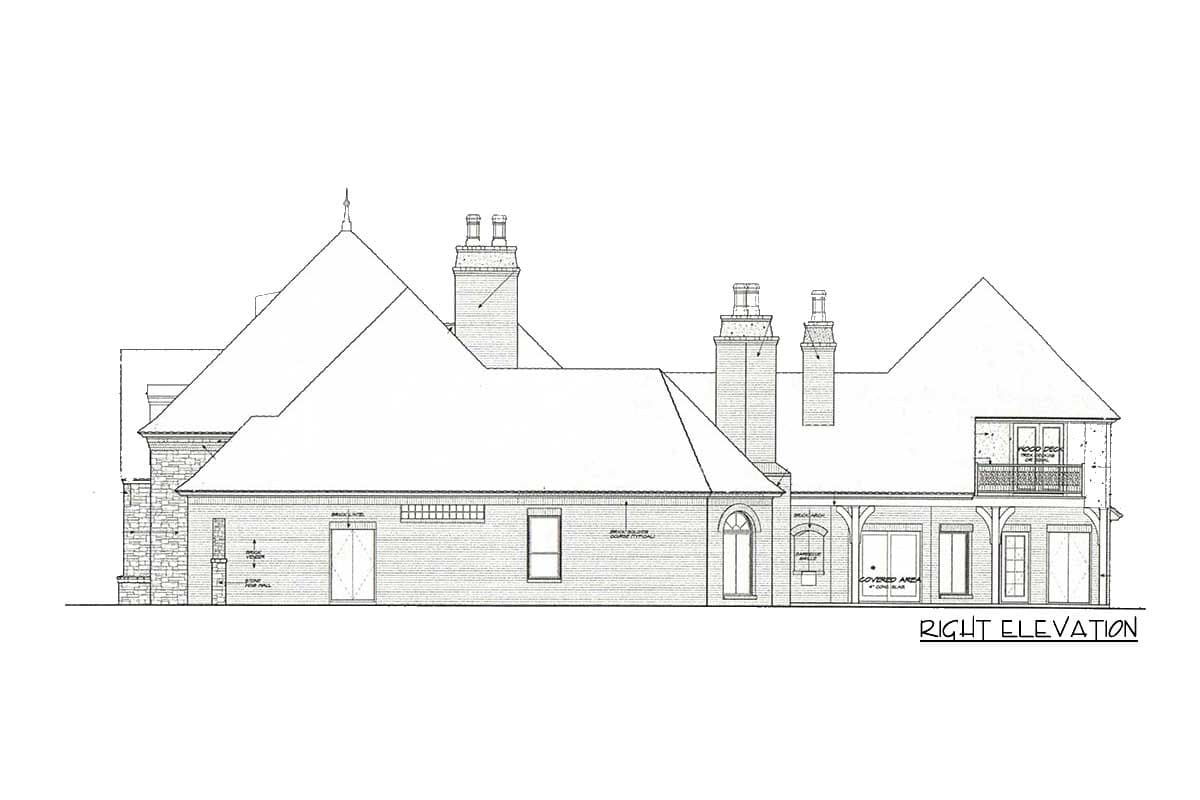

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

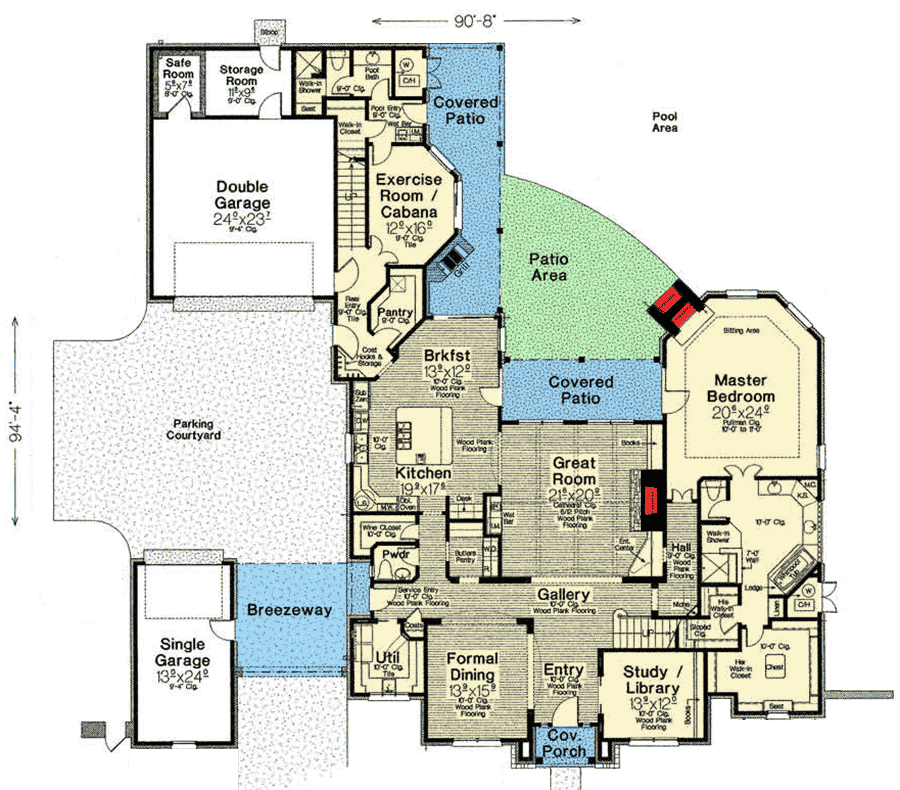

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive French Country House Plan With Exercise Cabana - 48535FM floor plan - Main Level

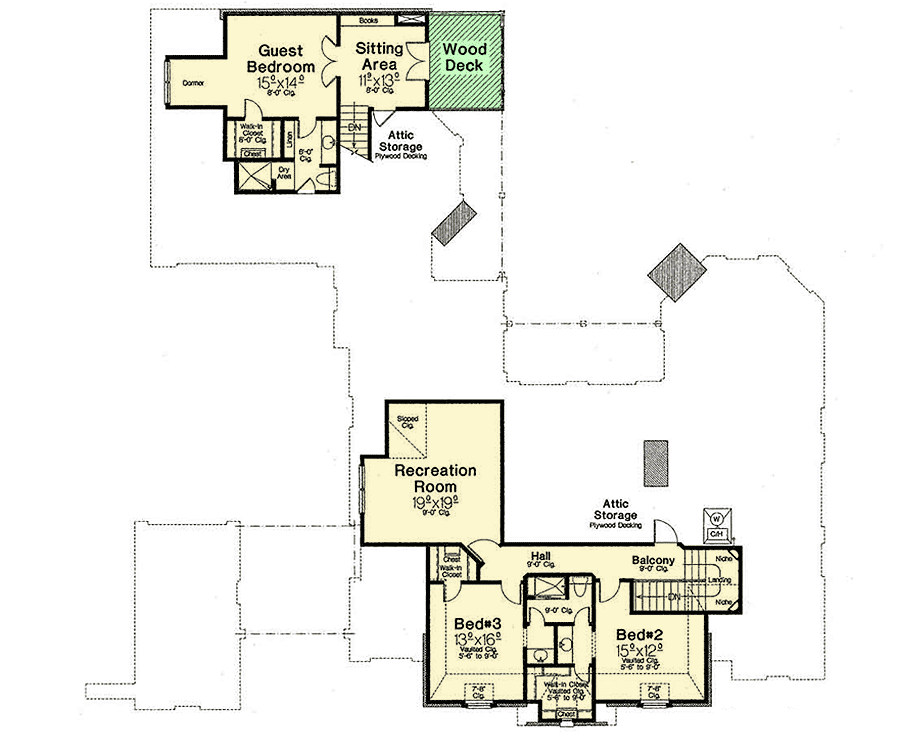

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive French Country House Plan With Exercise Cabana - 48535FM floor plan - Second Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,267 sq. ft.
  • 1st Floor: 3,623 sq. ft.
  • 2nd Floor: 1,644 sq. ft.
  • Covered Patio: 483 sq. ft.
  • Porch, Front: 38 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 90' 8"
  • Depth: 94' 4"
  • Max ridge height: 35' 6"

Garage

  • Type: Attached
  • Area: 1116 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 18 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Exclusive French Country House Plan With Exercise Cabana

  • 5,267

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $2,190
  • 8 Sets $2,330
  • PDF - Single-Build $2,480
  • PDF - Unlimited Build $2,980
  • CAD - Single-Build $3,961
  • CAD - Unlimited Build $4,961
  • View all purchase option online

About This Plan

  • Loaded with high end features, this luxury French Country house plan boasts a wine closet, an exercise cabana, lots of built-ins and an in-law apartment over the two car garage.
  • There's even a windowless safe room off the garage for stormy weather.
  • In the gourmet kitchen, you get a huge island that adds lots of counter space and storage, in addition to the walk-in pantry.
  • The vaulted and beamed great room is a sight to behold and offers a wet bar for entertaining and a built-in media center.
  • The master suite is massive and features a tray ceiling, cozy fireplace and two spacious walk-in closets.
  • For the in-laws, there's a private apartment over the garage with its own deck and sitting area.
  • The kids have the second floor of the main house to themselves with a big rec room to let off steam.

Floor Plans

  • Main Level

  • Second Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,267 sq. ft.
  • 1st Floor: 3,623 sq. ft.
  • 2nd Floor: 1,644 sq. ft.
  • Covered Patio: 483 sq. ft.
  • Porch, Front: 38 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 90' 8"
  • Depth: 94' 4"
  • Max ridge height: 35' 6"

Garage

  • Type: Attached
  • Area: 1116 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 18 on 12
  • Framing Type: Stick
Plan 48535FM
