Plan 67117GL
Exclusive Luxury Home Plan
Heated S.F.
4,798
Beds
3
Baths
3.5
Stories
1
Cars
3
What's Included
Plan Details
  • This magnificent home plan, designed for entertaining in style, is available exclusively through Architectural Designs.
  • As soon as you step into the barrel vaulted foyer, you are greeted with wide open spaces.
  • The formal dining room with coffered ceiling is large enough for all your dinner parties and family holidays with easy access to the wine grotto.
  • A vaulted cathedral ceiling towers over the main salon with its fireplace and bow window.
  • The highlight of the kitchen is the massive island with its unusual shape that give you plenty of work and eating space.
  • When you want to entertain outdoors, you need only step right off the huge family room to enter the casita with its summer kitchen and vaulted ceiling.
  • Guest bedroom 3 could easily function as an in-law suite where you can keep an eye on Mom or Dad.
  • A two-sided fireplace in the master suite allows a cozy fire to be enjoyed from either the master bedroom or the huge master bath.
  • Should you need extra space, use the residential elevator to enter an optional second floor space that is included with the blueprints.
What's Included
  • Cover sheet
  • Table of Contents
  • Exterior Elevations (noted and dimensioned)
  • Floor Plan(s) (noted and dimensioned)
  • Electrical Plan(s)
  • Framing Plan(s)
  • Joist Layout Plan(s),
  • Foundation Footprint
  • At least one cross-section, and any other relevant details, including, but not limited to, a typical detail sheet showing common construction methods.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive Luxury Home Plan

  • 4,798

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

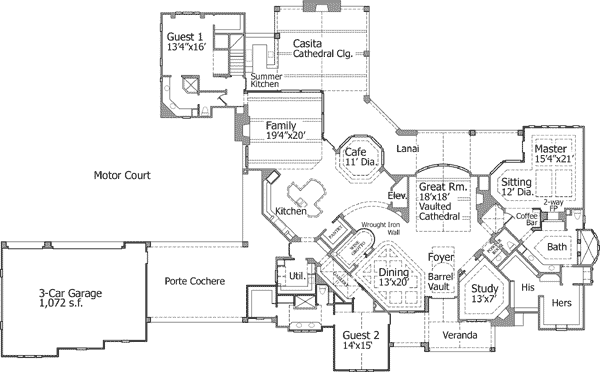

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 4,798 sq. ft.
  • 1st Floor: 4,798 sq. ft.

Dimensions

  • Width: 156' 0"
  • Depth: 96' 6"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1072 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
