Exclusive Micro Modern House Plan Open Floor Plan

Plan 85138MS

  • 640

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • This small modern home plan offers huge living in under 650 square feet.
  • The glass overhead door in the great room offers outdoor-in living at its best and on a budget.
  • The built in eating bar in the kitchen offers excellent dining and cooking flexibility.
  • The media wall in the great room holds all your electronics as well as having enough room for a large TV.
  • There is enough room for two gathering spaces or a large dining room table.
  • The master bedroom is completely outfitted with built in storage, closets and cabinets as well as a king sized bed. The bathroom is tucked privately around the corner. Bunk beds are tucked behind a barn-doored sleeping area.
  • Note the large covered outdoor living area out the back door.
  • All mechanicals are under the roof in its own mechanical room and the washer and dryer stack are located in the bathroom.
  • NOTICE:  Please allow 10-15 days for plan delivery.
  • Related Plans: Get alternate exteriors with house plans 85133MS, 85137MS and 85105MS (rotated 90 degrees) and 85136MS.

Each plan set is drawn to 1/4" scale and includes the following:

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

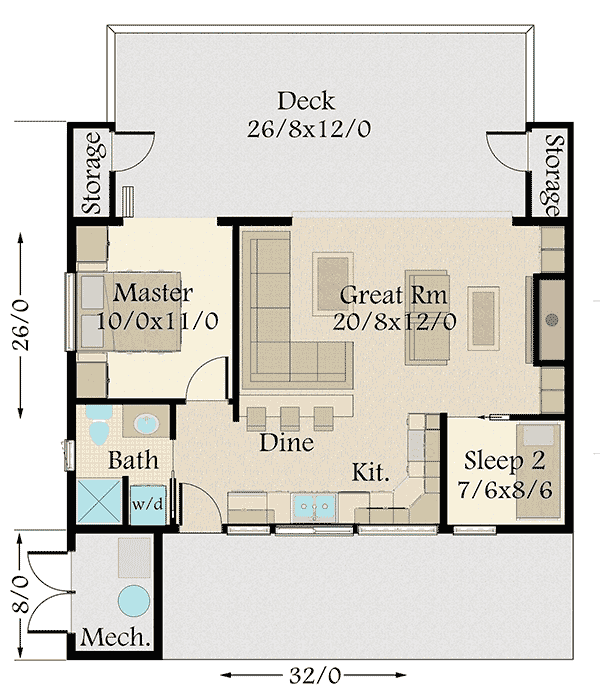

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive Micro Modern House Plan Open Floor Plan - 85138MS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 640 sq. ft.
  • 1st Floor: 640 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 20' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room Flat 11' 0"
Kitchen Flat 11' 0"
Dining Room Flat 11' 0"

Roof Details

  • Primary Pitch: 0.5 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Exclusive Micro Modern House Plan Open Floor Plan

  • 640

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $900
  • 6 Sets + PDF $1,100
  • CAD + PDF - Single-Build $1,750
  • View all purchase option online

About This Plan

  • This small modern home plan offers huge living in under 650 square feet.
  • The glass overhead door in the great room offers outdoor-in living at its best and on a budget.
  • The built in eating bar in the kitchen offers excellent dining and cooking flexibility.
  • The media wall in the great room holds all your electronics as well as having enough room for a large TV.
  • There is enough room for two gathering spaces or a large dining room table.
  • The master bedroom is completely outfitted with built in storage, closets and cabinets as well as a king sized bed. The bathroom is tucked privately around the corner. Bunk beds are tucked behind a barn-doored sleeping area.
  • Note the large covered outdoor living area out the back door.
  • All mechanicals are under the roof in its own mechanical room and the washer and dryer stack are located in the bathroom.
  • NOTICE:  Please allow 10-15 days for plan delivery.
  • Related Plans: Get alternate exteriors with house plans 85133MS, 85137MS and 85105MS (rotated 90 degrees) and 85136MS.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 640 sq. ft.
  • 1st Floor: 640 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 20' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 0.5 on 12
  • Framing Type: Stick And Truss
Plan 85138MS
View this and more for this plan by visiting www.architechtecturaldesigns.com/85138MS
|
Need Help? 800-854-7852
|
Plan 85138MS
