Plan 510215WDY Exclusive Modern Farmhouse with Deluxe Master Suite

Exclusive Modern Farmhouse with Deluxe Master Suite

Plan 510215WDY

  • 3,724

    Heated s.f.

  • 4-5

    Beds

  • 3.5 - 4.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • With over 3,700 square feet of living space, this exclusive Modern Farmhouse highlights a central living space that overlooks the back, screened porch.
  • Move easily between the living room and gourmet kitchen, where a large island hosts an eating bar. The work-at-home resident will appreciate the generous home office, located behind barn doors just off the living room.
  • Retreat to the master suite and discover a double-sided fireplace that serves a lounge area, as well as the bedroom. His and hers closets line the hallway that leads to the 5-fixture ensuite.
  • Three secondary bedrooms occupy the right side of the home, and a bonus room above the garage lends a versatile space that can be updated as your needs change (NOTE: the bonus space adds 450 square feet to the total living area when finished as designed).
  • Step inside from the garage to find the walk-in pantry, making grocery unloading a breeze, and the nearby mudroom allows you to get situated when coming or going.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

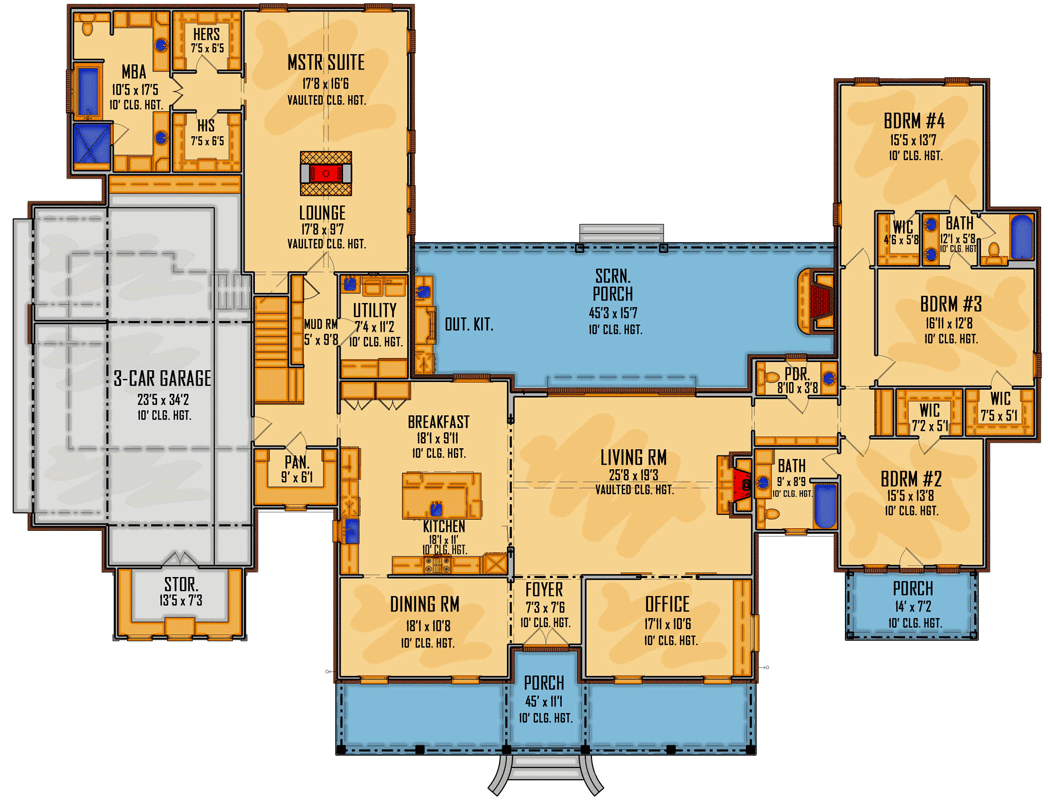

Exclusive Modern Farmhouse with Deluxe Master Suite - 510215WDY floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

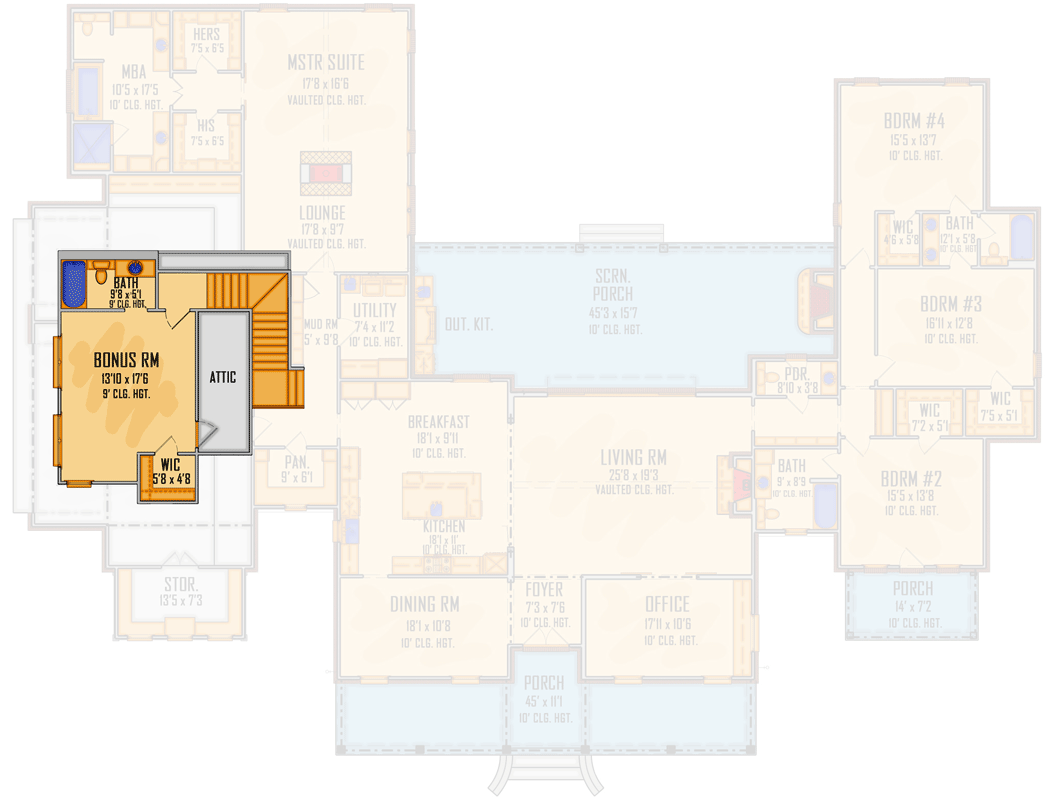

Exclusive Modern Farmhouse with Deluxe Master Suite - 510215WDY floor plan - 2nd Floor

Plan details

Exclusive Modern Farmhouse with Deluxe Master Suite

  • 3,724

    Heated s.f.

  • 4 - 5

    Beds

  • 4 +

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,200
  • PDF - Unlimited Build $1,500
  • 5 Sets + PDF $1,750
  • CAD + PDF - Unlimited Build $2,980
  • View all purchase option online

About This Plan

  • With over 3,700 square feet of living space, this exclusive Modern Farmhouse highlights a central living space that overlooks the back, screened porch.
  • Move easily between the living room and gourmet kitchen, where a large island hosts an eating bar. The work-at-home resident will appreciate the generous home office, located behind barn doors just off the living room.
  • Retreat to the master suite and discover a double-sided fireplace that serves a lounge area, as well as the bedroom. His and hers closets line the hallway that leads to the 5-fixture ensuite.
  • Three secondary bedrooms occupy the right side of the home, and a bonus room above the garage lends a versatile space that can be updated as your needs change (NOTE: the bonus space adds 450 square feet to the total living area when finished as designed).
  • Step inside from the garage to find the walk-in pantry, making grocery unloading a breeze, and the nearby mudroom allows you to get situated when coming or going.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,724 sq. ft.
  • 1st Floor: 3,724 sq. ft.
  • Porch, Combined: 1,144 sq. ft.
  • Bonus: 450 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 109' 4"
  • Depth: 80' 11"
  • Max ridge height: 33' 6"

Garage

  • Type: Attached
  • Area: 1042 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
