Plan 64512SC Exclusive Mountain Craftsman Home Plan with Walk-out Lower Level

Exclusive Mountain Craftsman Home Plan with Walk-out Lower Level

Plan 64512SC

  • 3,067

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • The exposed truss and beams on the front porch beautifully combine with the stone and shake exterior to create this exclusive, Mountain Craftsman home plan.
  • Double doors welcome you inside, where the living room opens into the kitchen and dining area. A vaulted ceiling spans the length of the living room and carries onto the rear covered deck.
  • An angled island hosts an eating bar and double-bowl sink, while a second prep island maximizes workspace in the kitchen.
  • The master suite occupies the left wing of the main level, and features its own octagonal foyer, a sitting area, and 5-fixture ensuite. A second bedroom on this level provides a private space for guests.
  • Enter from the angled, 3-car garage to find a spacious mudroom with a staircase that leads to a 622 sq ft bonus room above the garage (included in total living area).
  • Enjoy entertaining with the optional lower, which features a large recreation room with a wet bar and attached game room, access to a covered patio with a built-bar BBQ and fireplace, two bedrooms, a theater, and excess storage.

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

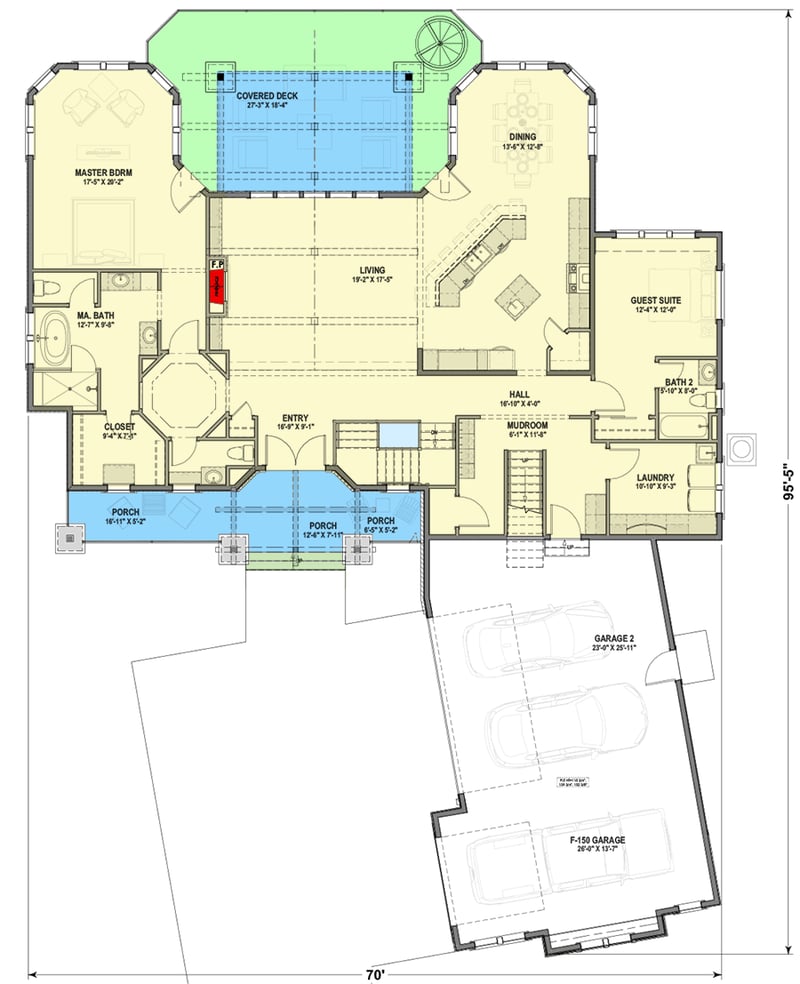

Exclusive Mountain Craftsman Home Plan with Walk-out Lower Level - 64512SC floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

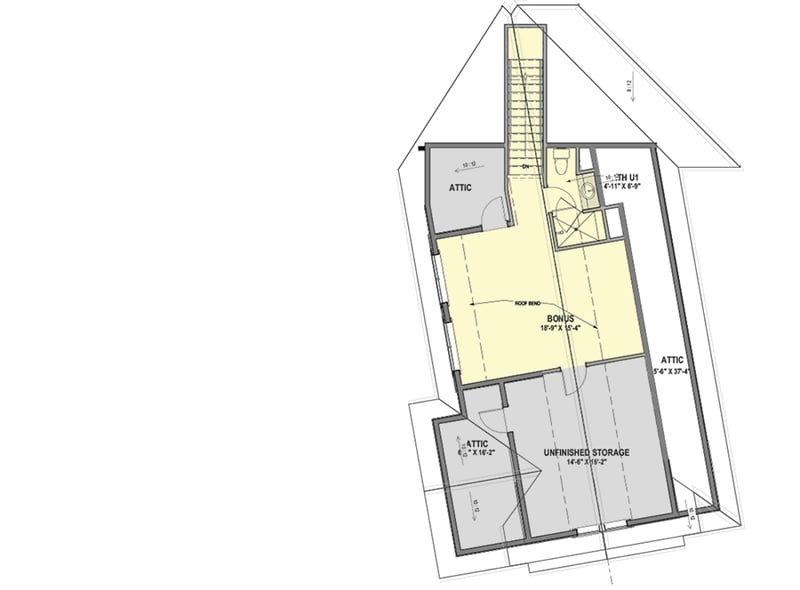

Exclusive Mountain Craftsman Home Plan with Walk-out Lower Level - 64512SC floor plan - 2nd Floor

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

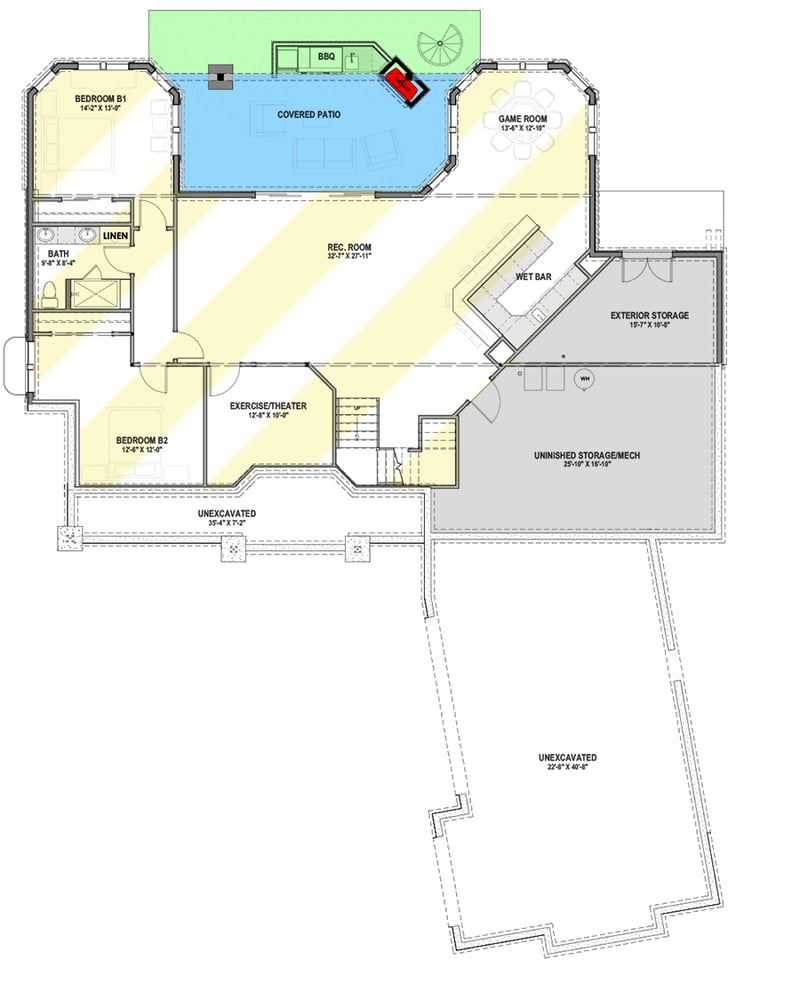

Exclusive Mountain Craftsman Home Plan with Walk-out Lower Level - 64512SC floor plan - Optional Lower Level

Plan details



Exclusive Mountain Craftsman Home Plan with Walk-out Lower Level

  • 3,067

    Heated s.f.

  • 2 - 4

    Beds

  • 3 +

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,395
  • PDF - Unlimited Build $1,695
  • CAD - Single-Build $1,895
  • CAD - Unlimited Build $2,395
  • View all purchase option online

About This Plan

  • The exposed truss and beams on the front porch beautifully combine with the stone and shake exterior to create this exclusive, Mountain Craftsman home plan.
  • Double doors welcome you inside, where the living room opens into the kitchen and dining area. A vaulted ceiling spans the length of the living room and carries onto the rear covered deck.
  • An angled island hosts an eating bar and double-bowl sink, while a second prep island maximizes workspace in the kitchen.
  • The master suite occupies the left wing of the main level, and features its own octagonal foyer, a sitting area, and 5-fixture ensuite. A second bedroom on this level provides a private space for guests.
  • Enter from the angled, 3-car garage to find a spacious mudroom with a staircase that leads to a 622 sq ft bonus room above the garage (included in total living area).
  • Enjoy entertaining with the optional lower, which features a large recreation room with a wet bar and attached game room, access to a covered patio with a built-bar BBQ and fireplace, two bedrooms, a theater, and excess storage.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,067 sq. ft.
  • 1st Floor: 3,067 sq. ft.
  • 2nd Floor: 622 sq. ft.
  • Covered Patio: 539 sq. ft.
  • Porch, Rear: 517 sq. ft.
  • Porch, Front: 224 sq. ft.
  • Optional Lower Level: 1,852 sq. ft.
  • Basement Unfinished: 655 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, & 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 95' 5"
  • Max ridge height: 24' 6"

Garage

  • Type: Attached
  • Area: 1014 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
