Exclusive New American Craftsman Home with Optional Finished Basement

Plan 365019PED

  • 3,156

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • The stunning and soothing exterior of this New American Craftsman home plan boasts timber-framed gables and stone accents.
  • Upon entering, you will find a vaulted ceiling above the combined entry, great room, kitchen, and sitting room. A large island anchors the kitchen and the adjacent pantry provides ample storage space.
  • The dining and sitting rooms offer access to a rear patio in order to enjoy your meals inside or outdoors.
  • The master bedroom occupies the left side of the main floor, alongside a craft room that is accessible from the master closet.
  • Three bedrooms and a pocket office consume the second level, while an optional 1,246 sq ft finished basement provides future expansion possibilities with an additional bedroom, bathroom, and rec room.
  • A 2-car garage comes standard with the plans. It has a single 18' by 9' door in front and 10' ceilings in the parking area. Select the 4-car version from the Options menu if you need more vehicle space and get 1,403 square feet of garage space and a 94'-wide home.

Each plan set includes the following:

  • Cover sheet with general information
  • Detailed floor plans for each floor
  • Elevations for each side of the home
  • Roof plan
  • Building section and details
  • Electrical schematic plans for each floor
  • Foundation plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

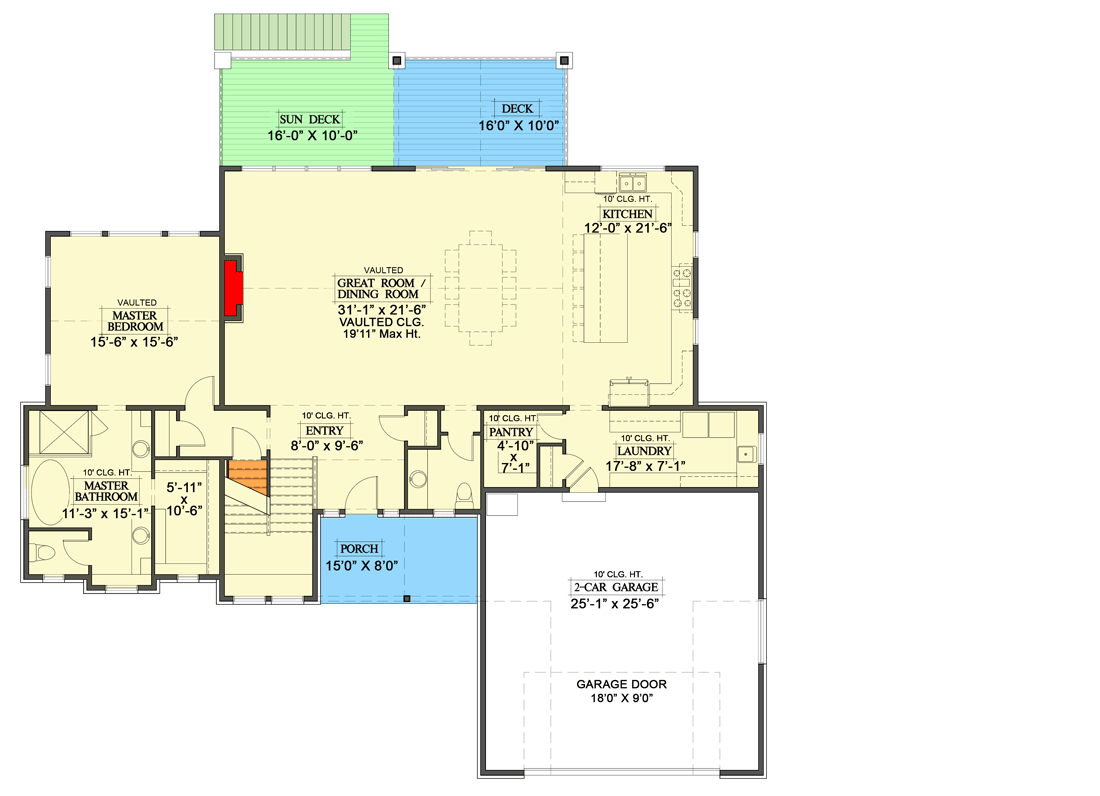

Exclusive New American Craftsman Home with Optional Finished Basement - 365019PED floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

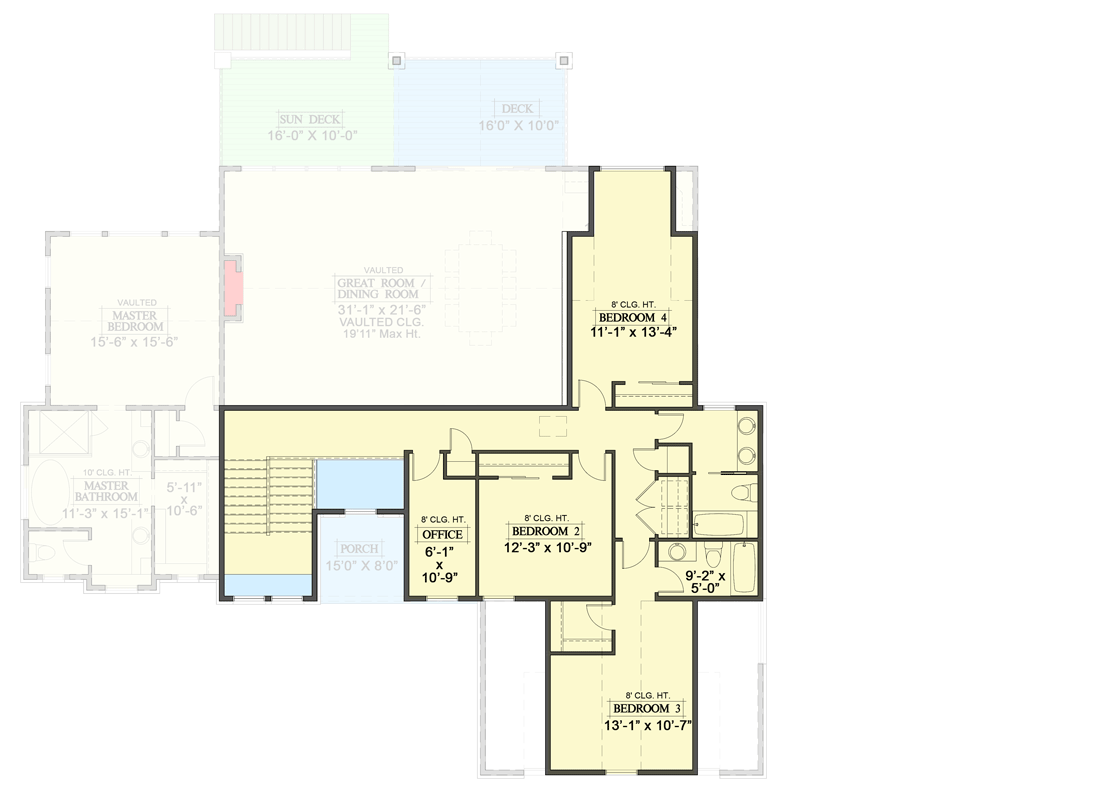

Exclusive New American Craftsman Home with Optional Finished Basement - 365019PED floor plan - 2nd Floor

Optionally Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

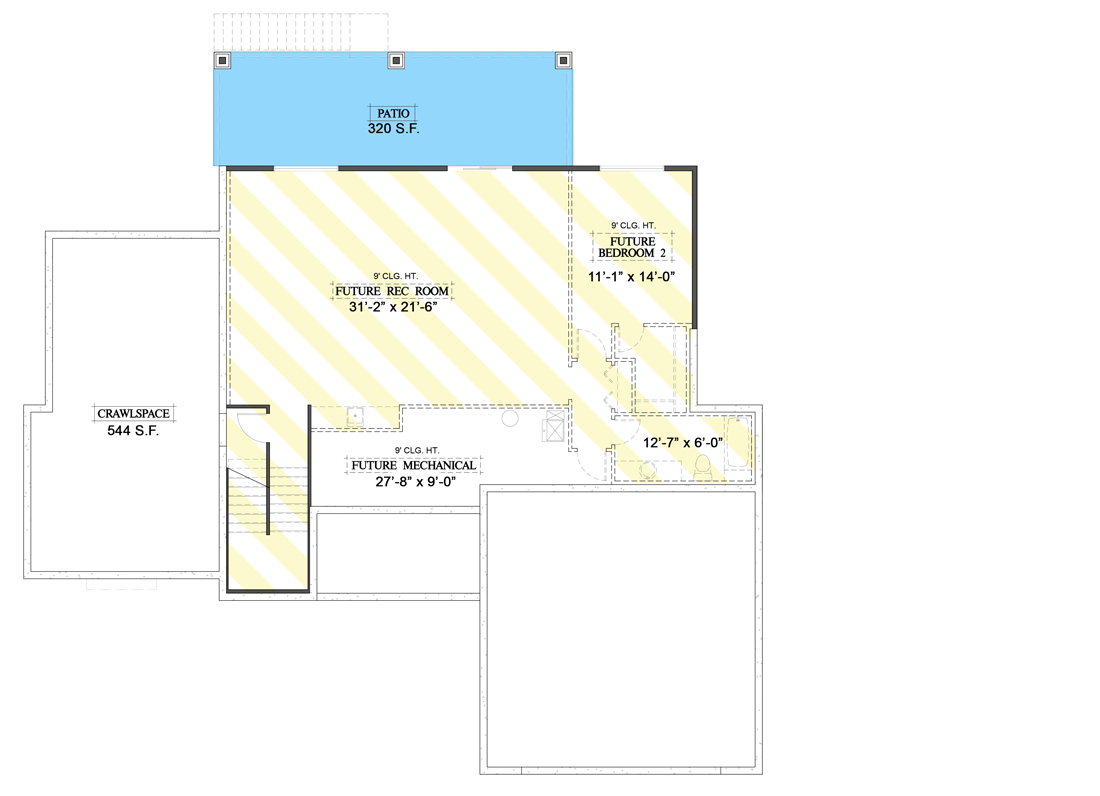

Exclusive New American Craftsman Home with Optional Finished Basement - 365019PED floor plan - Optionally Finished Lower Level

Main Level - 4-Car Garage Option (+$295)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive New American Craftsman Home with Optional Finished Basement - 365019PED floor plan - Main Level - 4-Car Garage Option (+$295)

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,156 sq. ft.
  • 1st Floor: 2,033 sq. ft.
  • 2nd Floor: 1,123 sq. ft.
  • Deck: 326 sq. ft.
  • Porch, Front: 120 sq. ft.
  • Optional Lower Level: 1,246 sq. ft.
  • Basement Unfinished: 1,466 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Walkout
  • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 68' 0"
  • Depth: 66' 0"
  • Max ridge height: 30' 4"

Garage

  • Area: 701 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Exclusive New American Craftsman Home with Optional Finished Basement

  • 3,156

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,797
  • CAD - Single-Build $2,597
  • View all purchase option online

About This Plan

  • The stunning and soothing exterior of this New American Craftsman home plan boasts timber-framed gables and stone accents.
  • Upon entering, you will find a vaulted ceiling above the combined entry, great room, kitchen, and sitting room. A large island anchors the kitchen and the adjacent pantry provides ample storage space.
  • The dining and sitting rooms offer access to a rear patio in order to enjoy your meals inside or outdoors.
  • The master bedroom occupies the left side of the main floor, alongside a craft room that is accessible from the master closet.
  • Three bedrooms and a pocket office consume the second level, while an optional 1,246 sq ft finished basement provides future expansion possibilities with an additional bedroom, bathroom, and rec room.
  • A 2-car garage comes standard with the plans. It has a single 18' by 9' door in front and 10' ceilings in the parking area. Select the 4-car version from the Options menu if you need more vehicle space and get 1,403 square feet of garage space and a 94'-wide home.
