Exclusive New American Home Plan with Home Office and Partially-screened Porch
Heated S.F.
3,315
Beds
4
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details
  • Brick and clapboard siding wrap the exterior of this exclusive, New American home plan, where the front door is protected by an elongated covered porch.
  • The spacious living room hosts a fireplace and french doors that lead to a partially-screened porch with an outdoor kitchen.
  • The gourmet kitchen provides loads of workspace, including a prep island in the center and a bar sink in the perimeter.
  • The master bedroom occupies the left side of the main level for the utmost privacy and boasts a 5-fixture bathroom with his and hers closets. A second bedroom in located near the 3-car garage.
  • Upstairs, bedroom suites 3 and 4 share a living room, a fun bonus space for the kids to enjoy.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

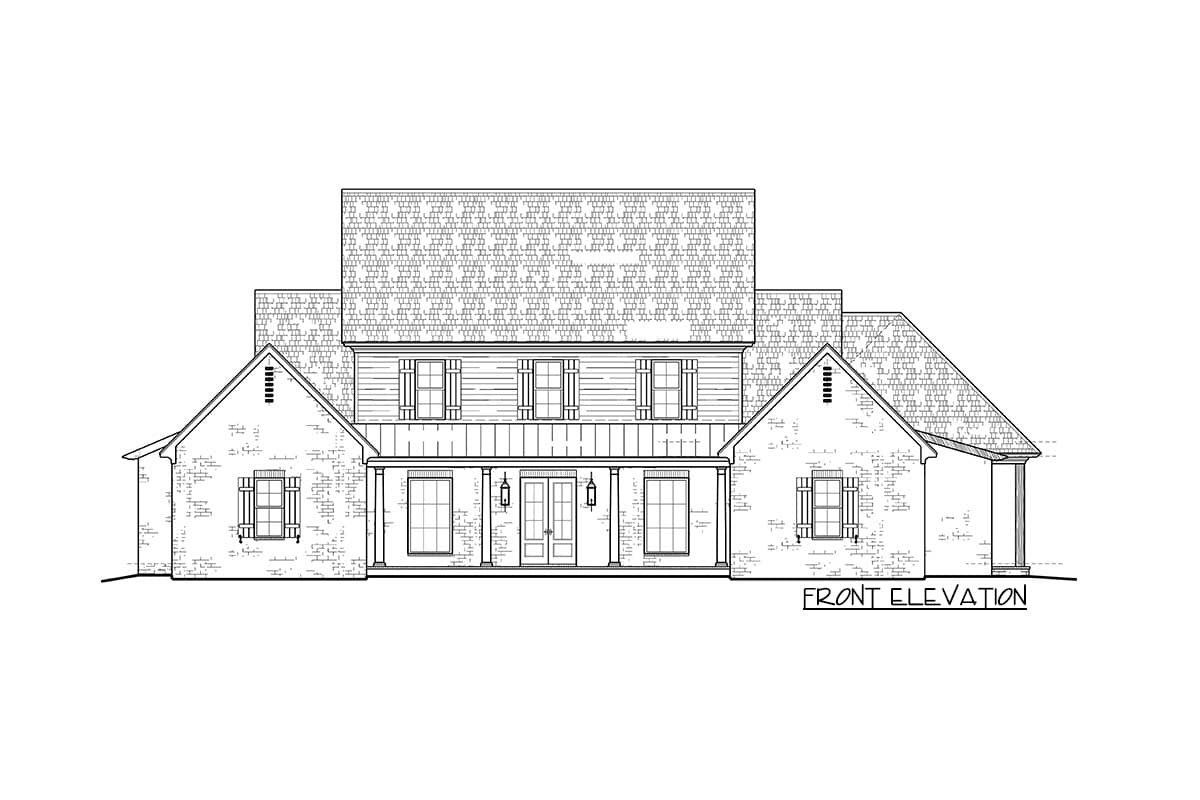

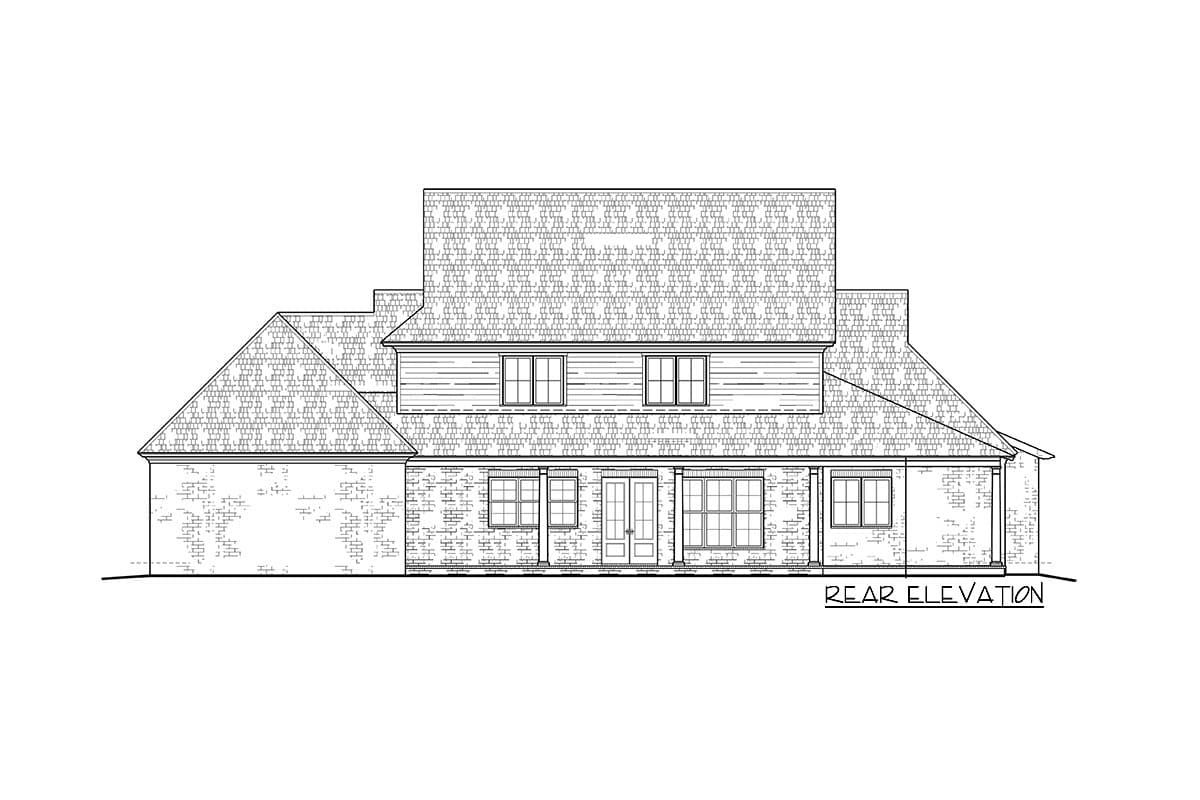

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive New American Home Plan with Home Office and Partially-screened Porch

  • 3,315

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

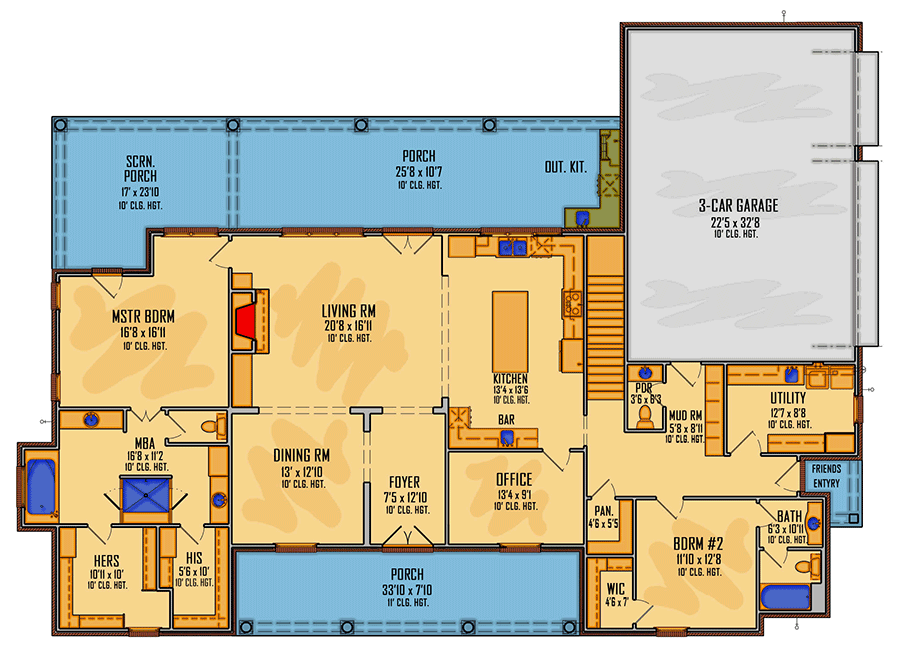

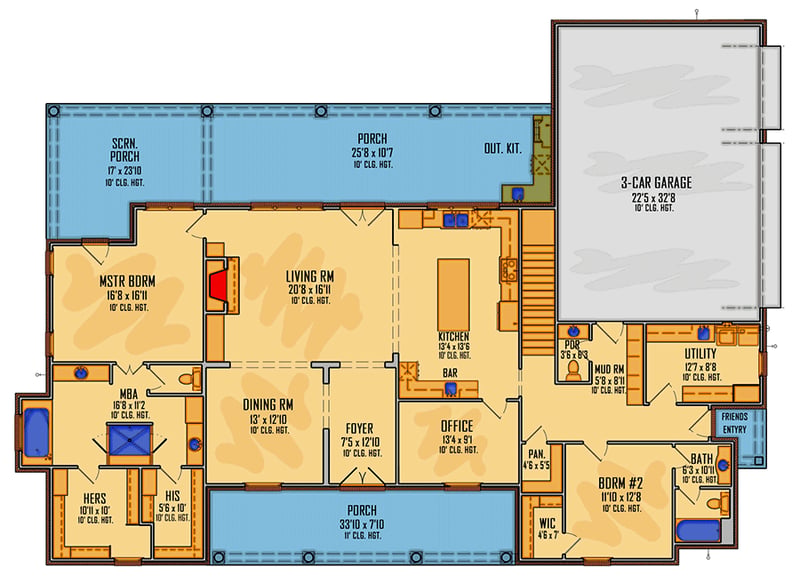

  • Main Level

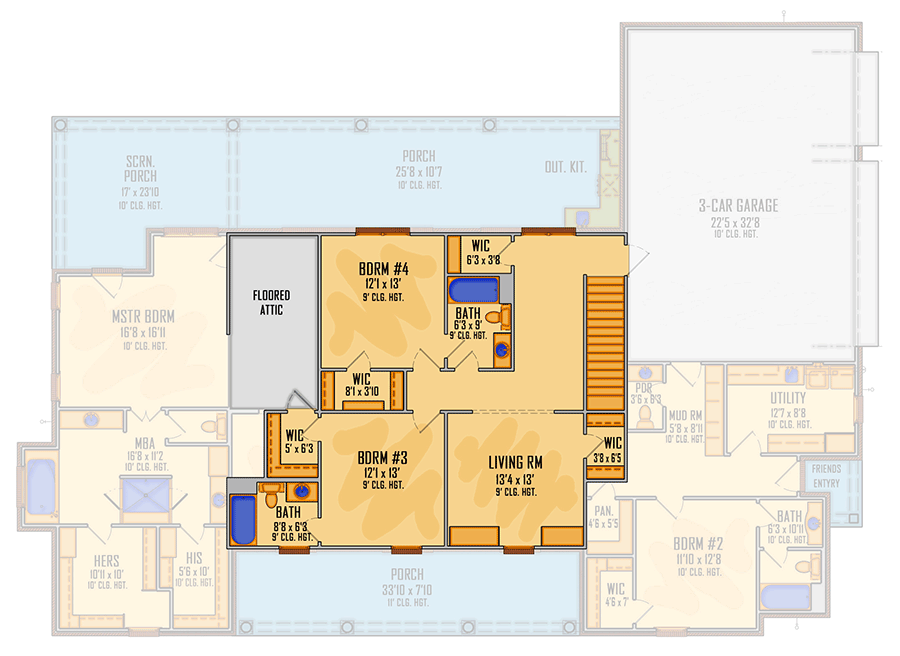

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,315 sq. ft.
  • 1st Floor: 2,431 sq. ft.
  • 2nd Floor: 791 sq. ft.

Dimensions

  • Width: 83' 2"
  • Depth: 60' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 764 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 12 on 12
