Plan 915042CHP Exclusive New American Home Plan with Split Bedrooms

2,615 3 3.5 1-2 2
1 Client
Album watch
video Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive New American Home Plan with Split Bedrooms

Plan 915042CHP

  • 2,615

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

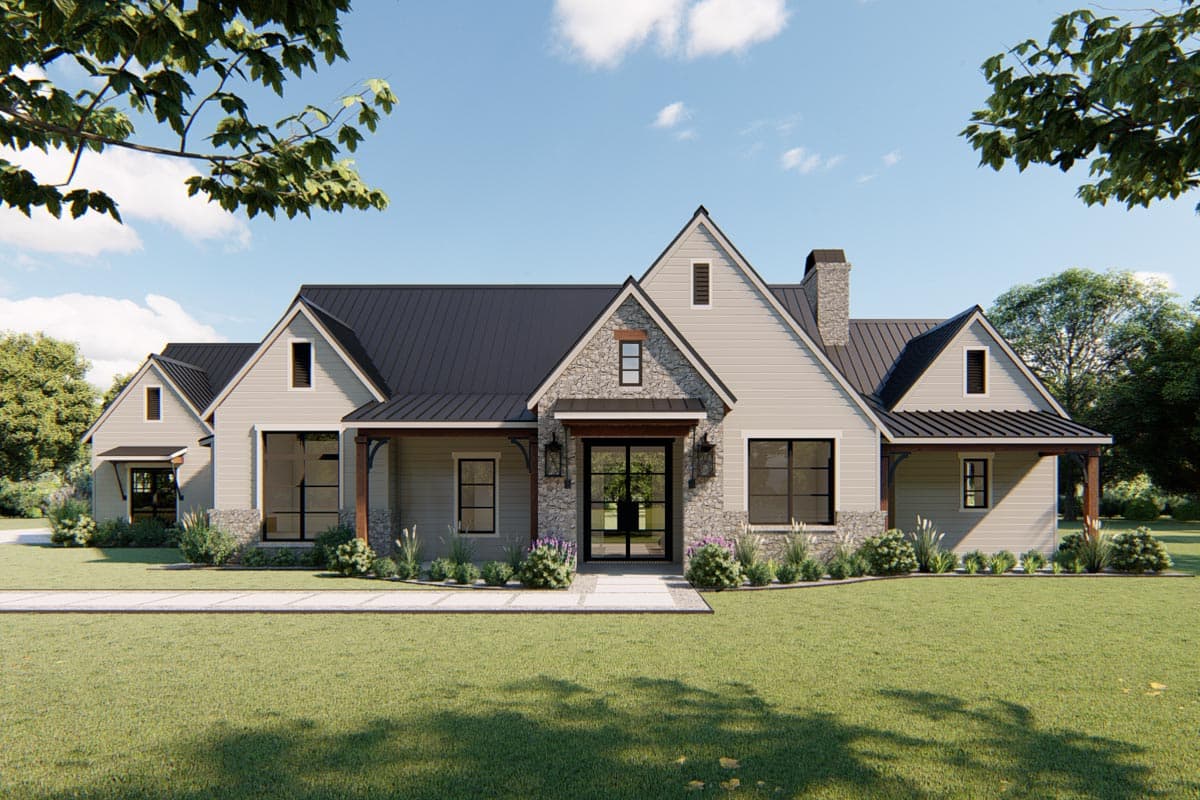

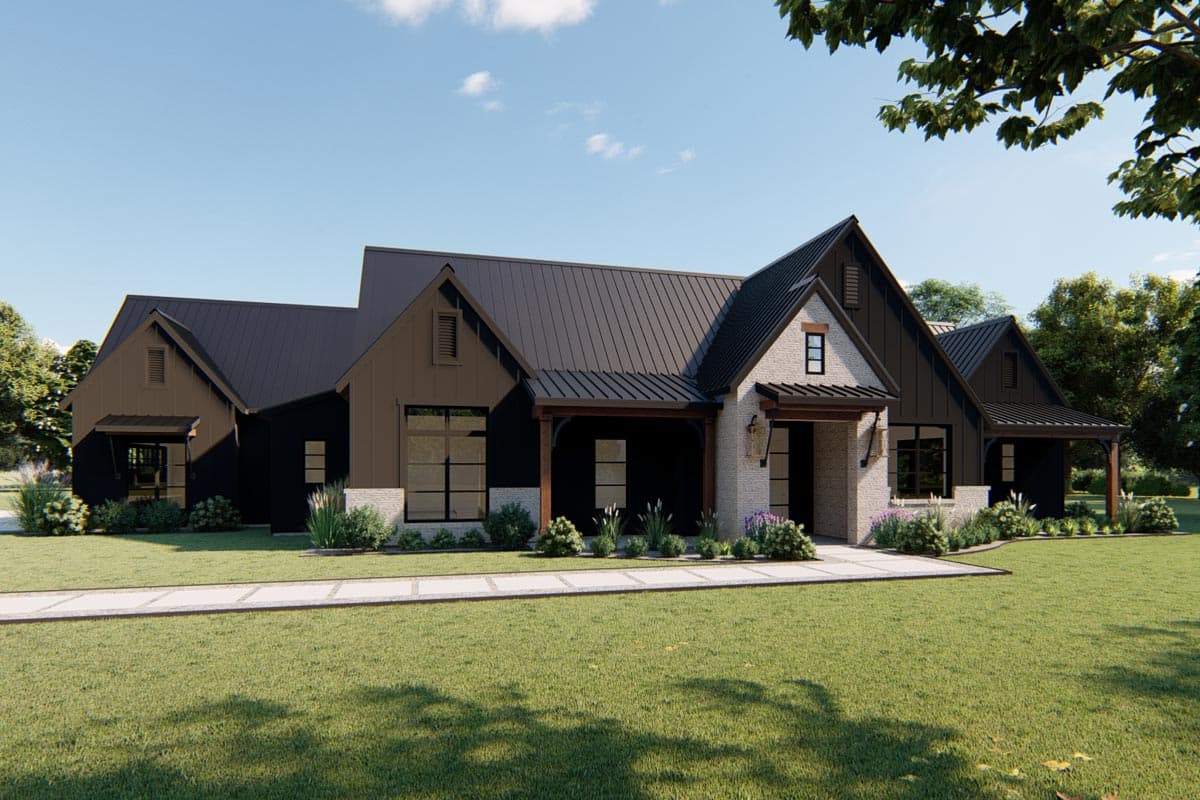

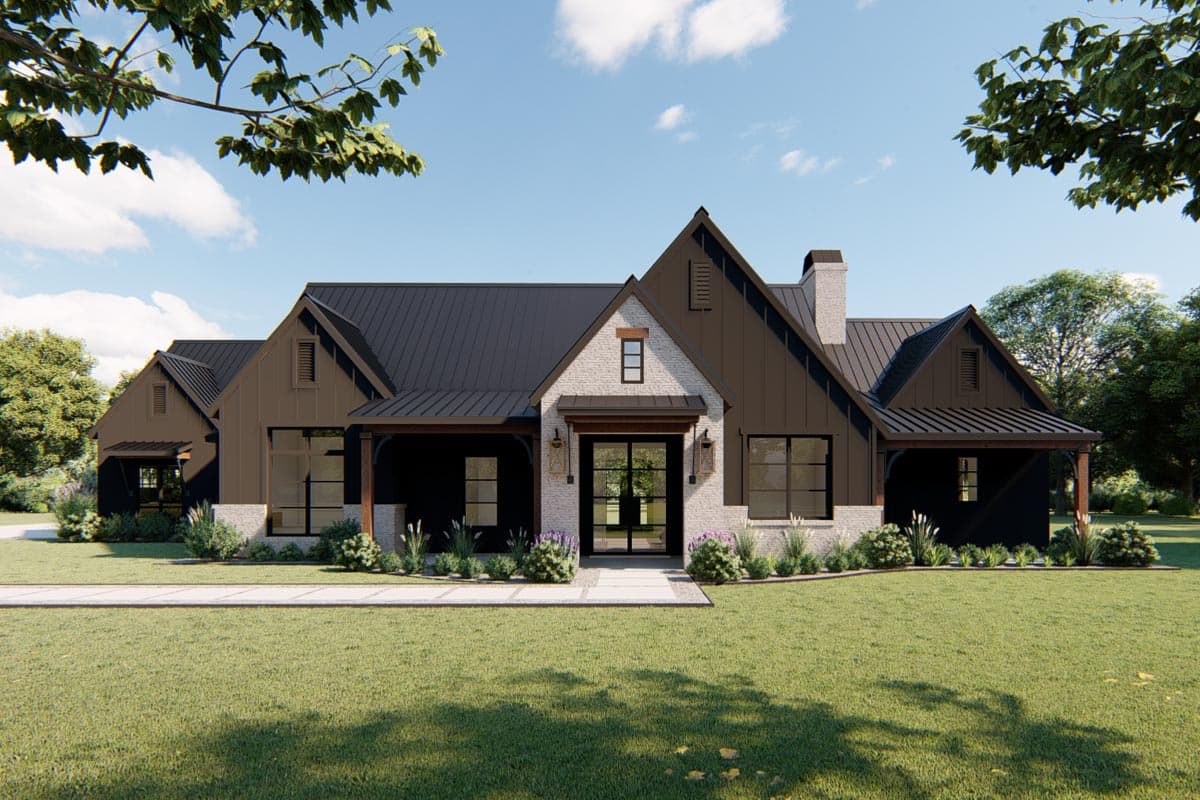

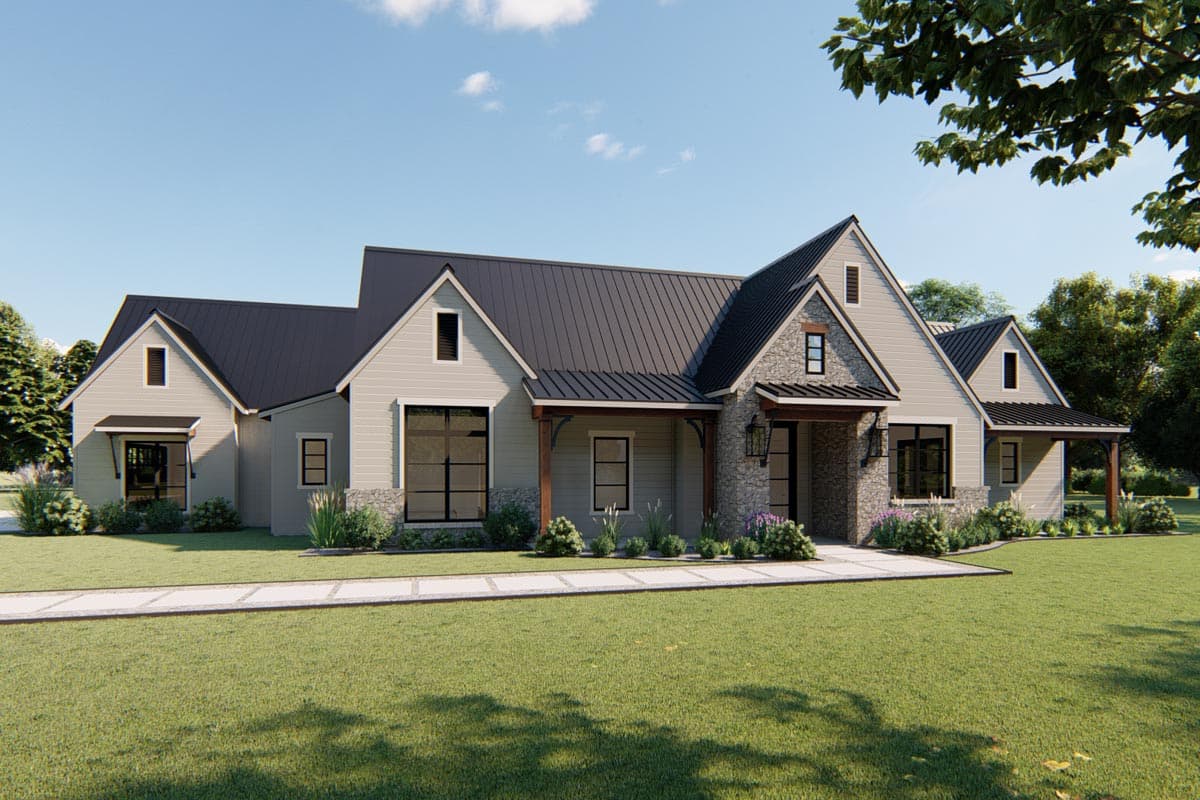

  • Steeply pitched gables mimic a mountainous landscape on this exclusive, New American home plan, which features a light and airy open-concept floor plan in the center of the design.
  • From the entry, a coat closet is located across the foyer from a quiet study, which includes access to a secluded porch.

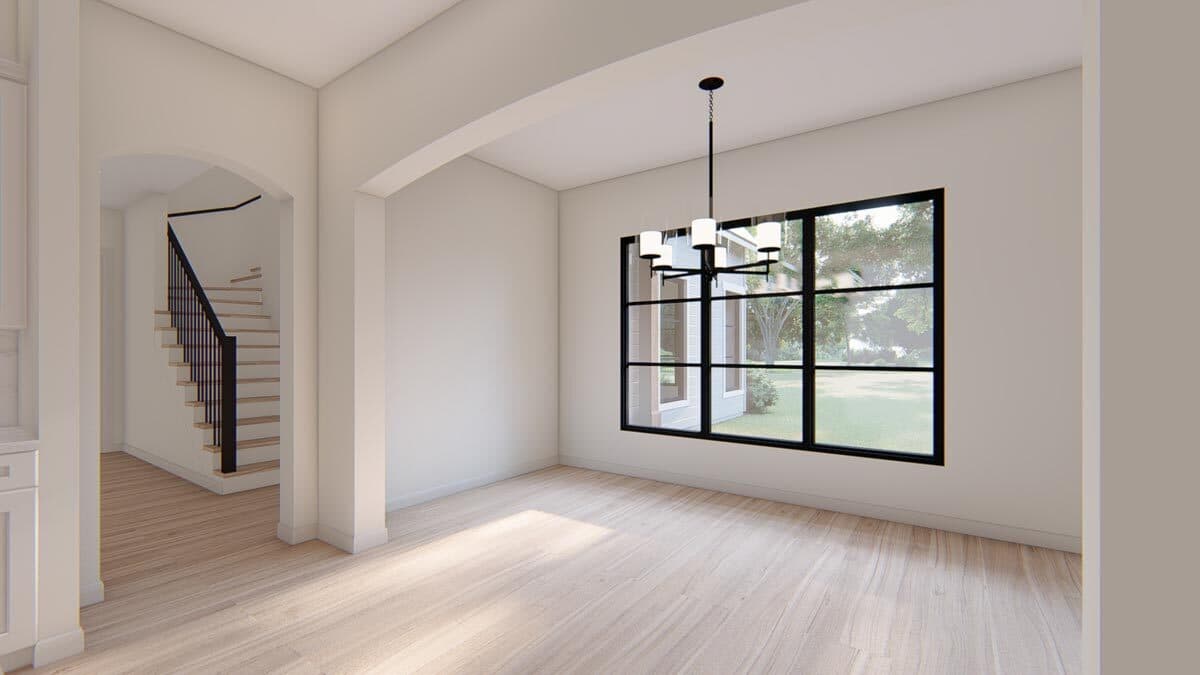

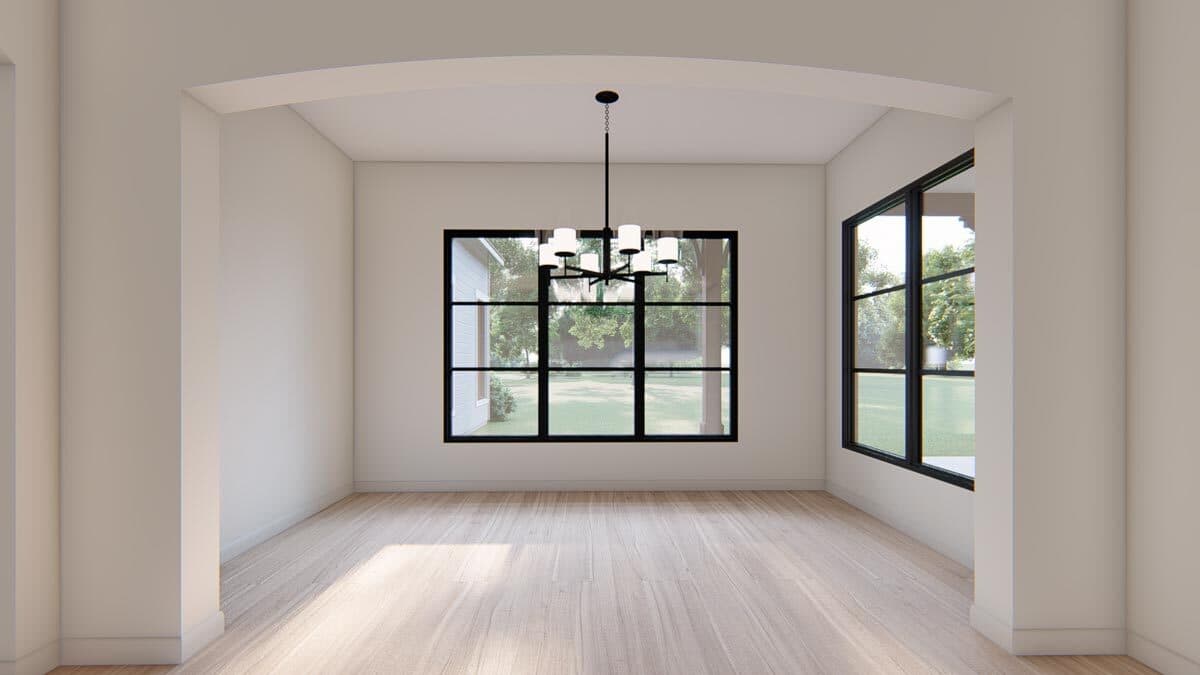

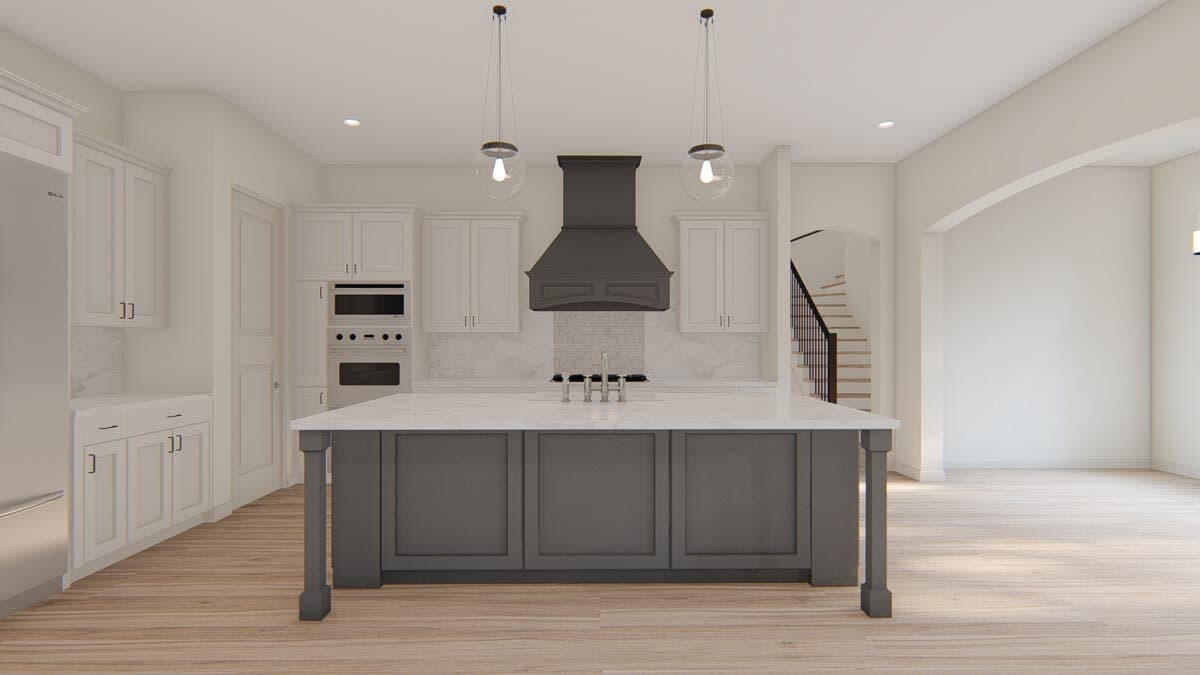

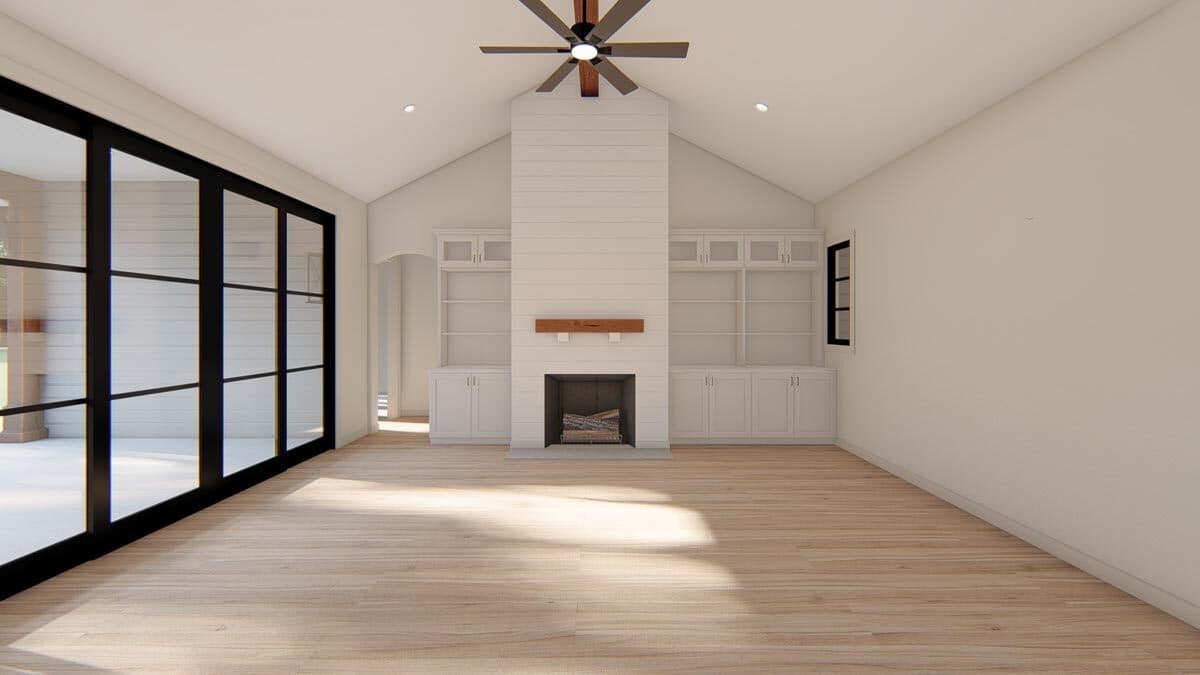

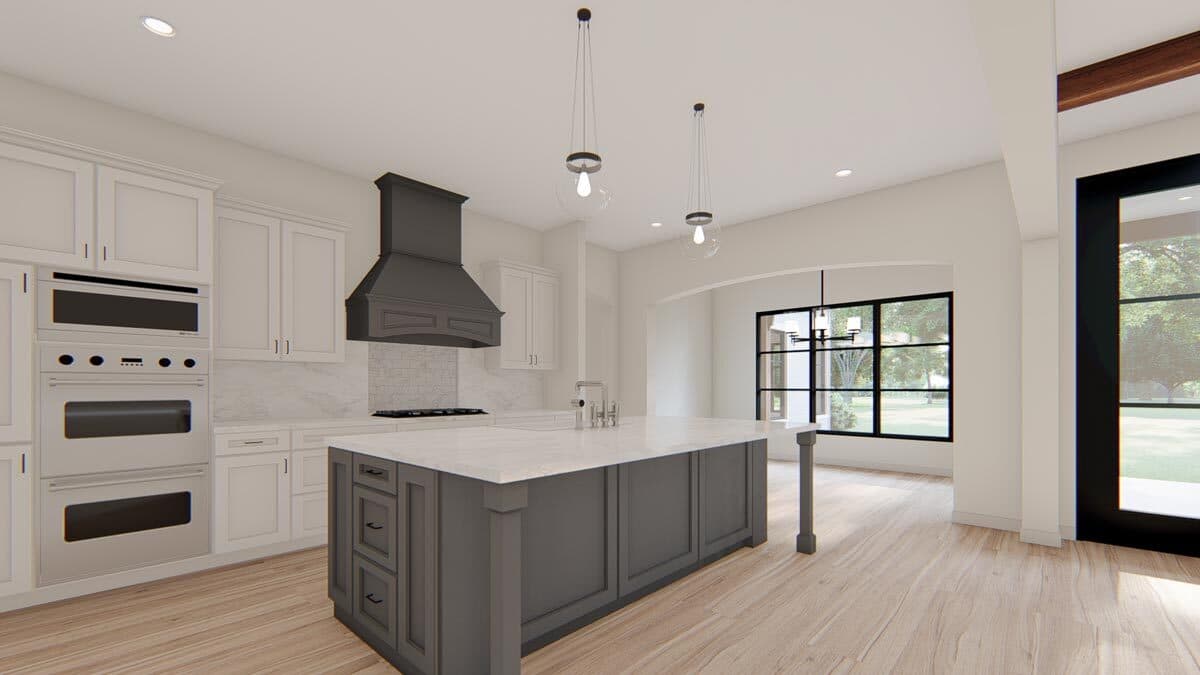

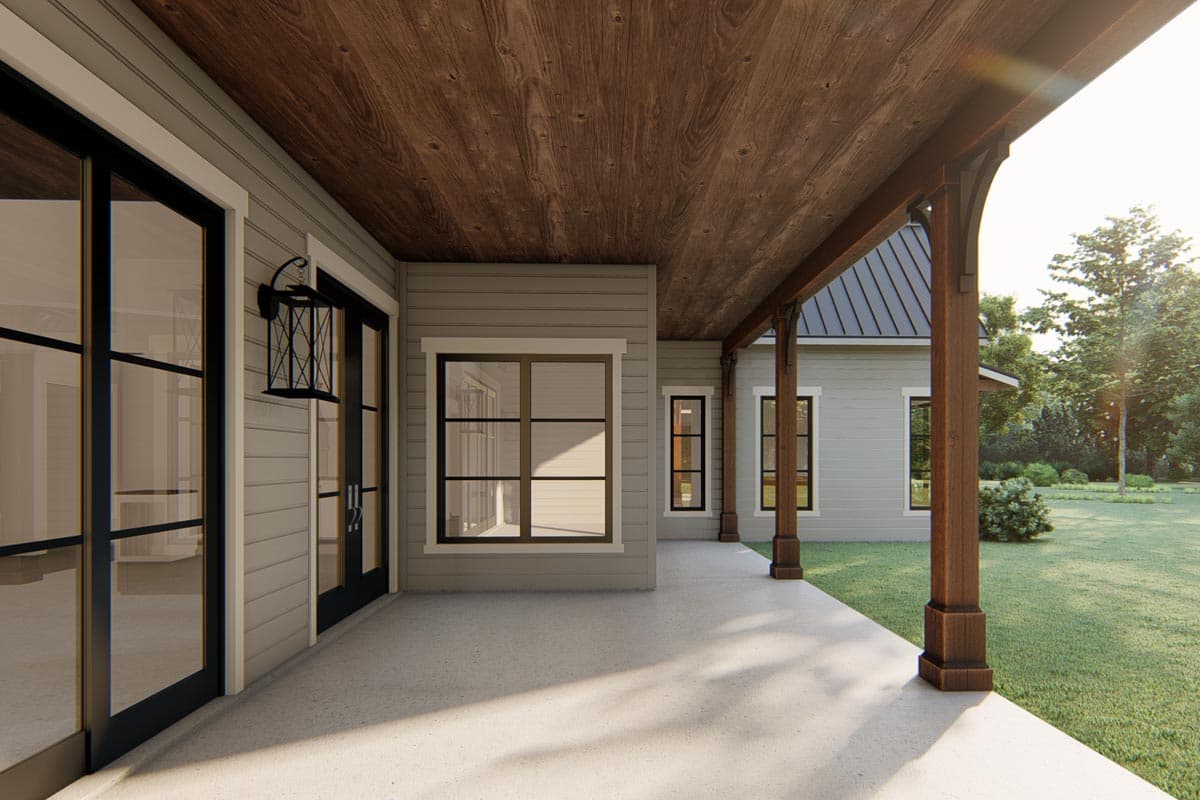

  • Oversized sliding doors in the great room allow for a smooth transition between the indoor and outdoor living spaces. The attached kitchen includes a large island with an eating bar and a sizable pantry, and a nearby dining nook is surrounded by windows that overlook the back porch.

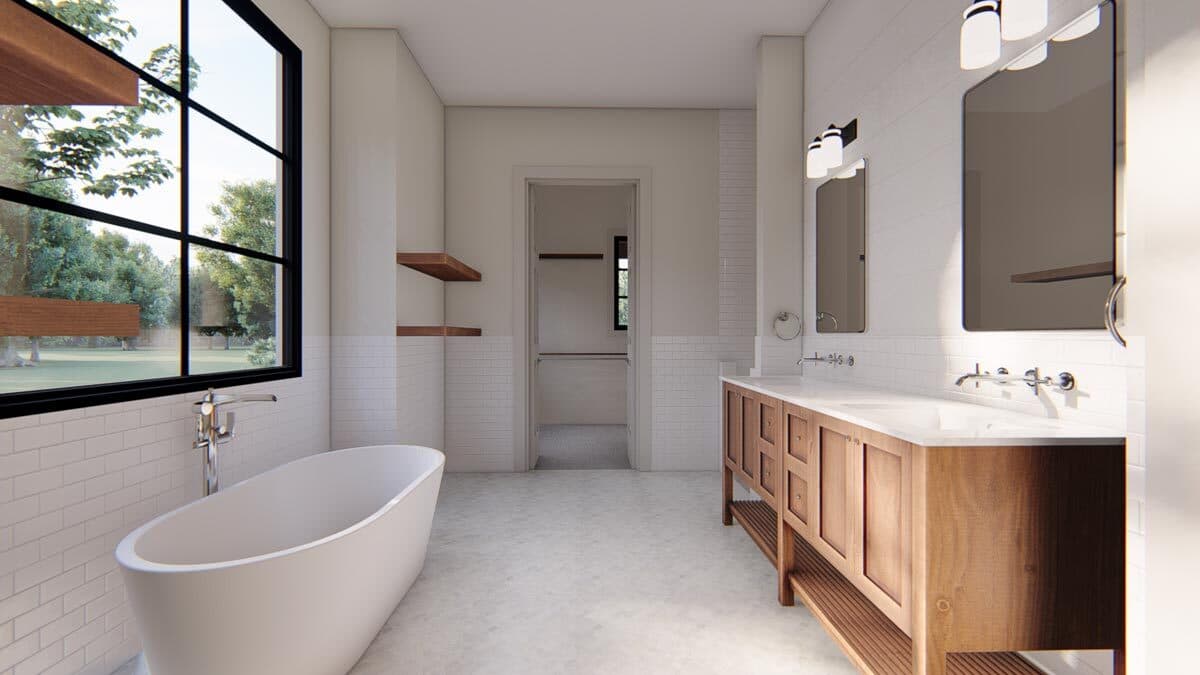

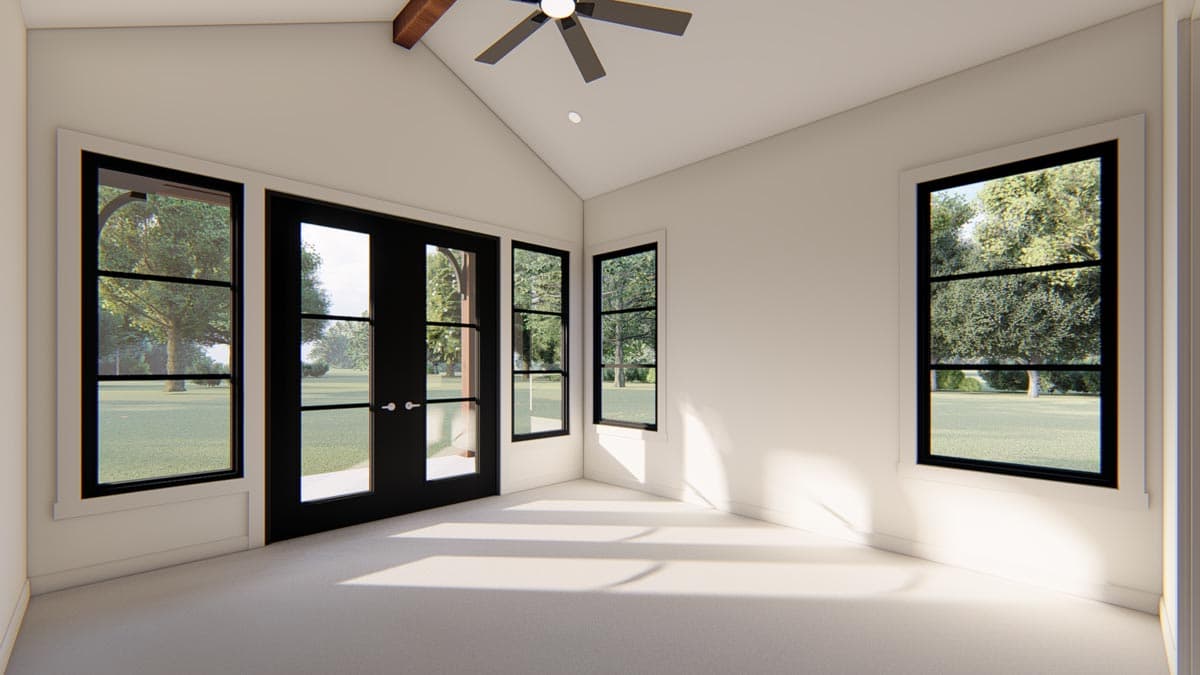

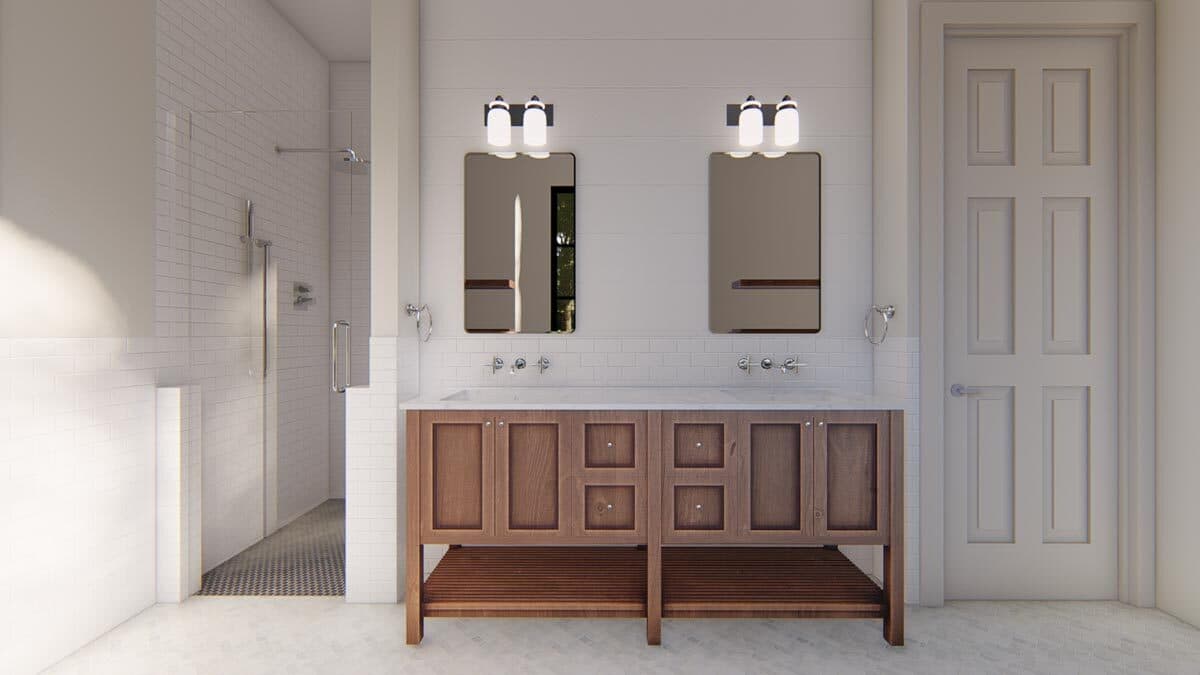

  • French doors line the rear wall of the master suite, and lead to a private porch. The spacious en suite boasts a standalone tub, two sinks, and a roomy closet.
  • Two additional bedroom suites reside on the opposite side of the home, separated by a staircase that leads to a bonus room above the 2-car garage.

This house plan has 11 pages and includes the following elements:

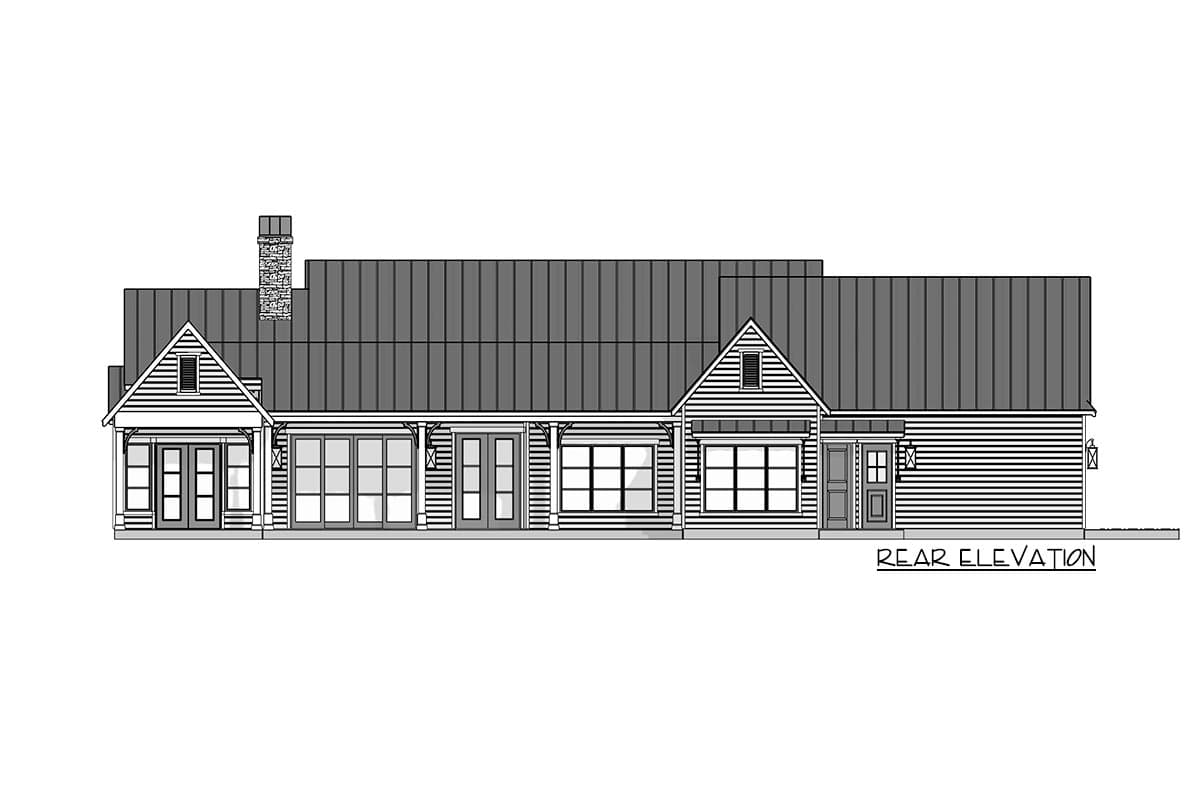

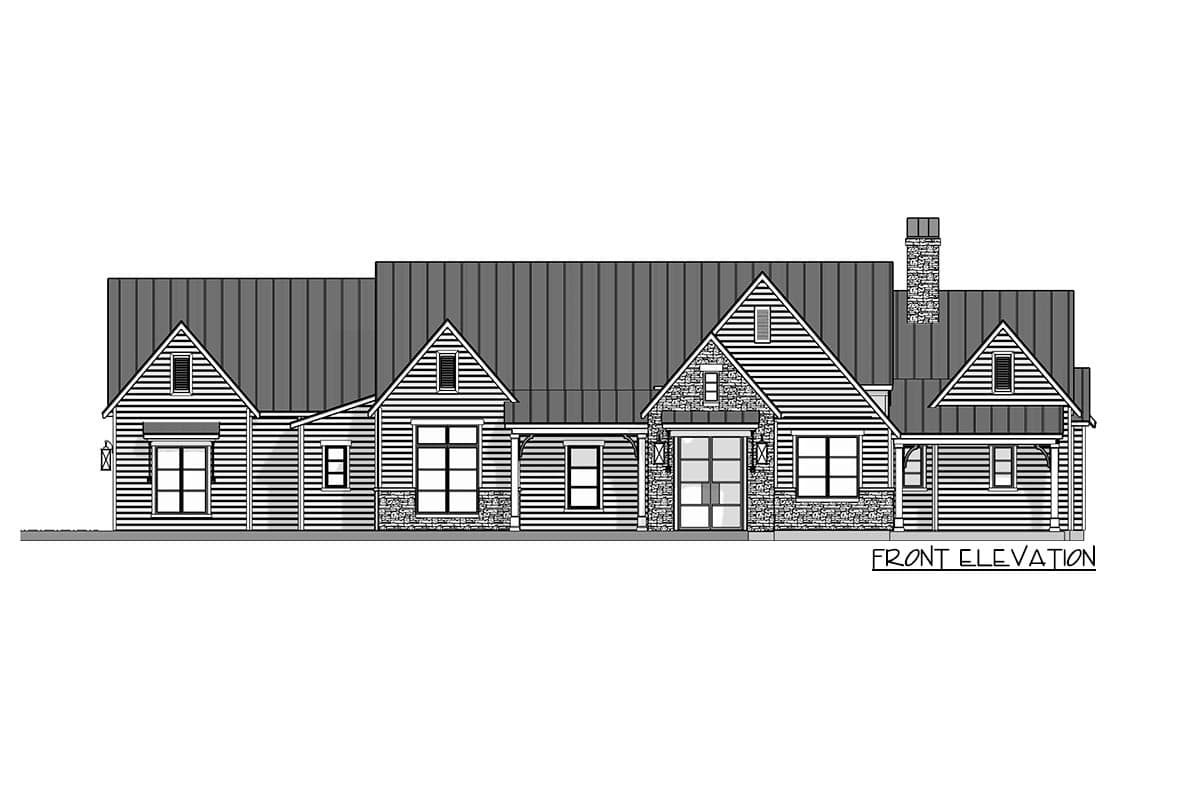

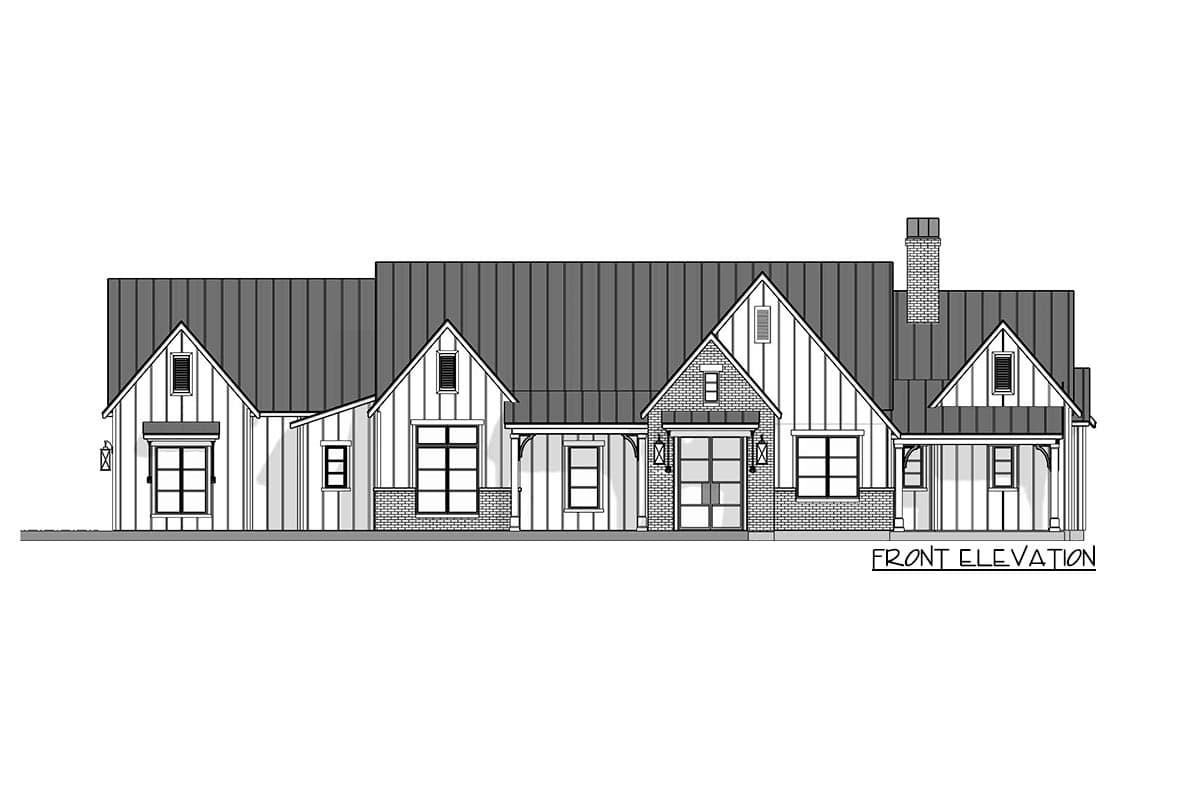

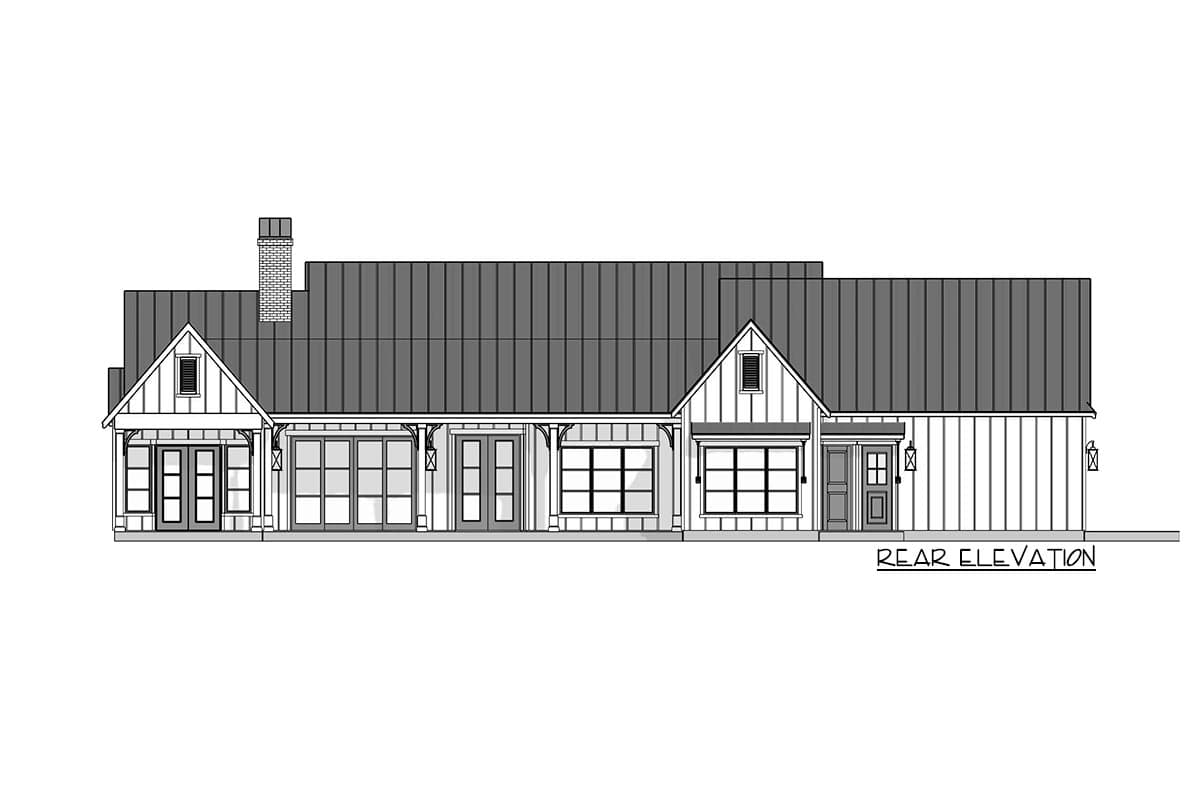

  • All four elevations
  • Detailed floor plans
  • Roof plans
  • Foundation plans
  • Electrical schematics
  • Cross section(s)
  • Rafter plan and ceiling joist plans
  • Interior elevations
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

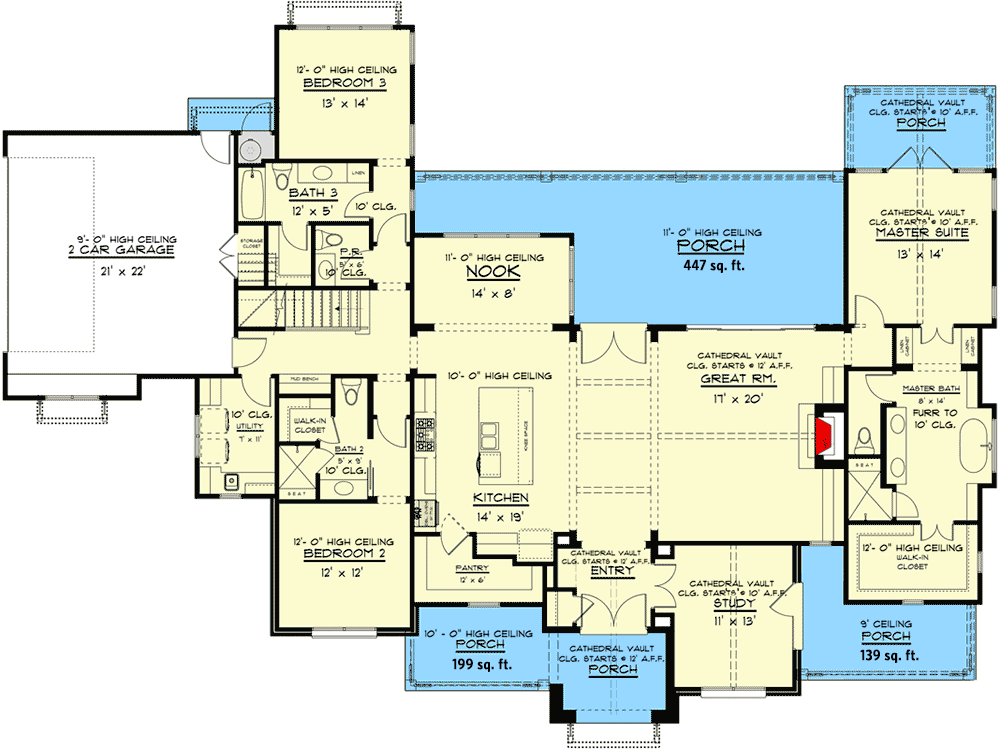

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive New American Home Plan with Split Bedrooms - 915042CHP floor plan - Main Level

Optionally Finished Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

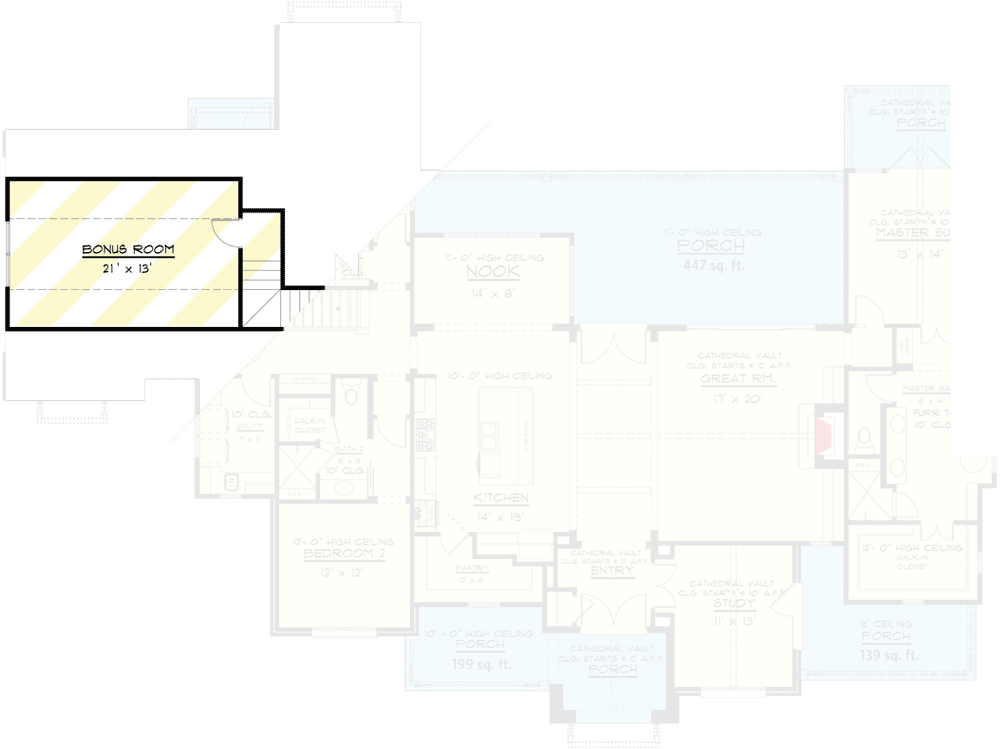

Exclusive New American Home Plan with Split Bedrooms - 915042CHP floor plan - Optionally Finished Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,615 sq. ft.
  • 1st Floor: 2,615 sq. ft.
  • Porch, Rear: 447 sq. ft.
  • Porch, Front: 199 sq. ft.
  • Bonus: 281 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 92' 0"
  • Depth: 64' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 587 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Bonus 9' 0"

Roof Details

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Exclusive New American Home Plan with Split Bedrooms

  • 2,615

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets $1,445
  • 5 Sets + PDF $1,545
  • CAD+PDF - Single-Build $2,495
  • View all purchase option online

About This Plan

  • Steeply pitched gables mimic a mountainous landscape on this exclusive, New American home plan, which features a light and airy open-concept floor plan in the center of the design.
  • From the entry, a coat closet is located across the foyer from a quiet study, which includes access to a secluded porch.
  • Oversized sliding doors in the great room allow for a smooth transition between the indoor and outdoor living spaces. The attached kitchen includes a large island with an eating bar and a sizable pantry, and a nearby dining nook is surrounded by windows that overlook the back porch.
  • French doors line the rear wall of the master suite, and lead to a private porch. The spacious en suite boasts a standalone tub, two sinks, and a roomy closet.
  • Two additional bedroom suites reside on the opposite side of the home, separated by a staircase that leads to a bonus room above the 2-car garage.

Floor Plans

  • Main Level

  • Optionally Finished Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,615 sq. ft.
  • 1st Floor: 2,615 sq. ft.
  • Porch, Rear: 447 sq. ft.
  • Porch, Front: 199 sq. ft.
  • Bonus: 281 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 92' 0"
  • Depth: 64' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 587 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Bonus 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
Plan 915042CHP
View this and more for this plan by visiting www.architechtecturaldesigns.com/915042CHP
|
