Exclusive New American House Plan with Upstairs Expansion Possibilities

Plan 510156WDY

  • 2,690

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • A pergola dresses up the 2-car front-facing garage on this Architectural Designs exclusive house plan. The exterior gives you a blend of brick, board and batten and clapboard siding and the front door has a transom and sidelights.
  • Inside, there two bedrooms on each floor with a bonus room upstairs giving you the possibility of five bedrooms.
  • An open concept layout gives you views of the fireplace and the dining room from the kitchen. The island has great work space as well as casual seating on two sides.
  • Entertain on the screened porch in back and set up your own outdoor kitchen.
  • In addition to the future bedroom upstairs - or use it as an office or media room - there is floored attic space over the garage giving you storage or other expansion possibilities.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

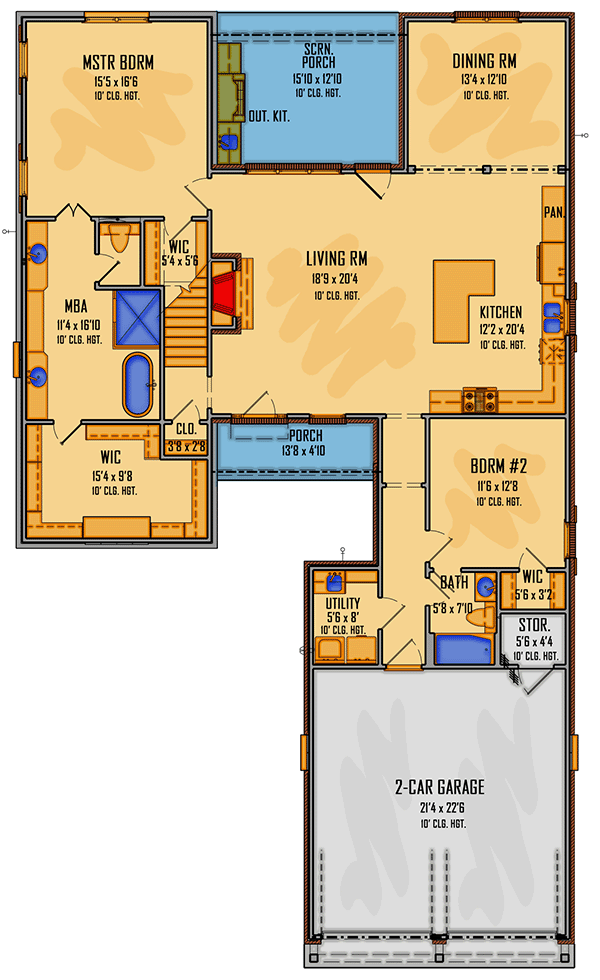

Exclusive New American House Plan with Upstairs Expansion Possibilities - 510156WDY floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

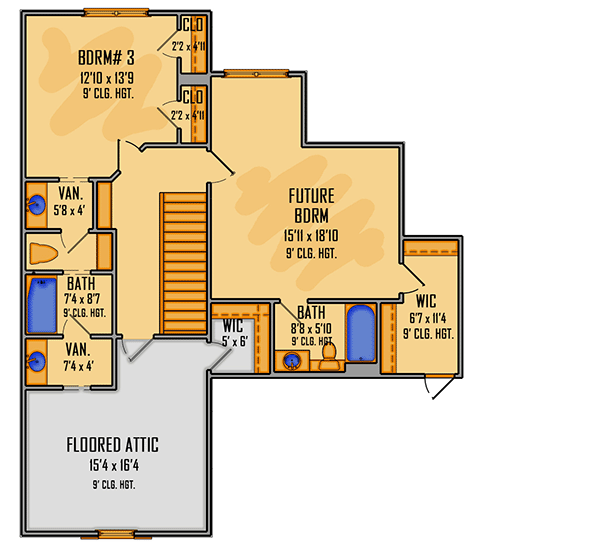

Exclusive New American House Plan with Upstairs Expansion Possibilities - 510156WDY floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,690 sq. ft.
  • 1st Floor: 1,891 sq. ft.
  • 2nd Floor: 694 sq. ft.
  • Porch, Combined: 230 sq. ft.
  • Bonus: 394 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 47' 2"
  • Depth: 80' 3"
  • Max ridge height: 29' 9"

Garage

  • Type: Attached
  • Area: 530 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Exclusive New American House Plan with Upstairs Expansion Possibilities

  • 2,690

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $800
  • 8 Sets $900
  • PDF - Single-Build $1,200
  • 5 Sets + PDF $1,450
  • CAD + PDF - Unlimited Build $2,200
  • View all purchase option online

About This Plan

  • A pergola dresses up the 2-car front-facing garage on this Architectural Designs exclusive house plan. The exterior gives you a blend of brick, board and batten and clapboard siding and the front door has a transom and sidelights.
  • Inside, there two bedrooms on each floor with a bonus room upstairs giving you the possibility of five bedrooms.
  • An open concept layout gives you views of the fireplace and the dining room from the kitchen. The island has great work space as well as casual seating on two sides.
  • Entertain on the screened porch in back and set up your own outdoor kitchen.
  • In addition to the future bedroom upstairs - or use it as an office or media room - there is floored attic space over the garage giving you storage or other expansion possibilities.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,690 sq. ft.
  • 1st Floor: 1,891 sq. ft.
  • 2nd Floor: 694 sq. ft.
  • Porch, Combined: 230 sq. ft.
  • Bonus: 394 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 47' 2"
  • Depth: 80' 3"
  • Max ridge height: 29' 9"

Garage

  • Type: Attached
  • Area: 530 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
Plan 510156WDY
View this and more for this plan by visiting www.architechtecturaldesigns.com/510156WDY
|
Need Help? 800-854-7852
|
