Plan 910058WHD Exclusive One-Level New American Plan with Vaulted Covered Patios

Exclusive One-Level New American Plan with Vaulted Covered Patios

Plan 910058WHD

  • 2,496

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

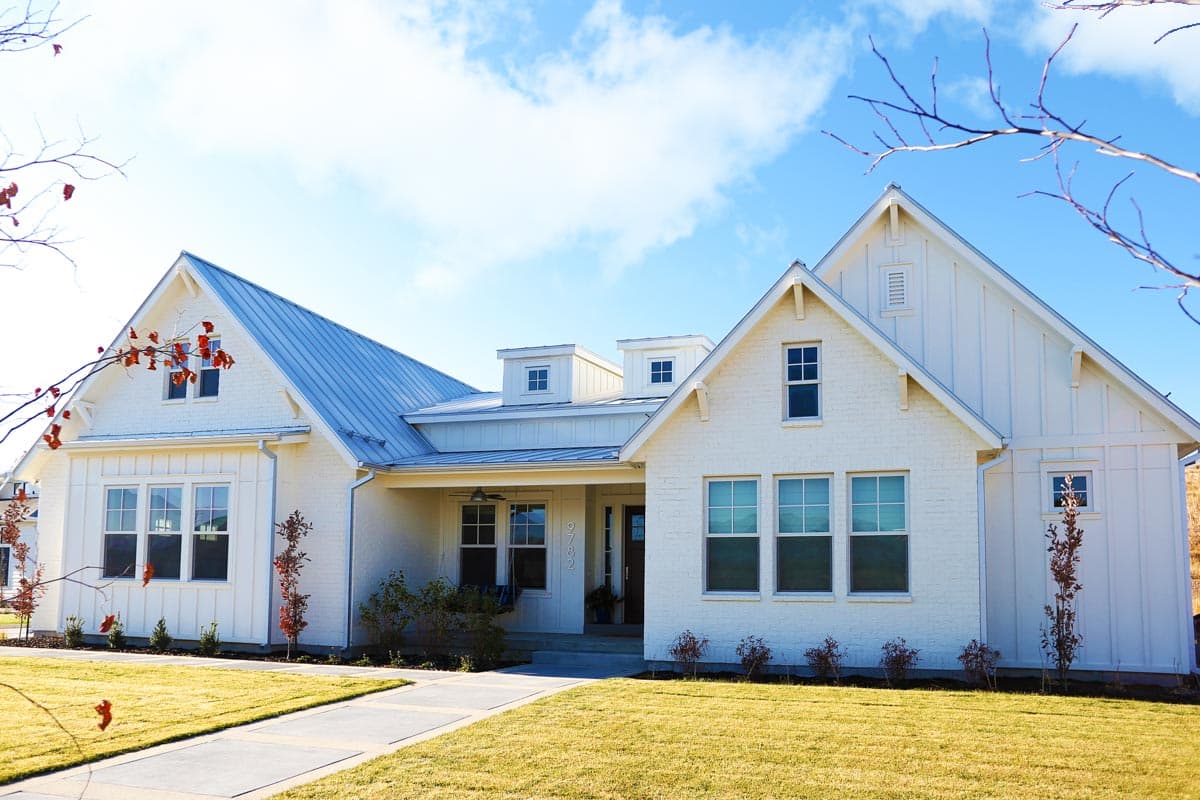

  • The fresh exterior of this one-level, New American home plan, exclusive to Architectural Designs, consists of brick and vertical siding, two shed dormers, and a raised-seam metal roof.

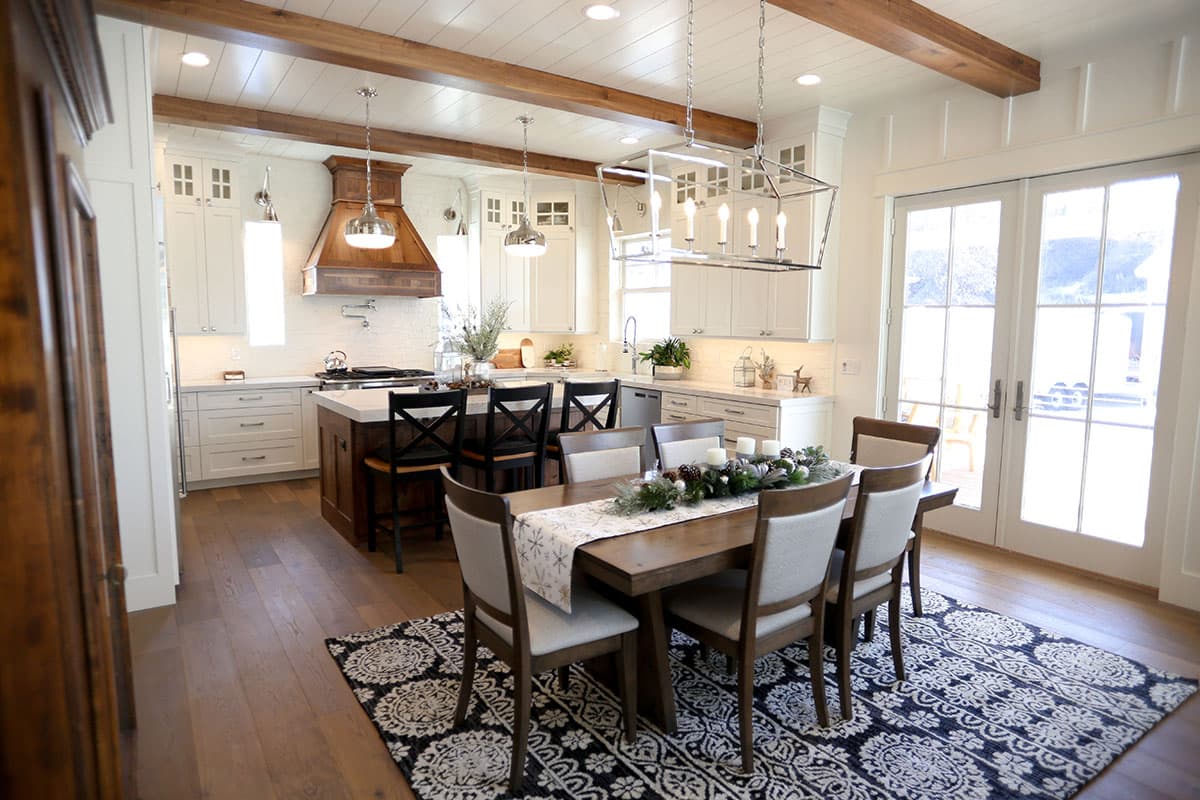

  • Inside, an open layout reveals itself towards the back of the home, where the board and batten siding continues inside, along with a plank ceiling, for added texture and character.

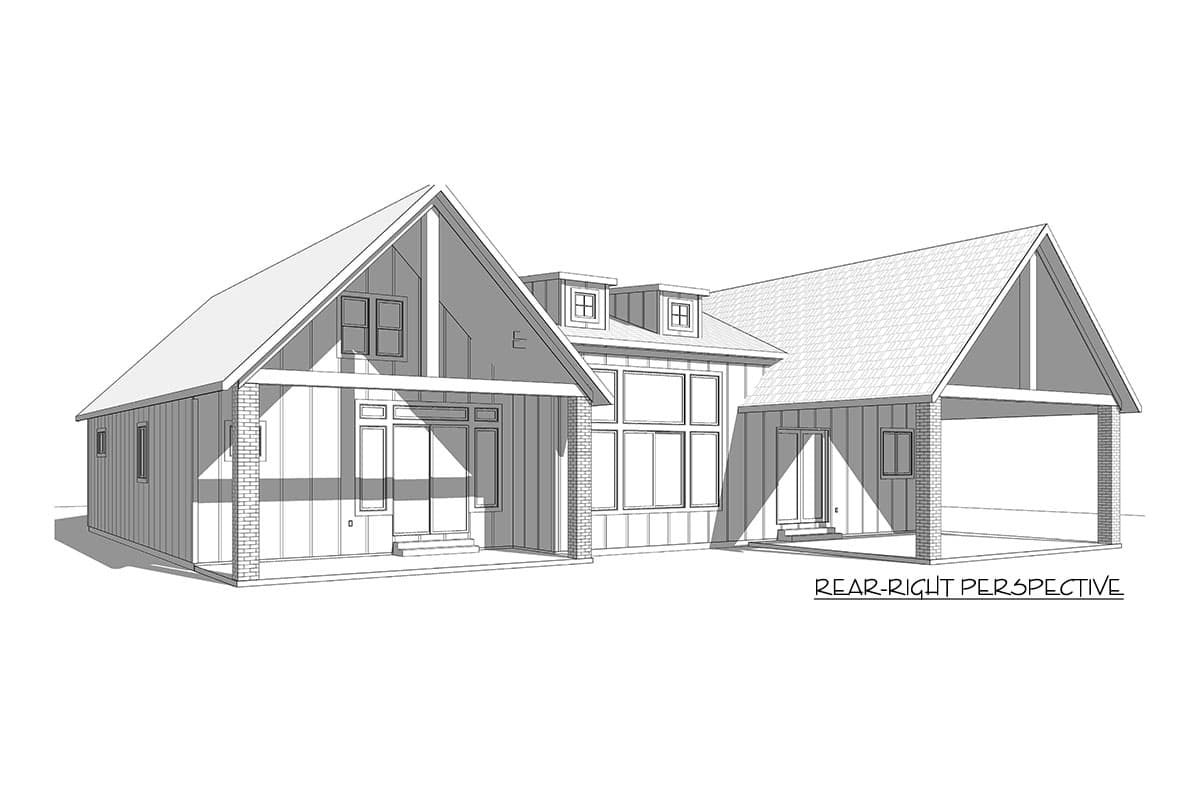

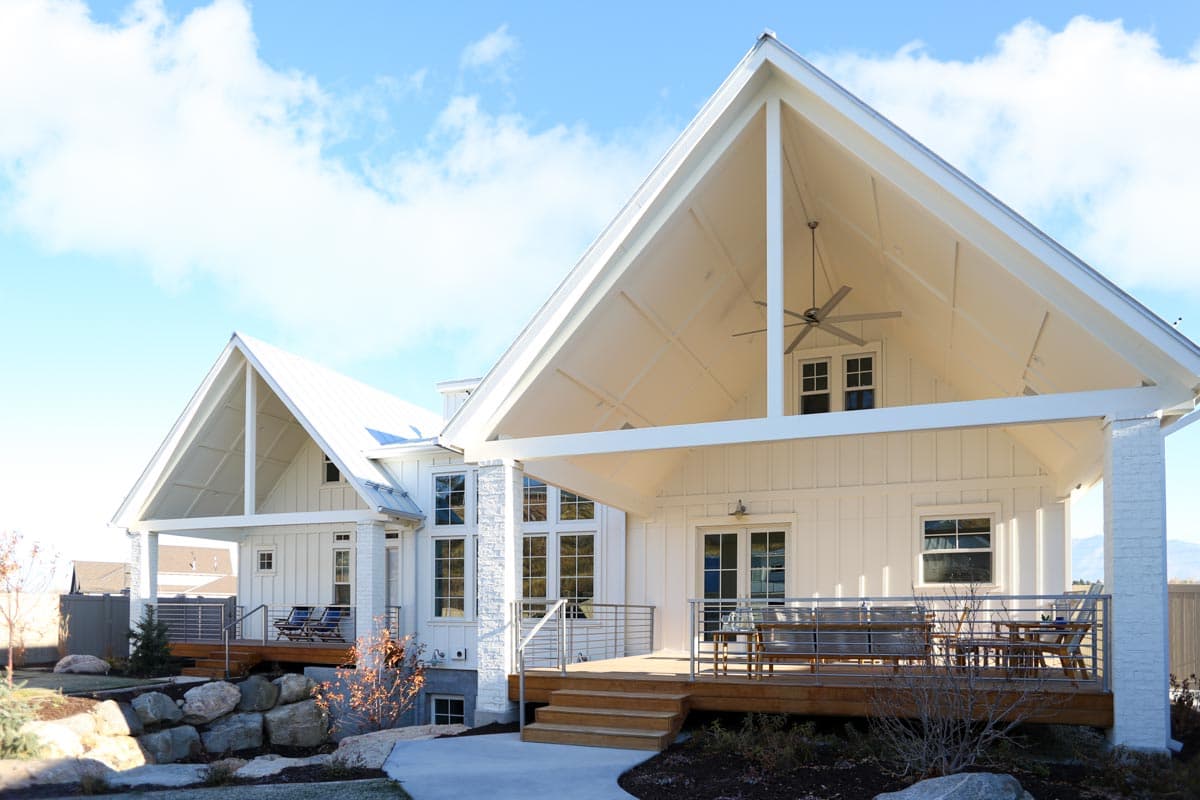

  • Two grand, vaulted patios protrude from the rear of the home, which are accessible from the dining area and master suite. Enjoy cooking again with this spacious kitchen with plenty of workspace and storage due to the walk-in pantry.
  • The master suite neighbors the laundry room for added convenience, and includes a 5-fixture bath with a walk-in shower and toilet room. A second bedroom resides across the hall, and a study near the foyer provides a quiet space to relax.
  • Increase living space by 2,320 sq. ft. when you choose to finish the lower level, and gain a home theater, generous family room, and two bedrooms.
  • The 2-car garage leads into a mudroom with all of the must-haves: built-in lockers, a utility sink, and a half bath.  The expansive bonus room upstairs maximizes storage space for the homeowner.

This house plan includes:

  • General notes
  • Detailed floor plans

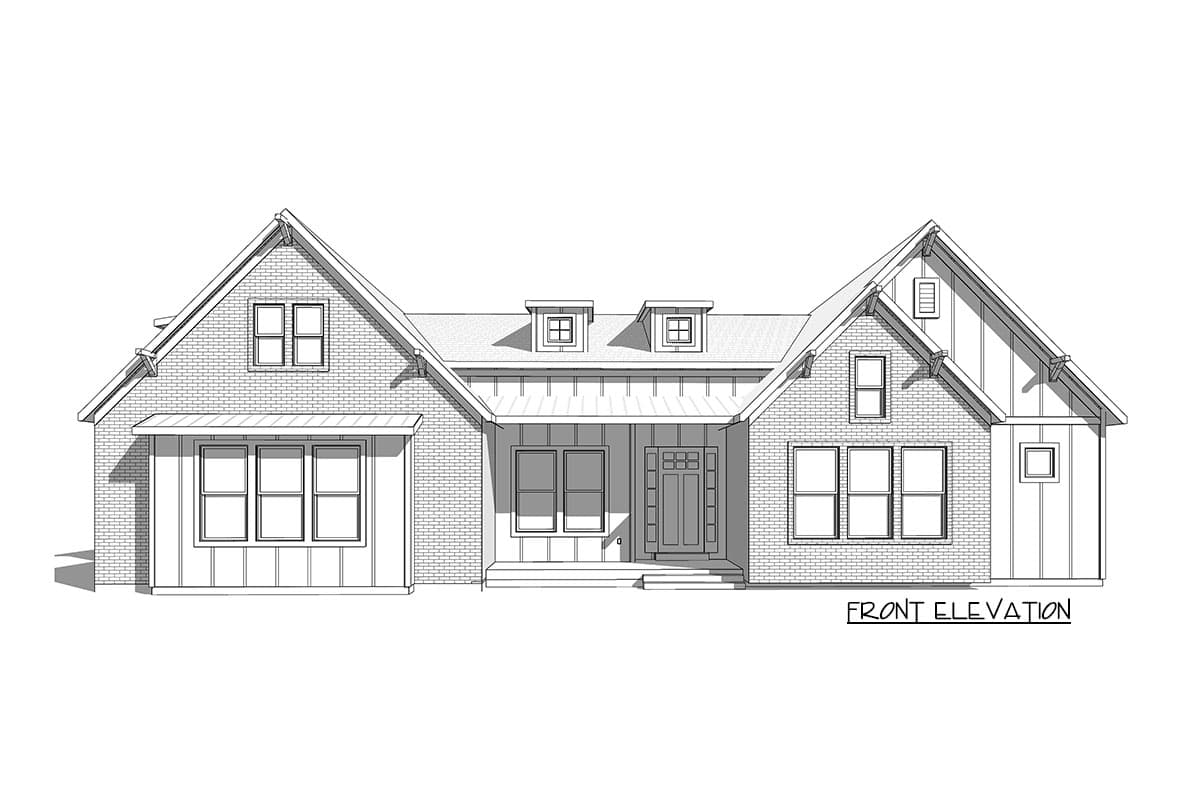

  • Elevations
  • Roof plan
  • Cross section
  • Electrical plan
  • Window and door schedules
  • Architectural details
  • Structural notes
  • Foundation plan
  • Floor framing
  • Roof framing

Floor Plan

Optional Lower Level

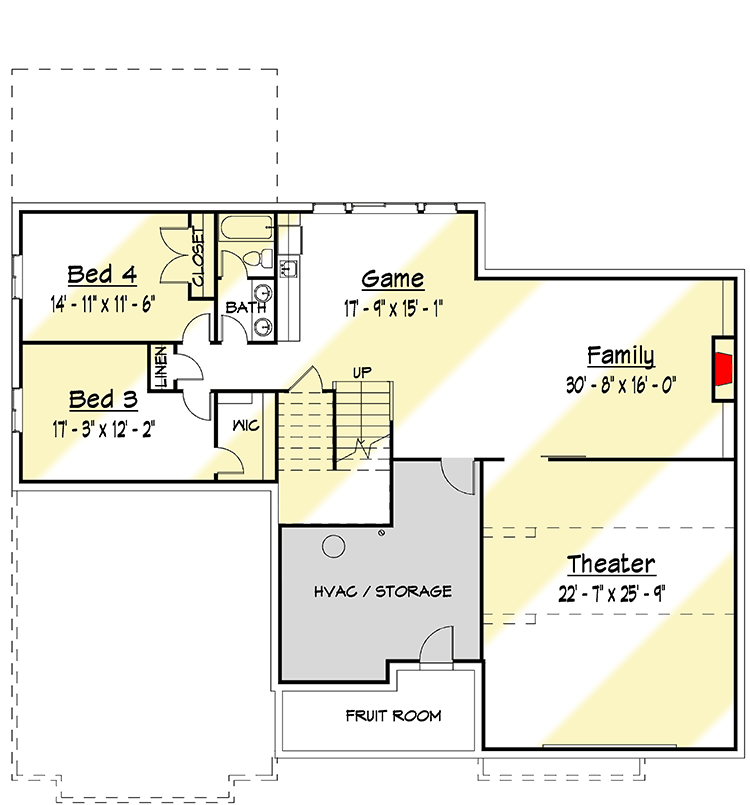

Exclusive One-Level New American Plan with Vaulted Covered Patios - 910058WHD floor plan - Optional Lower Level

Plan details



Exclusive One-Level New American Plan with Vaulted Covered Patios

  • 2,496

    Heated s.f.

  • 2 - 4

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,795
  • 5 Sets $1,995
  • 5 Sets + PDF $2,195
  • CAD - Single-Build $2,495
  • View all purchase option online

About This Plan

  • The fresh exterior of this one-level, New American home plan, exclusive to Architectural Designs, consists of brick and vertical siding, two shed dormers, and a raised-seam metal roof.
  • Inside, an open layout reveals itself towards the back of the home, where the board and batten siding continues inside, along with a plank ceiling, for added texture and character.
  • Two grand, vaulted patios protrude from the rear of the home, which are accessible from the dining area and master suite. Enjoy cooking again with this spacious kitchen with plenty of workspace and storage due to the walk-in pantry.
  • The master suite neighbors the laundry room for added convenience, and includes a 5-fixture bath with a walk-in shower and toilet room. A second bedroom resides across the hall, and a study near the foyer provides a quiet space to relax.
  • Increase living space by 2,320 sq. ft. when you choose to finish the lower level, and gain a home theater, generous family room, and two bedrooms.
  • The 2-car garage leads into a mudroom with all of the must-haves: built-in lockers, a utility sink, and a half bath.  The expansive bonus room upstairs maximizes storage space for the homeowner.

Floor Plans

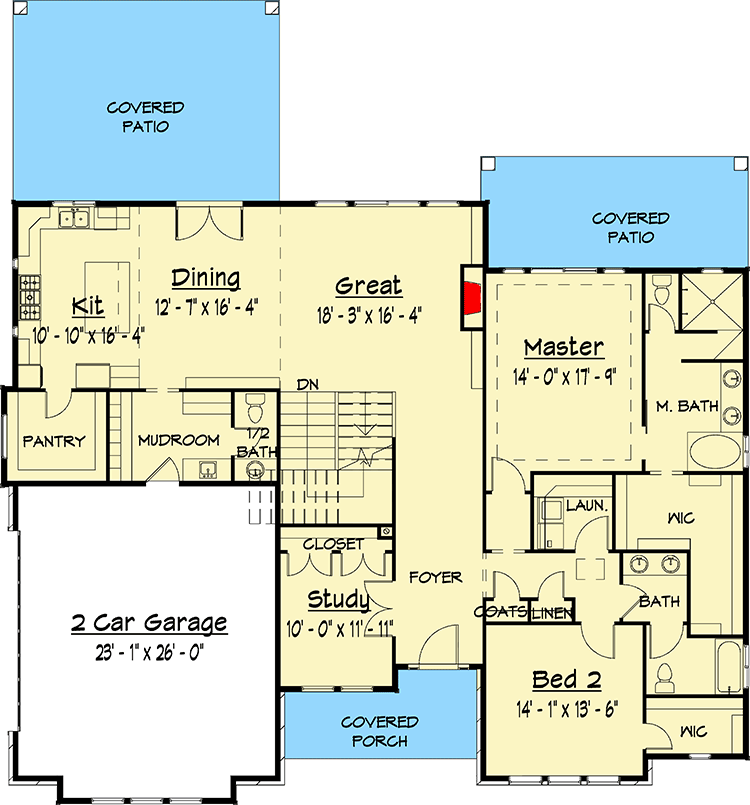

  • Main Level

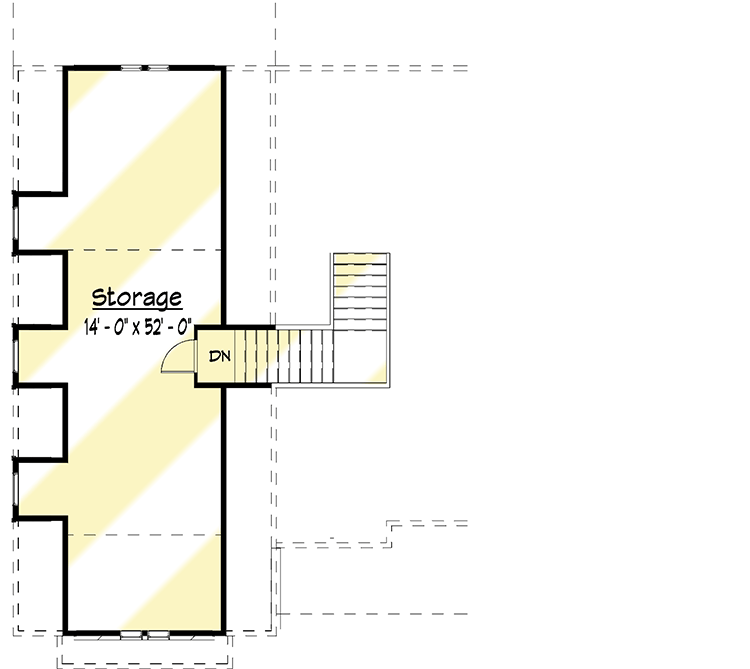

  • Bonus Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,496 sq. ft.
  • 1st Floor: 2,496 sq. ft.
  • Deck: 666 sq. ft.
  • Porch, Combined: 118 sq. ft.
  • Bonus: 864 sq. ft.
  • Optional Lower Level: 2,320 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, & 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 0"
  • Depth: 72' 0"
  • Max ridge height: 24' 4"

Garage

  • Type: Attached
  • Area: 659 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
