Exclusive Southern Cottage with Rear Garage
Heated S.F.
2,055
Beds
3-4
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details

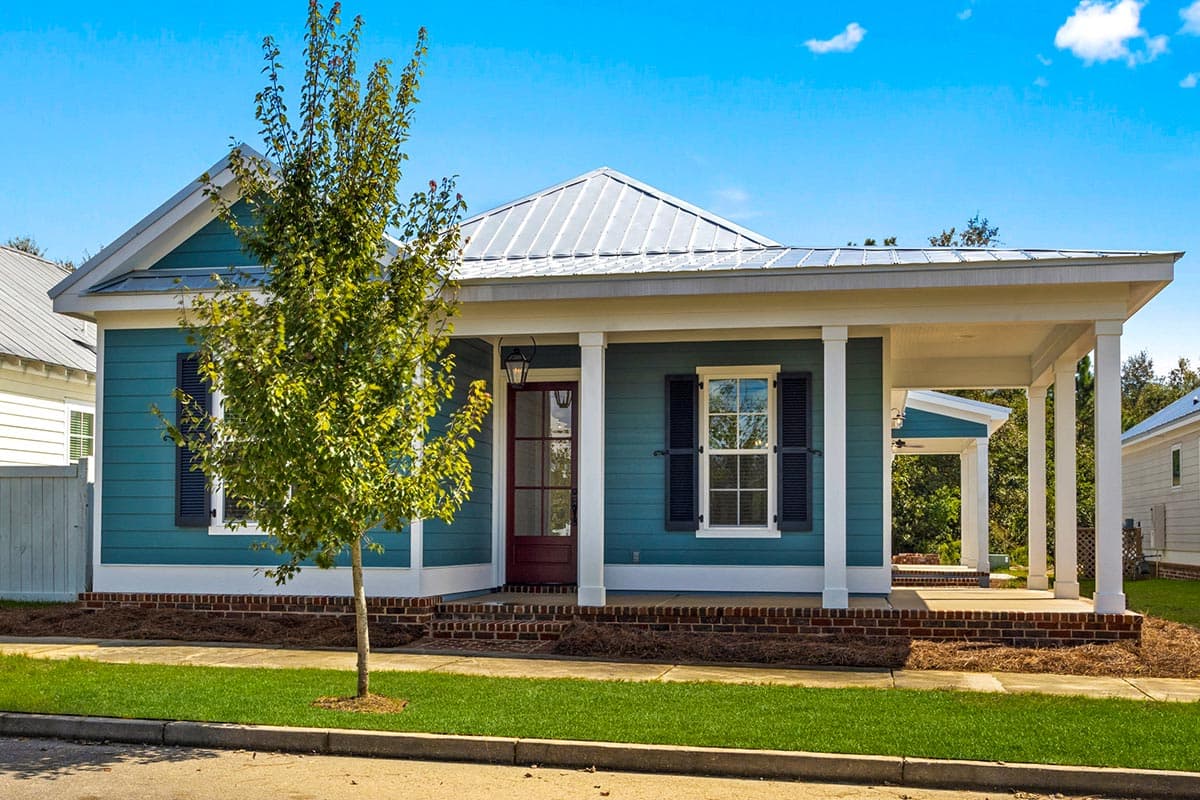

  • A wraparound porch with a brick skirt welcomes you into this exclusive Southern Cottage home. With just over 2,000 square feet of living space, this one-level design simplifies living for the entire family.

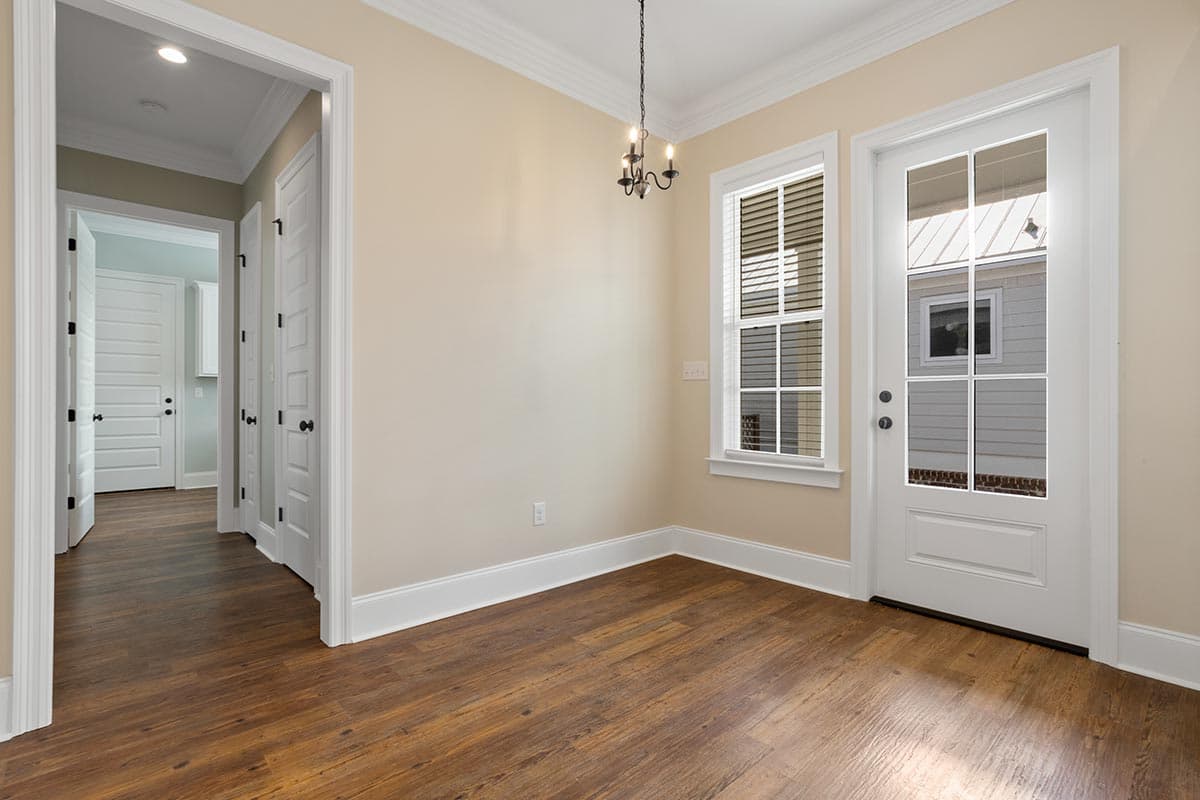

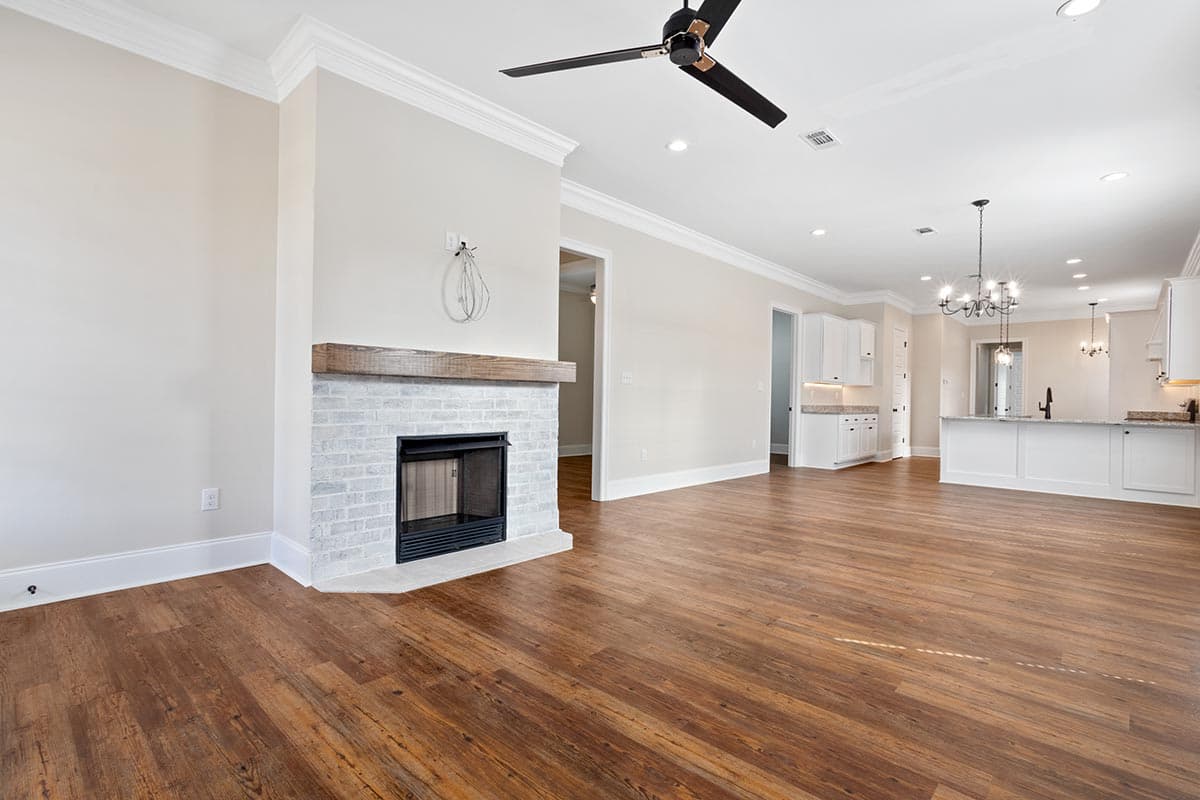

  • The formal entrance guides you into the living area with a seamless transition into the dining room and kitchen.

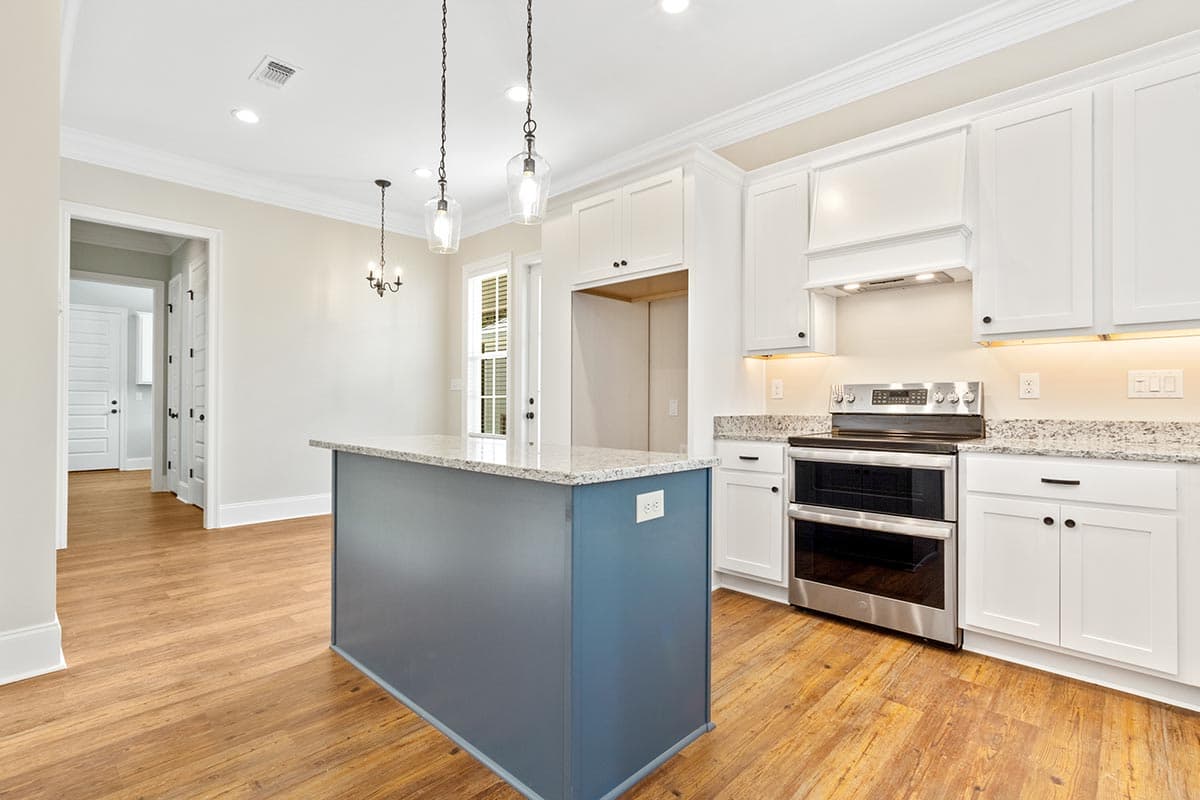

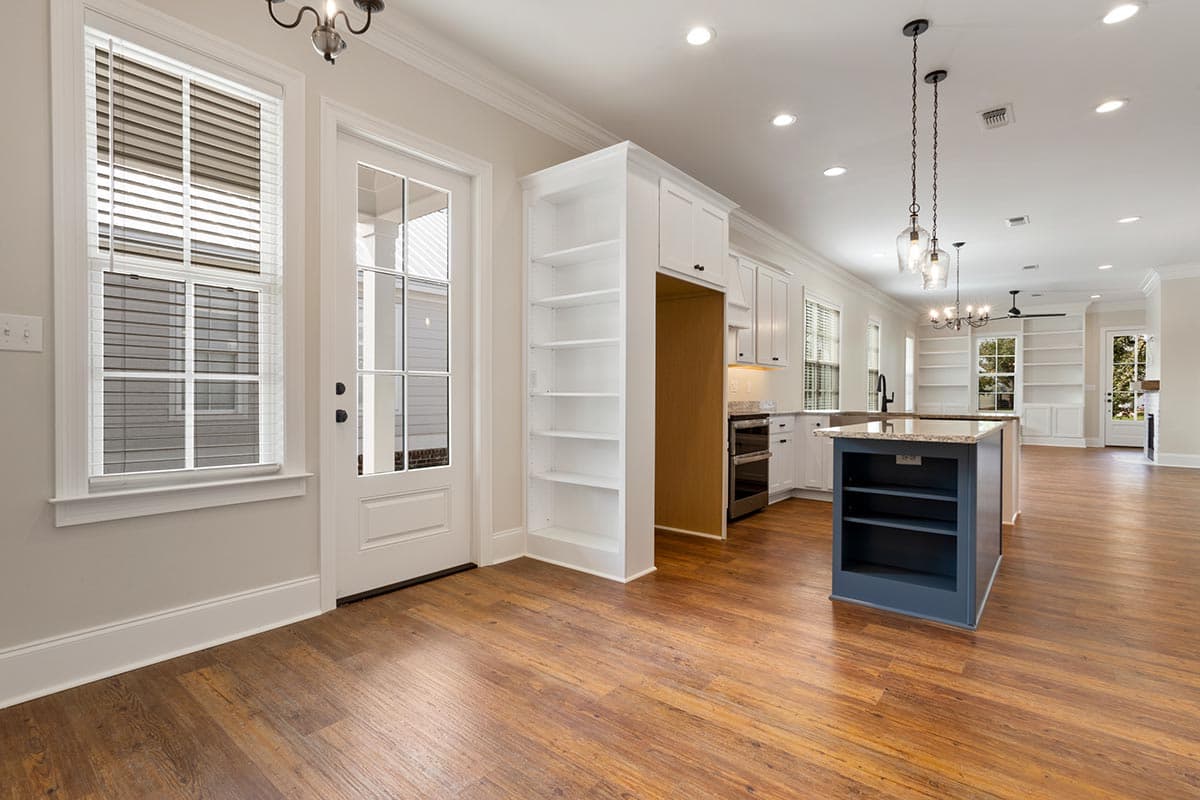

  • A prep island rests in the center of the kitchen with access to a grilling porch from the breakfast nook. A nearby hallway leads to the laundry / mudroom combo, and then to the double garage.
  • The bedrooms line the left side of the design including the master bedroom towards the rear. The master bathroom boasts a separate tub and shower, two vanities, and a walk-in closet.
  • Please add note at check-out (for cross sections).
What's Included
  • Cover sheet
  • Foundation plan
  • Floor plan

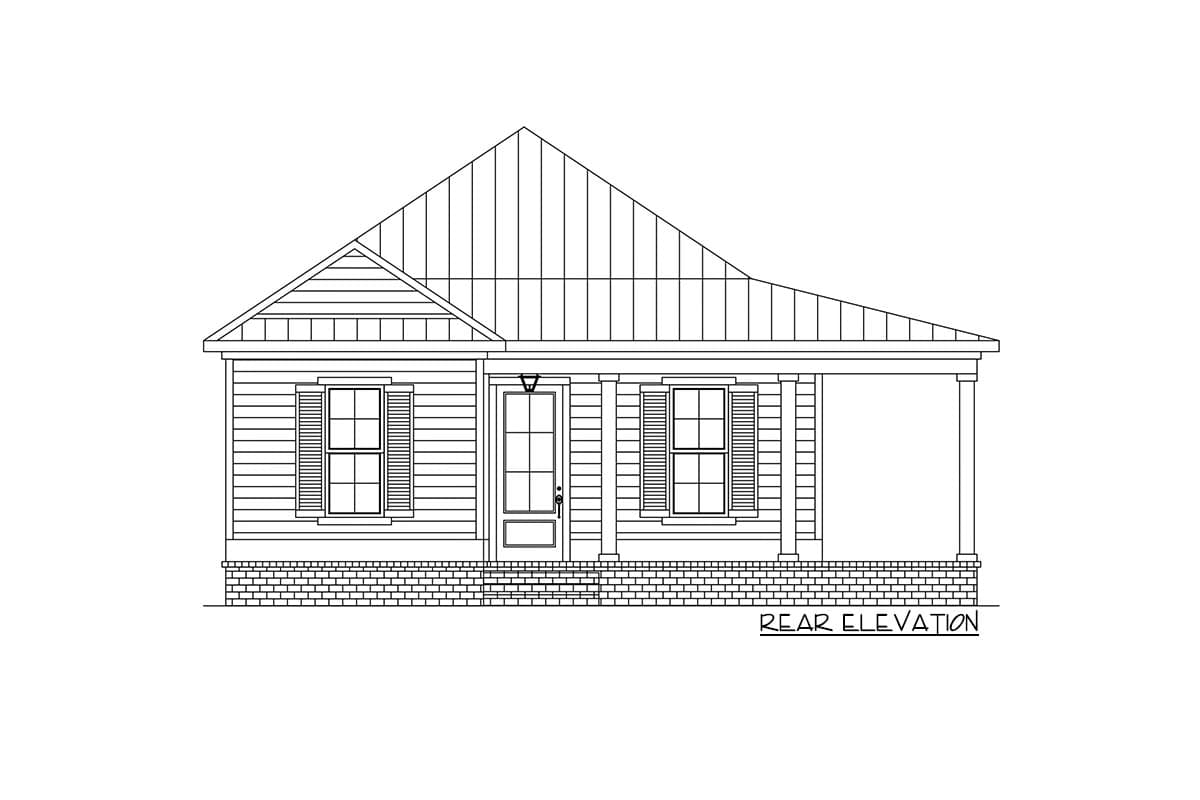

  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive Southern Cottage with Rear Garage

  • 2,055

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

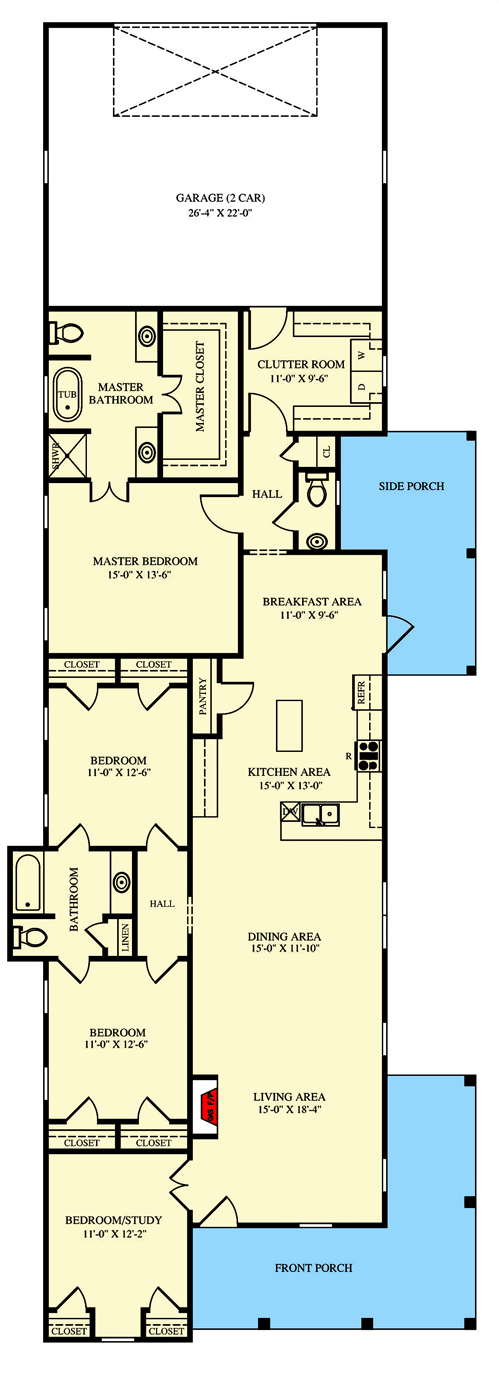

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,055 sq. ft.
  • 1st Floor: 2,055 sq. ft.

Dimensions

  • Width: 37' 8"
  • Depth: 104' 8"
  • Max ridge height: 21' 8"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 603 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss
