Exclusive Three Bed French Country Home - 48522FM | Architectural Designs - House Plans

EXCLUSIVE
EXCLUSIVE
EXCLUSIVE
EXCLUSIVE

All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

About this plan What's included

Exclusive Three Bed French Country Home

Plan 48522FM

This plan plants 3 trees

2,725
Heated s.f.
3
Beds
2.5 - 3.5
Baths
1-2
Stories
3
Cars

Wide open vistas greet you as soon as you step through the front door of this elegant French Country house plan.
The open layout gives you views that sweep through the great room, kitchen and breakfast nook.
You can even see out to the rear covered outdoor living area that has a grilling station and uncovered patio.
Every bedroom is separated from the others for maximum privacy for all.
Should you want to expand, the home comes with an optional dream game room with media area, wet bar and balcony on the second floor.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

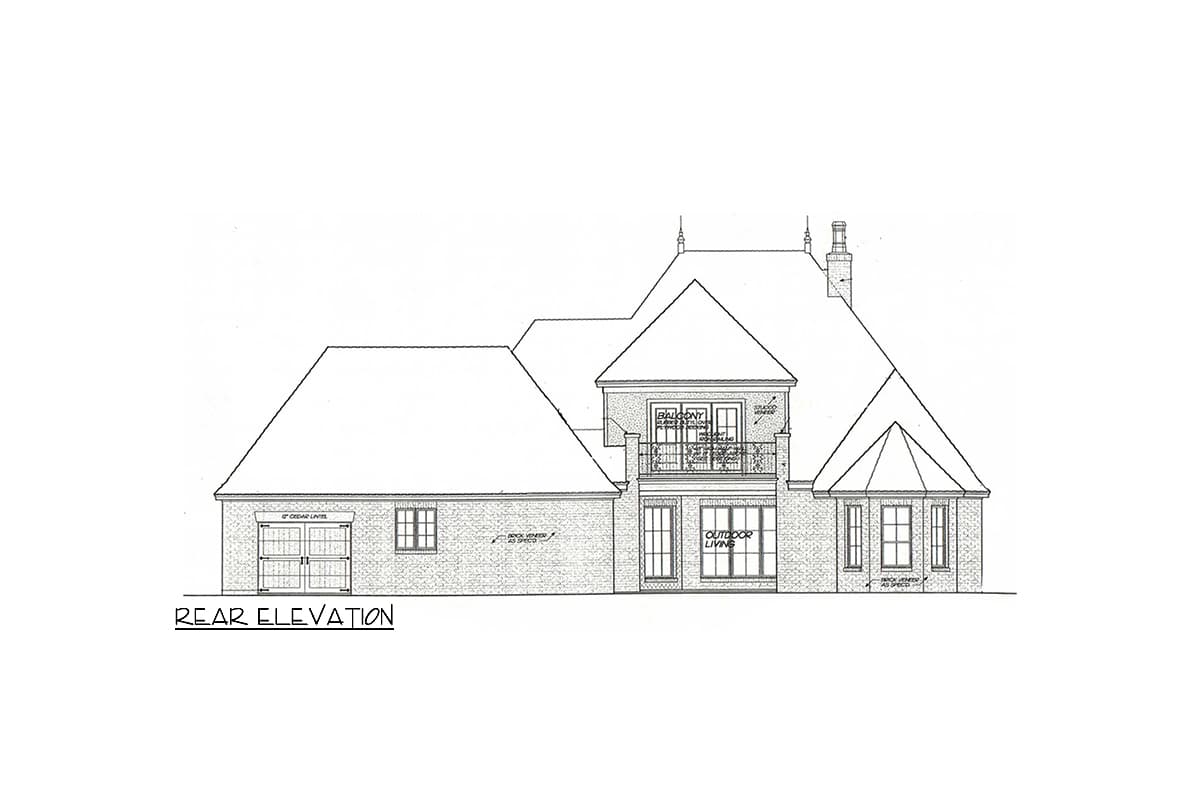

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

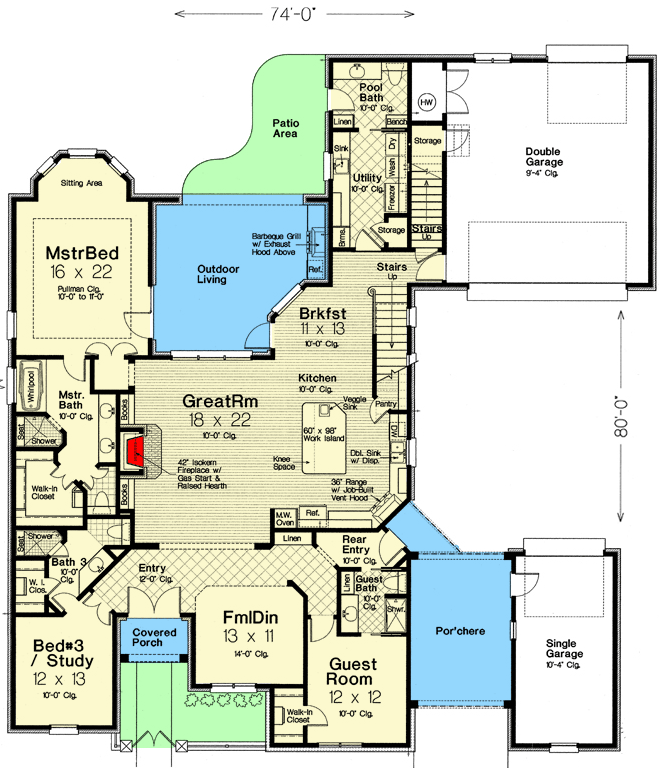

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Exclusive Three Bed French Country Home - 48522FM floor plan - Main Level

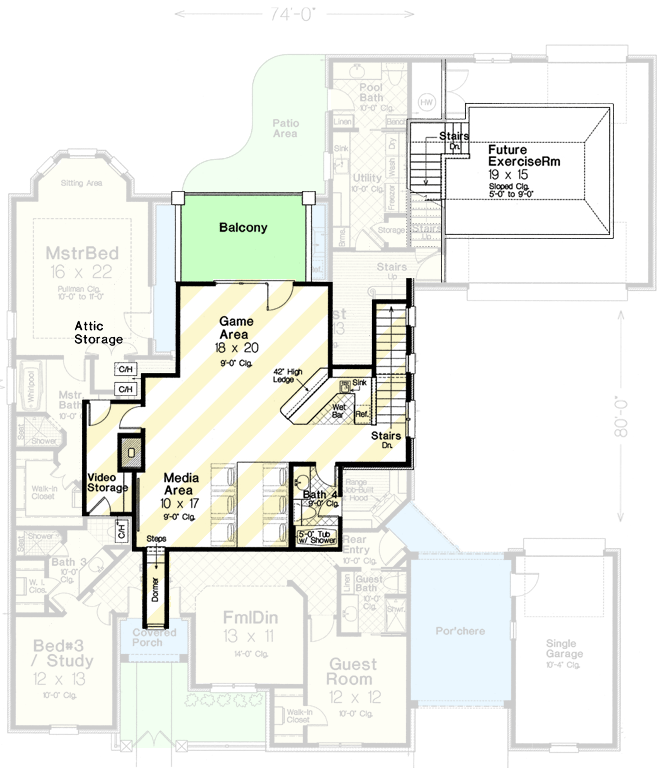

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Exclusive Three Bed French Country Home - 48522FM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 2,725 sq. ft.
1st Floor: 2,725 sq. ft.

Balcony / Veranda: 132 sq. ft.
Porch, Rear: 301 sq. ft.
Porch, Front: 39 sq. ft.
Bonus: 853 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2 or 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Optional Foundations: Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 74' 0"
Depth: 80' 0"
Max ridge height: 33' 0"

Garage

Type: Attached
Area: 971 sq. ft.
Count: 3 Cars
Entry Location: Side, Courtyard

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Room Details	Ceiling Type	Width	Depth	Height
Master Bedroom	Pullman			10' 0"
Entry				12' 0"

Roof Details

Primary Pitch: 12 on 12
Secondary Pitch: 16 on 12

Framing Type: Stick

Architectural Style

Special features

Plan Collections

Scroll


Exclusive Three Bed French Country Home 2,725 Heated s.f. 3 Beds 2.5 - 3.5 Baths 1-2 Floors 3 Car garage Buy This Plan 5 Sets $1,195 8 Sets $1,335 PDF - Single-Build $1,485 PDF - Unlimited Build $1,985 CAD - Single-Build $2,270 CAD - Unlimited Build $3,270 View all purchase option online About This Plan Wide open vistas greet you as soon as you step through the front door of this elegant French Country house plan. The open layout gives you views that sweep through the great room, kitchen and breakfast nook. You can even see out to the rear covered outdoor living area that has a grilling station and uncovered patio. Every bedroom is separated from the others for maximum privacy for all. Should you want to expand, the home comes with an optional dream game room with media area, wet bar and balcony on the second floor. Floor Plans Main Level 2nd Floor Plan Details Square Footage Breakdown Total Heated Area: 2,725 sq. ft. 1st Floor: 2,725 sq. ft. Balcony / Veranda: 132 sq. ft. Porch, Rear: 301 sq. ft. Porch, Front: 39 sq. ft. Bonus: 853 sq. ft. Beds/Baths Bedrooms: 3 Full bathrooms: 2 or 3 Half bathrooms: 1 Foundation Type Standard Foundations: Slab Optional Foundations: Basement Exterior Walls Standard Type(s): 2x4 Dimensions Width: 74' 0" Depth: 80' 0" Max ridge height: 33' 0" Garage Type: Attached Area: 971 sq. ft. Count: 3 Cars Entry Location: Side, Courtyard Ceiling Heights Floor / Height: First Floor / 10' 0" Second Floor / 9' 0" Roof Primary Pitch: 12 on 12 Secondary Pitch: 16 on 12 Framing Type: Stick

Plan 48522FM
