Exclusive Tiny Modern House Plan with Alternate Exteriors

Plan 85137MS

  • 640

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • This sleek modern home offers huge living in under 650 square feet and has the curb appeal of a much large modern home in a compact package that can fit on a huge variety of lots.
  • The built in eating bar in the kitchen offers excellent dining and cooking flexibility.
  • The media wall in the great room holds all your electronics as well as having enough room for a large tv.
  • There is enough room for two gathering spaces or a large dining room table in place of the sectional shown here.
  • The kitchen itself has more than enough storage space.
  • Bunk beds are tucked behind a barn-doored sleeping area.
  • The master bedroom is completely outfitted with built in storage, closets and cabinets as well as a king sized bed.
  • The bathroom is tucked privately around the corner.
  • Note the large covered outdoor living area out the back door.
  • All mechanical is under roof in its own mechanical room. The washer and dryer stack is in the bathroom.
  • Related Plans: Get alternate exteriors with house plans 85133MS, 85136MS, 85138MS and 85105MS (rotated 90 degrees).

Each plan set is drawn to 1/4" scale and includes the following:

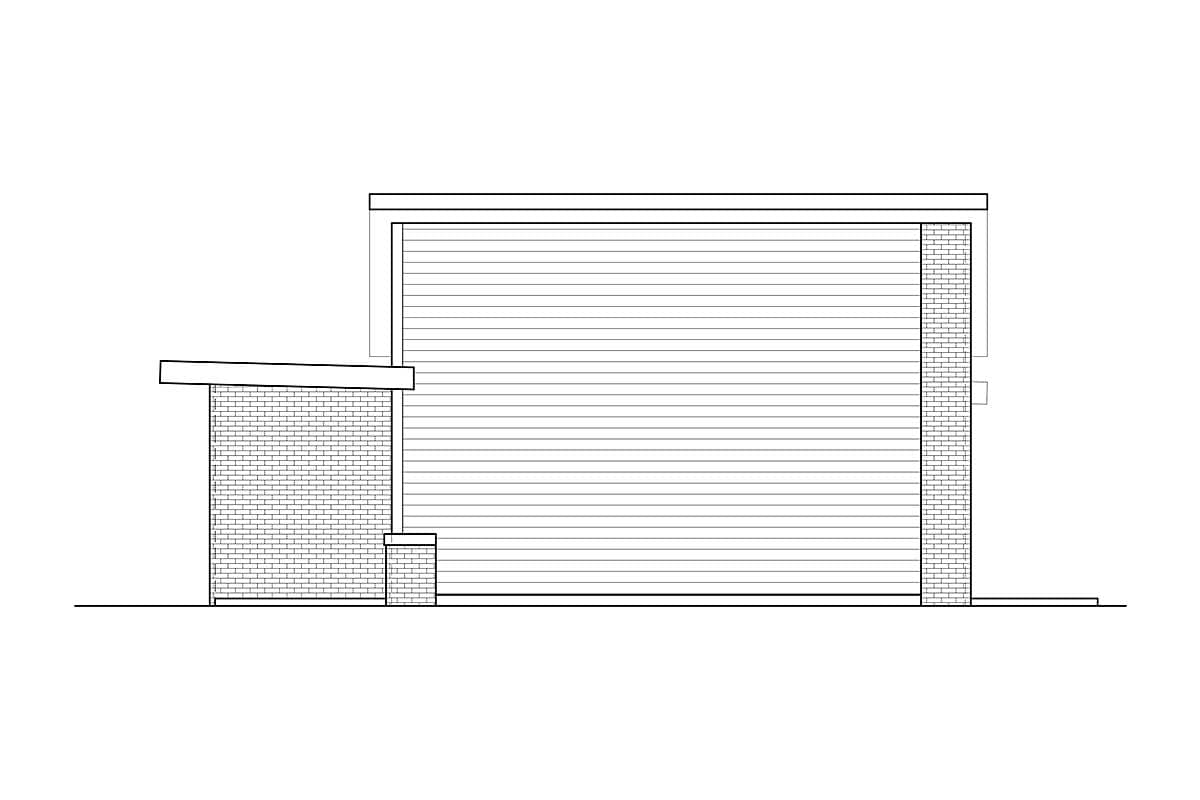

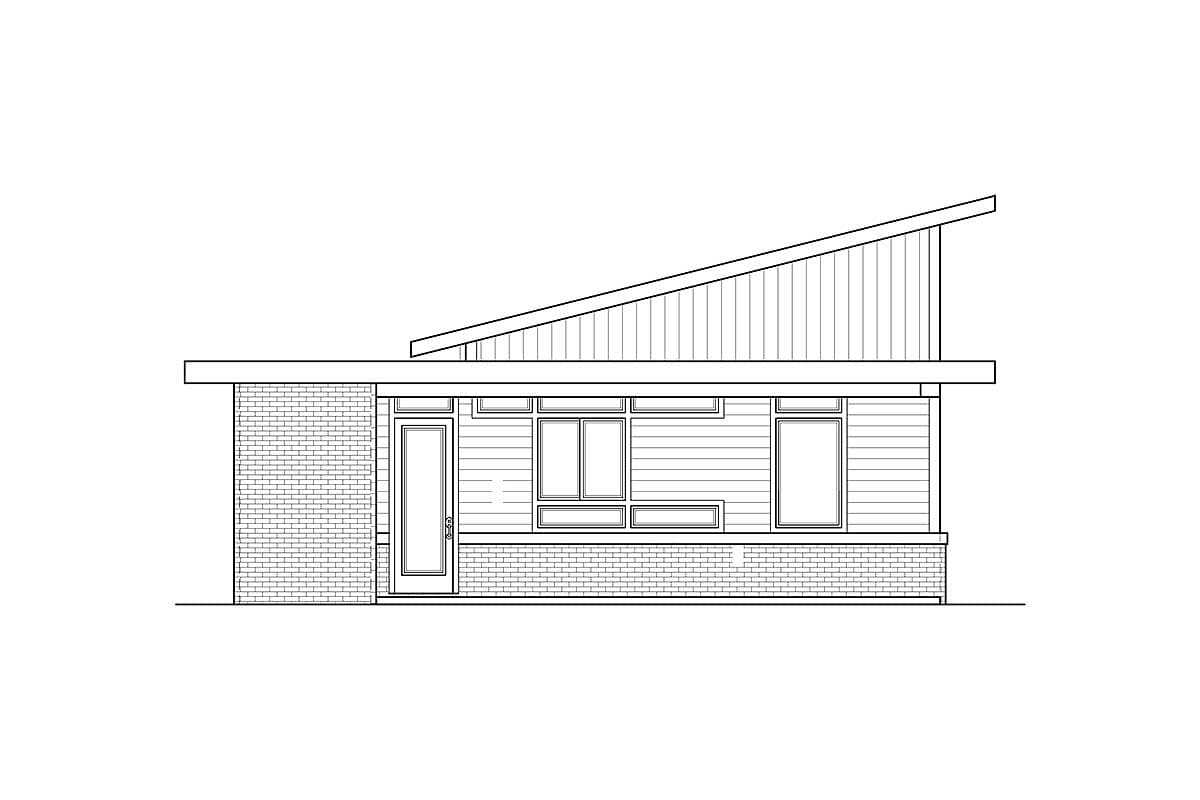

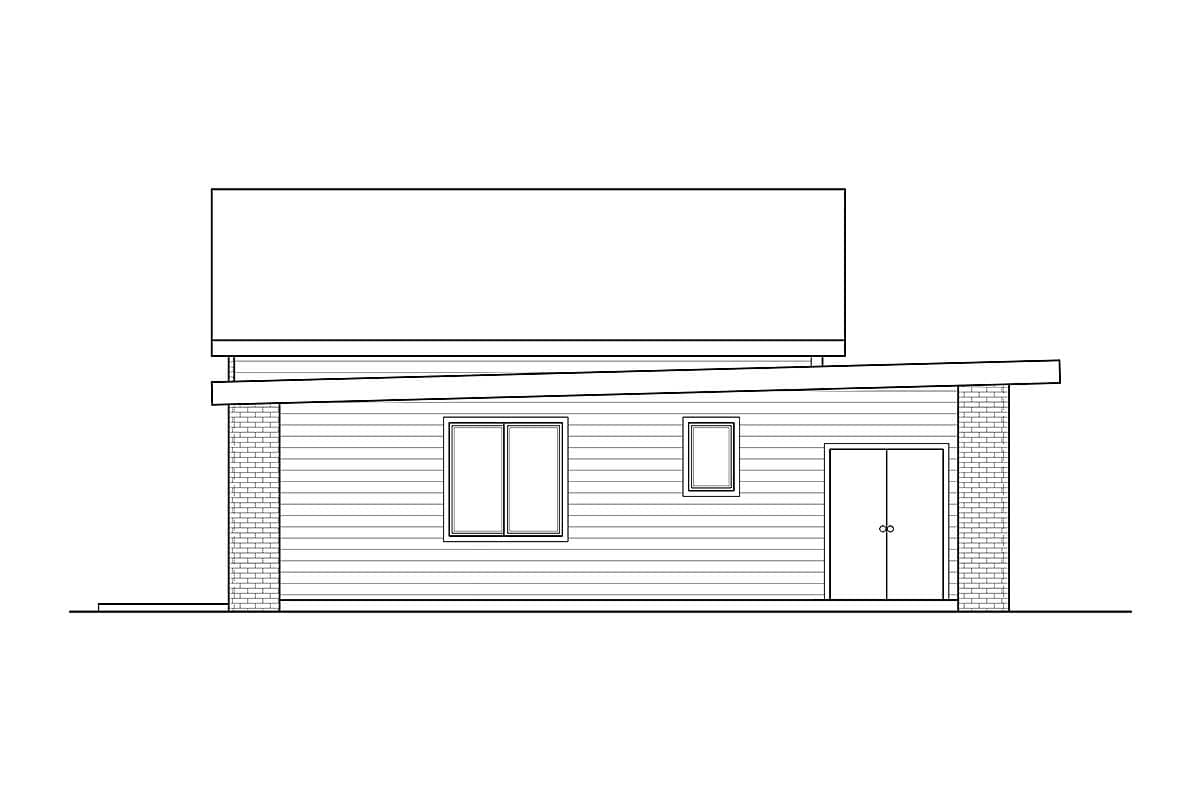

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

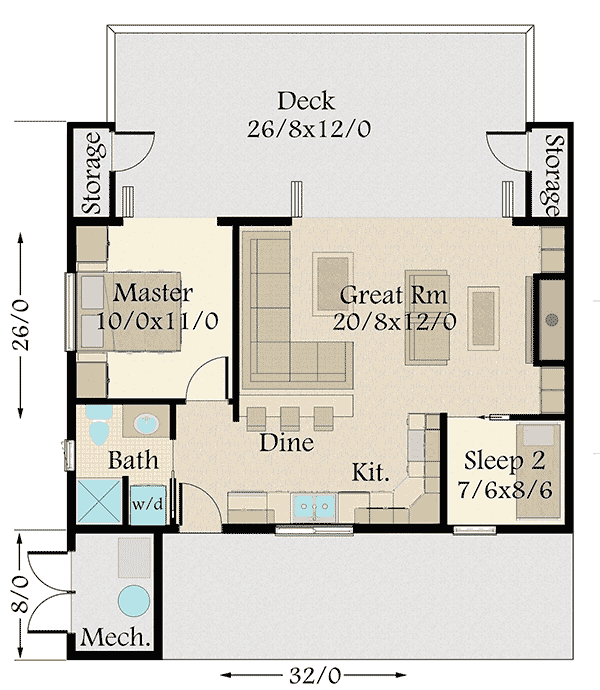

Exclusive Tiny Modern House Plan with Alternate Exteriors - 85137MS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 640 sq. ft.
  • 1st Floor: 640 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 20' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Exclusive Tiny Modern House Plan with Alternate Exteriors

  • 640

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $900
  • 6 Sets + PDF $1,100
  • CAD + PDF - Single-Build $1,750
  • View all purchase option online

About This Plan

  • This sleek modern home offers huge living in under 650 square feet and has the curb appeal of a much large modern home in a compact package that can fit on a huge variety of lots.
  • The built in eating bar in the kitchen offers excellent dining and cooking flexibility.
  • The media wall in the great room holds all your electronics as well as having enough room for a large tv.
  • There is enough room for two gathering spaces or a large dining room table in place of the sectional shown here.
  • The kitchen itself has more than enough storage space.
  • Bunk beds are tucked behind a barn-doored sleeping area.
  • The master bedroom is completely outfitted with built in storage, closets and cabinets as well as a king sized bed.
  • The bathroom is tucked privately around the corner.
  • Note the large covered outdoor living area out the back door.
  • All mechanical is under roof in its own mechanical room. The washer and dryer stack is in the bathroom.
  • Related Plans: Get alternate exteriors with house plans 85133MS, 85136MS, 85138MS and 85105MS (rotated 90 degrees).

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 640 sq. ft.
  • 1st Floor: 640 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 20' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss
Plan 85137MS
