Plan 290038IY

Expandable Two Bedroom Northwest House Plan

Heated S.F.
2,276
Beds
2 - 4
Baths
2.5 - 3.5
Stories
1
Cars
3

Floor Plan

Plan 290038IY

Main Level
Main Level
Optional Lower Level
Optional Lower Level

Plan 290038IY

M-F 9am-5pm EST |

1-203-761-8500

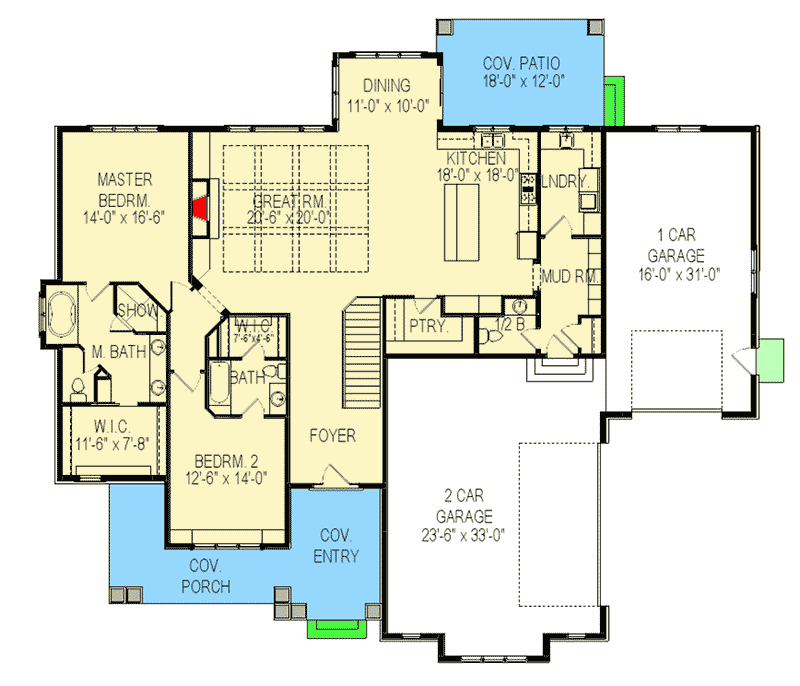

Main Level

Plan 290038IY: Expandable Two Bedroom Northwest House Plan - Floor Plan - Main Level - Cottage, Craftsman, Northwest

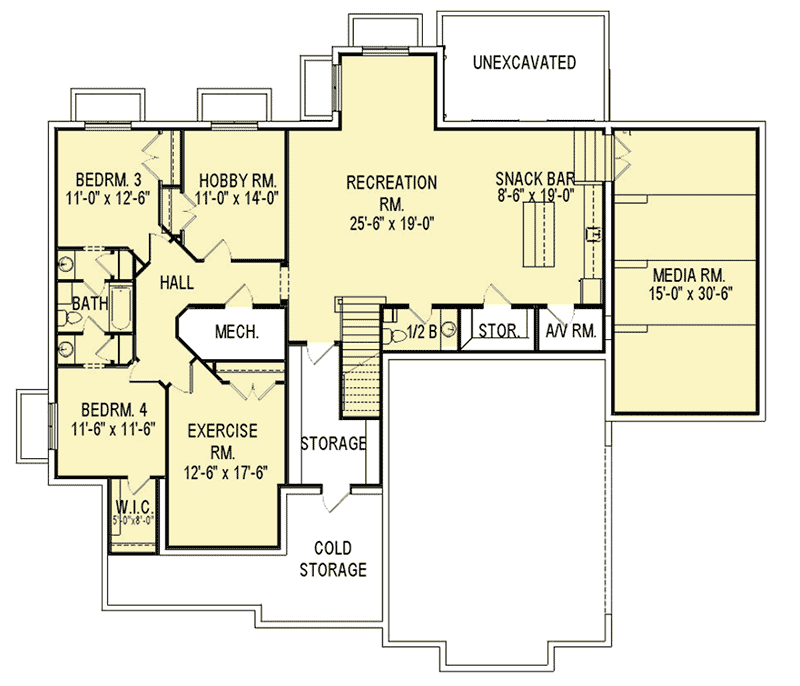

Optional Lower Level

Plan 290038IY: Expandable Two Bedroom Northwest House Plan - Floor Plan - Optional Lower Level - Cottage, Craftsman, Northwest

Plan Details

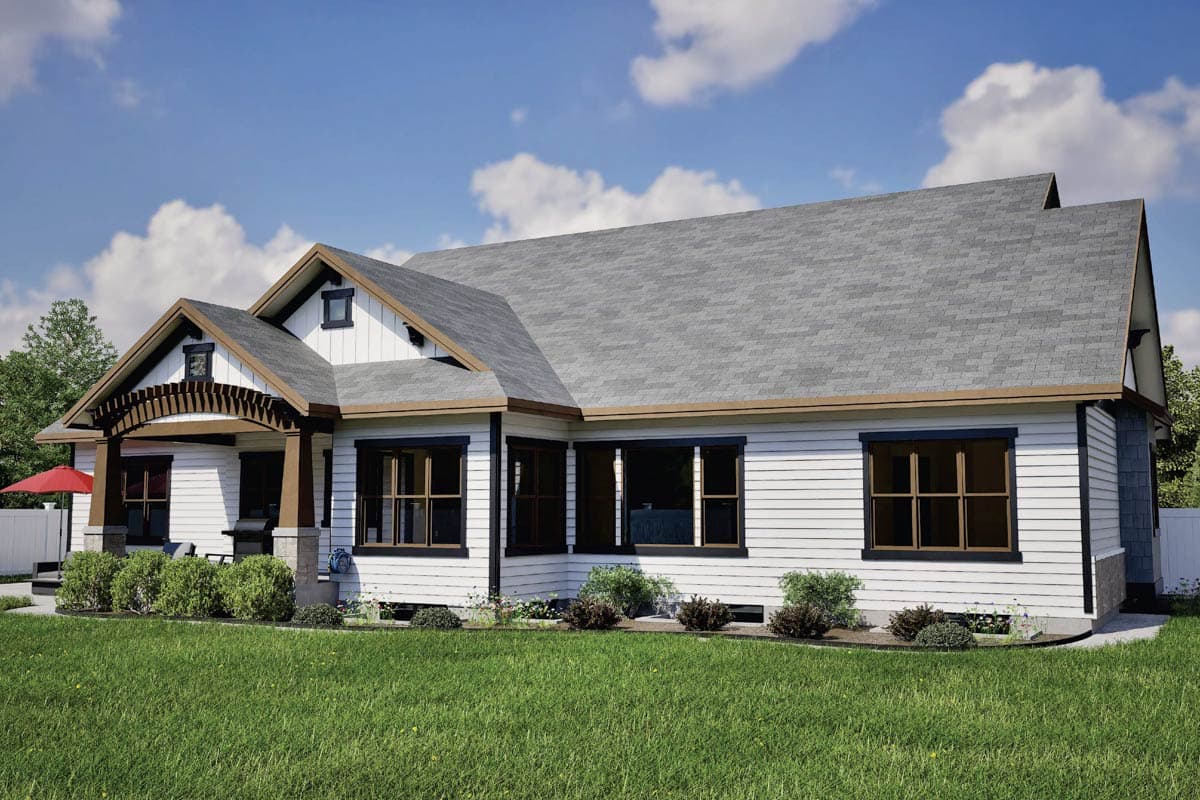

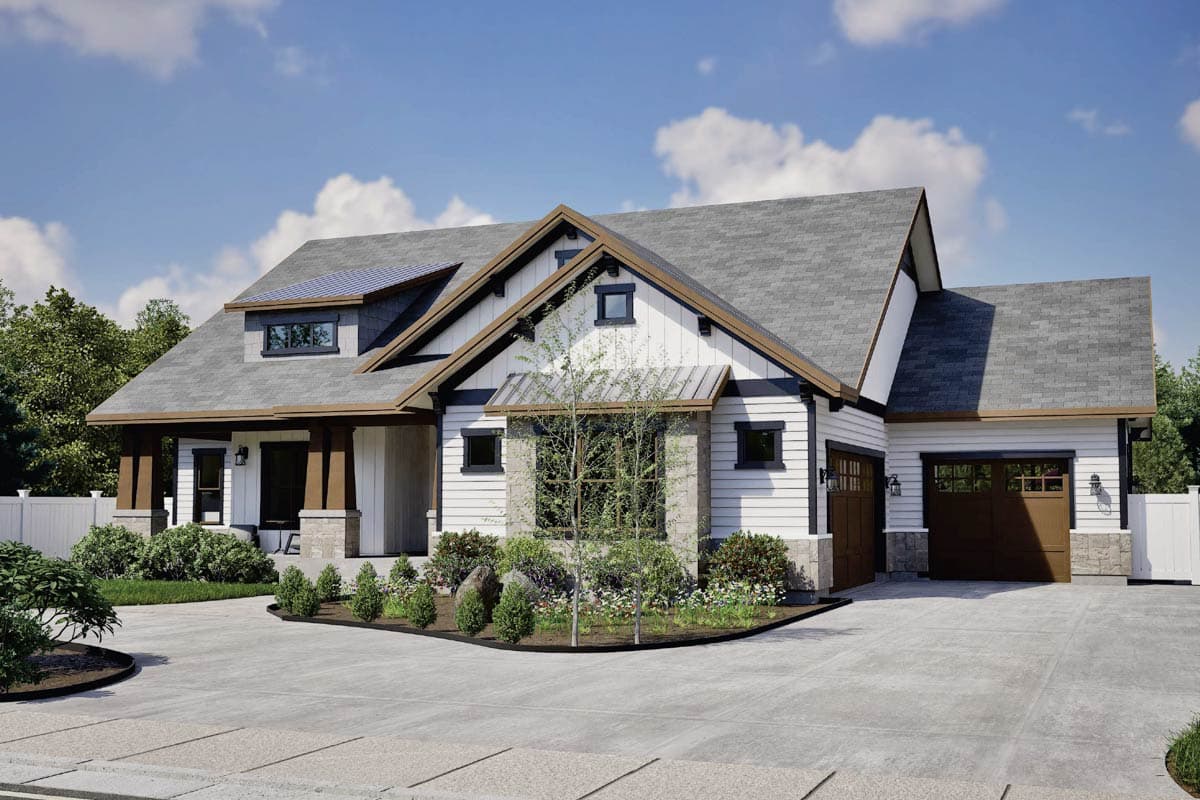

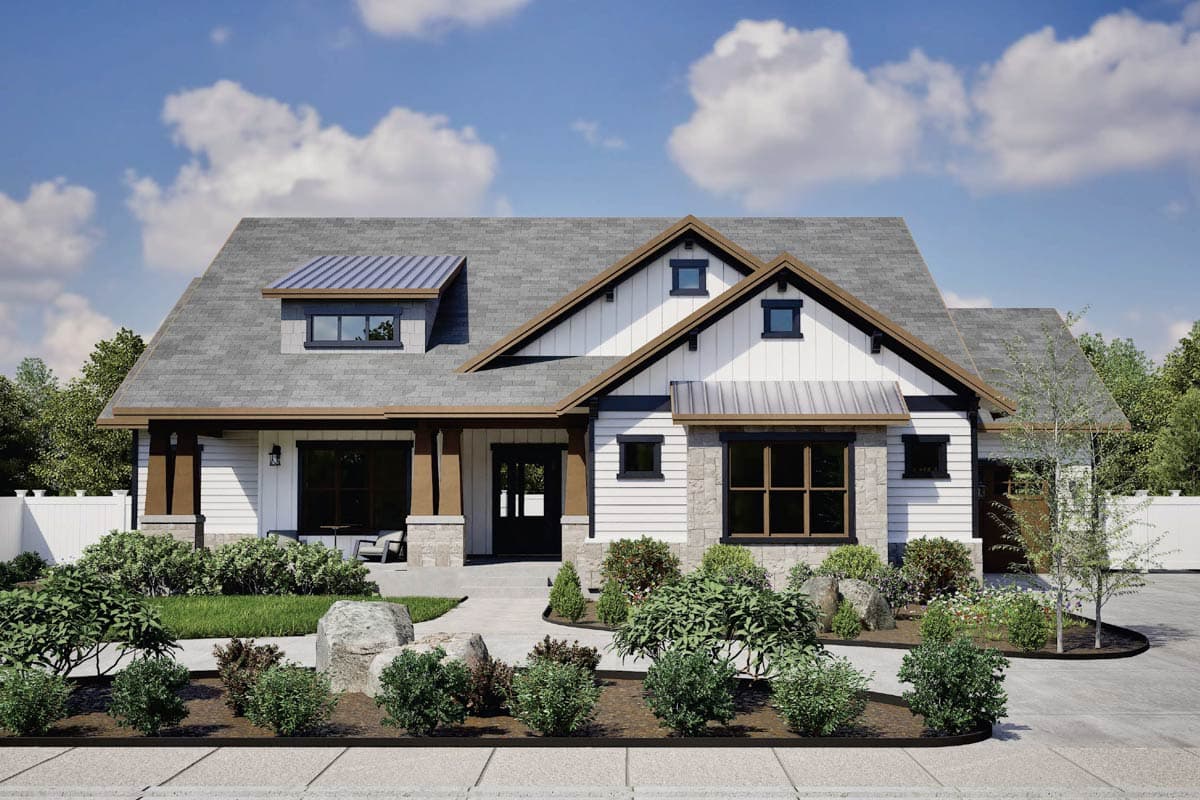

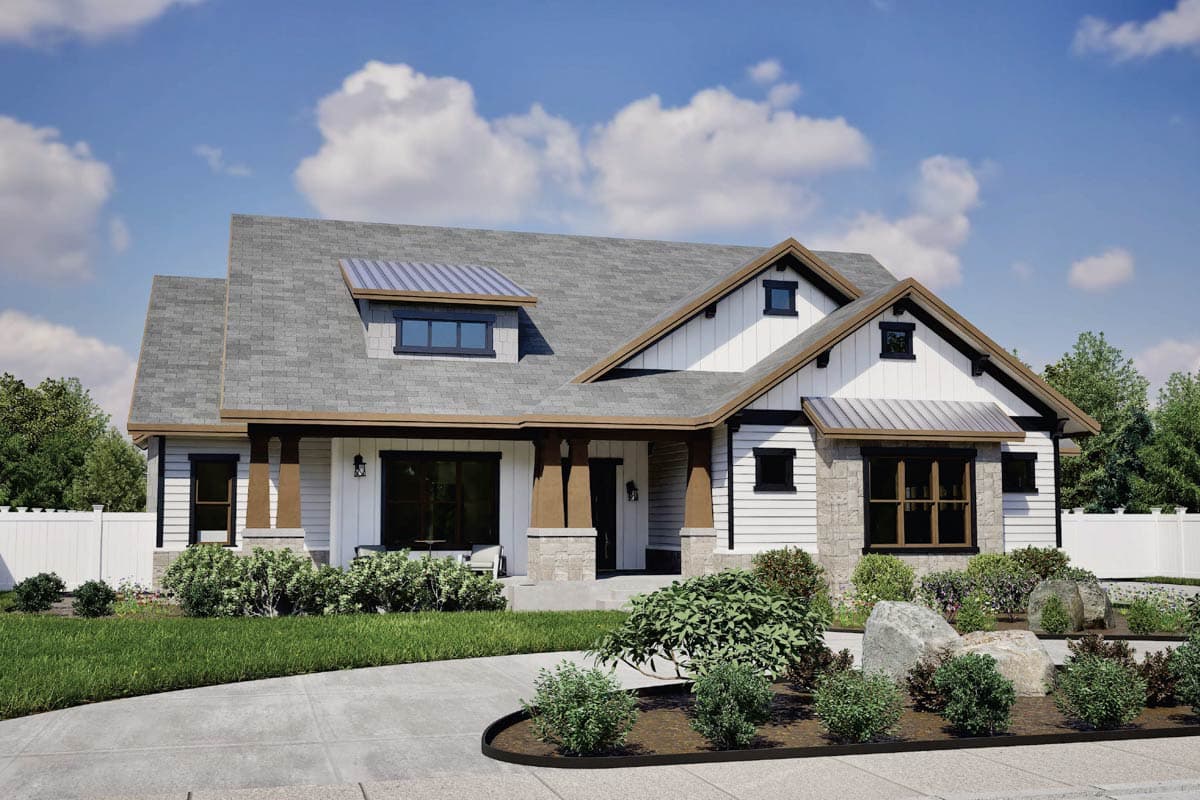

  • A shed dormer with metal roofing sits pretty on the roof of this Northwest house plan.
  • While the home is a one story house, the plans come with an optional finished lower level that almost doubles the size of the home.
  • Right from the foyer, you can see into the huge great room with its gorgeous coffered ceiling.

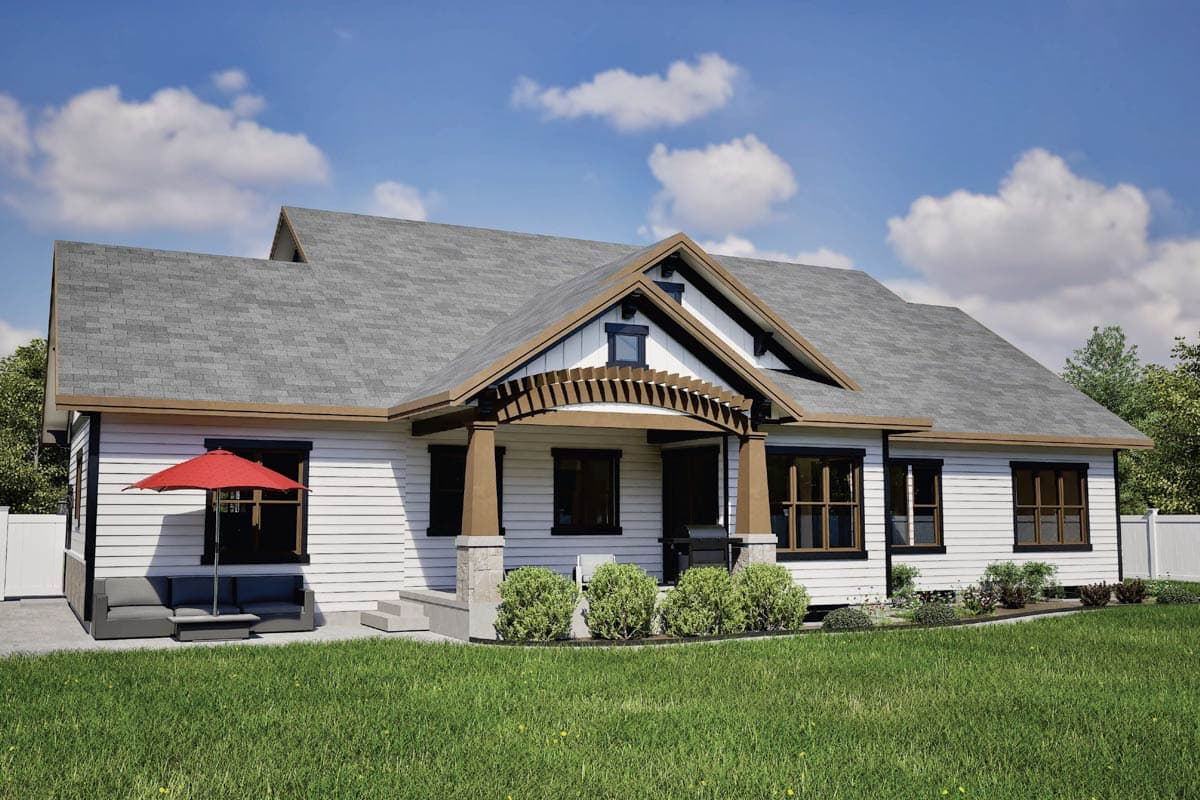

  • Sliding glass doors in the dining area leads out to the covered patio that will easily hold all your grilling equipment.
  • The three car garage is split into a two bay section and a one car bay.
  • A smashing lower level will get you a dedicated exercise room, a hobby room, rec room with wet bar and a media room for all your home theater entertaining.

What's Included

  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans

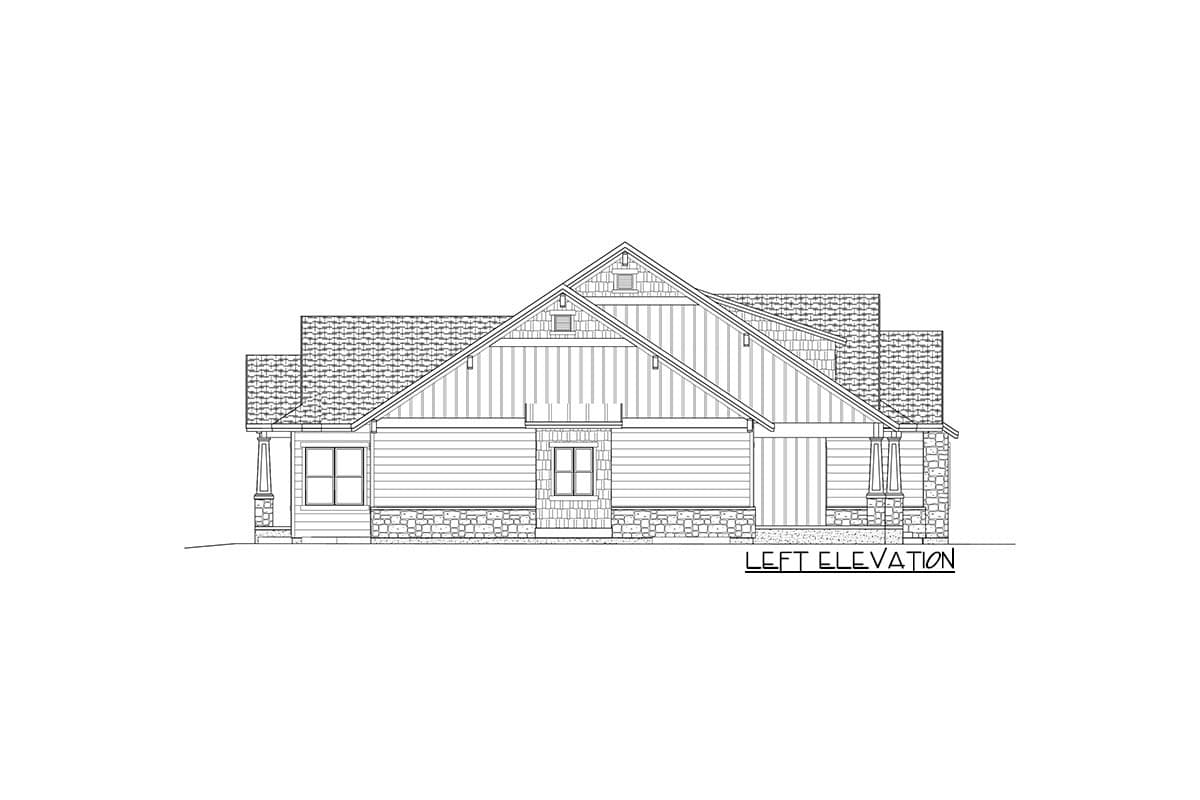

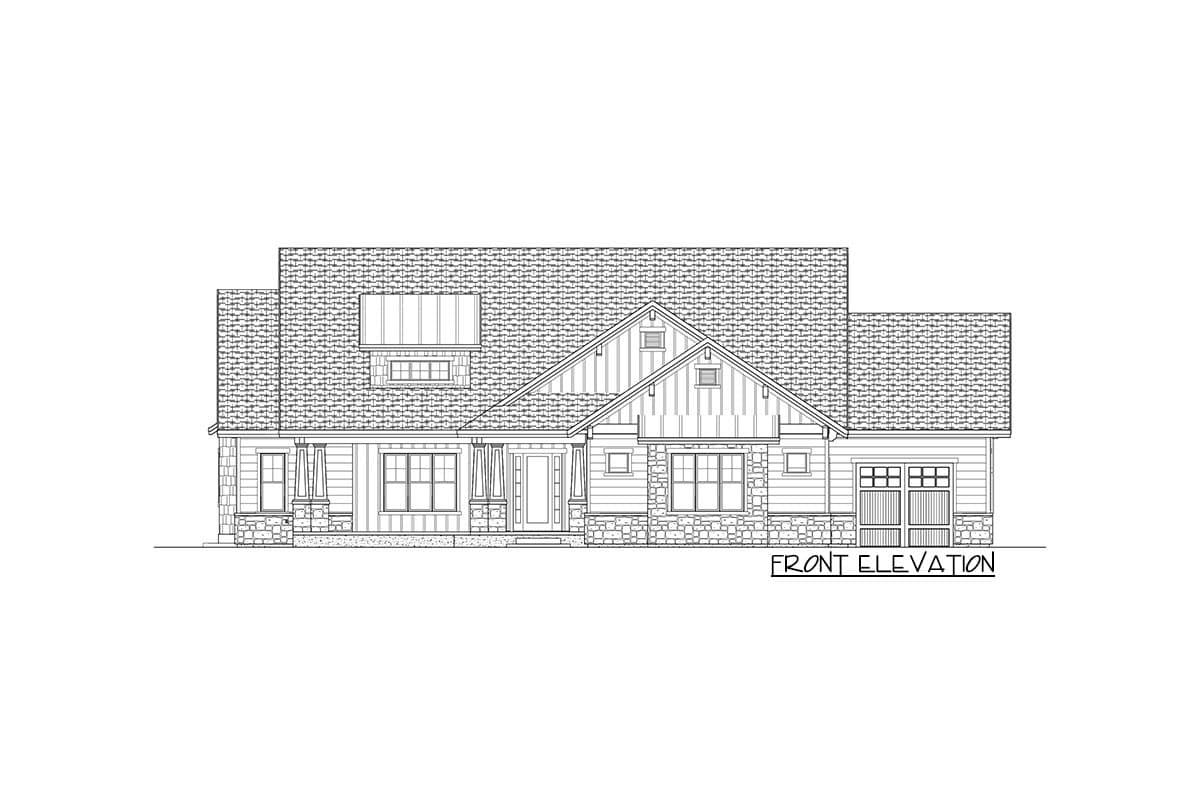

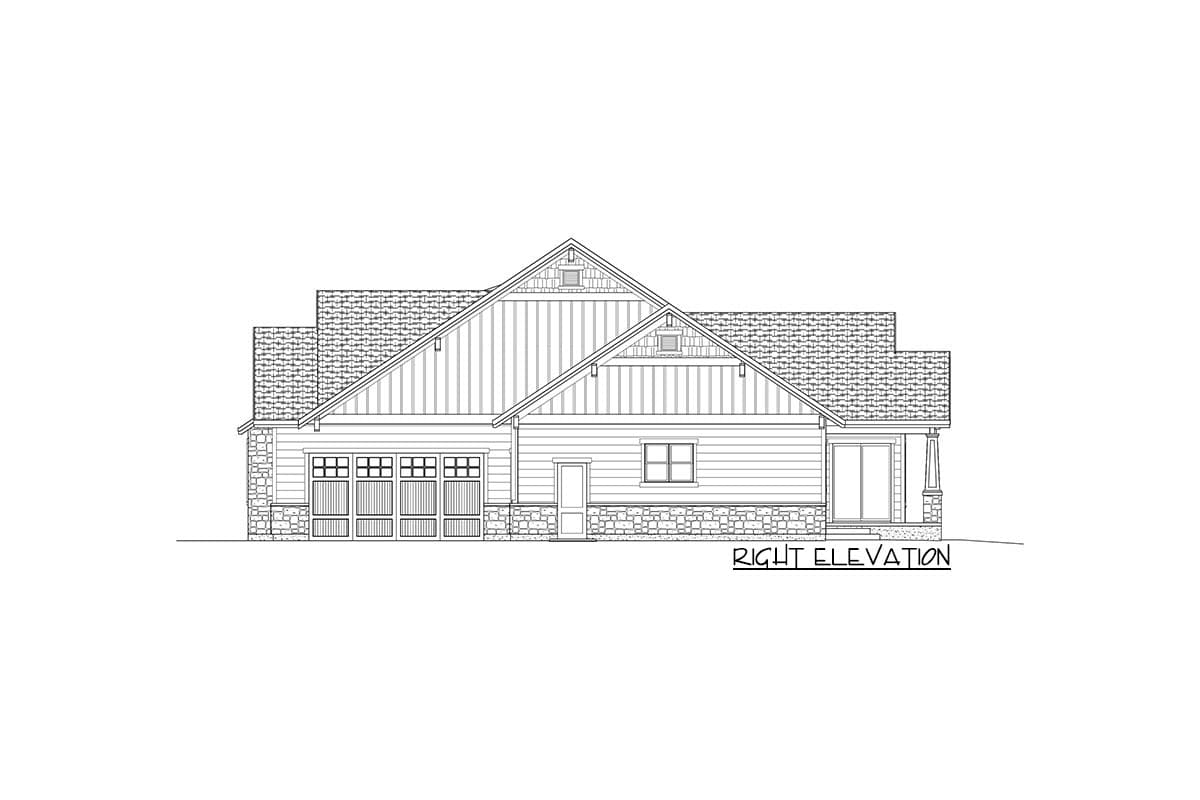

  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,276 sq. ft.

1st Floor

2,276 sq. ft.

Optional Lower Level

2,550 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

79' 2"

Depth

71' 2"

Max Ridge Height

30' 10"

Garage

Type

Attached

Area

1321 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

8'

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Cottage

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Game/Rec Room

Home Theater

Jack & Jill Bath

Master Suite - 1st Floor

Media Room

Walk-in Pantry

Wet Bar
