Plan 720124DA

Expansive Detached 4-Car Garage with Storage Area

Name: Plan 720124DA: Expansive Detached 4-Car Garage with Storage Area
Brand: Architectural Designs
SKU: 720124DA
Price: 615.0 USD
Availability: InStock

Heated S.F.

Beds

Baths

Stories

Cars

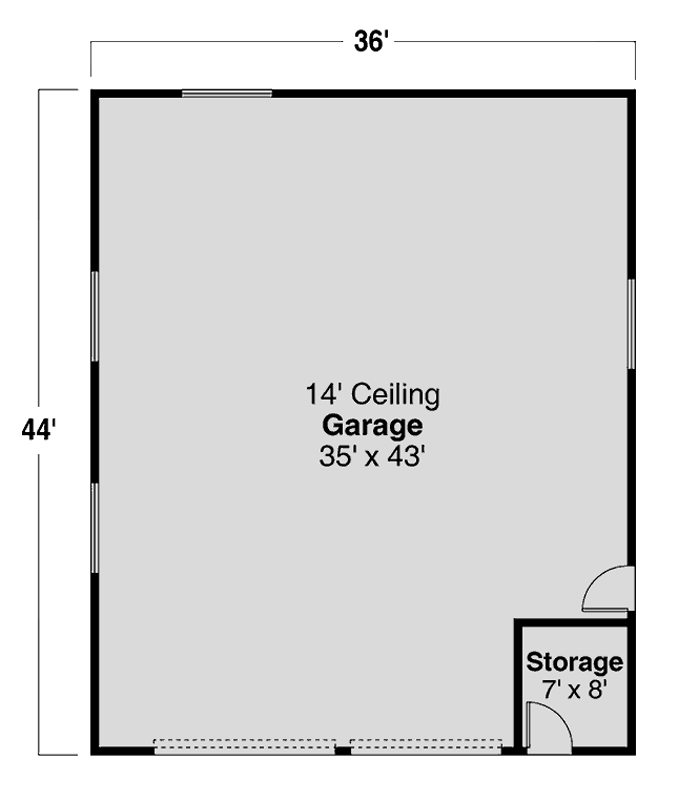

Floor Plan

Main Level

Plan Details

This large 1,584 sq. ft. detached garage offers space for up to 4 cars and includes a convenient storage area measuring 7' x 8'.
Enter through the front to find a spacious, open layout with a soaring 14' ceiling, great for accommodating large vehicles or equipment.
The garage's dimensions of 35' x 43' provide ample room for various automotive or hobby needs.
The design includes a dedicated storage section, perfect for organizational needs or additional workspace.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

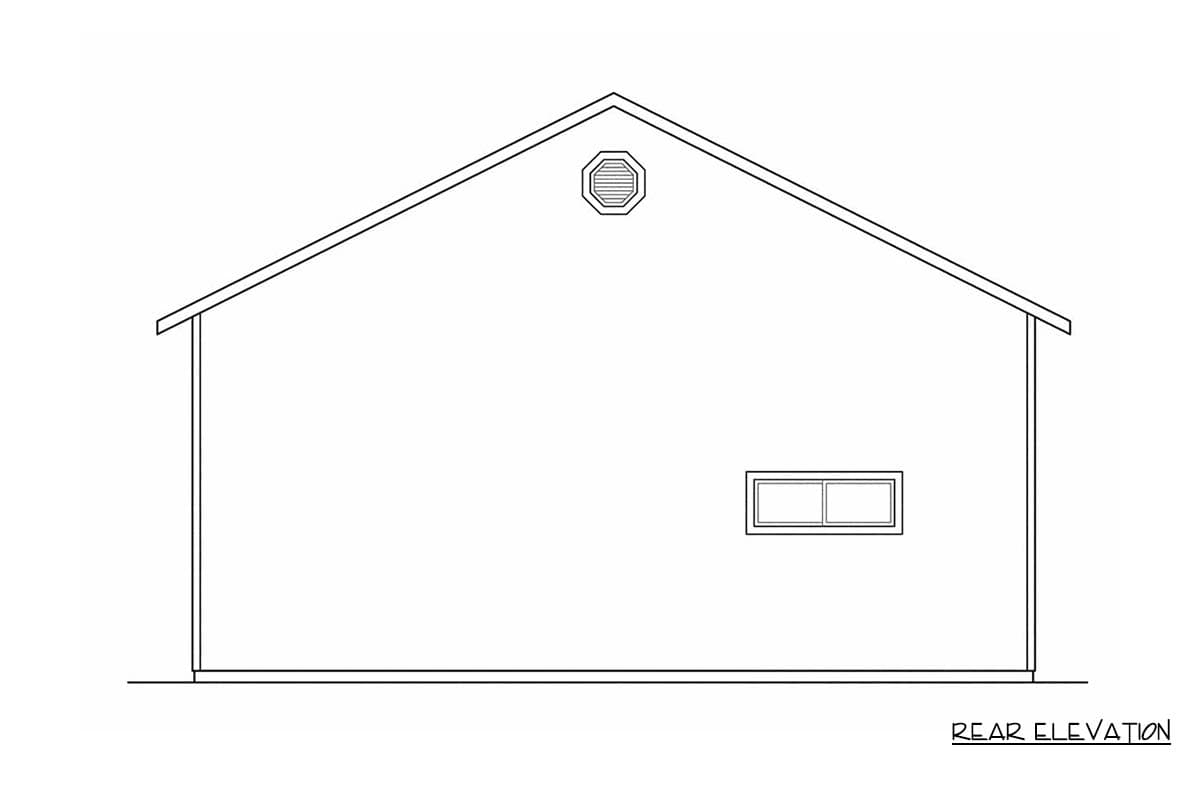

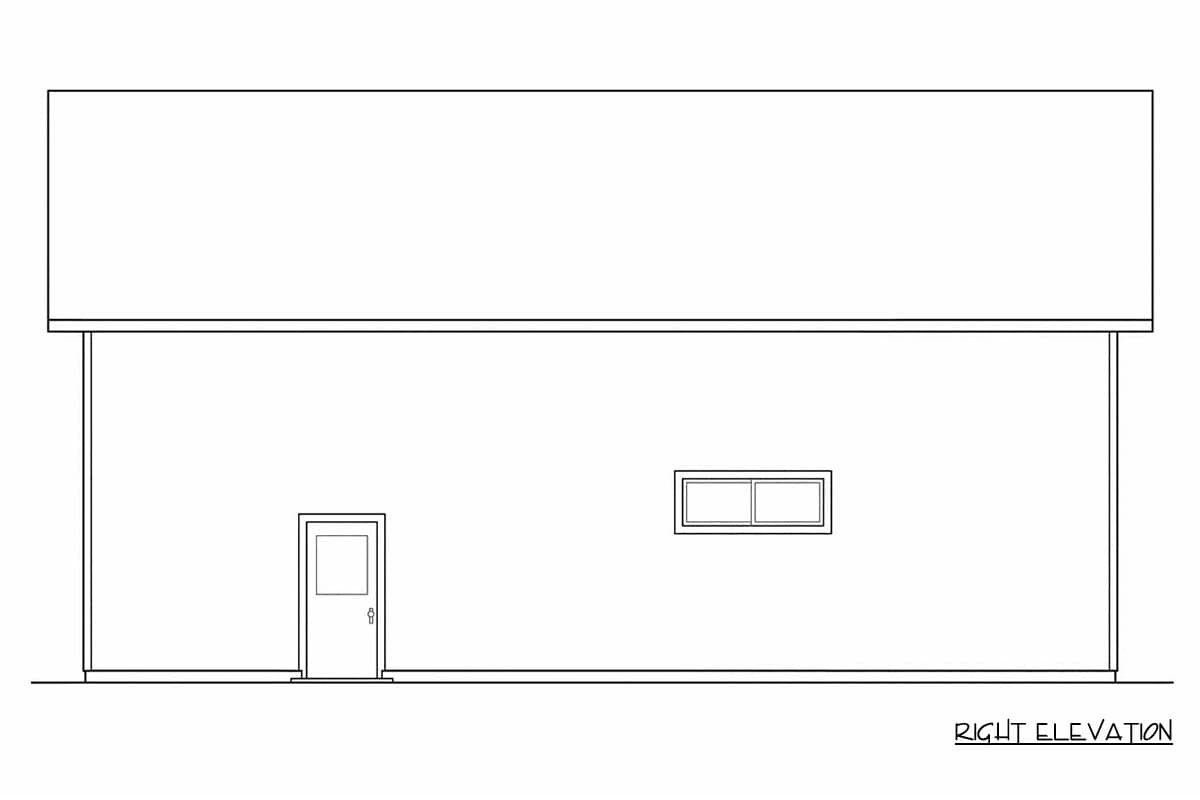

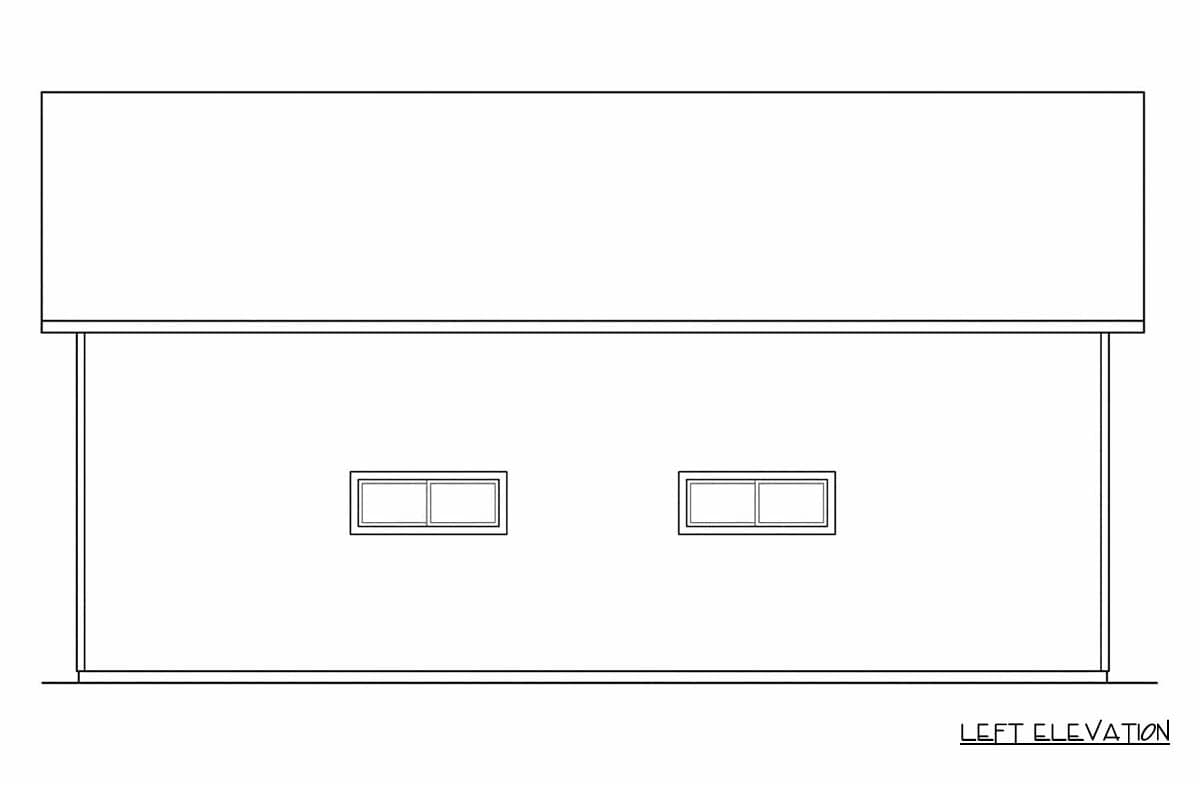

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee

What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

Foundation Type

Standard Foundations

Slab

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

44' 0"

Max Ridge Height

25' 2"

Garage

Type

Detached

Area

1584 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

14'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Traditional
