Plan 72637DA

Expansive Openness

2,433 4-5 2.5 2 2
Pageloader

Expansive Openness

Plan 72637DA

  • 2,433

    Heated s.f.

  • 4-5

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Painted wooden shutters give this country-style home plan a nostalgic look, but at its core it has the expansive openness that contemporary families want.
  • Atrium doors in the nook provide easy access to the bright and breezy screened porch, an inviting setting for warm weather meals and relaxation.
  • The great room has a 2-story ceiling, is richly windowed at the rear, and is totally open to the kitchen and nook.
  • A den or home office is right inside the entry.
  • Off in its own quiet wing on the right, the owners' suite has a calm-inducing tray ceiling, a deep walk-in closet and a private bathroom with a dual vanity, clawfoot tub and oversized shower.
  • Three more bedrooms, two bathrooms and a large bonus room are upstairs. The bonus room is windowed on two sides and can serve as a fifth bedroom if needed, and the front-facing bedroom has a vaulted ceiling.



Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Expansive Openness

  • 2,433

    Heated s.f.

  • 4 - 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $745
  • PDF Light $975
  • 5 Sets $975
  • 8 Sets $1,140
  • PDF Plus $1,955
  • CAD $2,095
  • CAD - multi-use $2,345
  • View all purchase option online

About This Plan

  • Painted wooden shutters give this country-style home plan a nostalgic look, but at its core it has the expansive openness that contemporary families want.
  • Atrium doors in the nook provide easy access to the bright and breezy screened porch, an inviting setting for warm weather meals and relaxation.
  • The great room has a 2-story ceiling, is richly windowed at the rear, and is totally open to the kitchen and nook.
  • A den or home office is right inside the entry.
  • Off in its own quiet wing on the right, the owners' suite has a calm-inducing tray ceiling, a deep walk-in closet and a private bathroom with a dual vanity, clawfoot tub and oversized shower.
  • Three more bedrooms, two bathrooms and a large bonus room are upstairs. The bonus room is windowed on two sides and can serve as a fifth bedroom if needed, and the front-facing bedroom has a vaulted ceiling.



Floor Plans

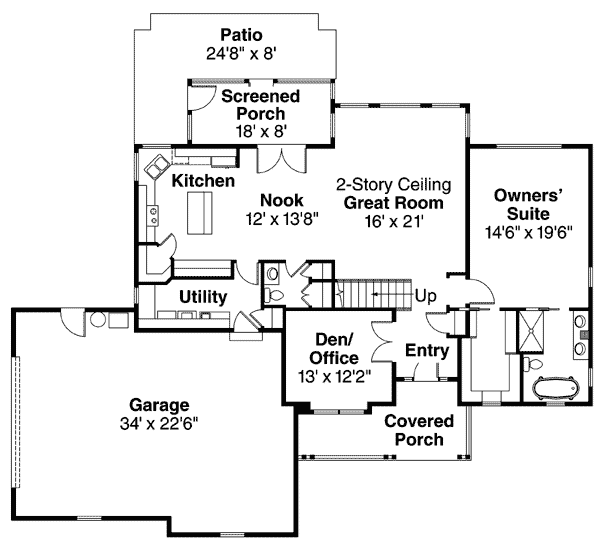

  • Main Level

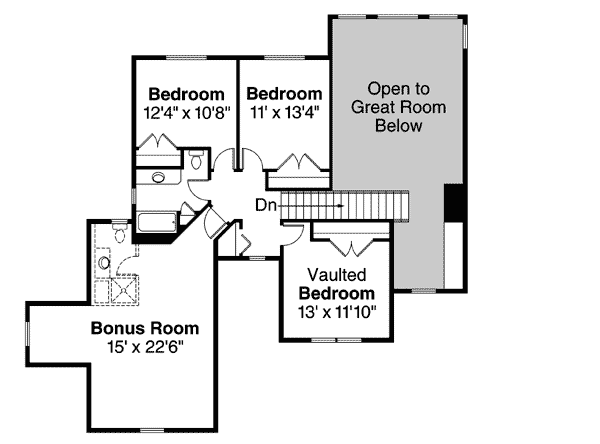

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,433 sq. ft.
  • 1st Floor: 1,701 sq. ft.
  • 2nd Floor: 732 sq. ft.
  • Bonus: 602 sq. ft.
  • Screened Porch: 144 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 71' 0"
  • Depth: 56' 0"
  • Max ridge height: 28' 9"

Garage

  • Type: Attached
  • Area: 864 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
