Plan 66385WE

Exquisite Two Bedroom Craftsman House Plan

Exquisite Two Bedroom Craftsman House Plan

Plan 66385WE

  • 1,610

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • The richly detailed exterior of this Craftsman house plan is capped by an attractive metal roof.
  • All the main living areas boast gorgeous ceiling treatments that make the home feel custom.
  • With its open floor plan, the sight lines extend from room to room and out to the huge covered lanai.
  • Bedrooms are split apart so each has privacy.
  • This home makes a gracious getaway Vacation home or a permanent home for those who want to downsize.

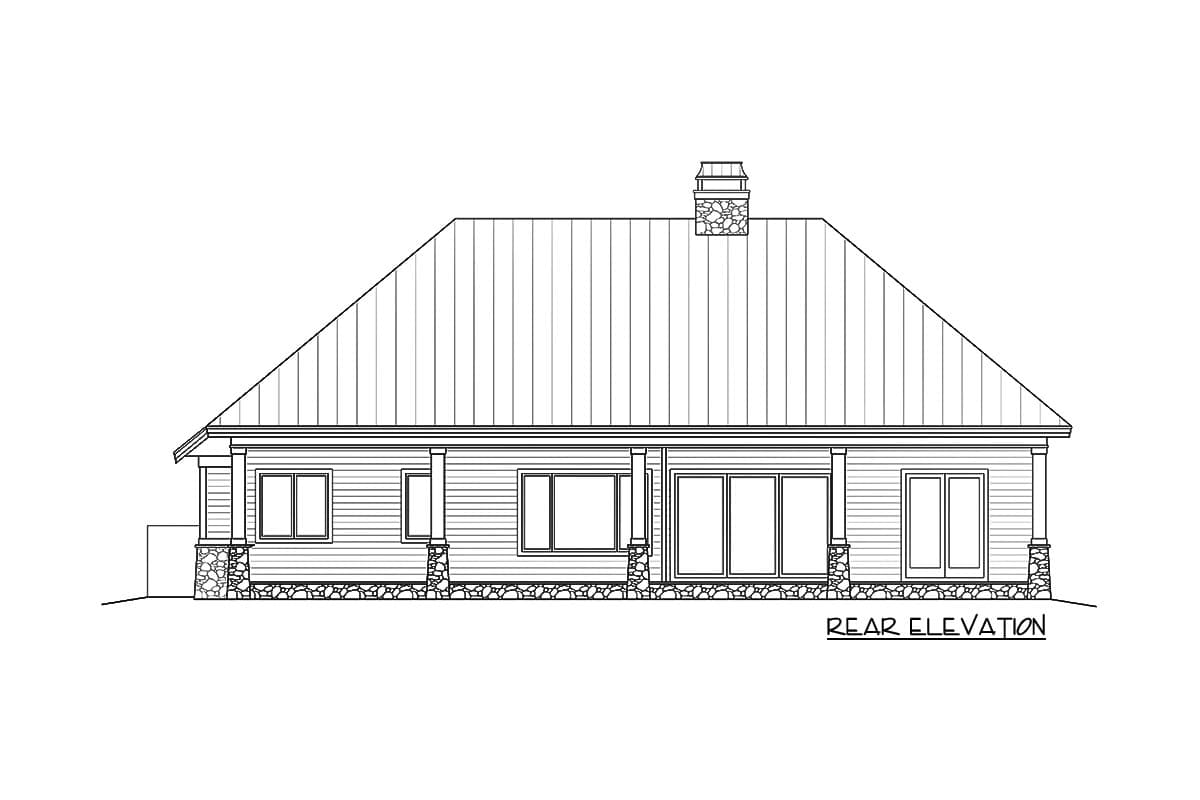

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale,and Includes:
Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


Floor Plan

Plan details



Exquisite Two Bedroom Craftsman House Plan

  • 1,610

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $1,000
  • PDF - single-use $1,000
  • CAD $1,000
  • View all purchase option online

About This Plan

  • The richly detailed exterior of this Craftsman house plan is capped by an attractive metal roof.
  • All the main living areas boast gorgeous ceiling treatments that make the home feel custom.
  • With its open floor plan, the sight lines extend from room to room and out to the huge covered lanai.
  • Bedrooms are split apart so each has privacy.
  • This home makes a gracious getaway Vacation home or a permanent home for those who want to downsize.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,610 sq. ft.
  • 1st Floor: 1,610 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 65' 0"
  • Depth: 53' 8"
  • Max ridge height: 27' 8"

Garage

  • Type: Attached
  • Area: 672 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side
