Plan 59369ND

Family-Friendly Duplex House Plan

Heated S.F.
3,394
Units
2
Width
Depth

Floor Plan

Plan 59369ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59369ND

M-F 9am-5pm EST |

1-203-761-8500

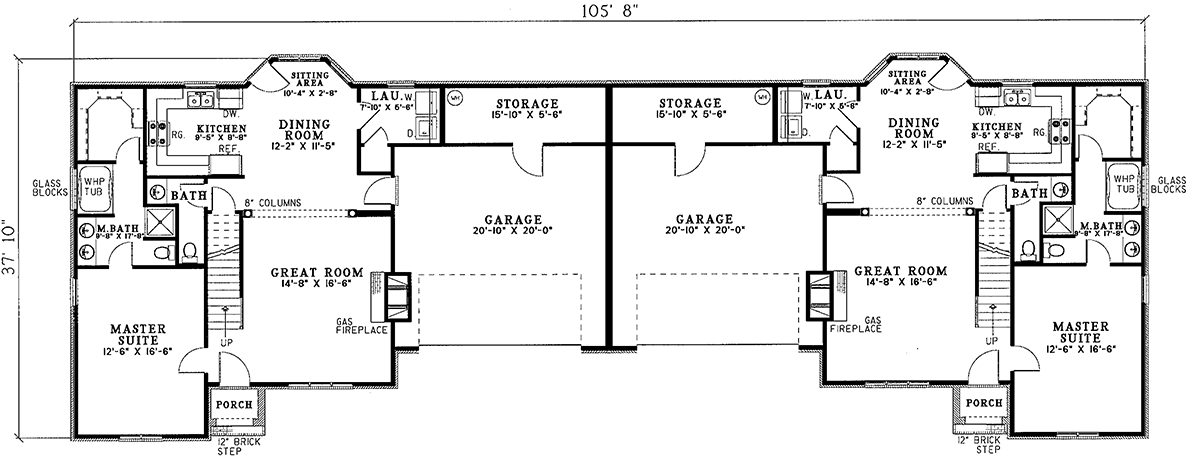

Main Level

Plan 59369ND: Family-Friendly Duplex House Plan - Floor Plan - Main Level - Southern, Traditional

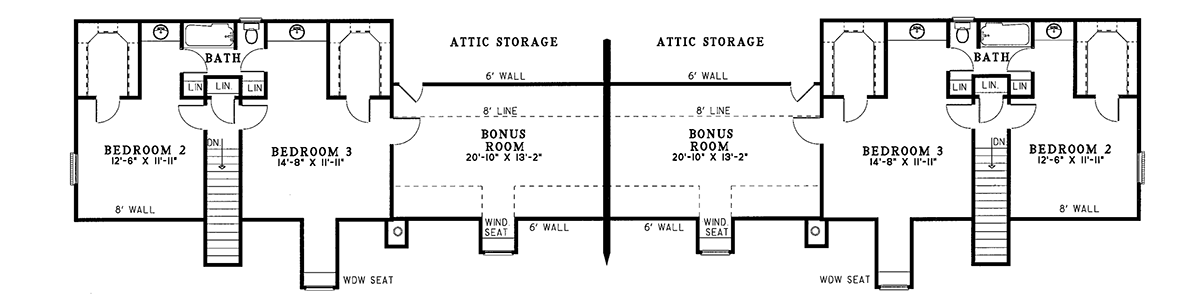

2nd Floor

Plan 59369ND: Family-Friendly Duplex House Plan - Floor Plan - 2nd Floor - Southern, Traditional

Plan Details

  • Family will thoroughly enjoy this duplex house plan. The great room has a cozy fireplace and opens to the formal dining room and kitchen. A bay window sitting area has a wonderful view and access to the back yard.
  • For privacy and convenience, the master suite is located on the main floor and has a large bathroom with whirlpool tub, separate shower, and large walk-in closet.
  • Upstairs you'll find two additional bedrooms each with a large walk-in closet, private vanity and sharing a bathroom.
  • A spacious bonus room has a dormer window seat and sloped ceiling.
Unit A
Heated Area
1,697Sq. Ft.
1048 Sq. Ft. 1st
649 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
251 Sq. Ft.
Dimensions
53' 2"width
37' 10"depth
25'height
Unfinished Areas
251 Sq. Ft. Garage
295 Sq. Ft. Bonus
Unit B
Heated Area
1,697Sq. Ft.
1048 Sq. Ft. 1st
649 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
521 Sq. Ft.
Dimensions
53' 2"width
37' 10"depth
25'height
Unfinished Areas
521 Sq. Ft. Garage
295 Sq. Ft. Bonus

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,394 sq. ft.

1st Floor

2,096 sq. ft.

2nd Floor

1,298 sq. ft.

Bonus

590 sq. ft.

Porch, Combined

416 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

105' 8"

Depth

37' 10"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

1042 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

3,394 sq. ft.

1st Floor

2,096 sq. ft.

2nd Floor

1,298 sq. ft.

Bonus

590 sq. ft.

Porch, Combined

416 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

105' 8"

Depth

37' 10"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

1042 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room
