Plan: 72213DA

Family-Friendly Layout

2,238 3 3 2 2
Pageloader

Family-Friendly Layout

Plan 72213DA

  • 2,238

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

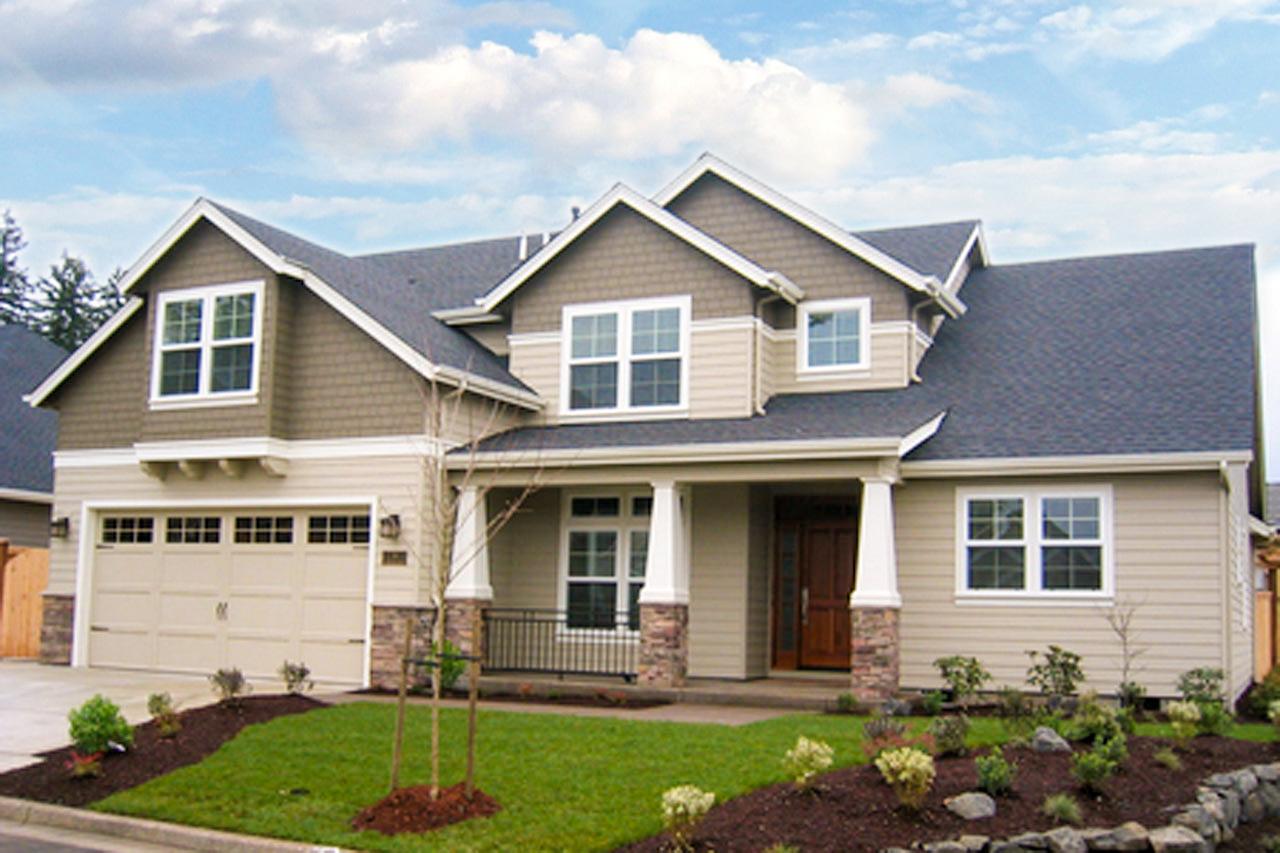

  • Tapered columns set on stone veneer bases give a classic Craftsman look to this two-story, midsize plan house plan with a welcoming exterior and a family-friendly interior.
  • Entering, you step into a foyer with an arched opening on the left that leads into a room with many possibilities. Designed for use as a dining room or parlor, it could just as easily become a home office or family study area.
  • Day-to-day meals and activities center around the vaulted great room, which slopes up to the two-story ceiling and is wide open to the nook and kitchen. Two tall windows flank the gas fireplace, while wide sliding glass doors in the nook provide easy access to the partially covered patio.
  • Kitchen amenities include a large work island, roomy pantry, and built-in appliances. The desk that nestles into an alcove in the nook could be built with either shelves or cabinets above.
  • Laundry appliances are nearby in a utility room complete with cabinets, folding counter, and deep sink. A handy powder room is just across a hall that provides direct access to the two-car garage.
  • A spacious owners' suite fills the right wing of the home. Its bathroom boasts a dual vanity, oversized shower, and totally private toilet. Two more bedrooms, a bath, and a bonus room are upstairs.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

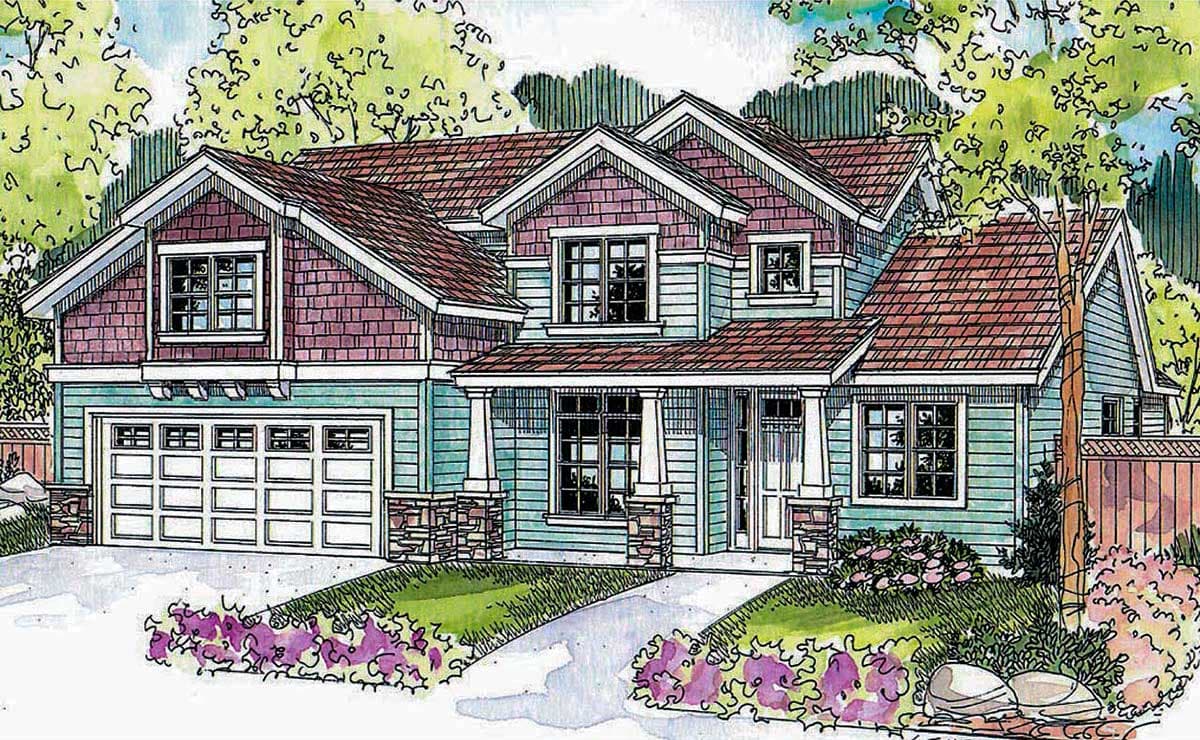

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

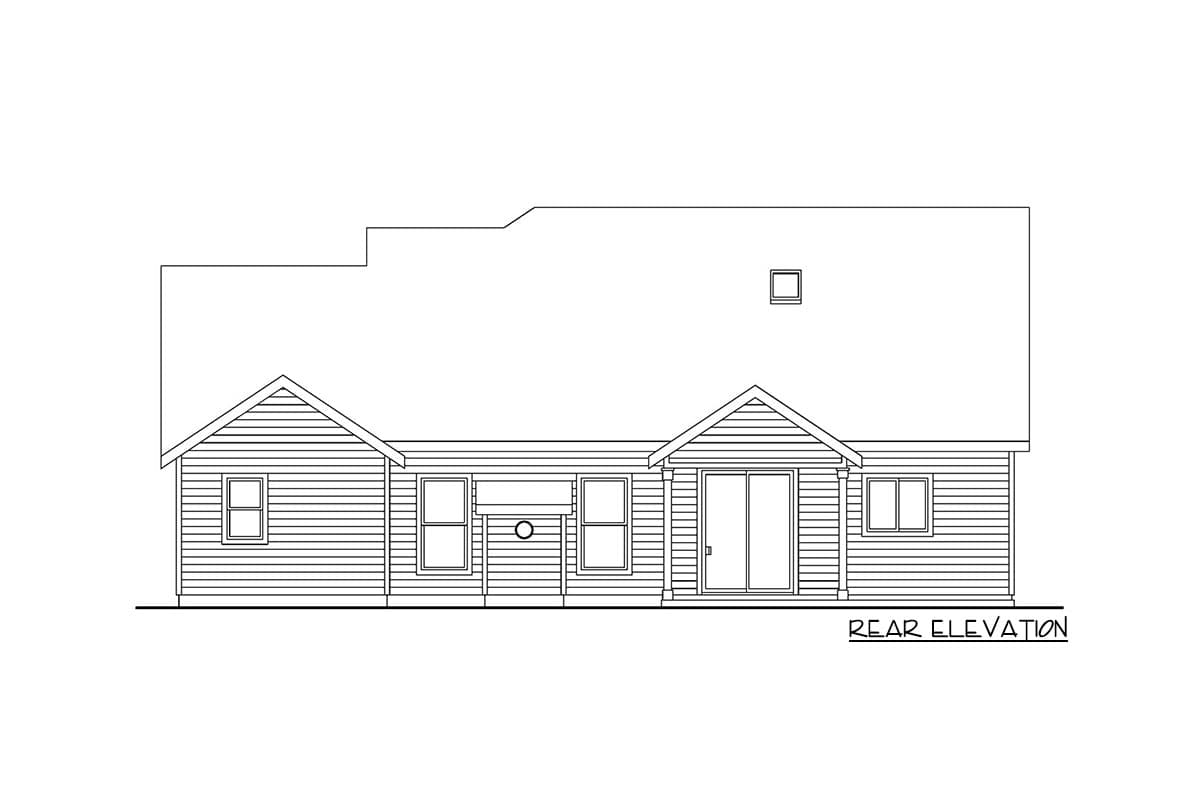

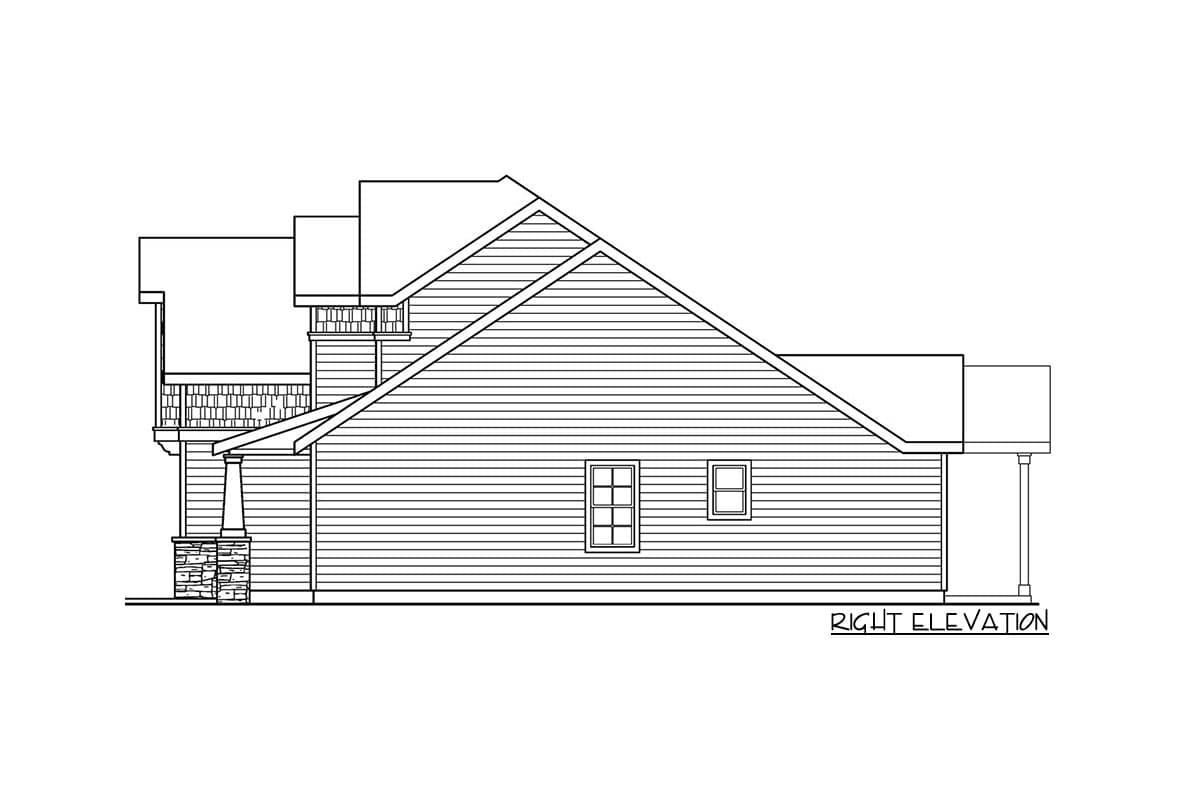

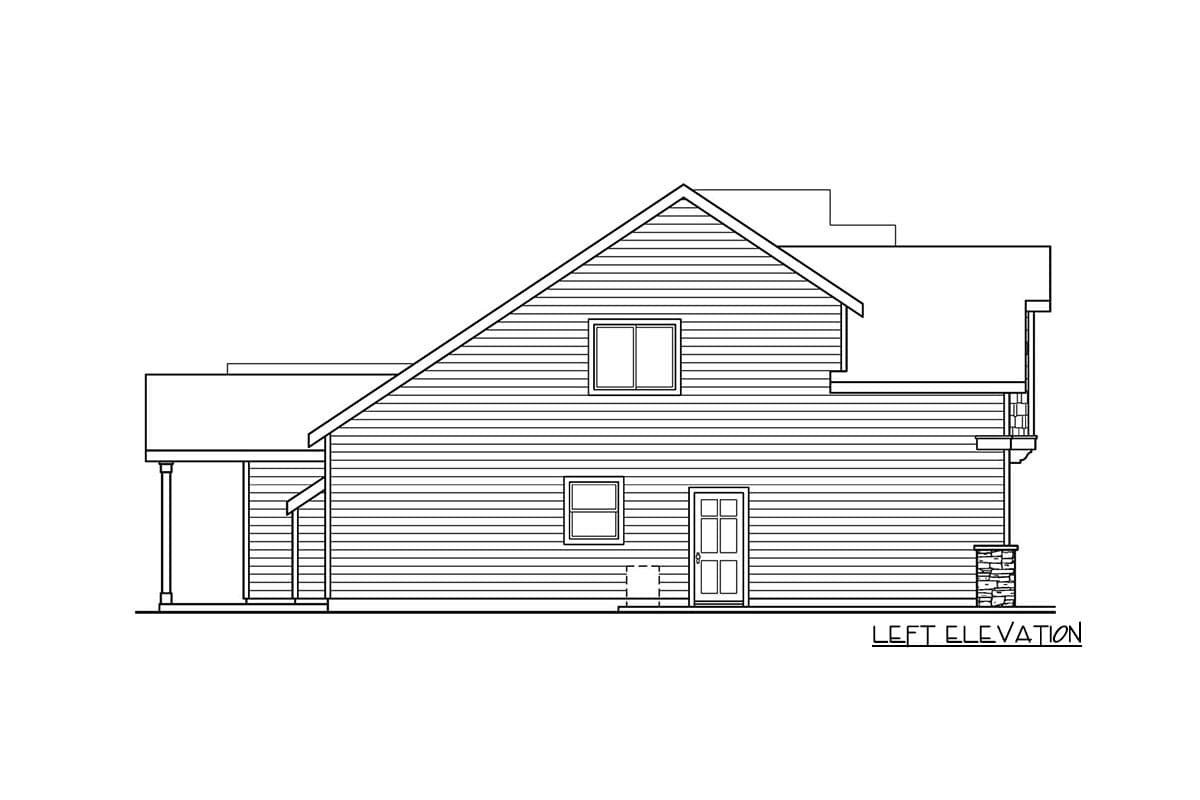

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Family-Friendly Layout

  • 2,238

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $745
  • PDF Light $975
  • 5 Sets $975
  • 8 Sets $1,140
  • PDF Plus $1,955
  • CAD $2,095
  • CAD - multi-use $2,345
  • View all purchase option online

About This Plan

  • Tapered columns set on stone veneer bases give a classic Craftsman look to this two-story, midsize plan house plan with a welcoming exterior and a family-friendly interior.
  • Entering, you step into a foyer with an arched opening on the left that leads into a room with many possibilities. Designed for use as a dining room or parlor, it could just as easily become a home office or family study area.
  • Day-to-day meals and activities center around the vaulted great room, which slopes up to the two-story ceiling and is wide open to the nook and kitchen. Two tall windows flank the gas fireplace, while wide sliding glass doors in the nook provide easy access to the partially covered patio.
  • Kitchen amenities include a large work island, roomy pantry, and built-in appliances. The desk that nestles into an alcove in the nook could be built with either shelves or cabinets above.
  • Laundry appliances are nearby in a utility room complete with cabinets, folding counter, and deep sink. A handy powder room is just across a hall that provides direct access to the two-car garage.
  • A spacious owners' suite fills the right wing of the home. Its bathroom boasts a dual vanity, oversized shower, and totally private toilet. Two more bedrooms, a bath, and a bonus room are upstairs.

Floor Plans

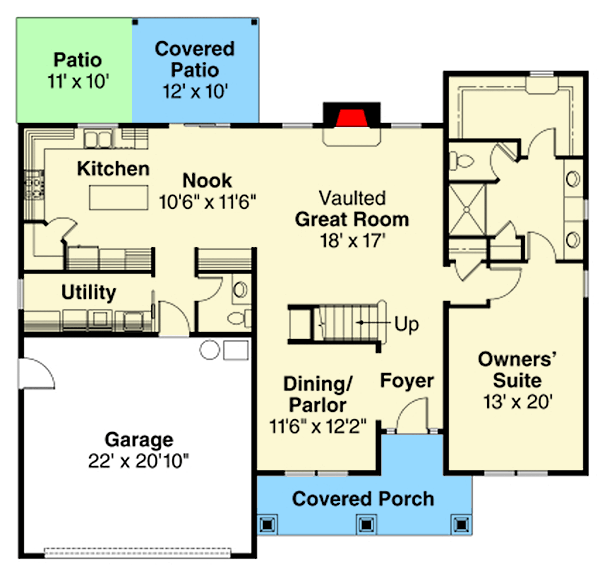

  • Main Level

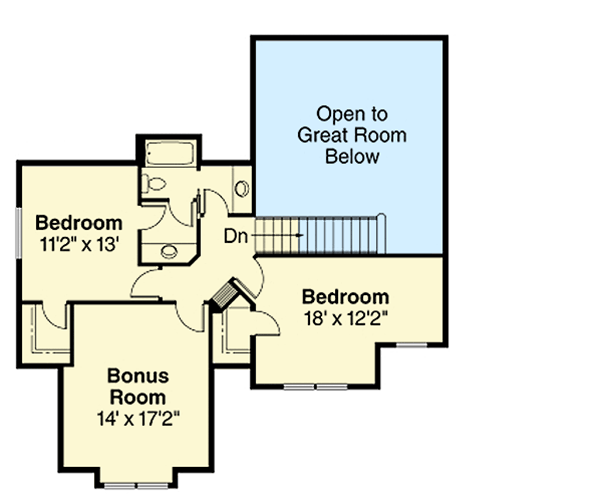

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,238 sq. ft.
  • 1st Floor: 1,627 sq. ft.
  • 2nd Floor: 611 sq. ft.
  • Bonus: 242 sq. ft.
  • Covered Patio: 120 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 52' 0"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

  • Craftsman
  • Northwest

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • Jack & Jill Bath
  • PDF
