Plan 36663TX
Fantastic 2-Story Home Plan with Split-Bed Layout and Game Room
Heated S.F.
3,937
Beds
4
Baths
3
Stories
2
Cars
3
What's Included
Plan Details

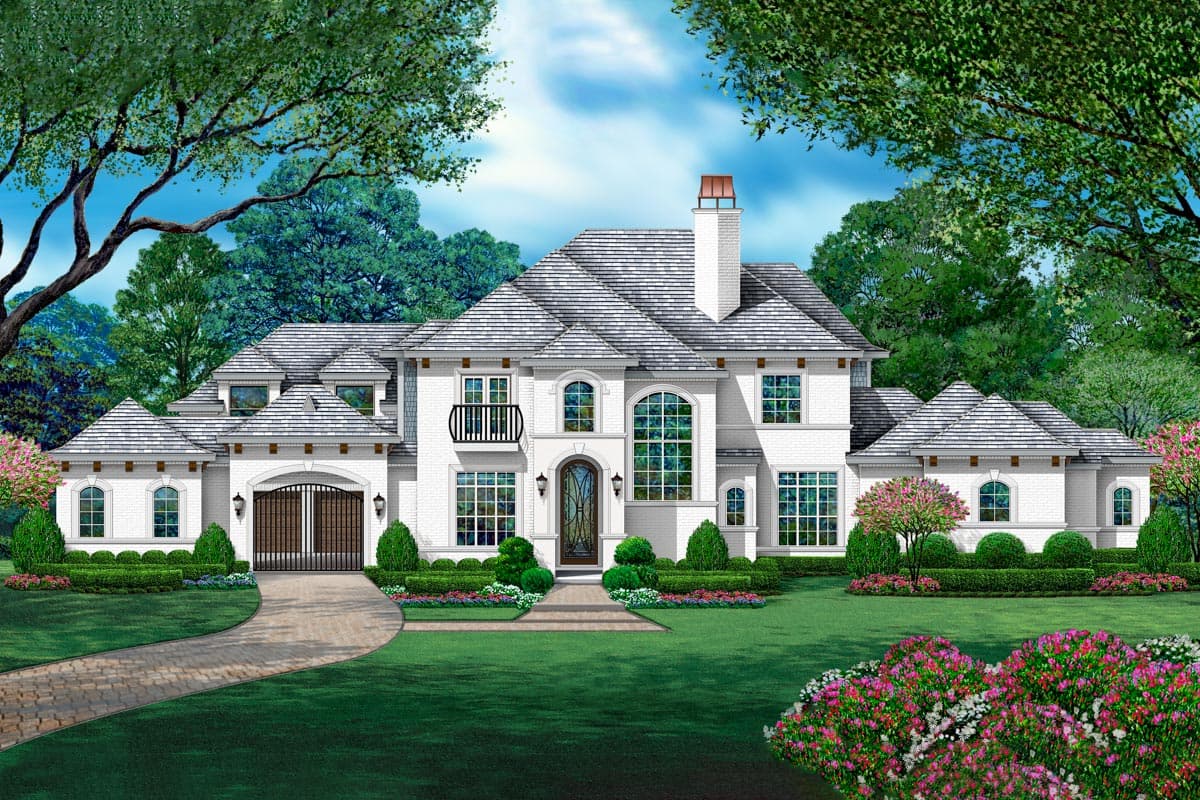

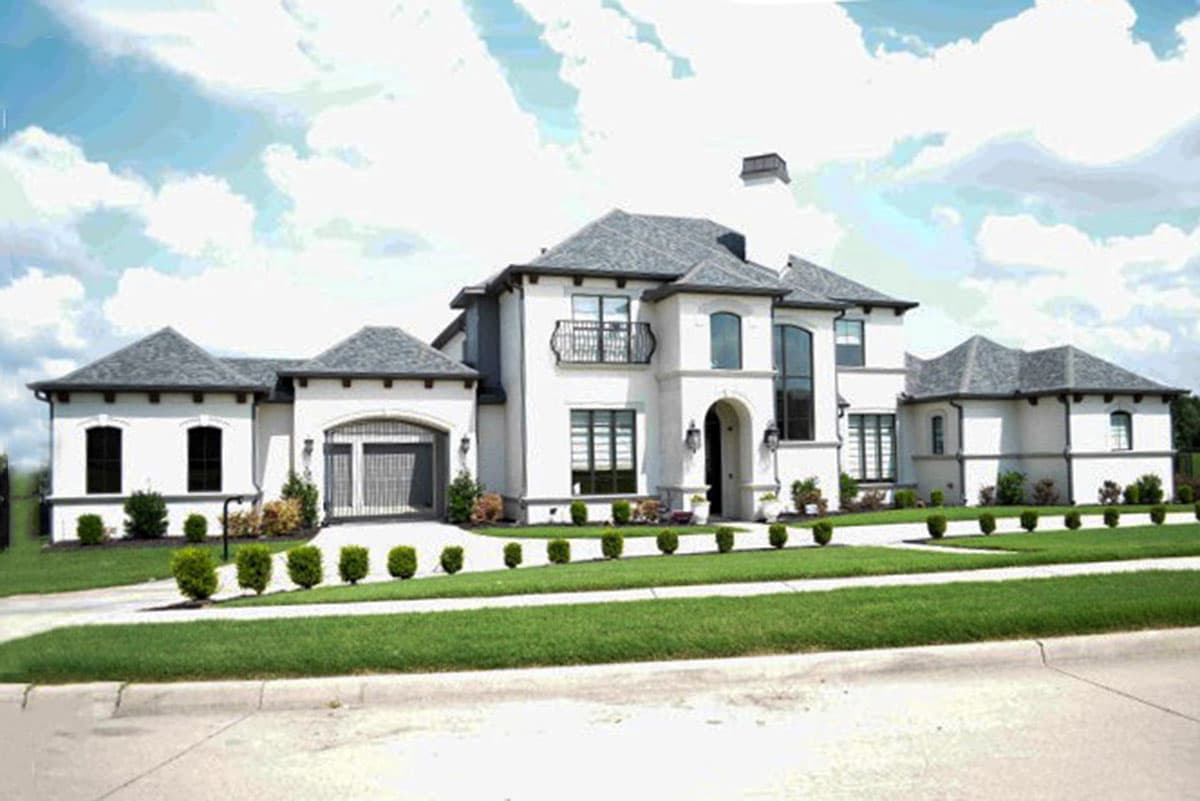

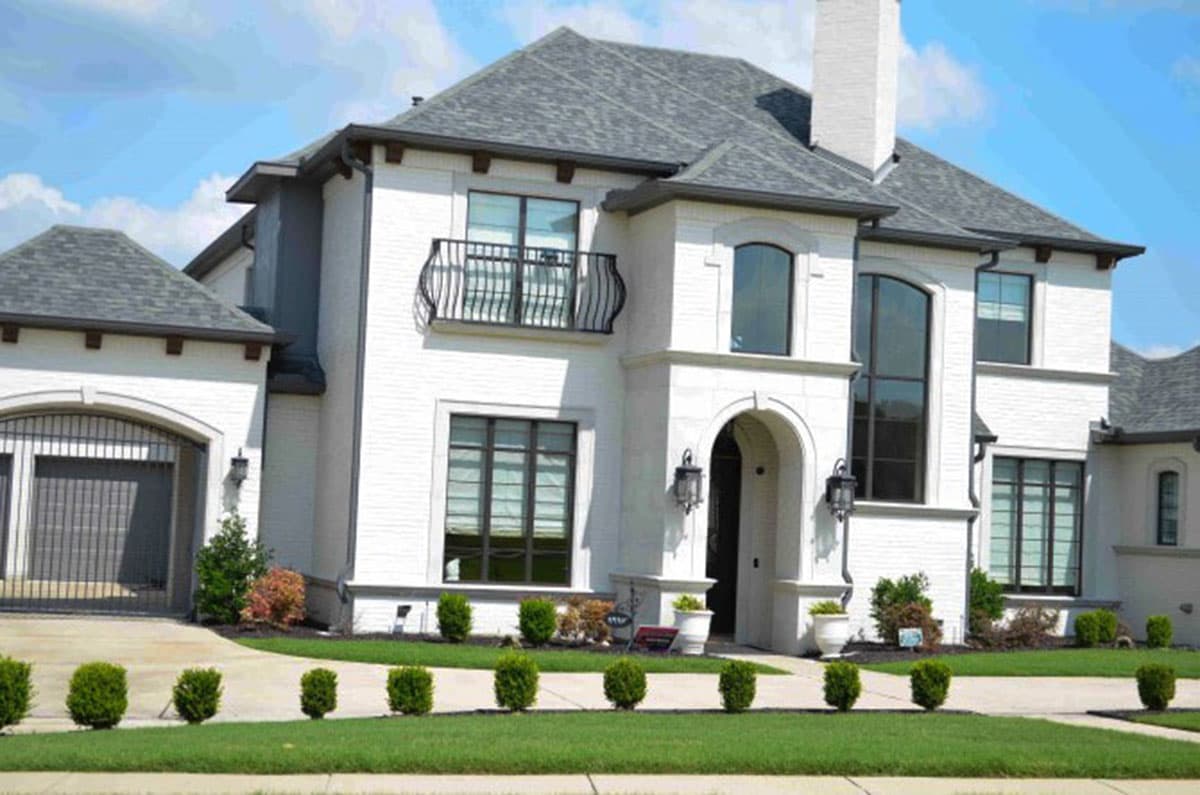

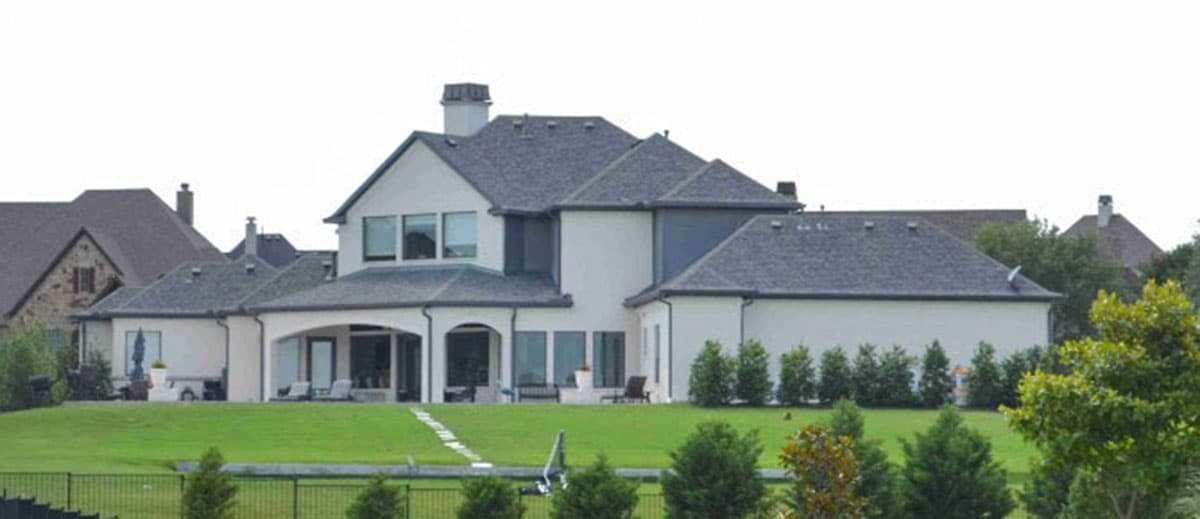

  • At just under 4,000 square feet, this fantastic 2-story home plan presents a split-bedroom layout, large family room that extends onto a patio, and a game room on the second level for all to enjoy.
  • The gourmet kitchen allows you to flex your culinary muscles with its spacious island and large range, while the nearby dining room provides enough space for an oversized table.
  • The deluxe owner's suite occupies the right side of the main level and boasts a spa-like ensuite with his and hers vanities. A quiet study and second bedroom complete this floor.

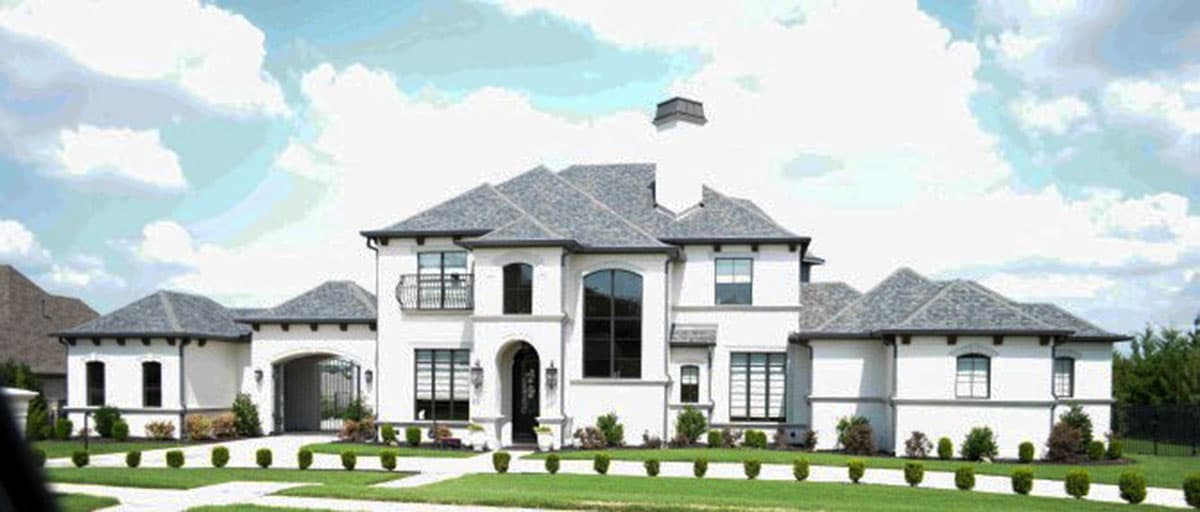

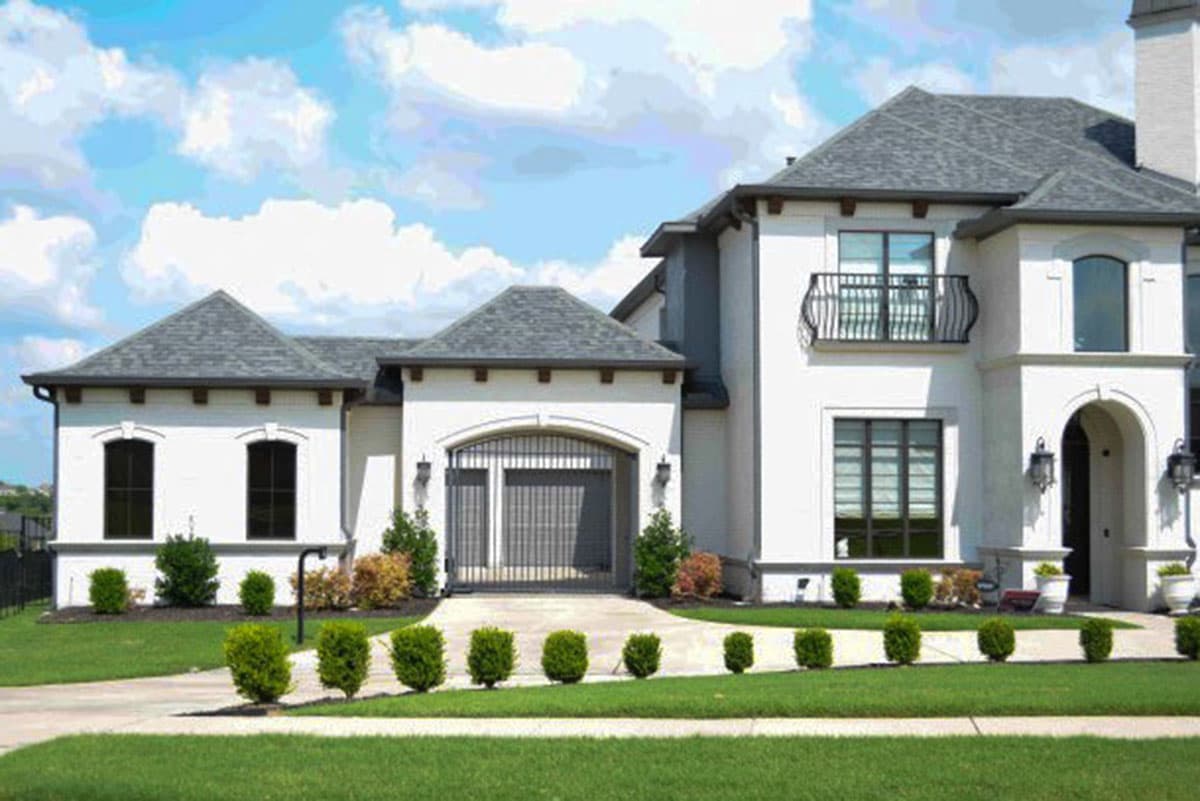

  • Drive through the portico to find a parking courtyard that leads to a double garage, along with a single bay attached to the portico.
  • To finish off the design, discover bedrooms 3 and 4 upstairs, next to a generous game room with dedicated storage space.
What's Included
  • Cover sheet
  • Foundation Plan
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

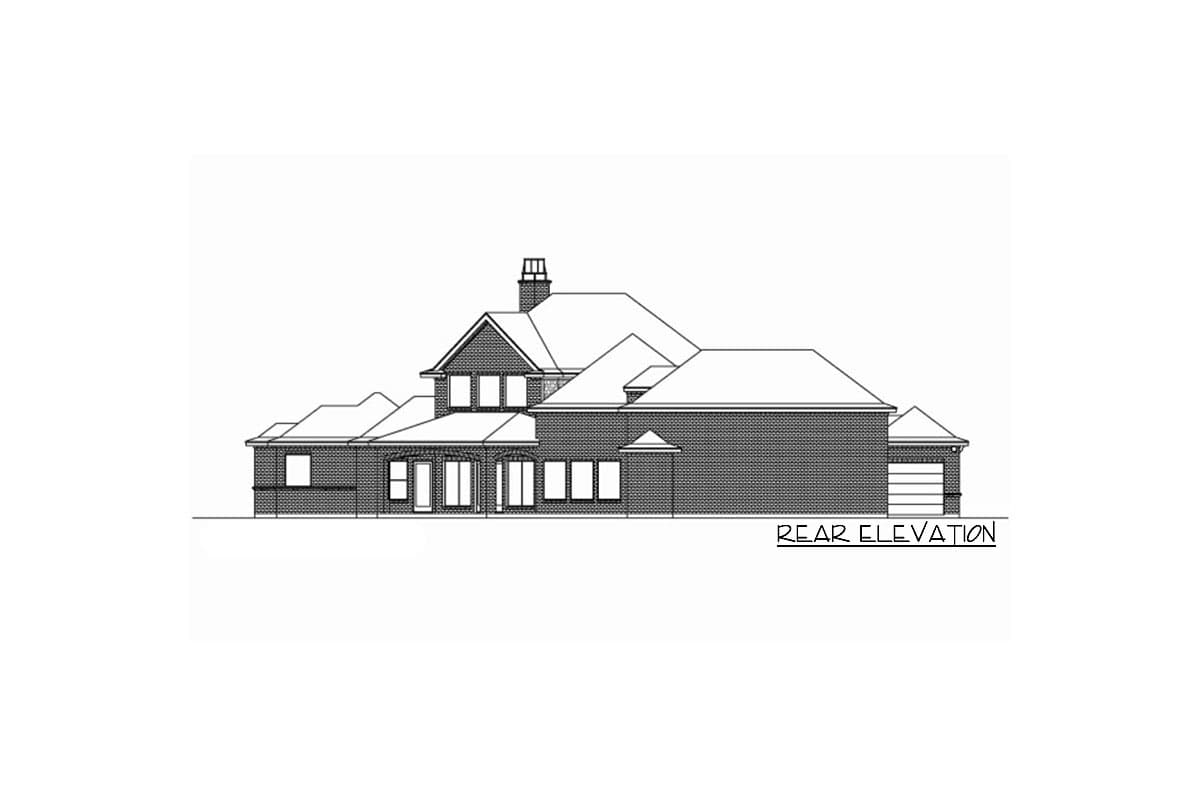

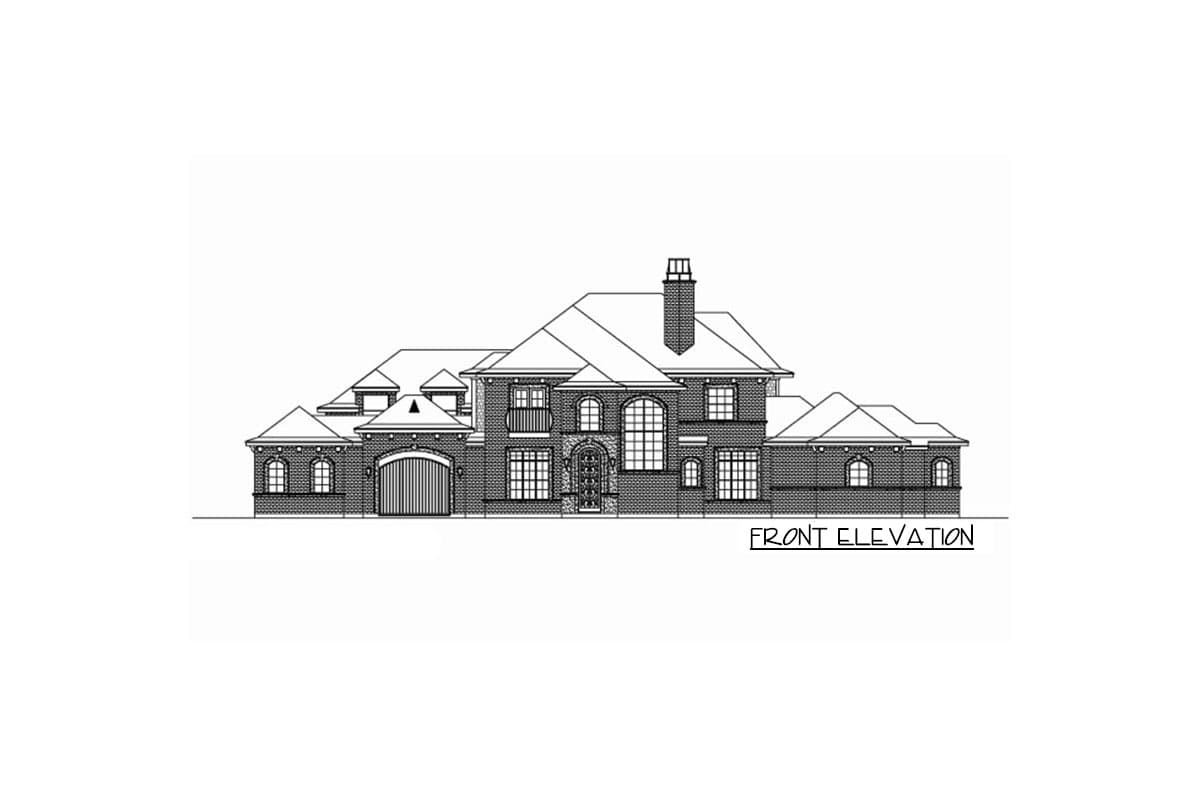

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

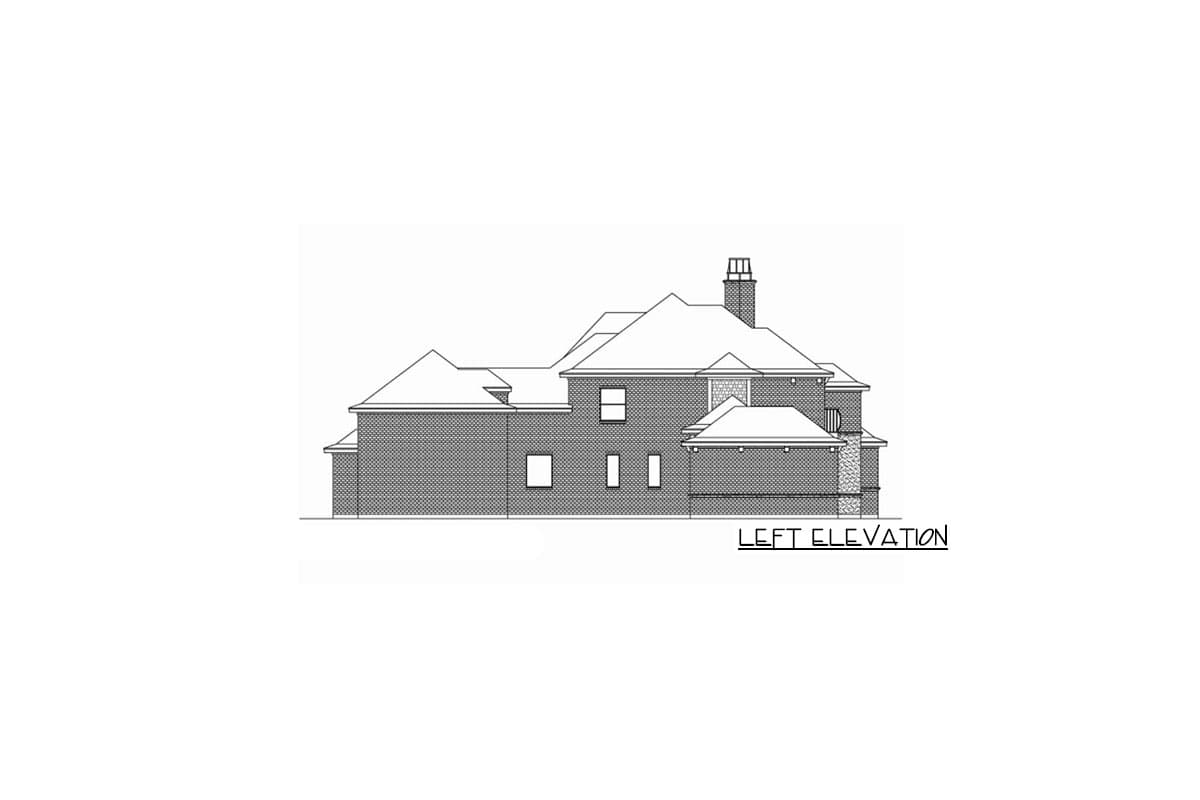

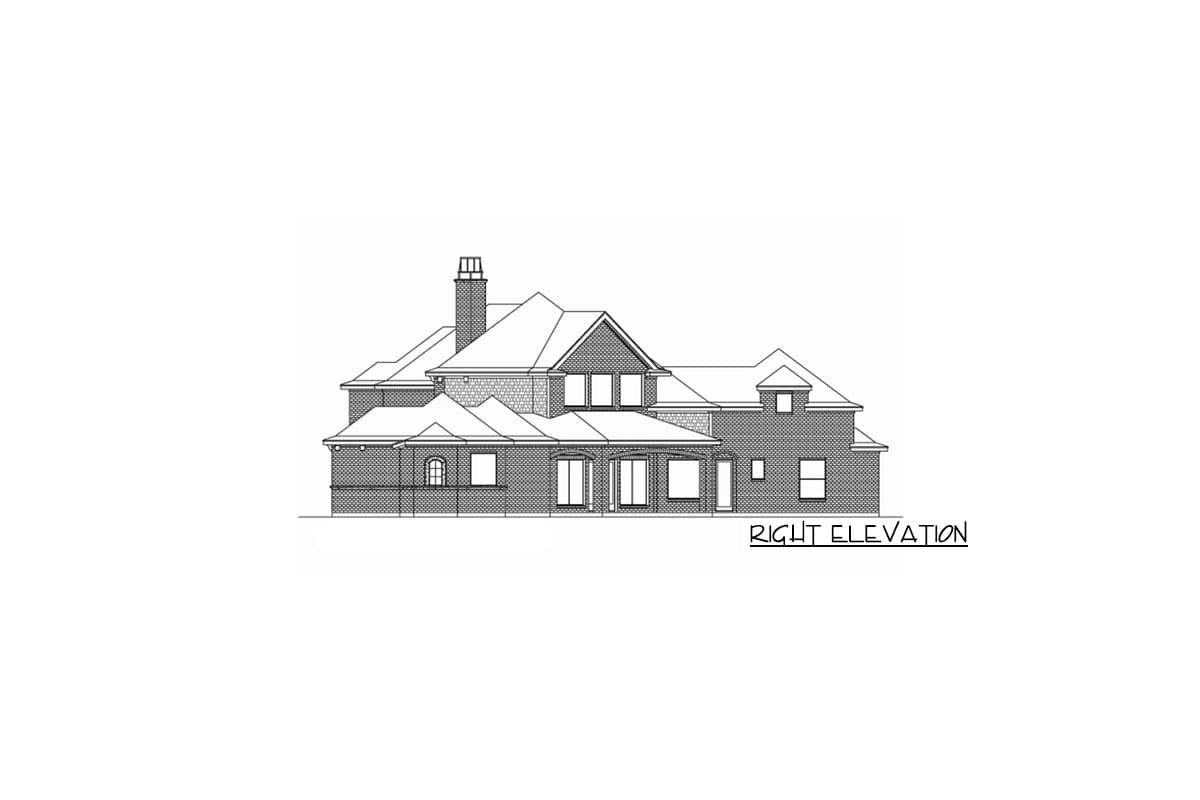

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Fantastic 2-Story Home Plan with Split-Bed Layout and Game Room

  • 3,937

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

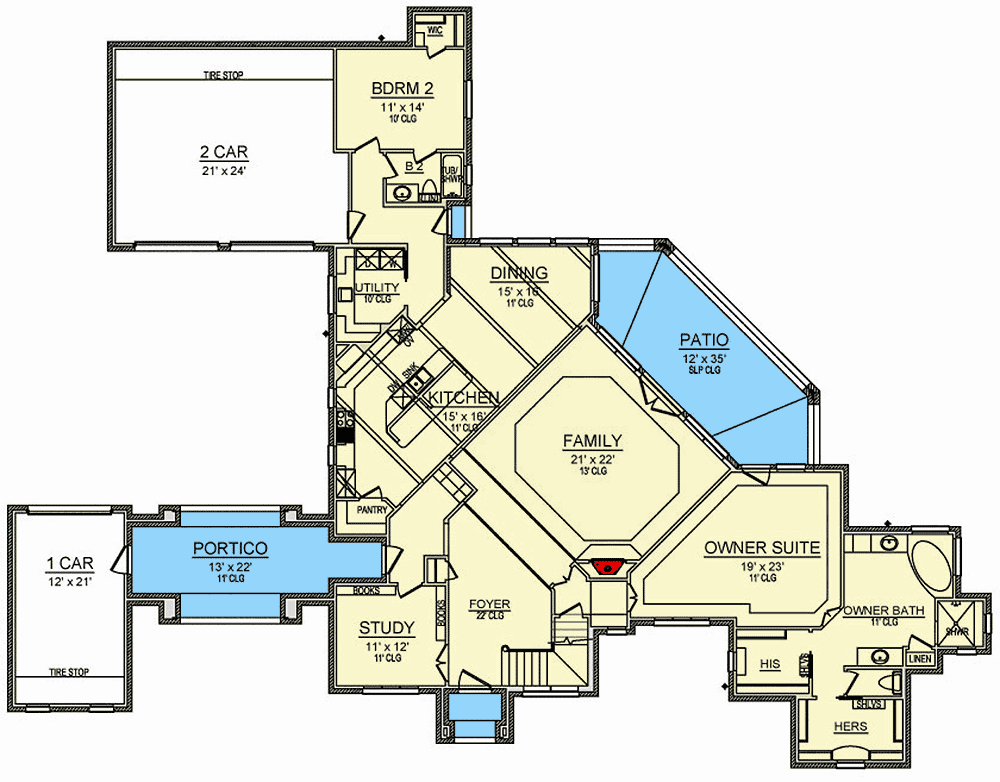

  • Main Level

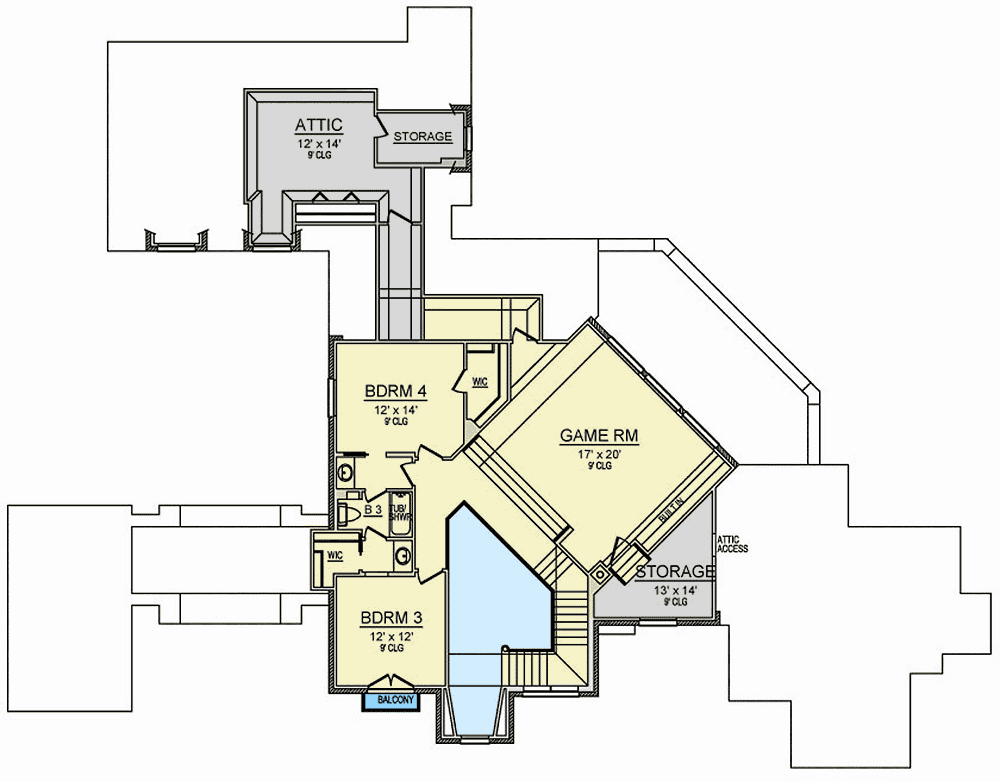

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,937 sq. ft.
  • 1st Floor: 2,846 sq. ft.
  • 2nd Floor: 1,091 sq. ft.

Dimensions

  • Width: 108' 0"
  • Depth: 84' 0"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 898 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear, Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 4 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Fantastic 2-Story Home Plan with Split-Bed Layout and Game Room

  • 3,937

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Fantastic 2-Story Home Plan with Split-Bed Layout and Game Room

  • 3,937

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,937 sq. ft.
  • 1st Floor: 2,846 sq. ft.
  • 2nd Floor: 1,091 sq. ft.

Dimensions

  • Width: 108' 0"
  • Depth: 84' 0"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 898 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear, Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 4 on 12

    Main Level

    2nd Floor
