Fantastic Views

Plan 17608LV

  • 2,545

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • You'll get fantastic views out the back on this magnificent house plan perfect for the sloping lot. A covered terrace and plentiful windows on the main floor plus a covered lanai on the lower level are designed with your view lot in mind.
  • Step in off the covered porch and through the foyer to your wide-open family room. Access to the terrace, kitchen and dining area is unimpeded.
  • The master suite accesses the terrace and is privately accessed down a short hall.
  • The lower level gets you two suites plus a rec room, bar and storage.
  • A two-car garage is accessed through an enclosed addition that gives you a mudroom, laundry and storage space.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

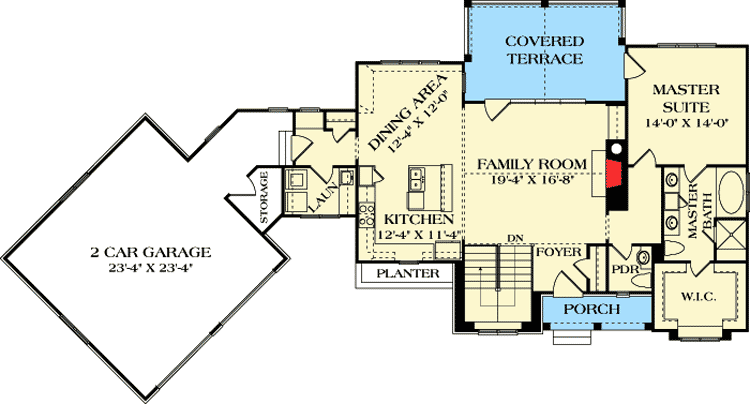

Fantastic Views - 17608LV floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

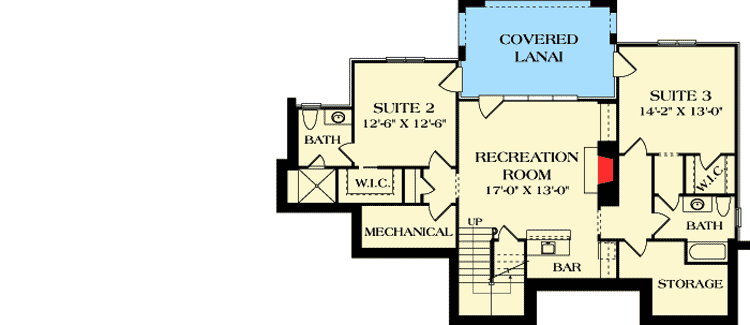

Fantastic Views - 17608LV floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,545 sq. ft.
  • Lower Level: 1,155 sq. ft.
  • 1st Floor: 1,390 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 88' 11"
  • Depth: 47' 9"

Garage

  • Type: Attached
  • Area: 692 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Architectural Style

Special features

Plan Collections

Fantastic Views

  • 2,545

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,350
  • CAD - Single-Build $2,699
  • View all purchase option online

About This Plan

  • You'll get fantastic views out the back on this magnificent house plan perfect for the sloping lot. A covered terrace and plentiful windows on the main floor plus a covered lanai on the lower level are designed with your view lot in mind.
  • Step in off the covered porch and through the foyer to your wide-open family room. Access to the terrace, kitchen and dining area is unimpeded.
  • The master suite accesses the terrace and is privately accessed down a short hall.
  • The lower level gets you two suites plus a rec room, bar and storage.
  • A two-car garage is accessed through an enclosed addition that gives you a mudroom, laundry and storage space.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,545 sq. ft.
  • Lower Level: 1,155 sq. ft.
  • 1st Floor: 1,390 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 88' 11"
  • Depth: 47' 9"

Garage

  • Type: Attached
  • Area: 692 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Plan 17608LV
