Plan 62701DJ
Farmhouse Duplex
Heated S.F.
3,262
Units
2
Width
88'
Depth
56'
Cars
4
What's Included
Plan Details

  • A front entry hall, accessed from the covered front porch as well as the 2-car garage, leads to views into the great room with its cathedral ceiling, fireplace and sunny windows to the rear.
  • The dining area and kitchen share the same space beneath the cathedral ceiling to provide an open, airy feel.
  • The kitchen comfortably serves with an island work area, counter space and walk-in pantry.
  • All bedrooms reside on opposite sides of the structure for maximum privacy.
  • The master suite features a 10-foot-high ceiling, walk-in closet and bath area with dual sinks, shower and compartmented bath.
  • Bedrooms 2 and 3 share a centrally located bath. A convenient laundry area serves all bedrooms and lies just outside the master bedroom.

Unit A
1,631 Sq. Ft.
1631 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
2 Vehicle
Attached
539 Sq. Ft.
44' w 56' d 24' h
Unit B
1,631 Sq. Ft.
1631 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
2 Vehicle
Attached
539 Sq. Ft.
44' w 56' d 24' h
What's Included

This plan set has 8 pages and includes the following details:

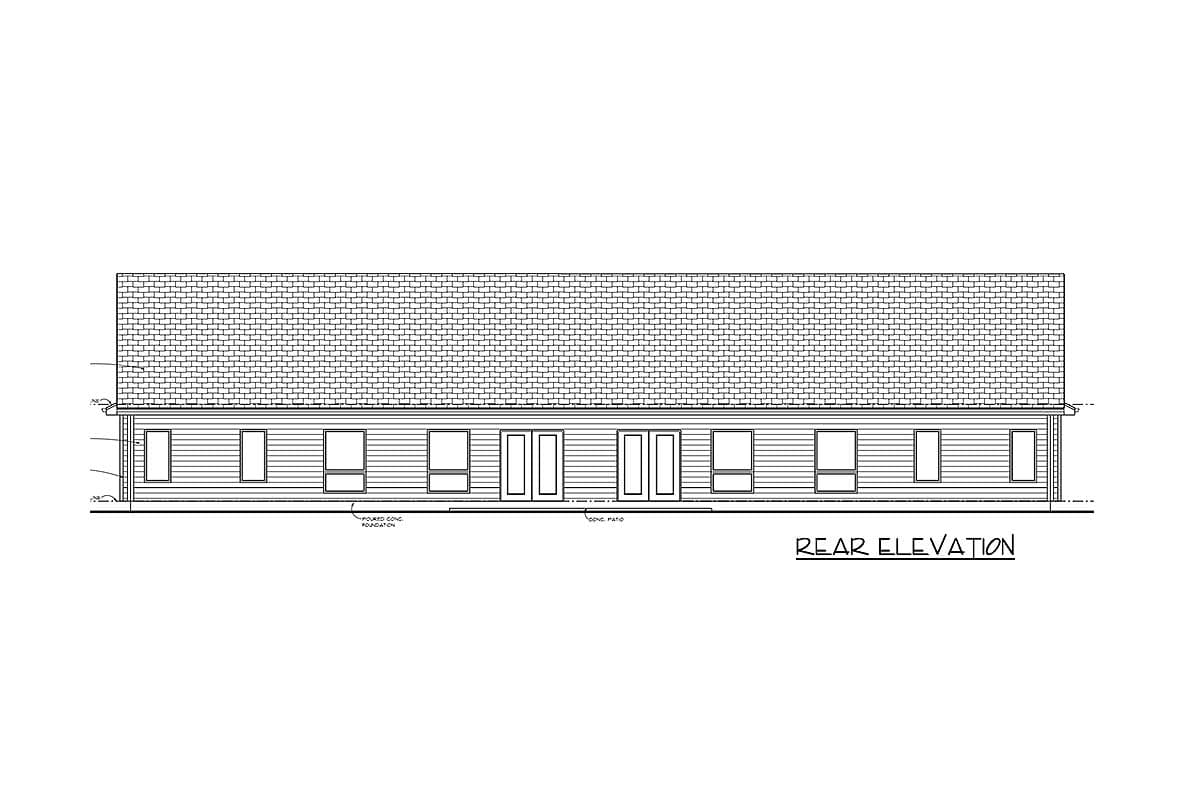

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinet elevations
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Farmhouse Duplex

  • 3,262

    Heated s.f.

  • 2

    Units

  • 88'

    Width

  • 56'

    Depth

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,262 sq. ft.
  • 1st Floor: 3,262 sq. ft.

Dimensions

  • Width: 88' 0"
  • Depth: 56' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 1078 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
