Plan 40866WM
Farmhouse House Plan with Optional Game Room - 1881 Sq Ft
Heated S.F.
1,881
Beds
3
Baths
2.5
Stories
2
Cars
3
Photos
Floor Plan

Plan 40866WM

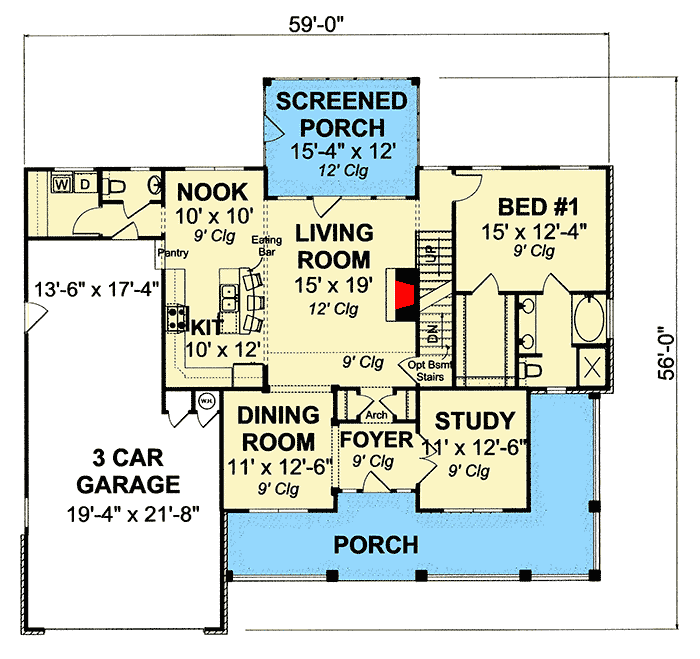

Main Level
slide image 0

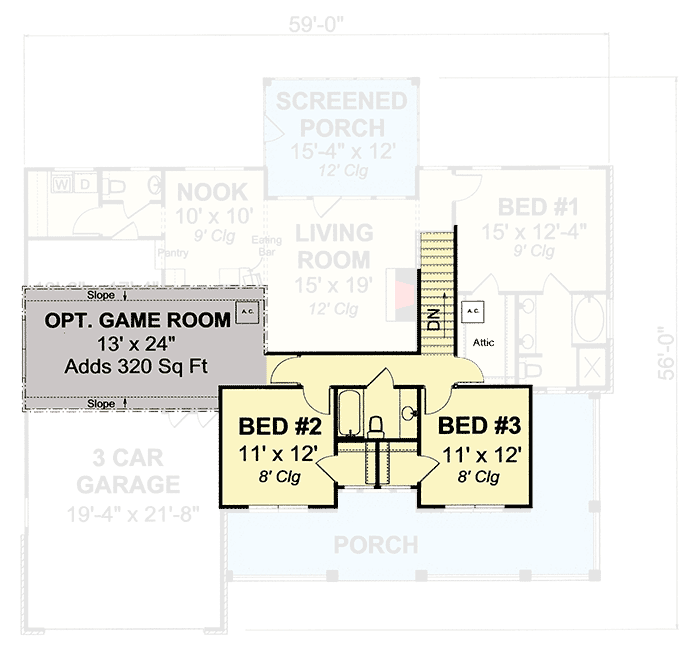

2nd Floor
slide image 1

Plan 40866WM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Twin gables and a big front porch that wraps around the study boosts the curb appeal of this Farmhouse house plan.
  • You also get a screened porch in back accessed by a french door in the living room.
  • An arched hallway leads from the foyer to the living room, adding interesting detail to the home.
  • With a big L-shaped living area, you can work at the kitchen sink and still enjoy the fireplace of the living room.
  • The master suite is on the main floor along with a study.
  • More bedrooms lie on the upper floor along with an optional future game room that adds 320 additional square feet of living space.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - Farmhouse Plan 40866WM Comes to Life in Tennessee

Farmhouse Plan 40866WM Comes to Life in Tennessee

43

Photos

What's Included
  • Front elevation and construction notes

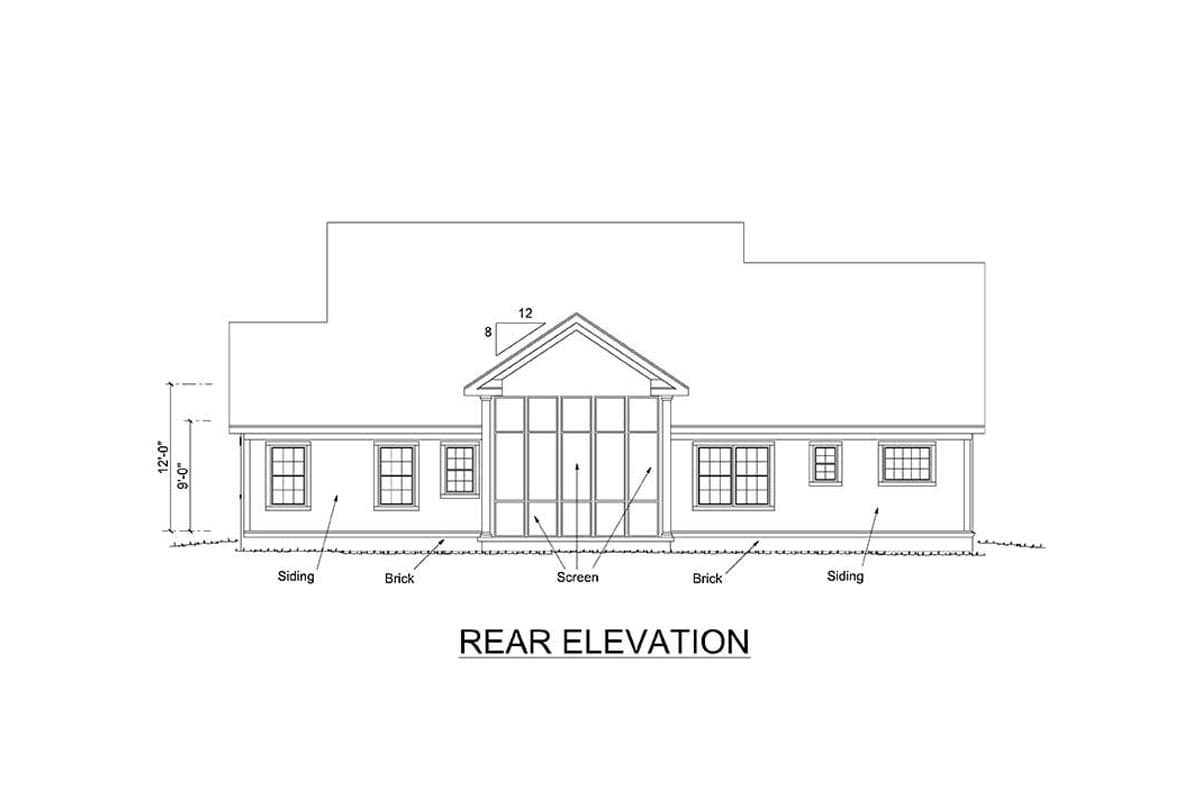

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,881 sq. ft.

1st Floor

1,454 sq. ft.

2nd Floor

437 sq. ft.

Bonus

320 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 0"

Depth

56' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

677 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Architectural Style

Country
