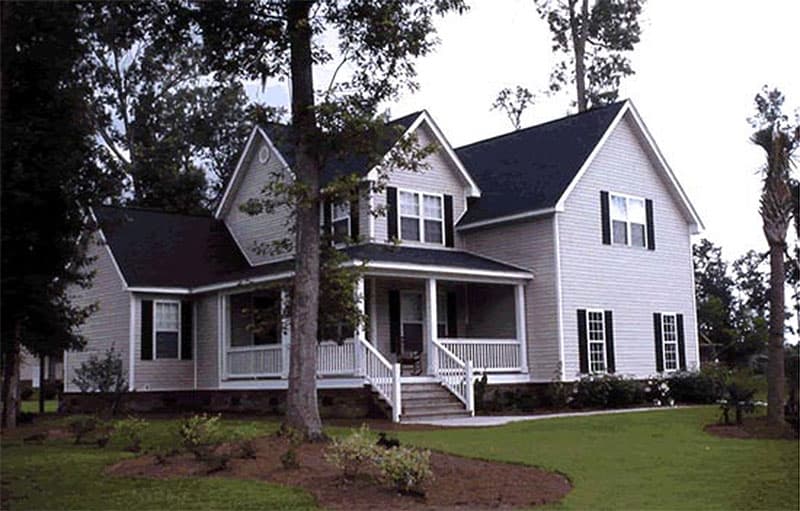

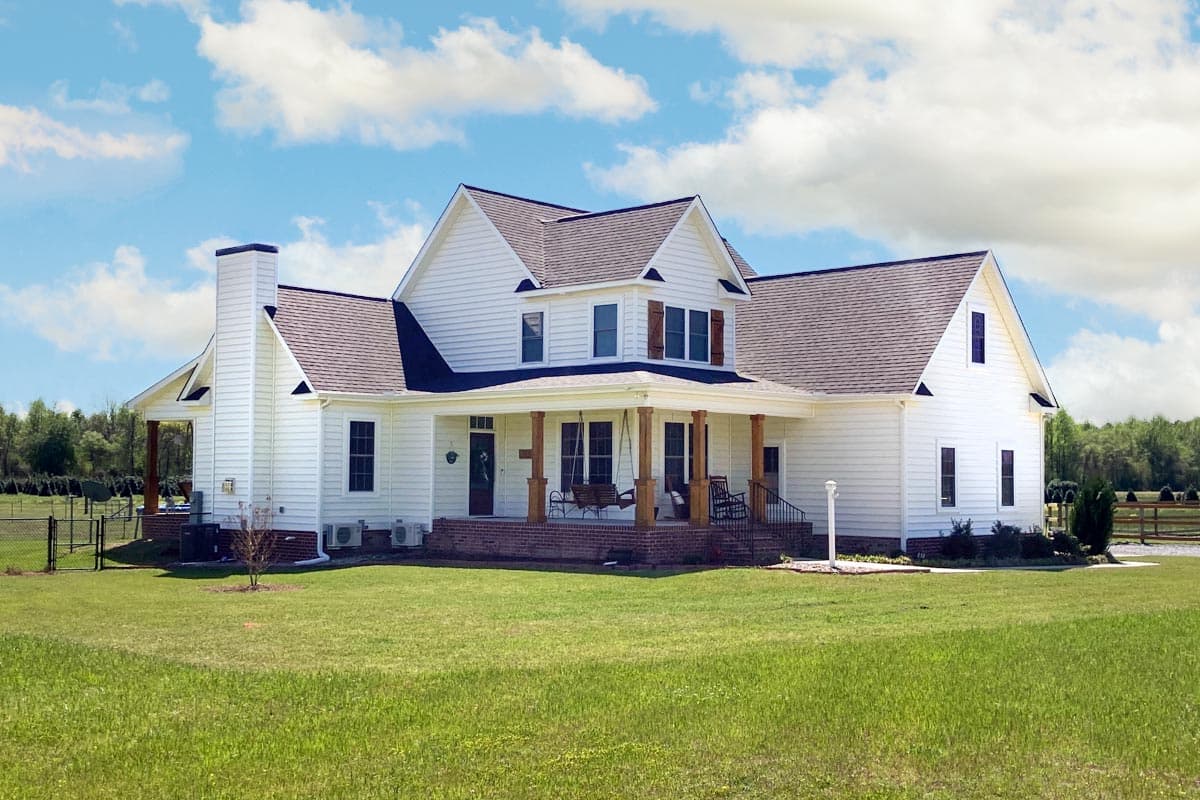

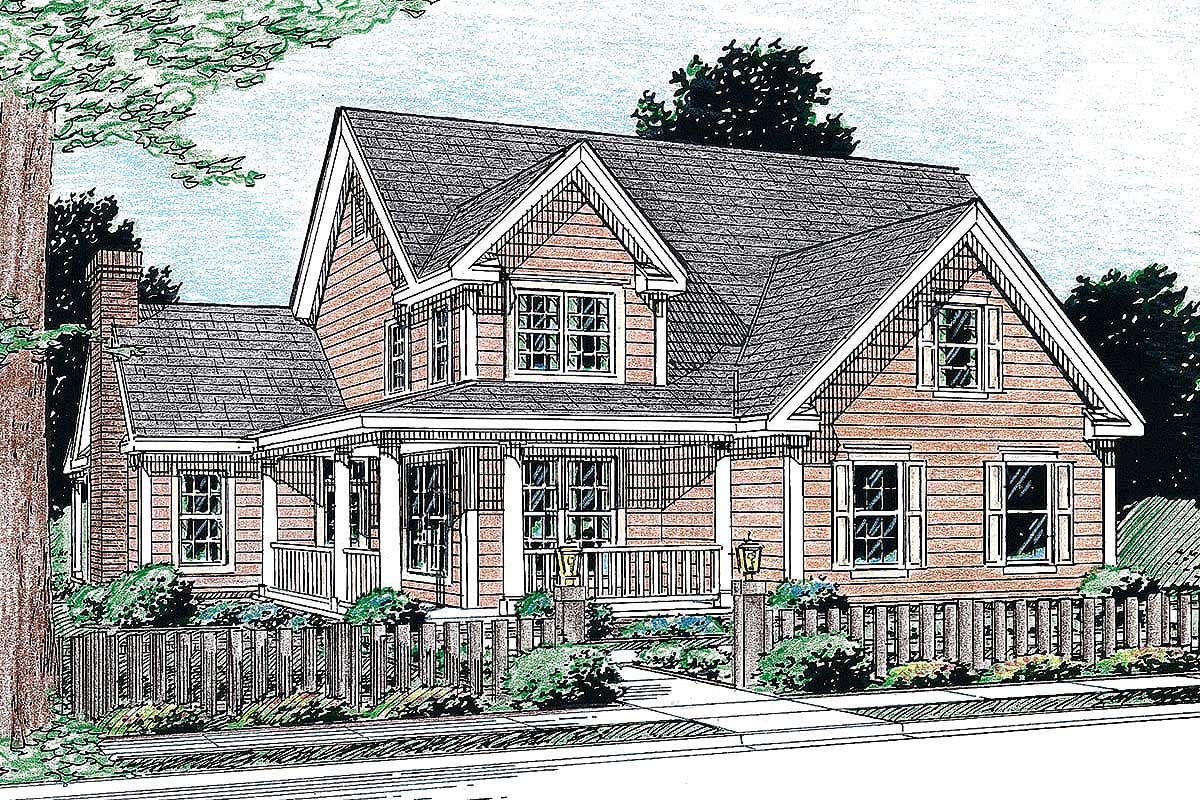

Farmhouse Plan with Huge Great Room

Plan 4130WM

  • 1,867

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • With a wrap-around entry porch, plus a vaulted screened porch that opens to a third porch, this traditional home plan offers excellent outdoor living space.
  • The spacious great room with its ceiling sloping up to 14', has a fireplace at one end and a dining area at the other. An eating bar separates the great room from the kitchen which includes a built-in desk, a pantry closet and a light-filled breakfast nook.
  • The master suite enjoys direct access to the screened porch and features a bath with a walk-in closet, his and her vanities, a garden tub and separate shower.
  • Upstairs, two family bedrooms with walk-in closets share a full bath; bedroom three accesses attic storage space. An optional game room completes this floor.

Each plan includes the following:

  • Cover page:  Features the front elevation and informative reference sections including general notes and design criteria.

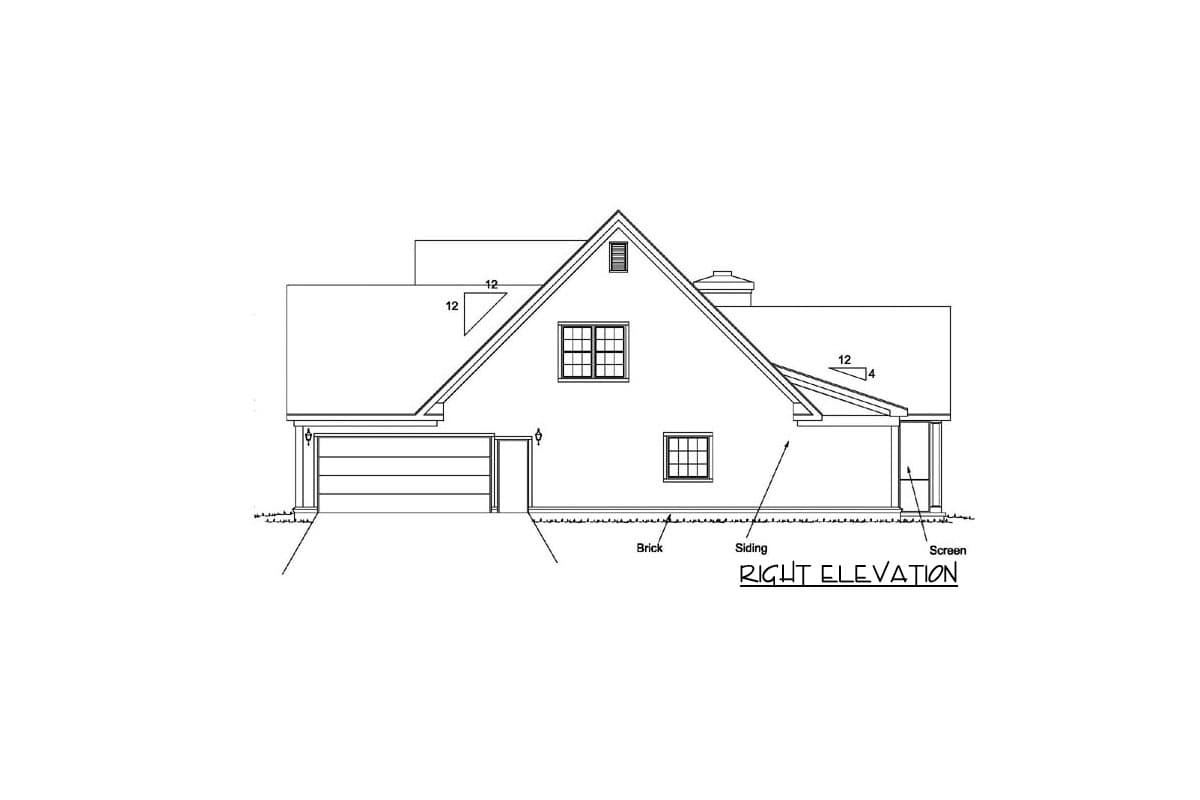

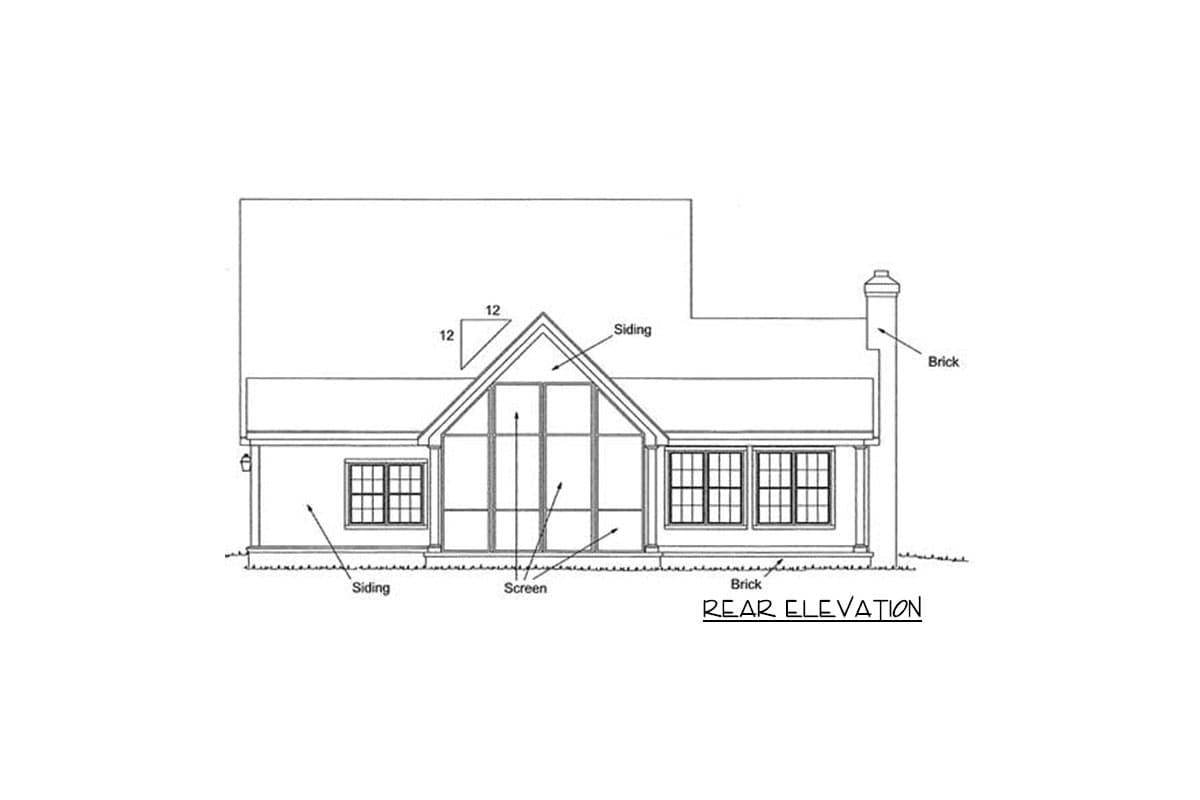

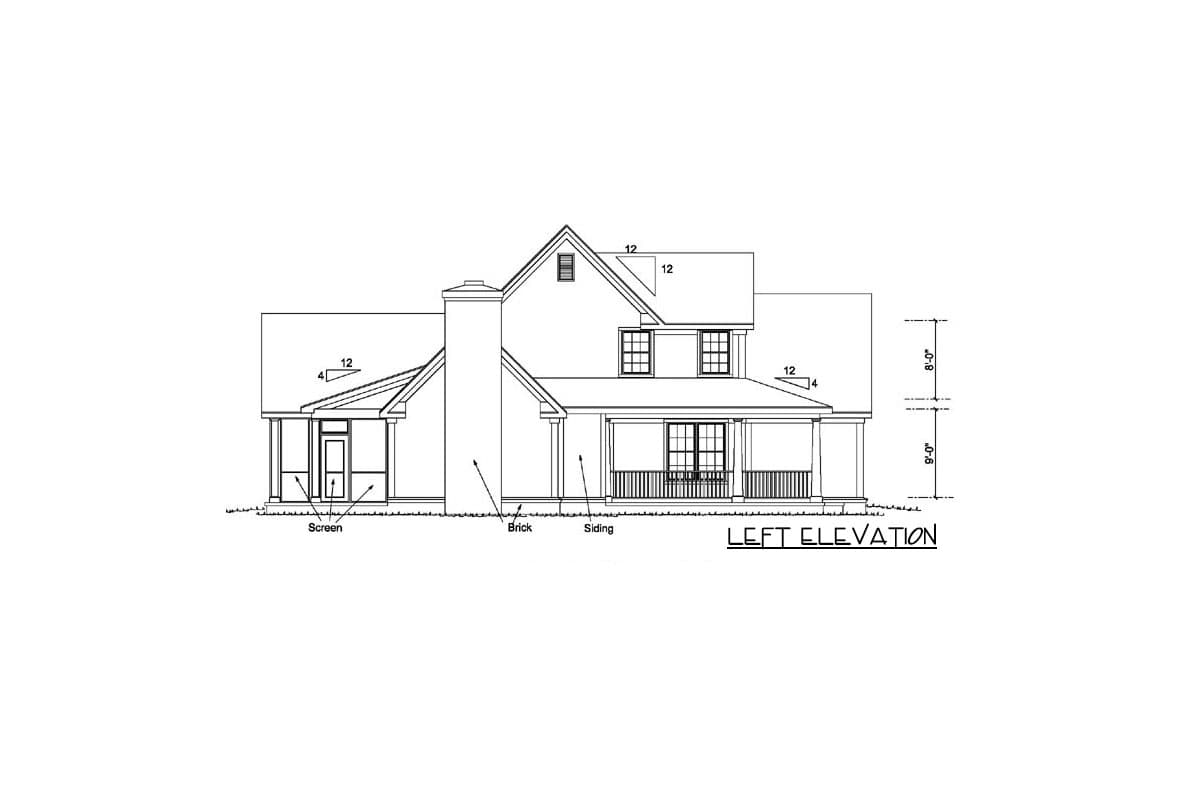

  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundation: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
  • Kitchen cabinet elevations

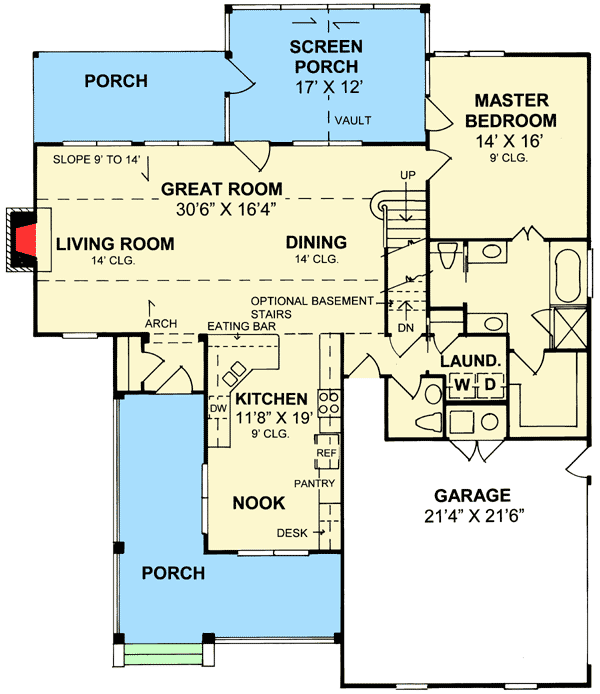

Floor Plan

Plan details



Farmhouse Plan with Huge Great Room

  • 1,867

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - multi-use $905
  • CAD - multi-use $1,155
  • View all purchase option online

About This Plan

  • With a wrap-around entry porch, plus a vaulted screened porch that opens to a third porch, this traditional home plan offers excellent outdoor living space.
  • The spacious great room with its ceiling sloping up to 14', has a fireplace at one end and a dining area at the other. An eating bar separates the great room from the kitchen which includes a built-in desk, a pantry closet and a light-filled breakfast nook.
  • The master suite enjoys direct access to the screened porch and features a bath with a walk-in closet, his and her vanities, a garden tub and separate shower.
  • Upstairs, two family bedrooms with walk-in closets share a full bath; bedroom three accesses attic storage space. An optional game room completes this floor.

Floor Plans

  • Main Level

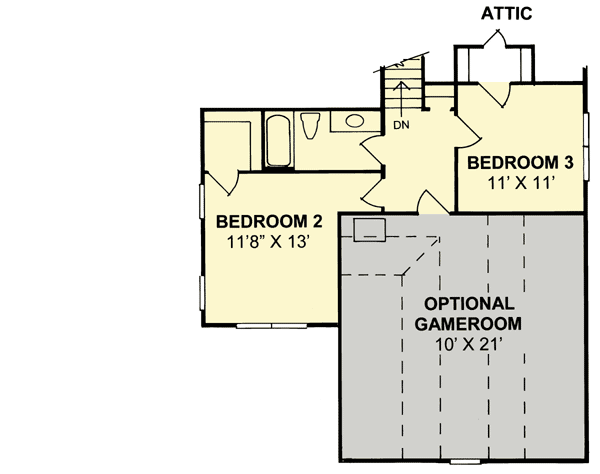

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,867 sq. ft.
  • 1st Floor: 1,375 sq. ft.
  • 2nd Floor: 492 sq. ft.
  • Porch, Front: 624 sq. ft.
  • Bonus: 215 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 49' 0"
  • Depth: 60' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 522 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
