Plan 35397GH

Finished Lower Level

Heated S.F.
3,436
Beds
3
Baths
3
Stories
1

Floor Plan

Plan 35397GH

Basement
Basement
Main Level
Main Level

Plan 35397GH

M-F 9am-5pm EST |

1-203-761-8500

Basement

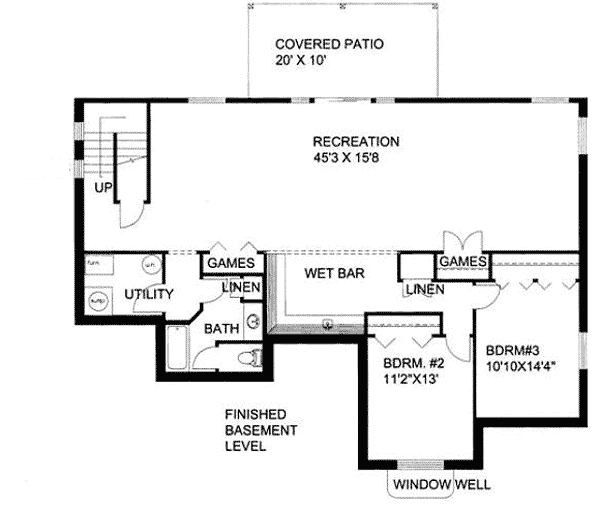

Plan 35397GH: Finished Lower Level - Floor Plan - Basement - Mountain, Northwest, Traditional

Main Level

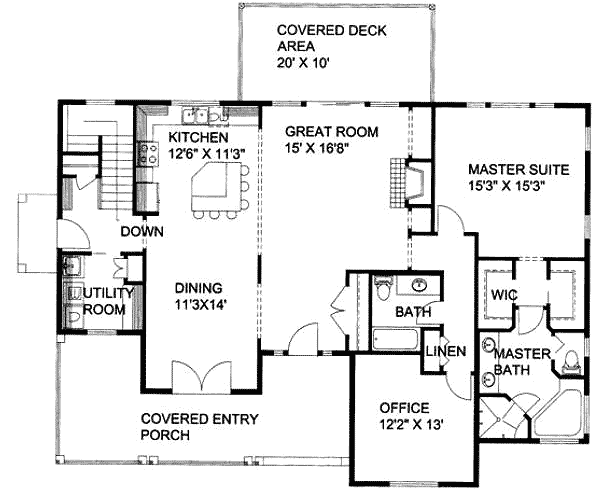

Plan 35397GH: Finished Lower Level - Floor Plan - Main Level - Mountain, Northwest, Traditional

Plan Details

  • Ideal for empty-nesters, this one level home plan has a first floor ' suite that saves climbing stairs.
  • When family or friends stay over, they can comfortably sleep in the two bedrooms on the finished lower level.
  • An enormous rec room has lots of windows to brighten the whole area.
  • There is even an office on the main floor with views of the front of your lot.

What's Included

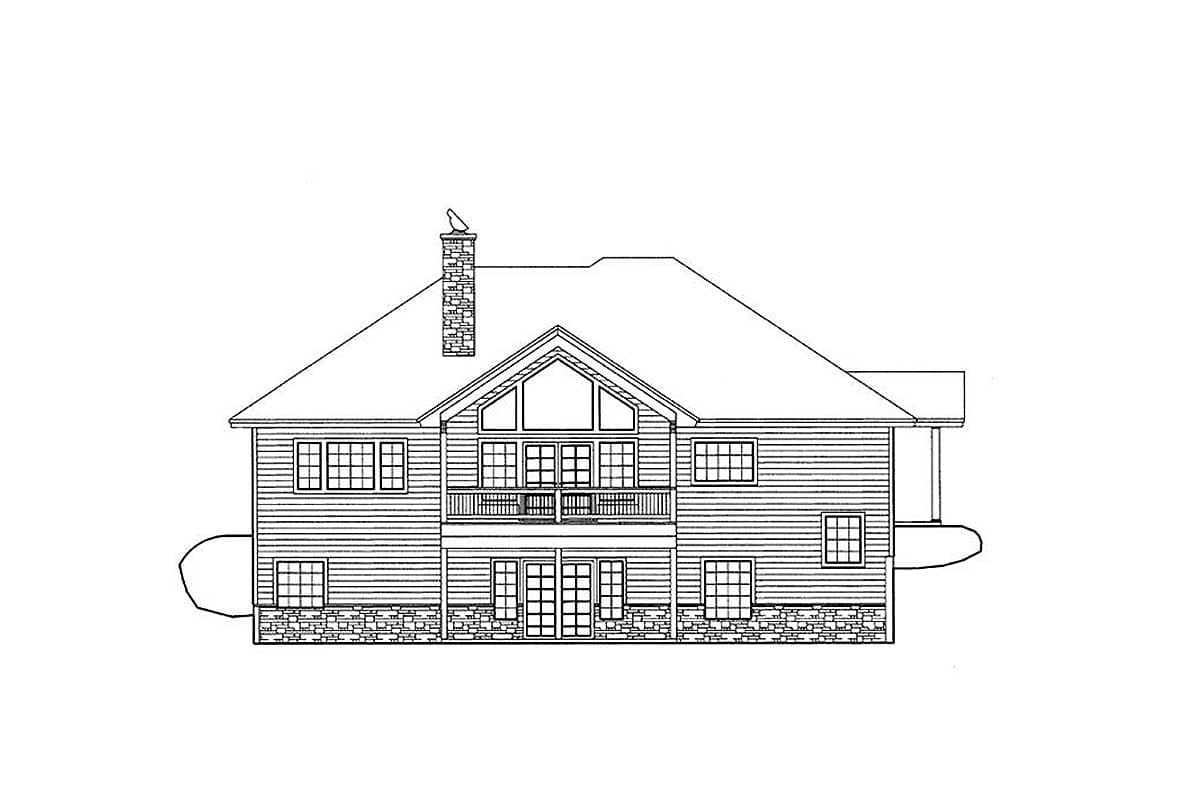

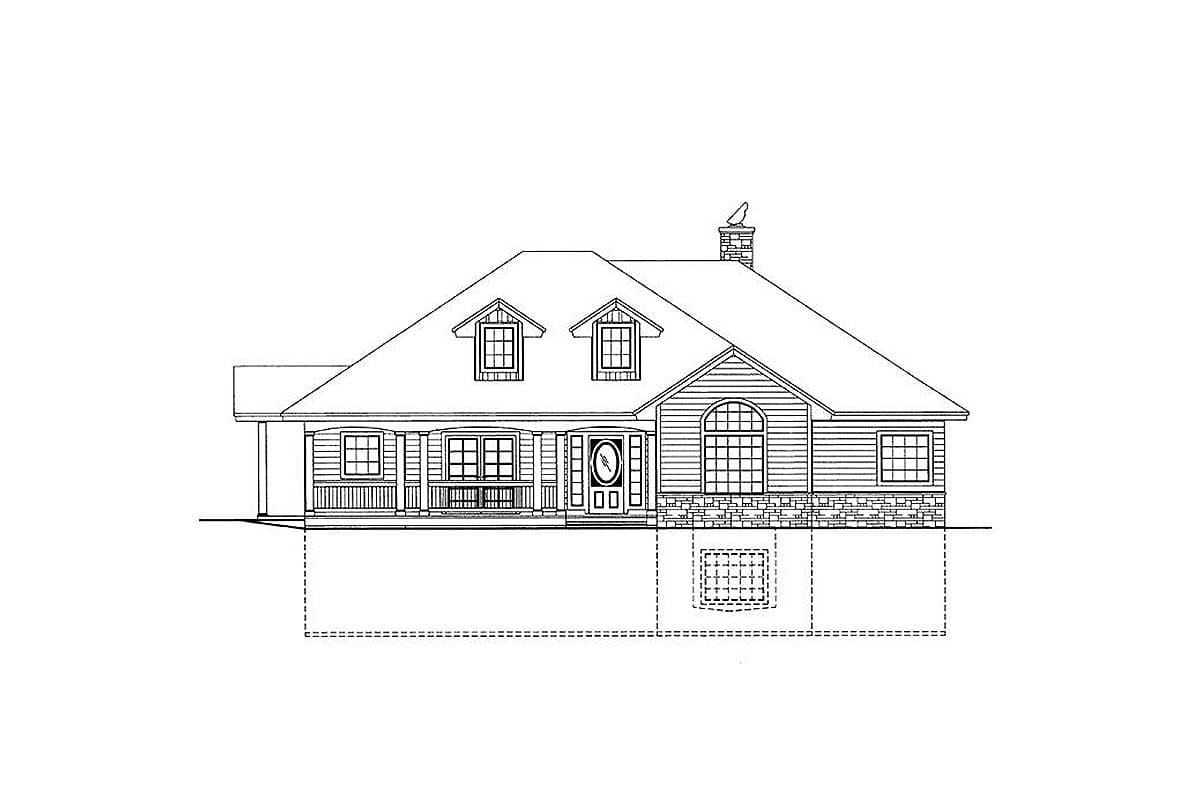

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
