Plan 48393FM
First Floor Master
Heated S.F.
2,663
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details

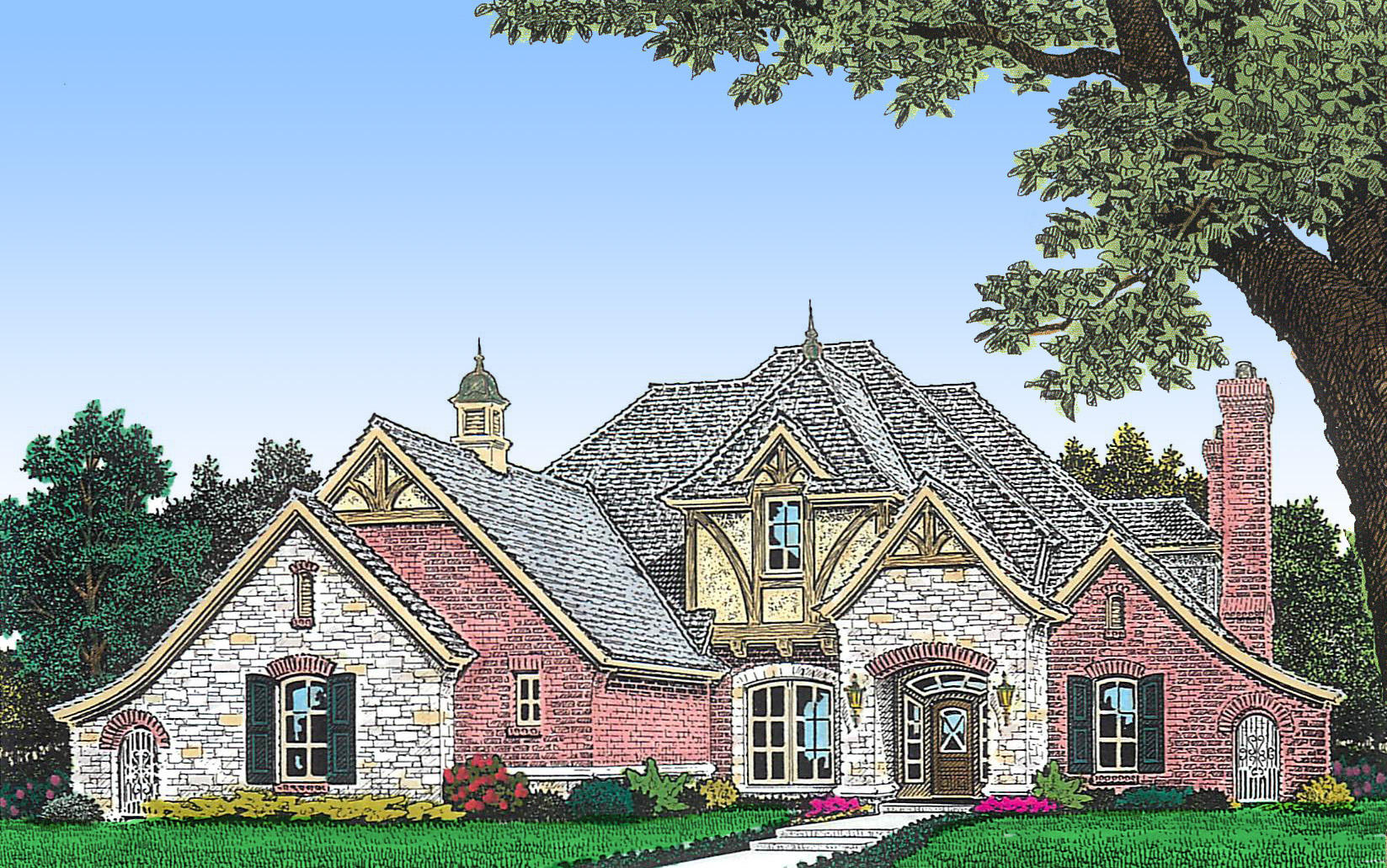

  • A luxurious first floor master suite awaits you in this lovely French Country home.
  • The triple window brightens the whole room and the large walk-in closet also has a window so you can check the weather before dressing.
  • A bright and cheerful kitchen is open to the great room so you will always feel like you are part of the action.
  • Double doors lead to a vaulted study with built-in bookcase.
  • Each of the three bedrooms on the second floor has its own walk-in closet.
  • Gain an extra 206 sq. ft. if you decide to build out the bonus space.
What's Included
  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation

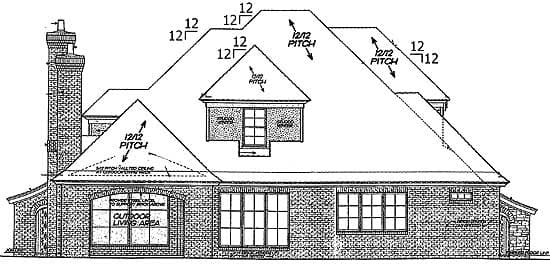

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

First Floor Master

  • 2,663

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

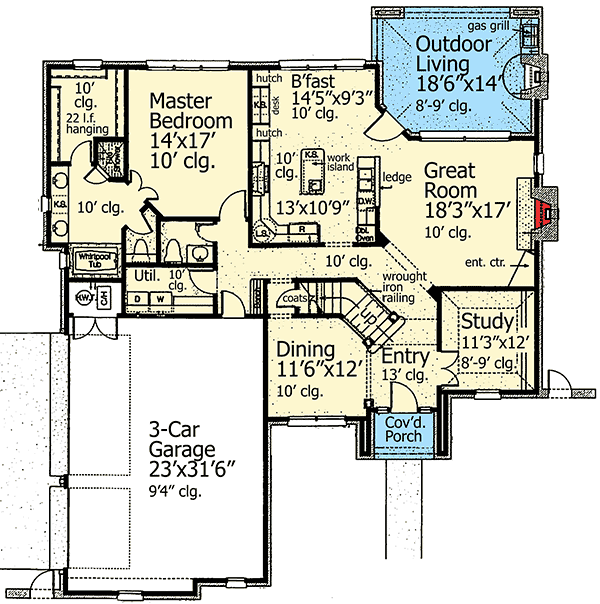

  • Main Level

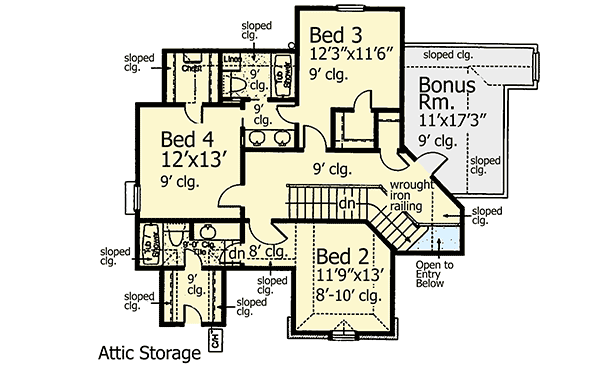

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,663 sq. ft.
  • 1st Floor: 1,754 sq. ft.
  • 2nd Floor: 909 sq. ft.

Dimensions

  • Width: 56' 0"
  • Depth: 66' 7"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 768 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
