Plan: 52245WM

First Floor Master Suite

1,860 3 3 2
Pageloader

First Floor Master Suite

Plan 52245WM

  • 1,860

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • Only 29' wide, this Country house plan gives you a first floor master suite and a big front porch.
  • The dining room, living room and kitchen are all open, for front to back views.
  • An eating bar in the kitchen gives you an informal area to grab a snack or a quick meal.
  • The first floor master suite has his and her walk-in closets and easy access to the washer and dryer.
  • Both bedrooms on the second floor get walk-in closets too.
  • Related Plan: Get a two car garage with house plan 52244WM (1,860 sq. ft.).

Each plan includes the following:

  • Cover page:  Features the front elevation and informative reference sections including general notes and design criteria.

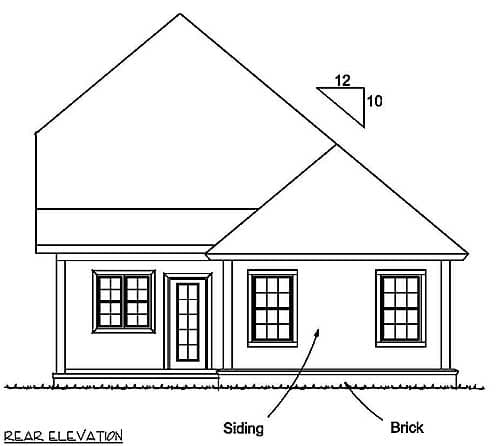

  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundation: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.

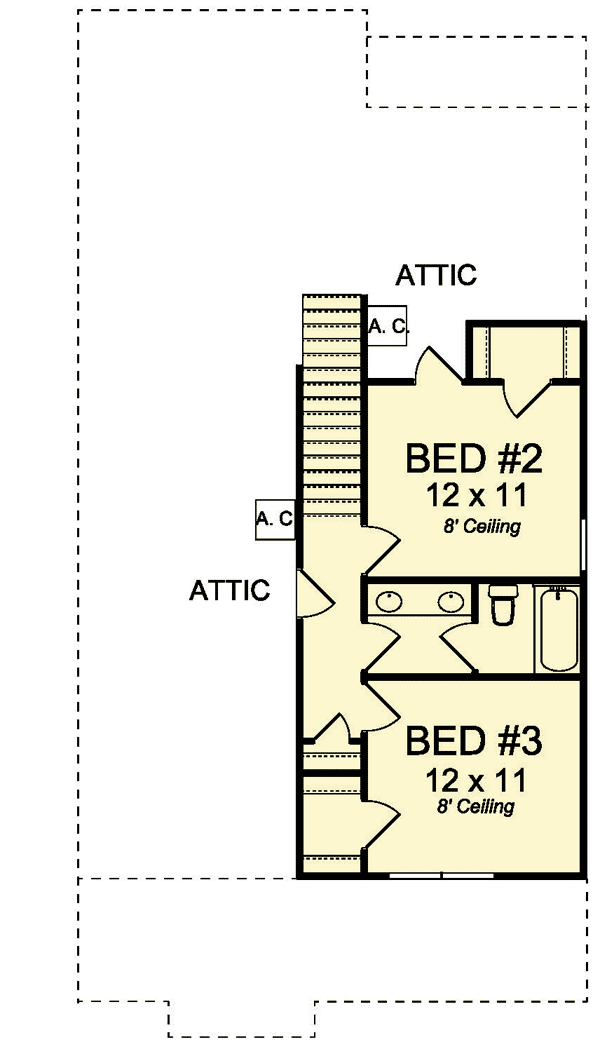

  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
  • Interior Elevations
  • Kitchen cabinet elevations


Floor Plan

Plan details



First Floor Master Suite

  • 1,860

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - multi-use $905
  • CAD - multi-use $1,155
  • View all purchase option online

About This Plan

  • Only 29' wide, this Country house plan gives you a first floor master suite and a big front porch.
  • The dining room, living room and kitchen are all open, for front to back views.
  • An eating bar in the kitchen gives you an informal area to grab a snack or a quick meal.
  • The first floor master suite has his and her walk-in closets and easy access to the washer and dryer.
  • Both bedrooms on the second floor get walk-in closets too.
  • Related Plan: Get a two car garage with house plan 52244WM (1,860 sq. ft.).

Floor Plans

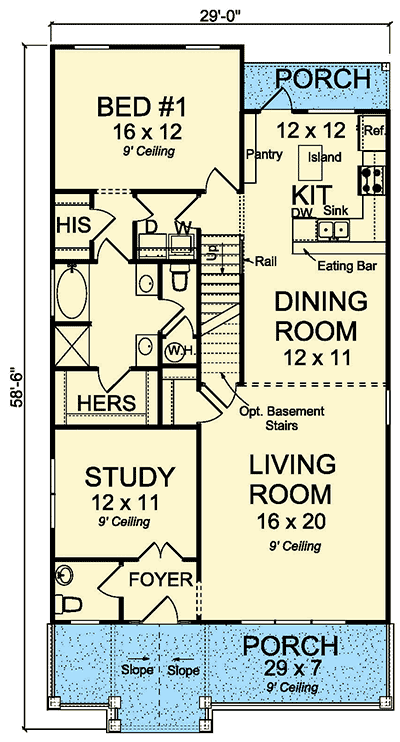

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,860 sq. ft.
  • 1st Floor: 1,367 sq. ft.
  • 2nd Floor: 493 sq. ft.
  • Porch, Front: 220 sq. ft.
  • Porch, Rear: 50 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 29' 0"
  • Depth: 58' 6"
  • Max ridge height: 27' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

  • Cottage
  • Country

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • PDF
