Plan 17747LV
Fit For Royalty
Heated S.F.
3,998
Beds
3-4
Baths
3.5 - 4.5
Stories
2
Cars
2
What's Included
Plan Details
  • The magnificent exterior of this European design is complemented by an interior fit for royalty.
  • A unique feature of this home is the conservatory just off the foyer.
  • The entire home has the open layout favored by most families today.
  • Bask in the luxurious master suite that comes with a dedicated exercise room of its own.
  • The huge master bathroom has a circular shower and a big soaking tub just right for relaxing at the end of a hard day.
  • The basement level offers an optional finished recreation room with bar, along with a spacious office and one additional bedroom suite.
  • Finishing the lower level adds an additional 1,471 square feet to the total living area.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Fit For Royalty

  • 3,998

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

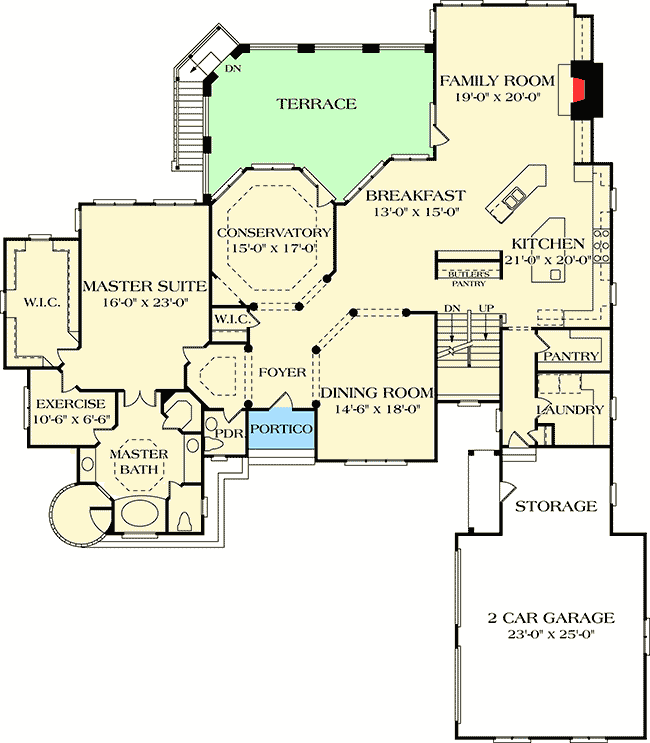

  • Main Level

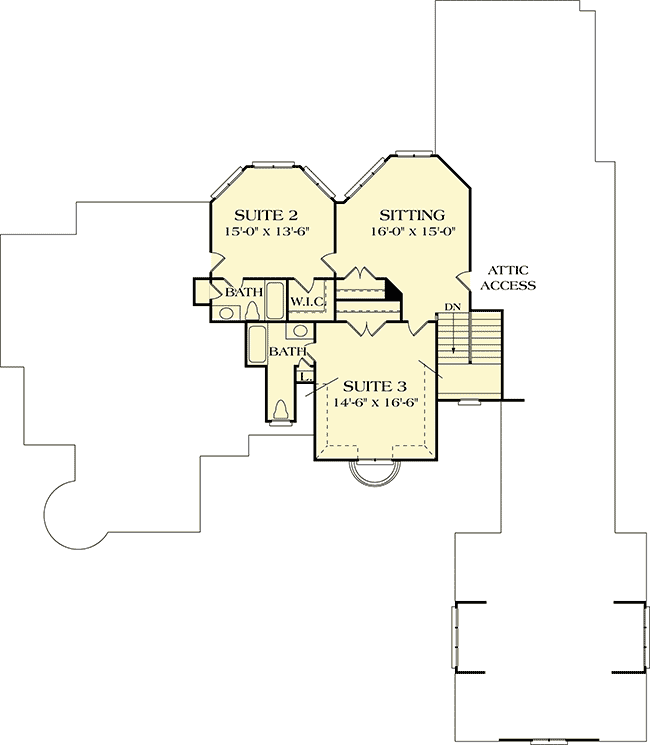

  • 2nd Floor

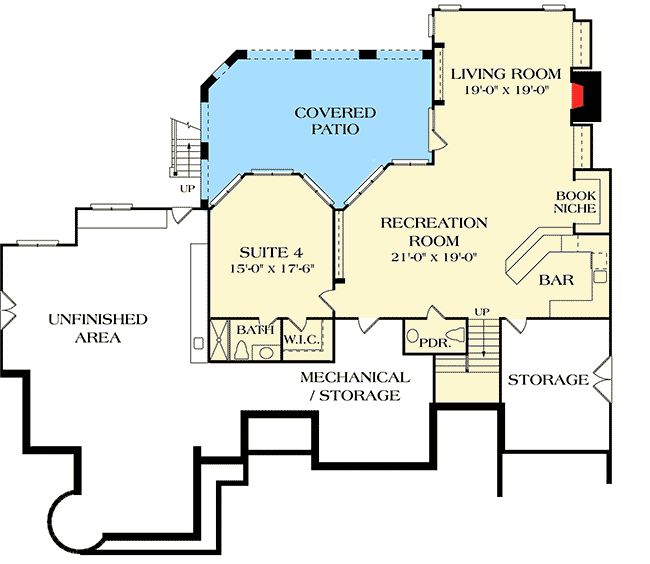

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,998 sq. ft.
  • 1st Floor: 2,981 sq. ft.
  • 2nd Floor: 1,017 sq. ft.

Dimensions

  • Width: 79' 4"
  • Depth: 91' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 765 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
