Flexible 2-Car Detached Garage Plan with 629 Sq Ft Studio Above
Heated S.F.
721
Baths
1
Stories
2
Cars
2
Plan Details
  • With room for two cars on the ground level (701 square feet of parking) plus living area upstairs (629 square feet) with a full bathroom, kitchenette and wood-burning stove, this detached 2-car garage plan can be used as a guest apartment, hobby space, home office or as a plain, old garage.
  • The garage doors on the main level are both 9' wide and 8' tall.
  • Towards the back a small alcove as well as space under the staircase provide storage space for bikes, gardening equipment or holiday decorations.
  • Separated from the garage a set of stairs lead up to the second floor studio.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

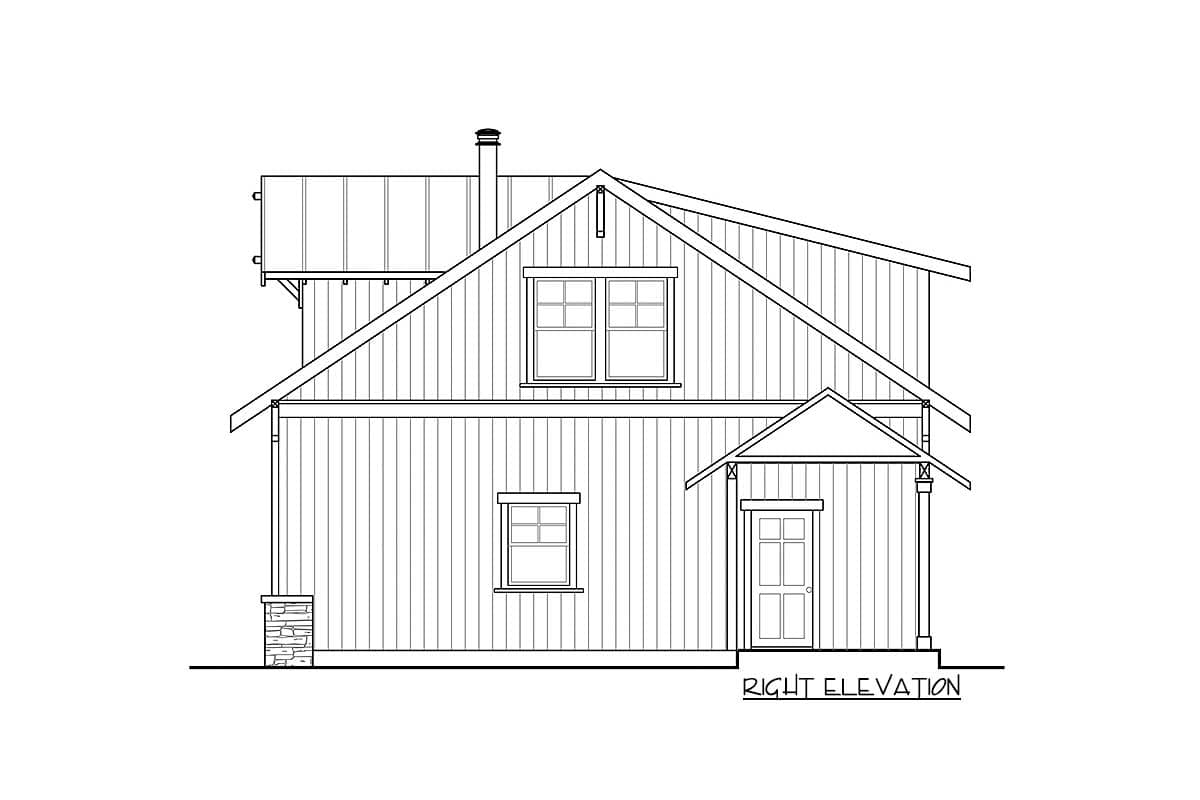

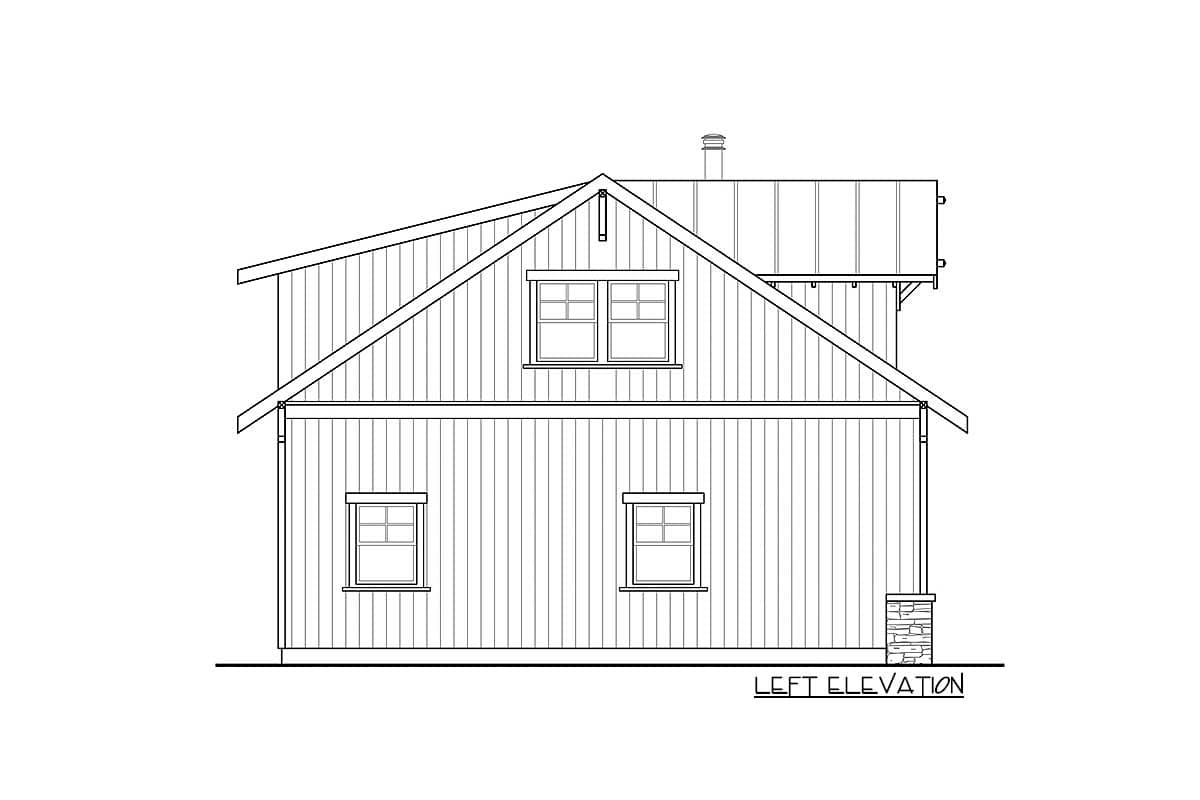

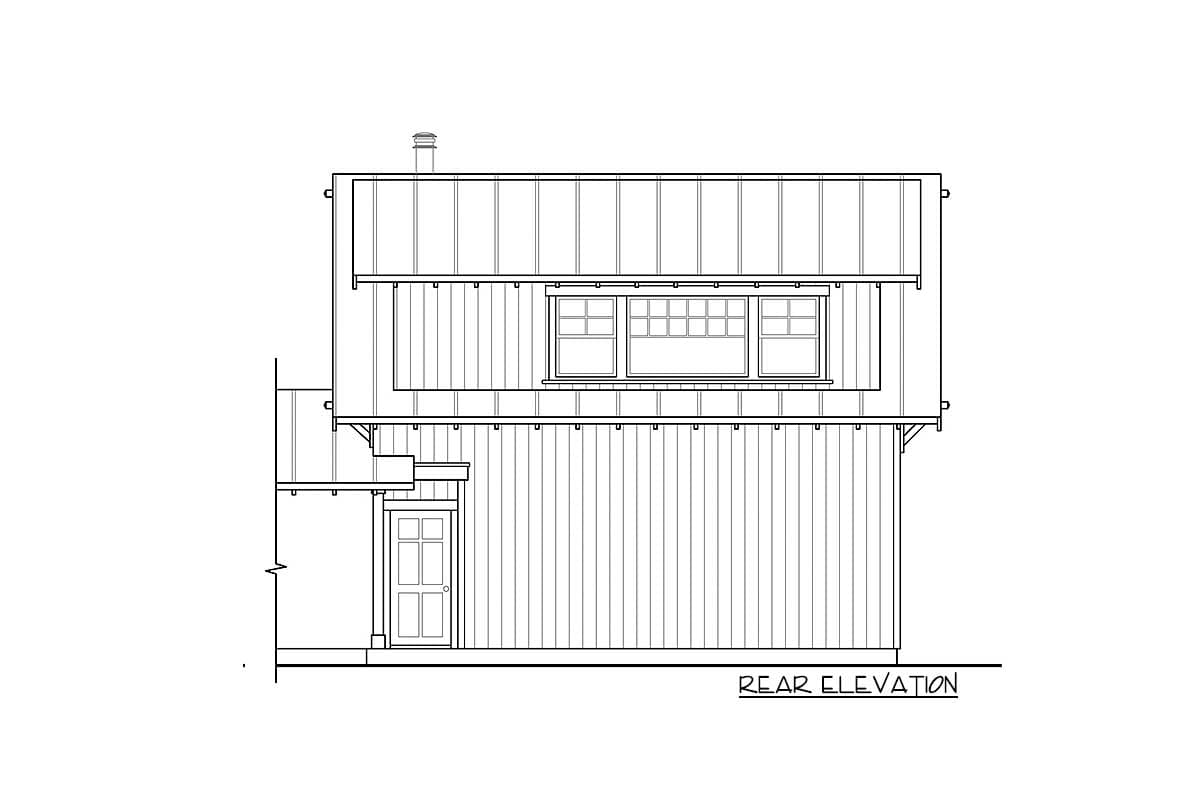

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Flexible 2-Car Detached Garage Plan with 629 Sq Ft Studio Above

  • 721

    Heated s.f.

  • Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

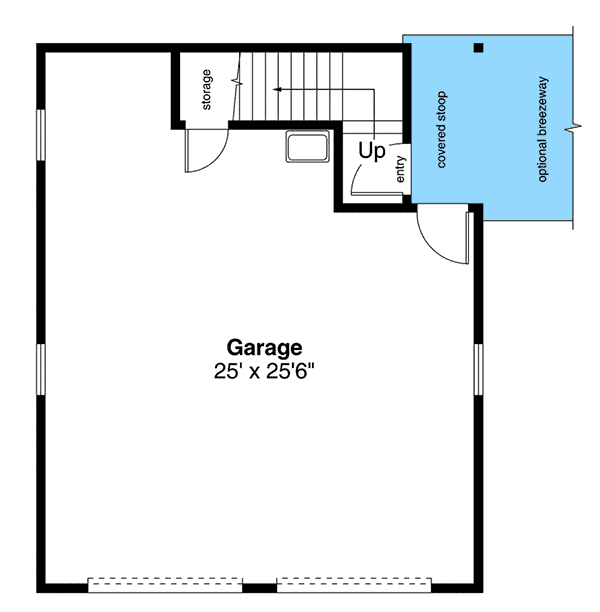

  • Main Level

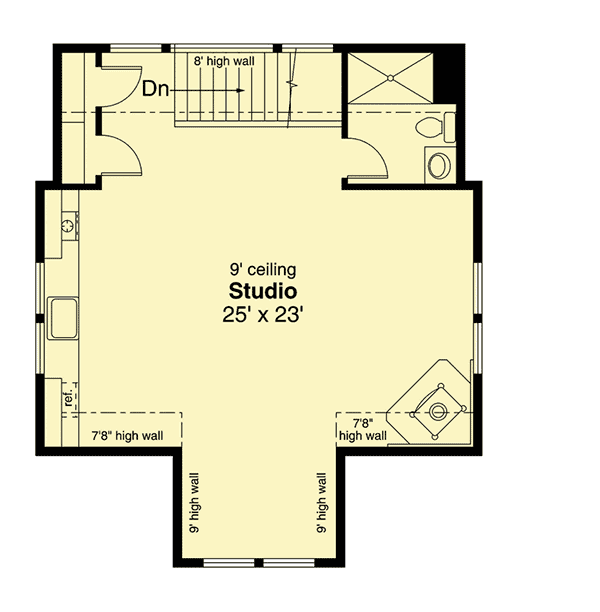

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 721 sq. ft.
  • 1st Floor: 92 sq. ft.
  • 2nd Floor: 629 sq. ft.

Dimensions

  • Width: 26' 0"
  • Depth: 32' 0"
  • Max ridge height: 24' 4"

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 701 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
