Plan 51727HZ

Flexible French Country with Bonus Room

Heated S.F.
3,527
Beds
2 - 4
Baths
3.5+
Stories
1-2
Cars
3

Floor Plan

Plan 51727HZ

Main Level
Main Level
Bonus
Bonus

Plan 51727HZ

M-F 9am-5pm EST |

1-203-761-8500

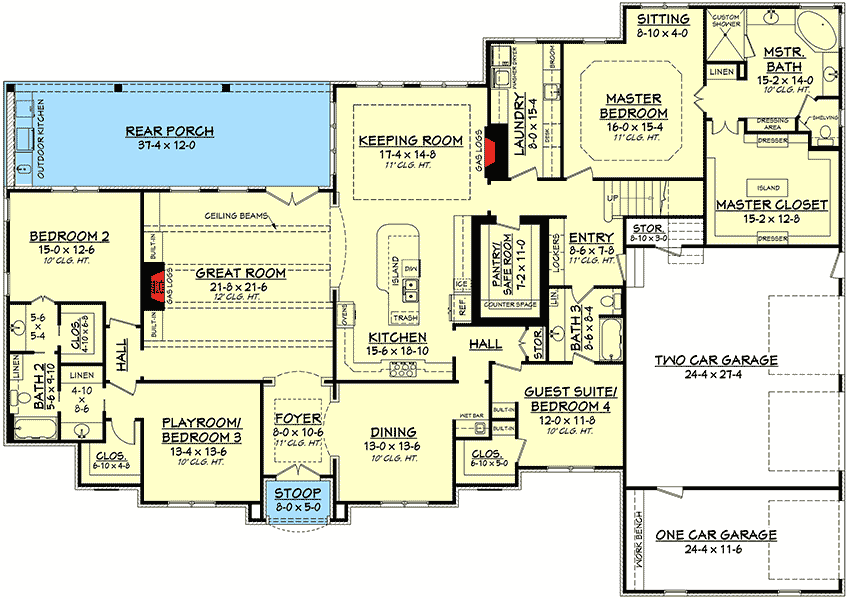

Main Level

Plan 51727HZ: Flexible French Country with Bonus Room - Floor Plan - Main Level - European, French Country, Southern

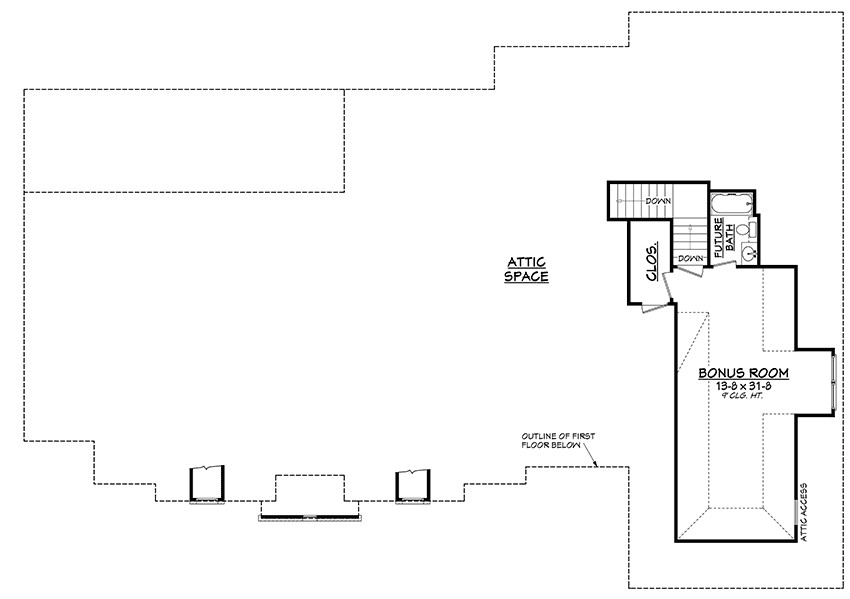

Bonus

Plan 51727HZ: Flexible French Country with Bonus Room - Floor Plan - Bonus - European, French Country, Southern

Plan Details

  • This beautiful home has an incredibly flexible floor plan giving you any where from 2 to 4 beds on the main level. And with a bonus room with a full bath, you could conceivably get 5 bedrooms.
  • The exterior is brick with a covered entry flanked by symmetrical windows with windows above. Inside, you are greeted by a foyer with 11' ceilings. Ahead, the great room has 12' ceilings with exposed beams, a fireplace and access to a 12'-deep rear porch with outdoor kitchen.
  • The kitchen opens to the great room and has views to the keeping room with fireplace. Serve meals in your formal dining room in front. More casual meals can be served at the spacious island with seating on two sides. A large walk-in pantry doubles as a storm shelter and is oversized for all your storage needs.
  • The master suite is spacious, has an extra large walk-in closet and its own sitting room.
  • The family entry off the garage has built-in lockers. Nearby, there is the large laundry room with storage for days and a desk.
  • Expand upstairs and get

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

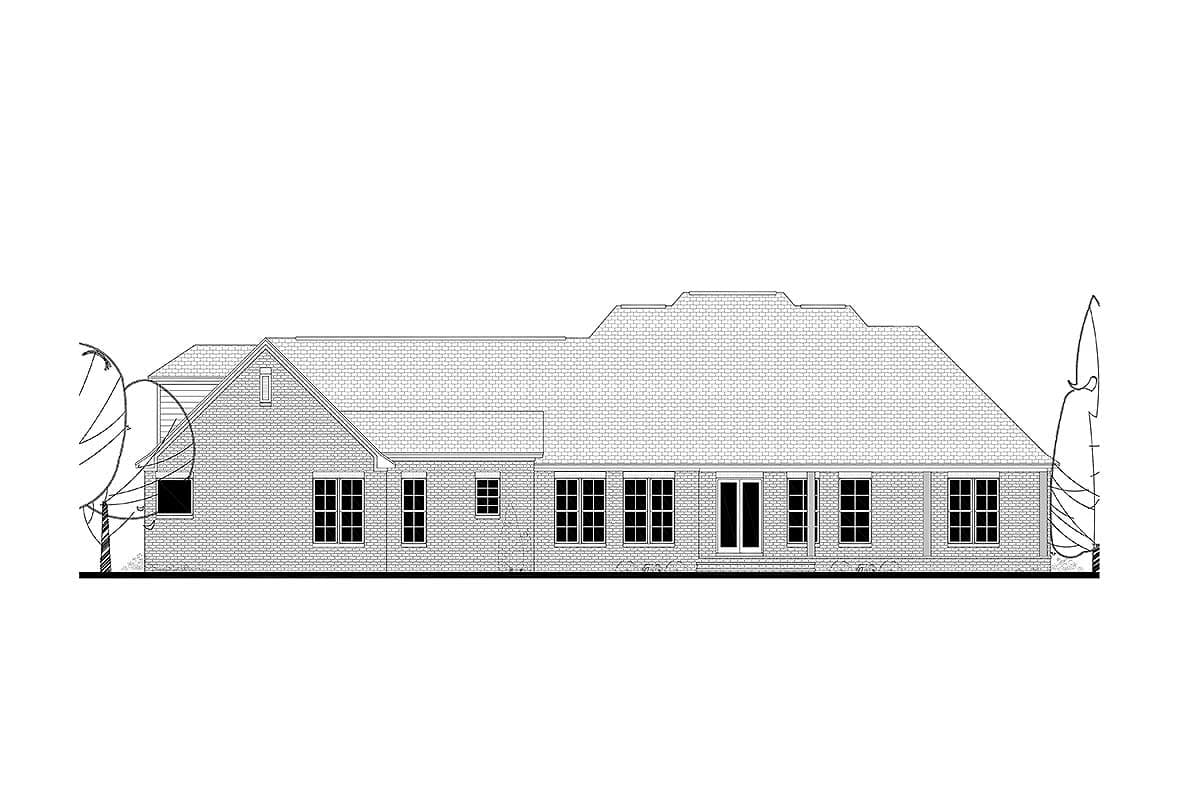

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,527 sq. ft.

1st Floor

3,527 sq. ft.

Bonus

626 sq. ft.

Porch, Front

47 sq. ft.

Porch, Rear

448 sq. ft.

Storage

29 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

95' 6"

Depth

67' 2"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

979 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

European

French Country

Southern

Special Features

Bedrooms - Split

Formal Dining

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Optionally Finished Bonus Room

Outdoor Kitchen

Safe Room

Walk-in Pantry

Plan Collections

USDA Approved

Square Footage Breakdown

Total Heated Area

3,527 sq. ft.

1st Floor

3,527 sq. ft.

Bonus

626 sq. ft.

Porch, Front

47 sq. ft.

Porch, Rear

448 sq. ft.

Storage

29 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

95' 6"

Depth

67' 2"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

979 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

European

French Country

Southern

Special Features

Bedrooms - Split

Formal Dining

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Optionally Finished Bonus Room

Outdoor Kitchen

Safe Room

Walk-in Pantry

Plan Collections

USDA Approved
