Flexible House Plan with Possible Upstairs Children's Retreat

Plan 710044BTZ

  • 3,942

    Heated s.f.

  • 3-5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Stacked stone, multi-paned double hung windows and plenty of charming details envelop the outside of this classic cottage. Depending on how you use the rooms you can get anywhere from three to five bedrooms.
  • The large kitchen and breakfast area are found off the three-car garage, with the laundry room conveniently located nearby. A lovely covered porch and vaulted keeping room with a fireplace are just a few steps away. The family room opens up to the spacious back deck, perfect for warm summer nights spent with the family.
  • The right wing of the main floor is where the master suite resides, which includes a sitting area, bath with his-and-her sinks and a sizable walk-in closet.
  • Upstairs, a work area for the children is at the top of the landing. Two more bedrooms with their own personal baths as well as a large children's retreat are found on this floor.
  • Related Plans: Get alternate exteriors with house plans 710042BTZ and 710043BTZ.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

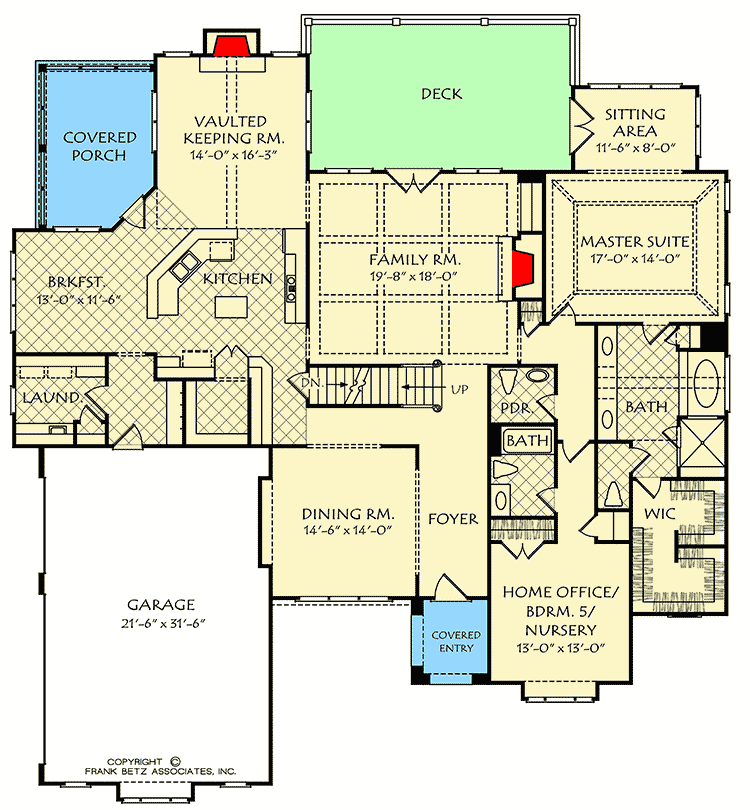

Flexible House Plan with Possible Upstairs Children's Retreat - 710044BTZ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

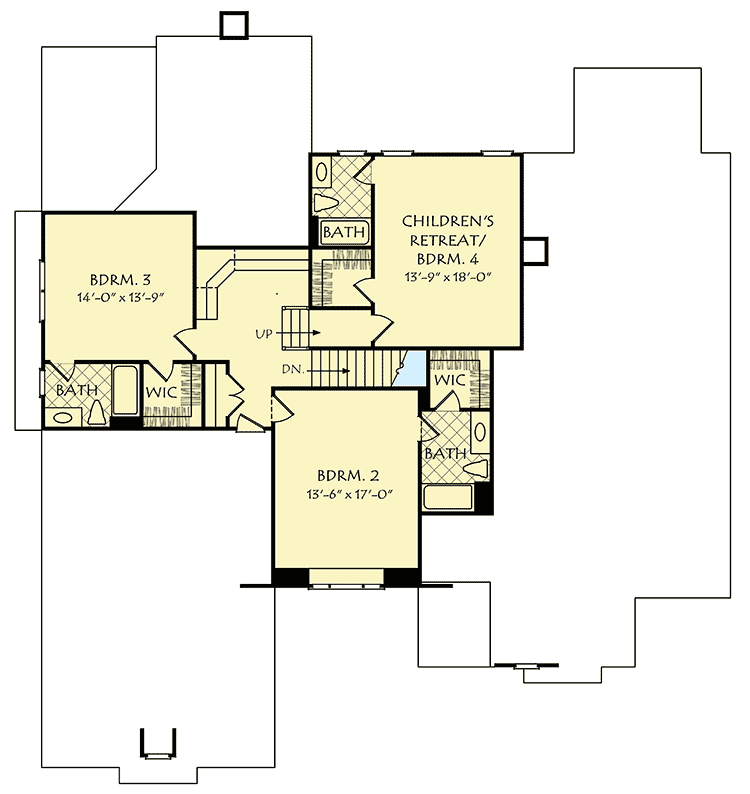

Flexible House Plan with Possible Upstairs Children's Retreat - 710044BTZ floor plan - 2nd Floor

Flexible House Plan with Possible Upstairs Children's Retreat

  • 3,942

    Heated s.f.

  • 3-5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,942 sq. ft.
  • 1st Floor: 2,721 sq. ft.
  • 2nd Floor: 1,221 sq. ft.

Dimensions

  • Width: 67' 6"
  • Depth: 72' 10"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 699 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
