Plan 849069PGE

Flexible New American House Plan with Large Garage and Game Room

Heated S.F.
2,075
Beds
2 - 5
Baths
2.5
Stories
1
Cars
4

Floor Plan

Plan 849069PGE

Main Level
Main Level
Lower Level - Optionally Finished Basement
Lower Level - Optionally Finished Basement

Plan 849069PGE

M-F 9am-5pm EST |

1-203-761-8500

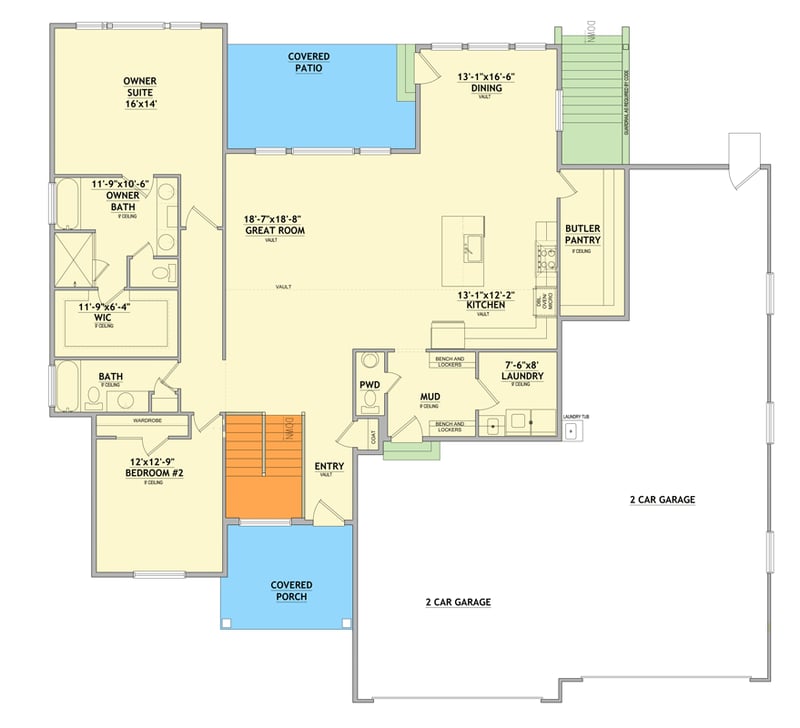

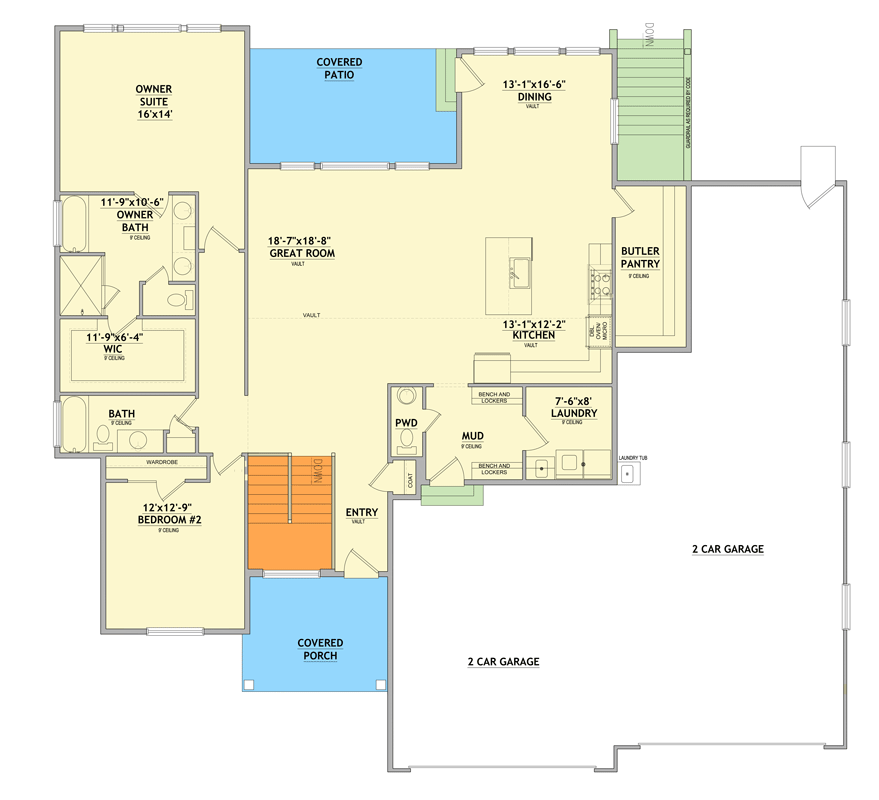

Main Level

Plan 849069PGE: Flexible New American House Plan with Large Garage and Game Room - Floor Plan - Main Level - Craftsman, Farmhouse, New American, Traditional

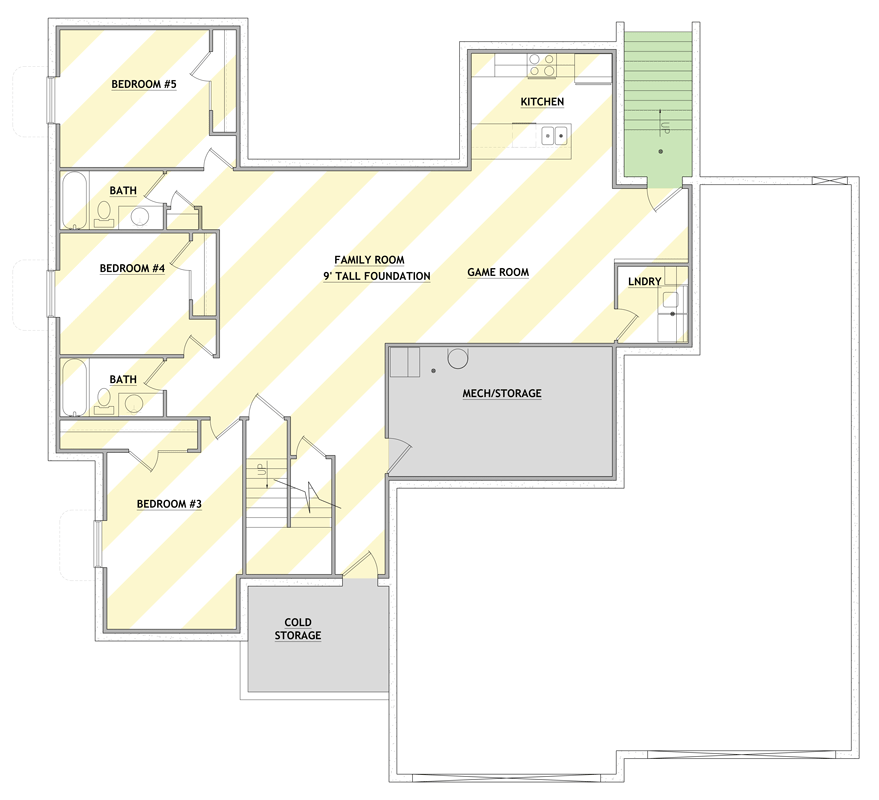

Lower Level - Optionally Finished Basement

Plan 849069PGE: Flexible New American House Plan with Large Garage and Game Room - Floor Plan - Lower Level - Optionally Finished Basement - Craftsman, Farmhouse, New American, Traditional

Plan Details

  • This 2,075 sq ft New American House Plan offers flexible 2 to 5 bedrooms, 2.5 baths, and an expansive 1,345 sq ft 4-car front-entry garage.
  • Step inside from the inviting covered porch into a well-designed layout featuring a convenient mudroom and main-level laundry, ensuring practical daily living.
  • The heart of the home features an open-concept flow connecting living areas, complemented by a breakfast nook and a butler walk-in pantry for effortless entertaining and daily meals.
  • The primary suite offers a serene retreat, thoughtfully separated while secondary bedrooms are clustered for family convenience.
  • An inviting covered front porch provides a charming spot for welcoming guests and enjoying the neighborhood ambiance.
  • The expansive 1,923 sq ft unfinished basement offers significant potential for future customization, ideal for additional living space, a home gym, or expanded storage.

What's Included

  • Cover Sheet

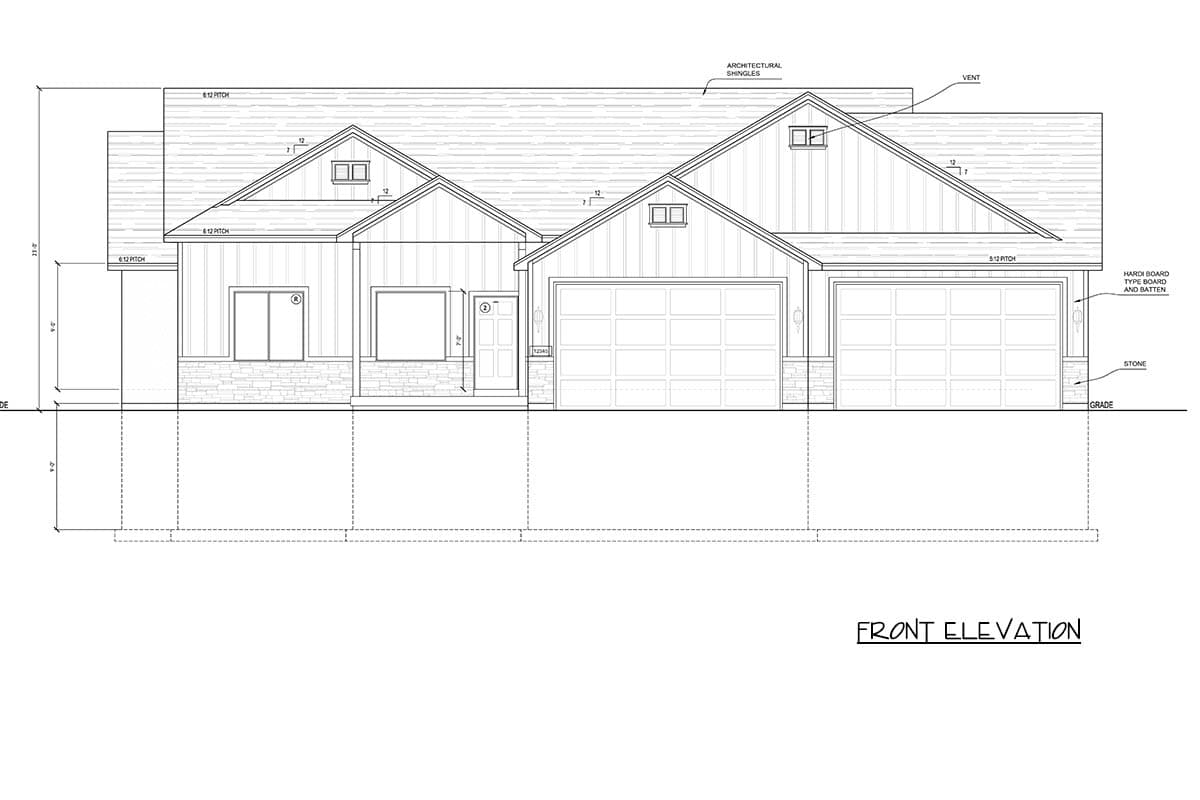

  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,075 sq. ft.

1st Floor

2,075 sq. ft.

Optional Lower Level

1,923 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, or 5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

69' 0"

Depth

65' 0"

Max Ridge Height

23' 0"

Garage

Type

Standard

Area

1345 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Farmhouse

New American

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Game/Rec Room

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar

Square Footage Breakdown

Total Heated Area

2,075 sq. ft.

1st Floor

2,075 sq. ft.

Optional Lower Level

1,923 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, or 5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

69' 0"

Depth

65' 0"

Max Ridge Height

23' 0"

Garage

Type

Standard

Area

1345 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Farmhouse

New American

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Game/Rec Room

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar
