Flexible Southern Home Plan with 2nd Story Common Area

Plan 83915JW

  • 2,672

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

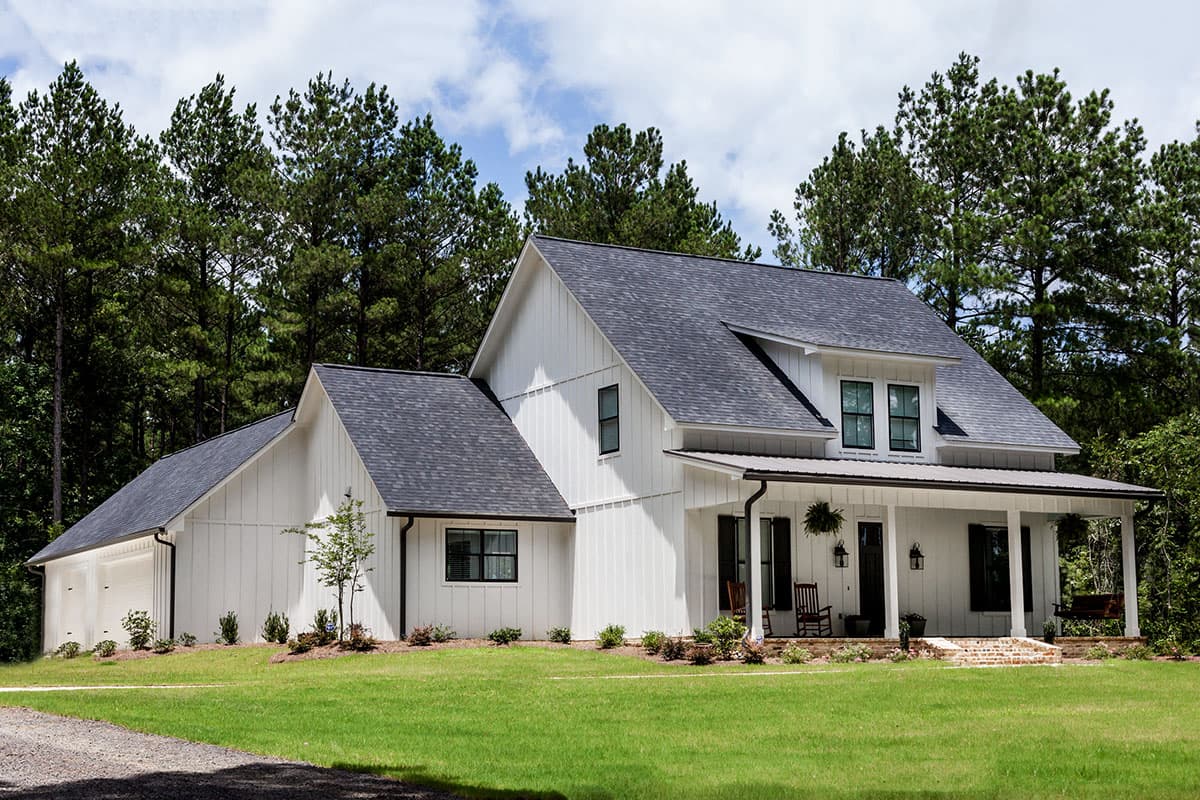

  • This southern charmer features a sizable front porch beneath a shed dormer, and bright-white board and batten siding against dark window sashes and shutters. A 3-car garage attaches to the back of the home and includes a large storage area.
  • A spacious family room greets you upon entering and includes a fireplace with surrounding built-ins. The eat-in kitchen offers plenty of counter space, easing the chore of meal preparation, and a walk-in pantry provides ample storage space.
  • French doors off the dining area lead to a screened porch, and beyond to a patio with a sink and grilling station.
  • Nestled towards the back of the home, discover the main-floor master bedroom, featuring a freestanding tub, dual sinks, commode room, and shower. The roomy walk-in closet provides access to the laundry room for added convenience.
  • Also on this level is a study, or guest room, which sits next to a powder bath.
  • Upstairs, a large common area rests between two additional bedroom suites, each with their own full bathroom and walk-in closet.

Elevations

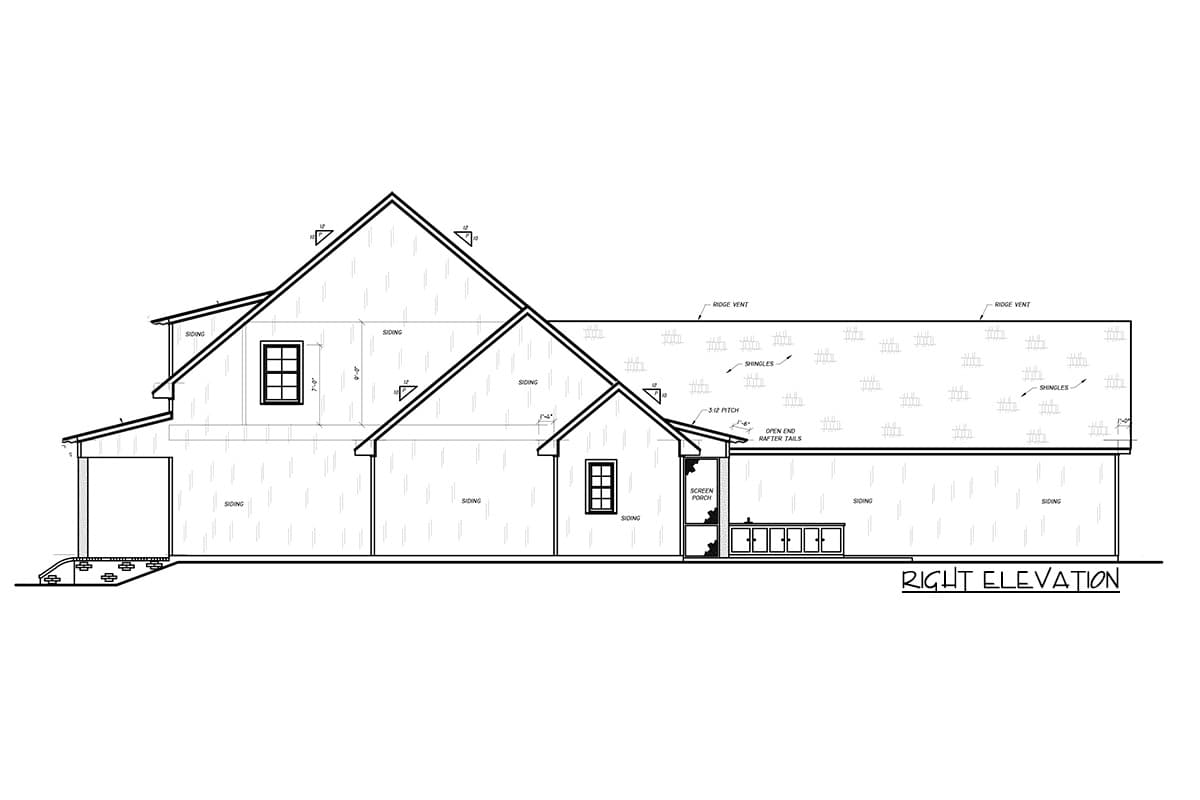

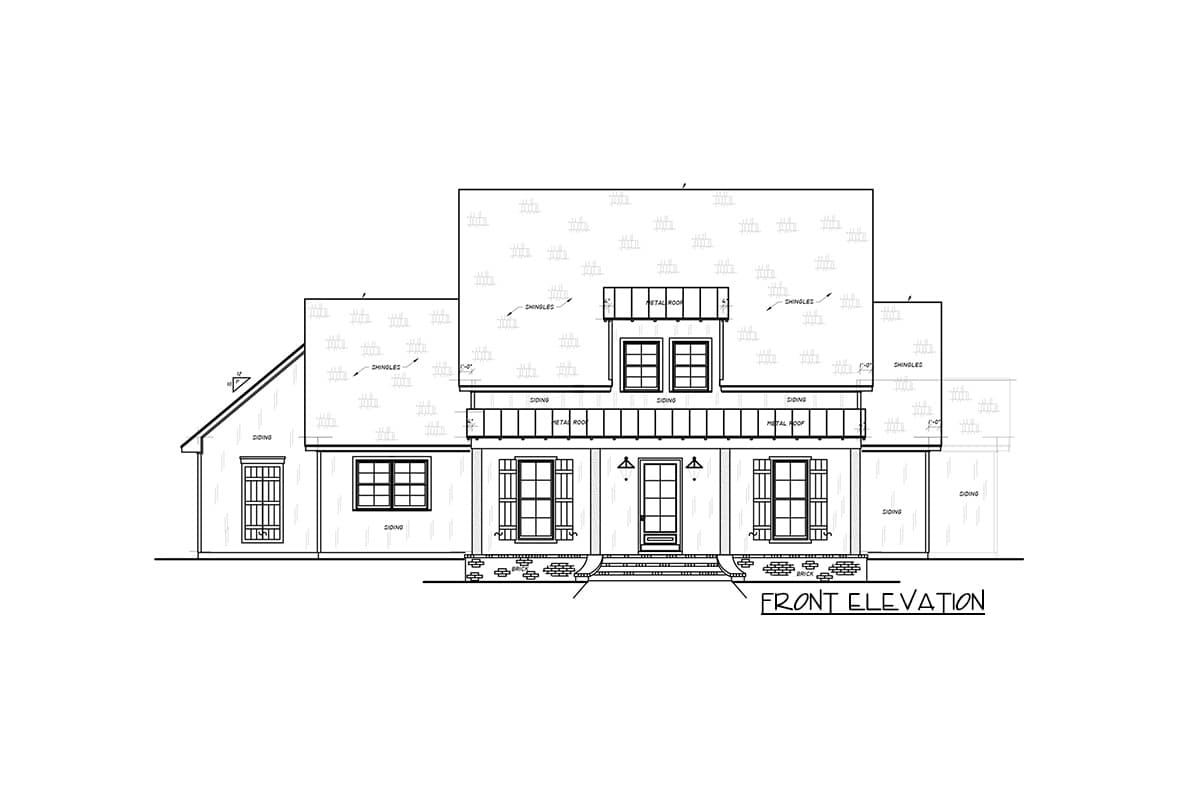

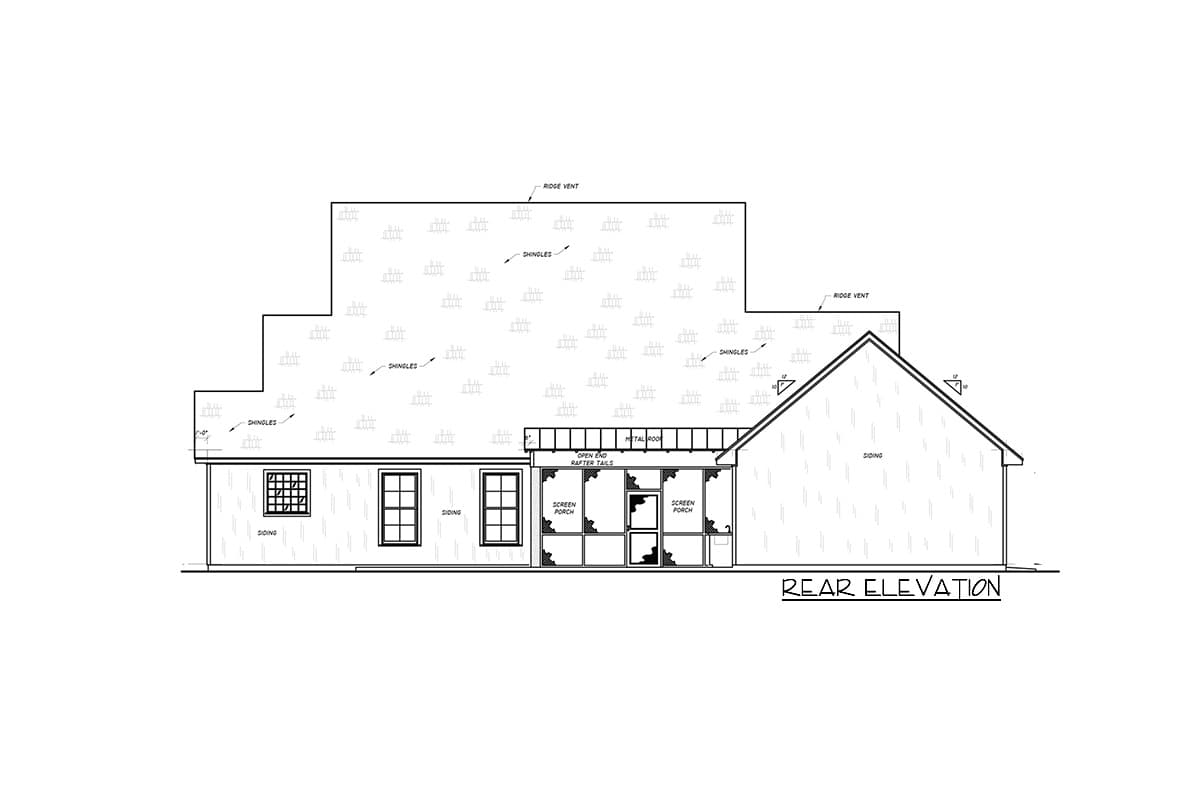

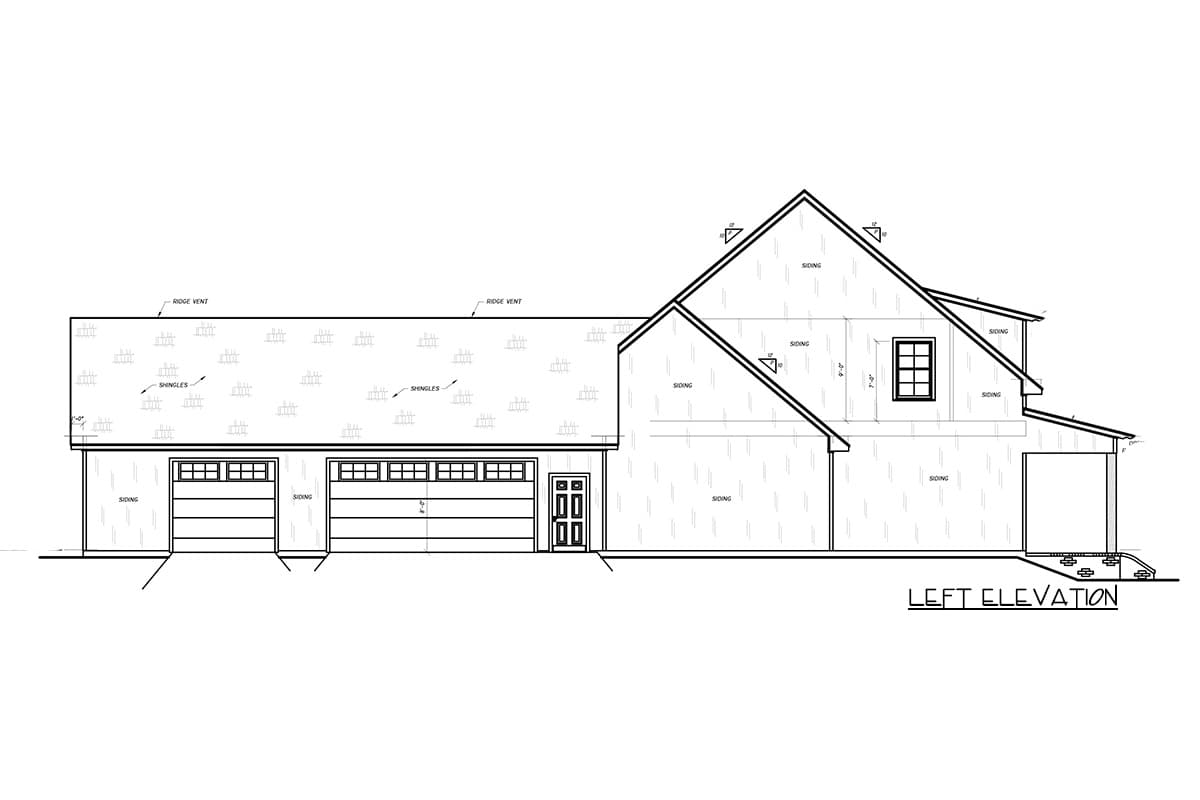

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

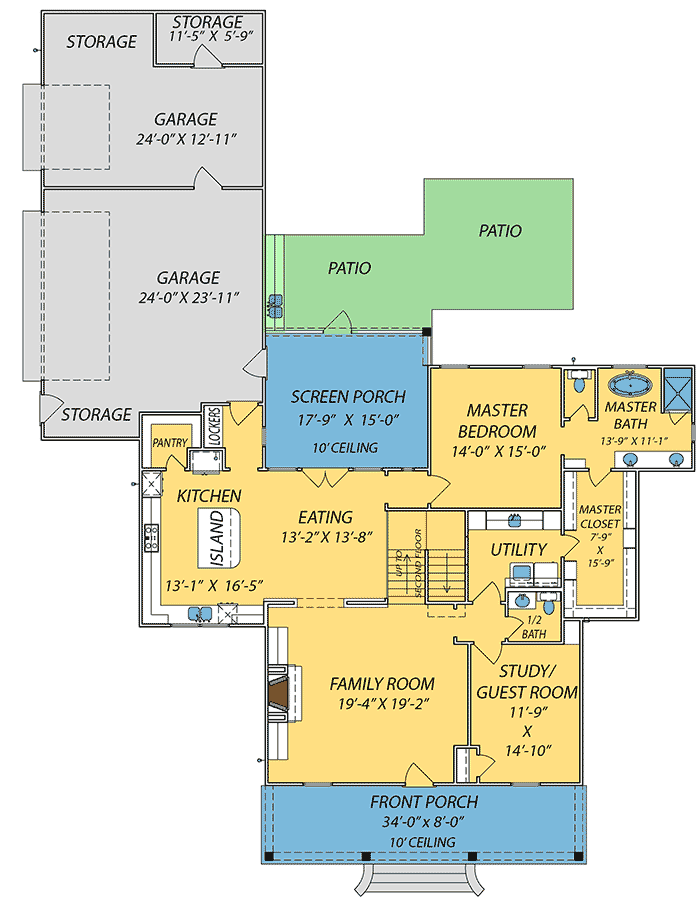

Flexible Southern Home Plan with 2nd Story Common Area - 83915JW floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

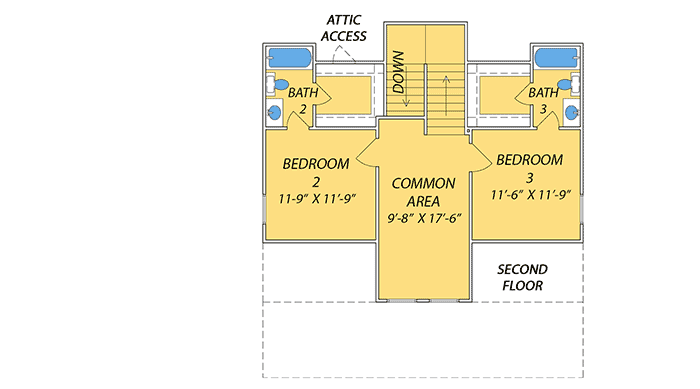

Flexible Southern Home Plan with 2nd Story Common Area - 83915JW floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,672 sq. ft.
  • 1st Floor: 1,888 sq. ft.
  • 2nd Floor: 784 sq. ft.
  • Screened Porch: 266 sq. ft.
  • Porch, Front: 268 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Monolithic Slab
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 91' 0"

Garage

  • Type: Attached
  • Area: 1057 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Flexible Southern Home Plan with 2nd Story Common Area

  • 2,672

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $995
  • 5 Sets $1,045
  • 5 Sets + PDF $1,145
  • 8 Sets $1,145
  • PDF - Unlimited Build $1,645
  • CAD - Single-Build $1,845
  • CAD Unlimited + PDF $2,345
  • View all purchase option online

About This Plan

  • This southern charmer features a sizable front porch beneath a shed dormer, and bright-white board and batten siding against dark window sashes and shutters. A 3-car garage attaches to the back of the home and includes a large storage area.
  • A spacious family room greets you upon entering and includes a fireplace with surrounding built-ins. The eat-in kitchen offers plenty of counter space, easing the chore of meal preparation, and a walk-in pantry provides ample storage space.
  • French doors off the dining area lead to a screened porch, and beyond to a patio with a sink and grilling station.
  • Nestled towards the back of the home, discover the main-floor master bedroom, featuring a freestanding tub, dual sinks, commode room, and shower. The roomy walk-in closet provides access to the laundry room for added convenience.
  • Also on this level is a study, or guest room, which sits next to a powder bath.
  • Upstairs, a large common area rests between two additional bedroom suites, each with their own full bathroom and walk-in closet.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,672 sq. ft.
  • 1st Floor: 1,888 sq. ft.
  • 2nd Floor: 784 sq. ft.
  • Screened Porch: 266 sq. ft.
  • Porch, Front: 268 sq. ft.
