Flexible Three Bedroom Cottage

Plan 40513WM

  • 1,260

    HEATED S.F.

  • 3

    BEDS

  • 2

    BATHS

  • 1

    FLOORS

  • 2

    CAR GARAGE

About this Plan

  • Related Plan: Don't need a garage? See house plan 40512DB.
  • Looking for a two-story cottage house plan? See these house plans in reverse layout: 40514DB (no garage) and 40515DB (two-car garage).

See What's Included in this Plan...

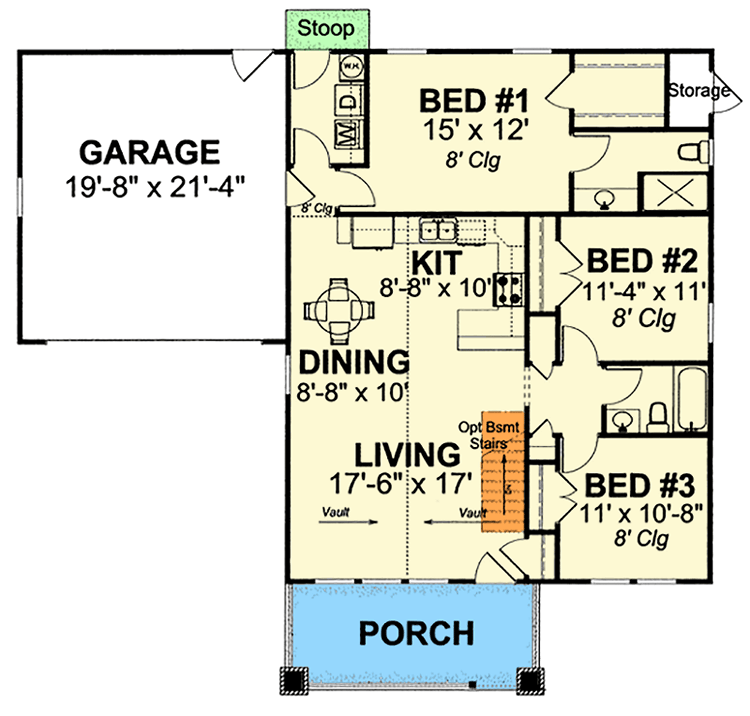

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,260 sq. ft.
  • 1st Floor: 1,260 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Dimensions

  • Width: 52' 0"
  • Depth: 48' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 440 sq. ft.
  • Details: 2 Cars
  • Location: Front

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12

Architectural Style
