Plan 57041HA
Focused on Patio Views
Heated S.F.
2,547
Beds
3-4
Baths
2.5
Stories
1
Cars
3
What's Included
Plan Details
  • Upon entering this home from the covered porch to the right there is a formal dining room with tray ceiling.
  • The flex room to the left is accessed through double-doors and can be used as a fourth bedroom or a study.
  • Grand-sized great room features a 12' volume ceiling, fireplace with built-in wrap-around shelving and patio doors with sidelights and transom windows.
  • The walk-in pantry, computer desk, large breakfast island for seven and bayed breakfast area are the many features of this outstanding kitchen.
  • The master bedroom suite enjoys a luxurious bath, two large walk-in closets and patio access.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Focused on Patio Views

  • 2,547

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

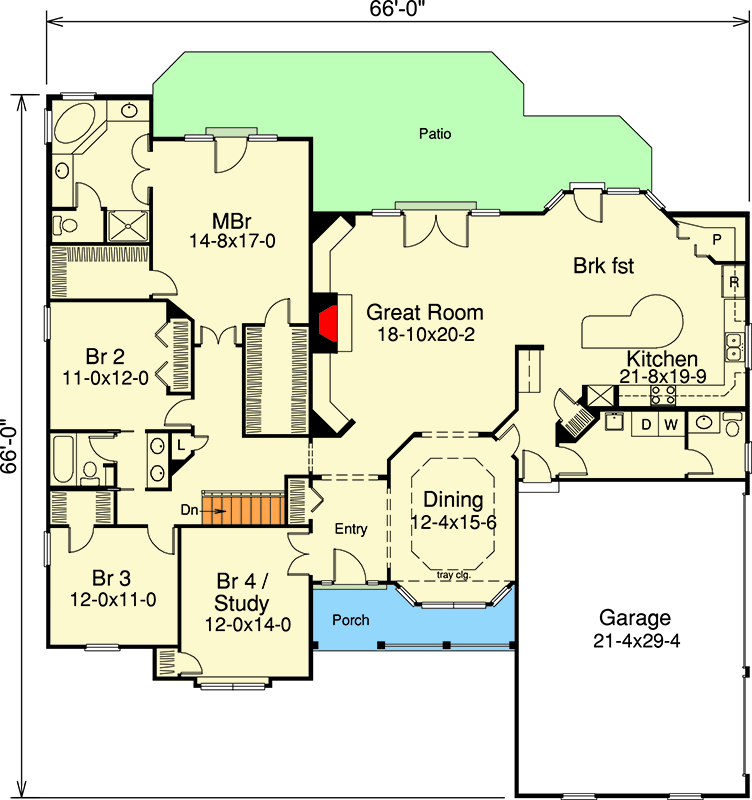

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,547 sq. ft.
  • 1st Floor: 2,547 sq. ft.

Dimensions

  • Width: 66' 0"
  • Depth: 66' 0"
  • Max ridge height: 22' 8"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 626 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss
