For the Laid Back Lifestyle

Plan 26613GG

  • 1,783

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

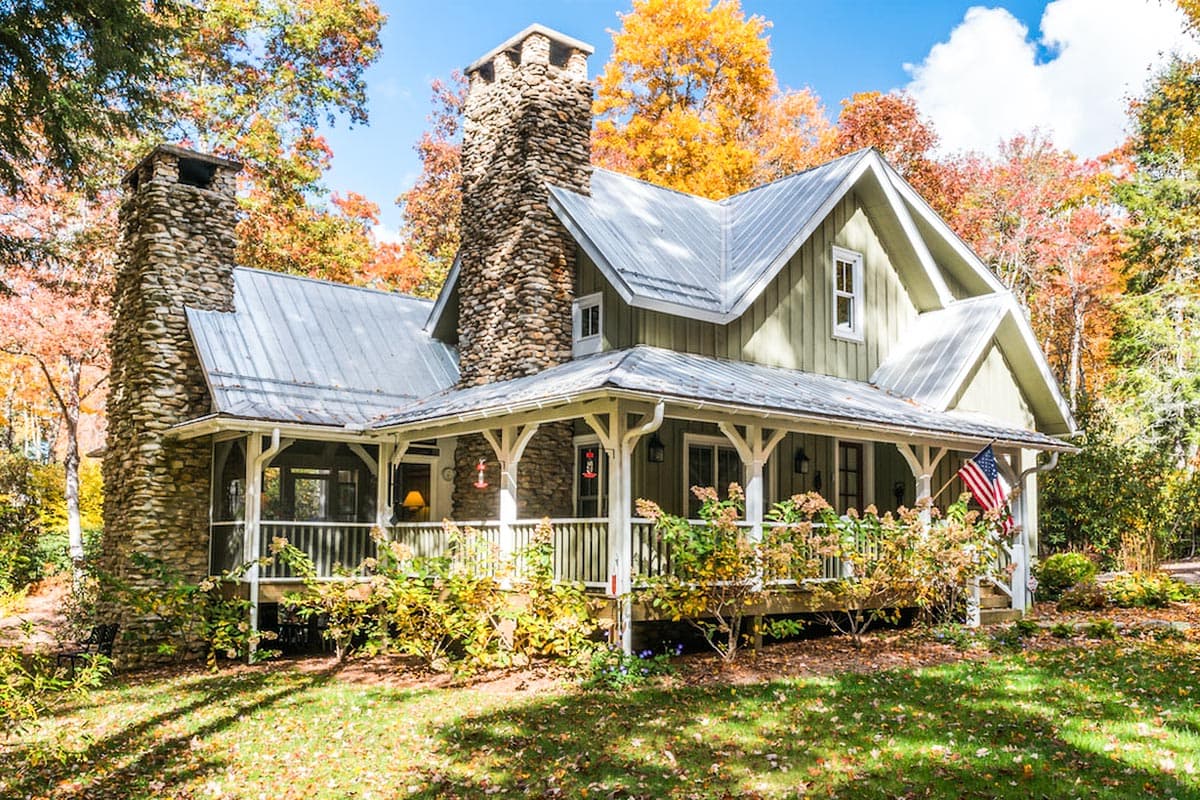

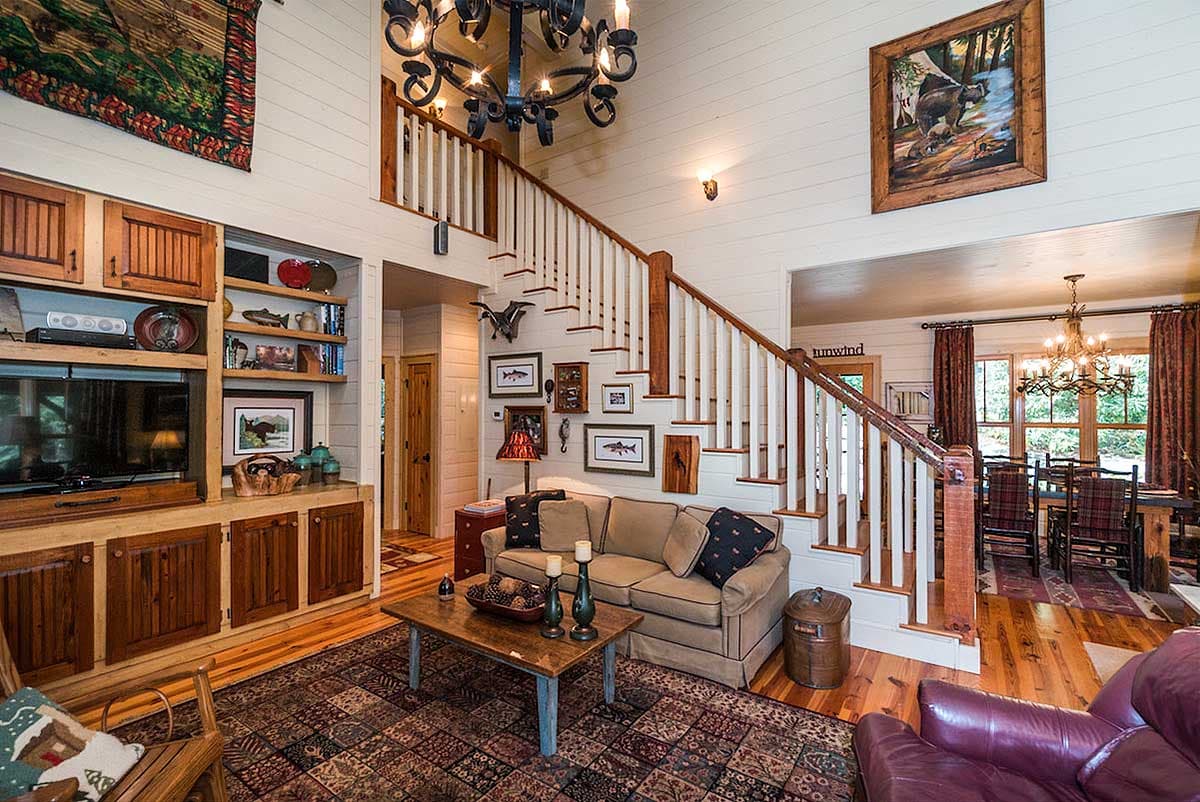

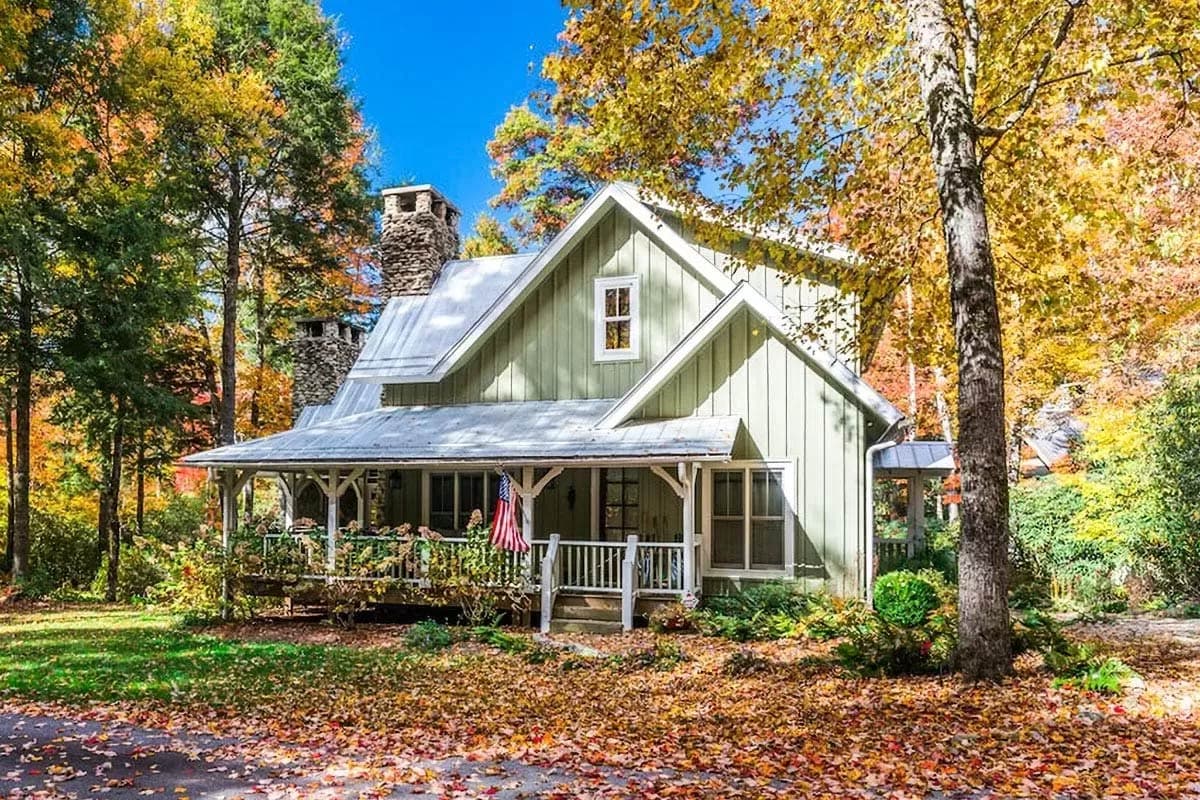

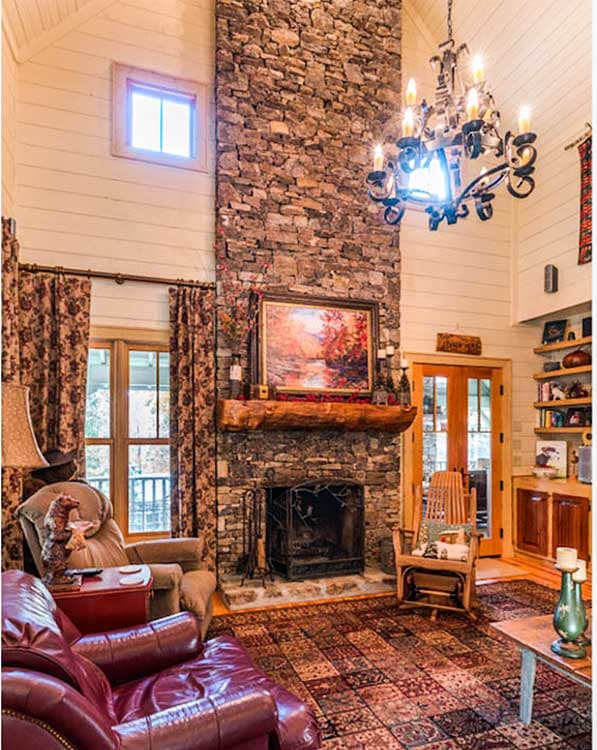

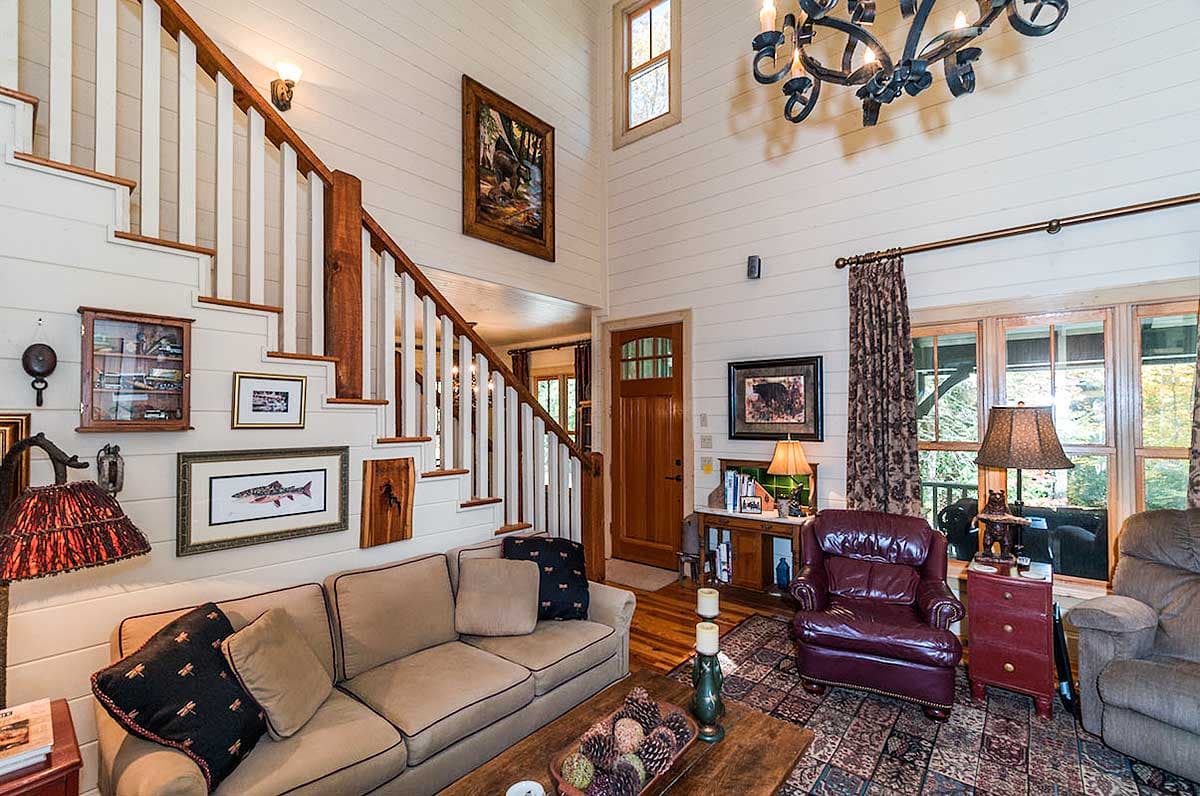

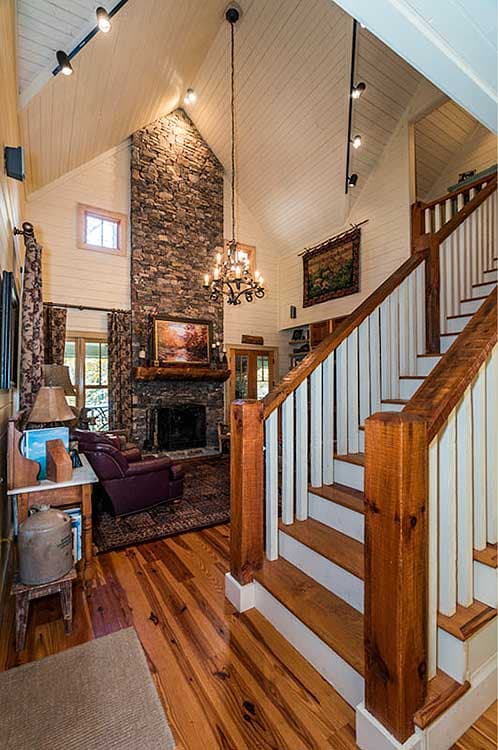

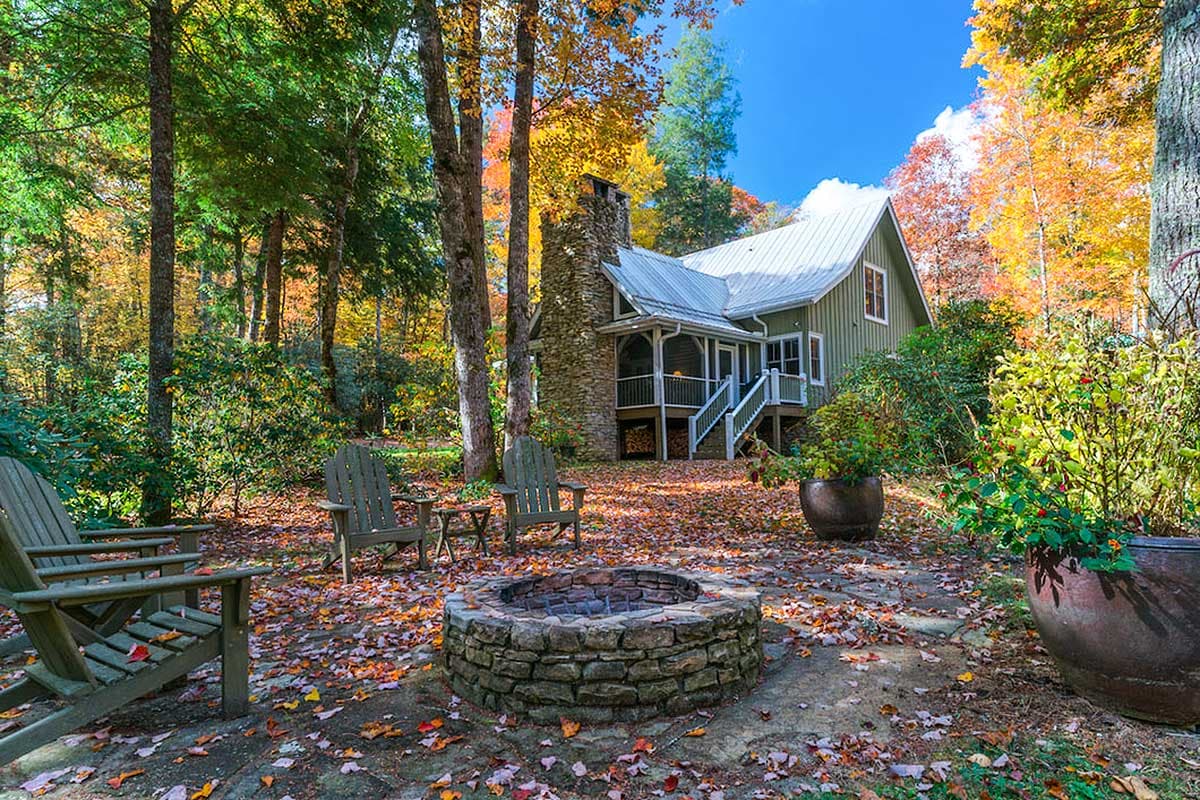

  • This house plan features a wraparound front porch that invites you to sit a while and relax. As you enter, the family room, with its stone fireplace and open stair railing, you are given a warm welcome.

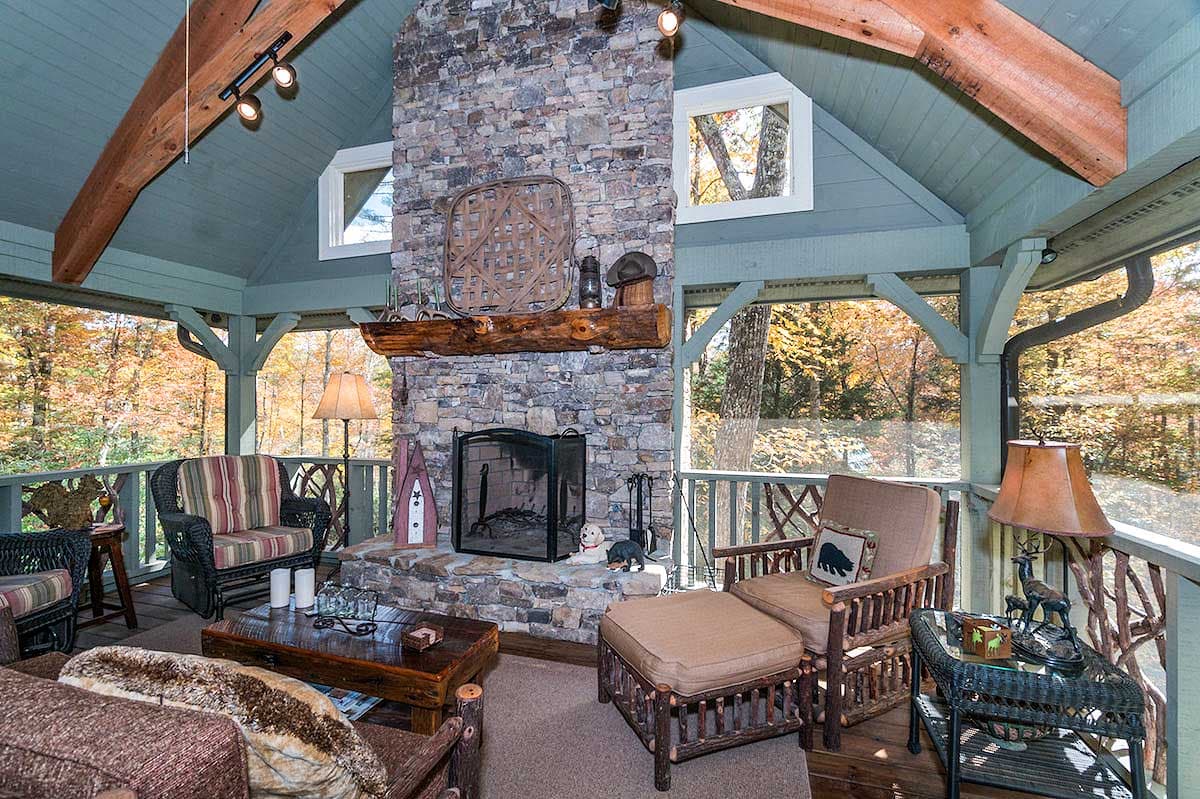

  • Step out to the screened porch, with its 16'8" vaulted ceiling and exposed wood beam ceiling and cozy up to a glowing fire.
  • The dining room also enjoys an open stair railing with wood plank walls and ceiling to add warmth.

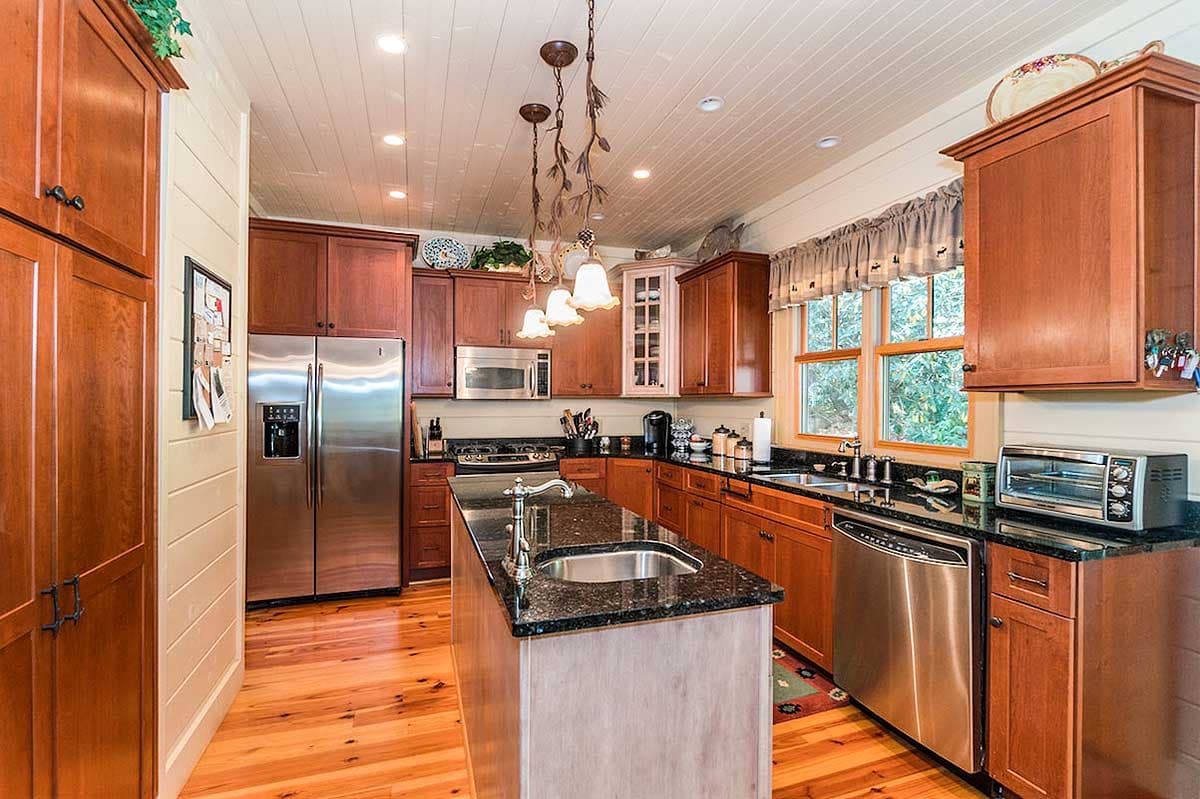

  • The kitchen, complete with island and generous cabinetry is open to the dining room with a workable configuration. The laundry closet and powder room are conveniently located just outside the kitchen area.

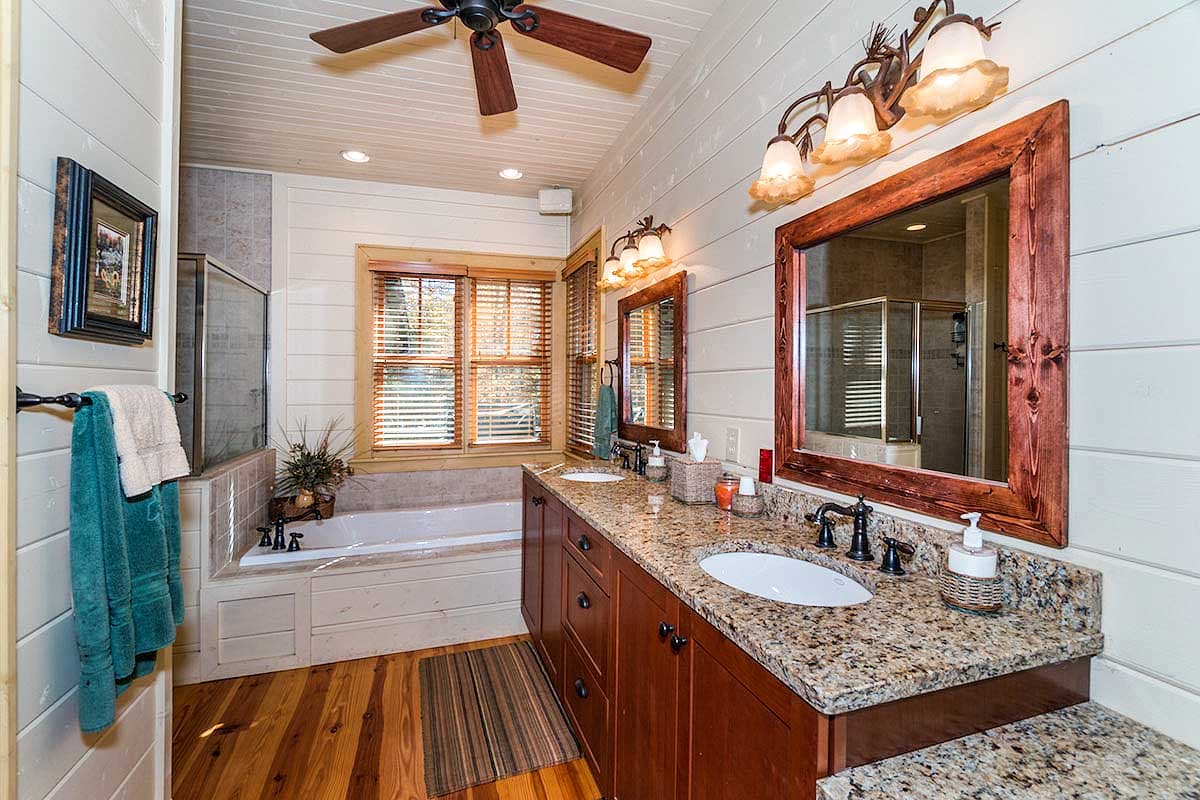

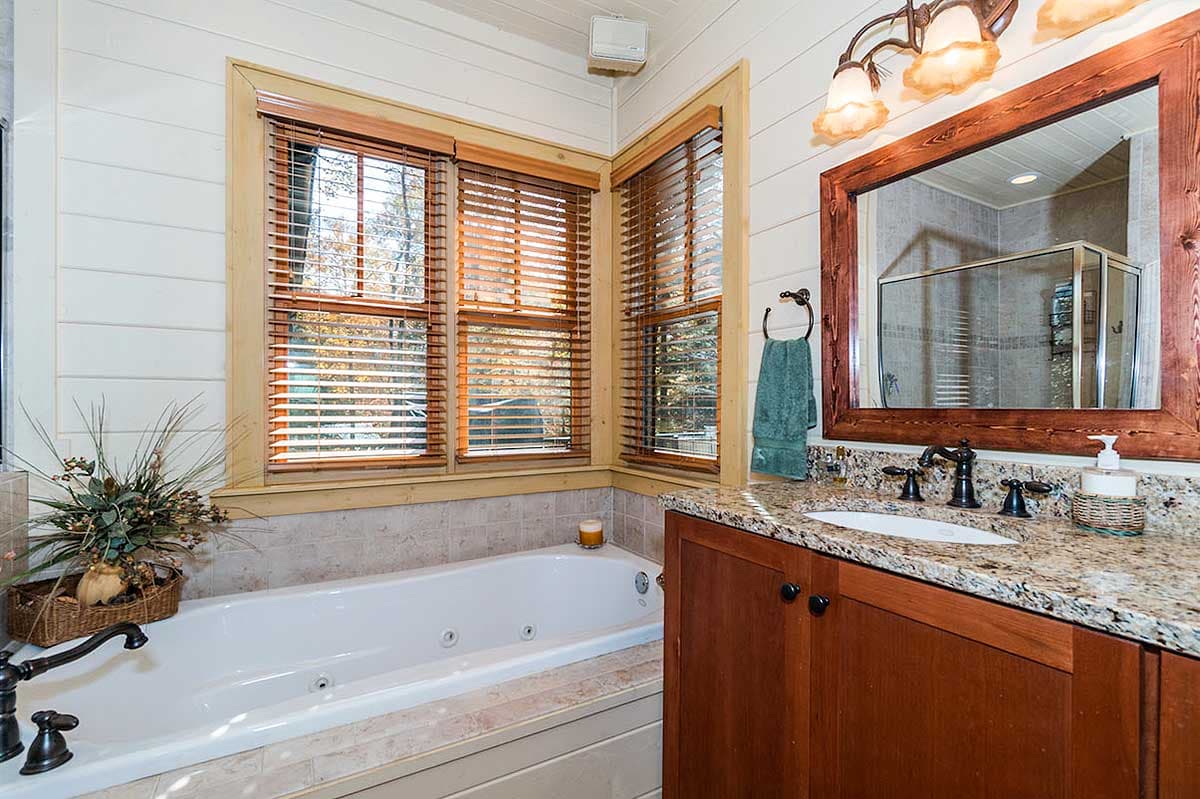

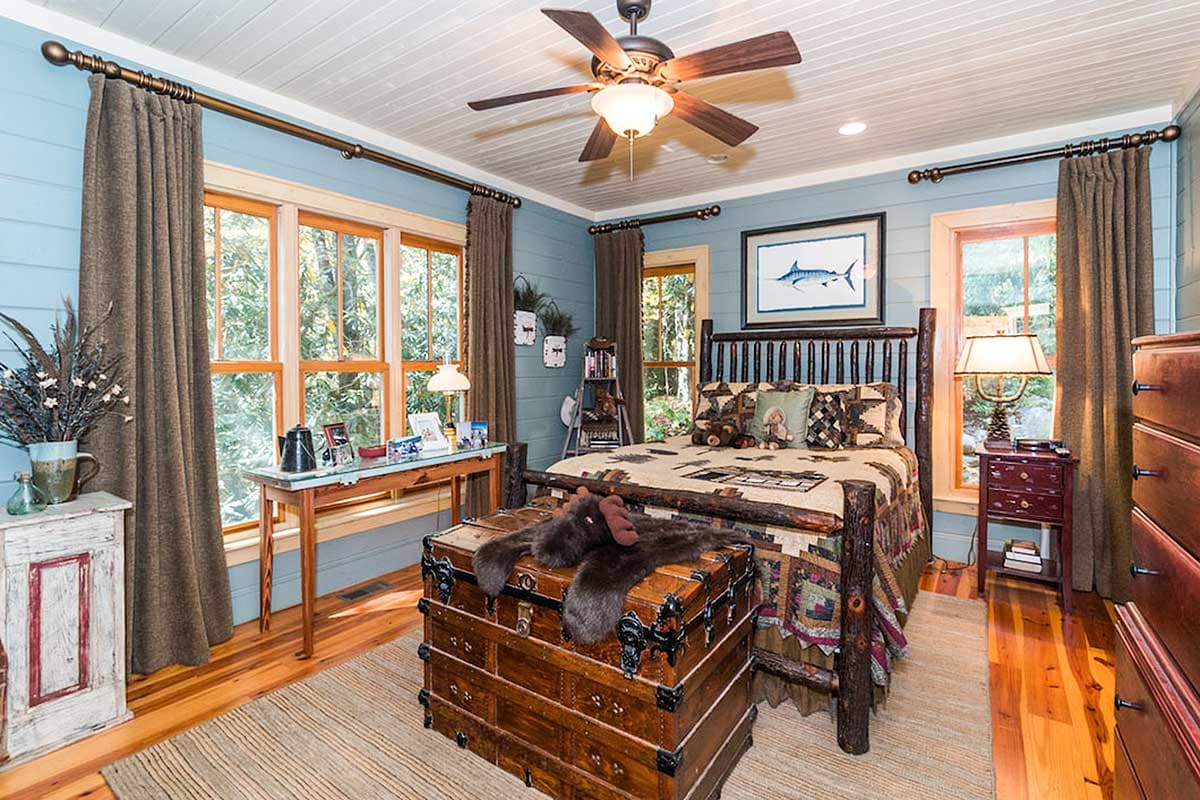

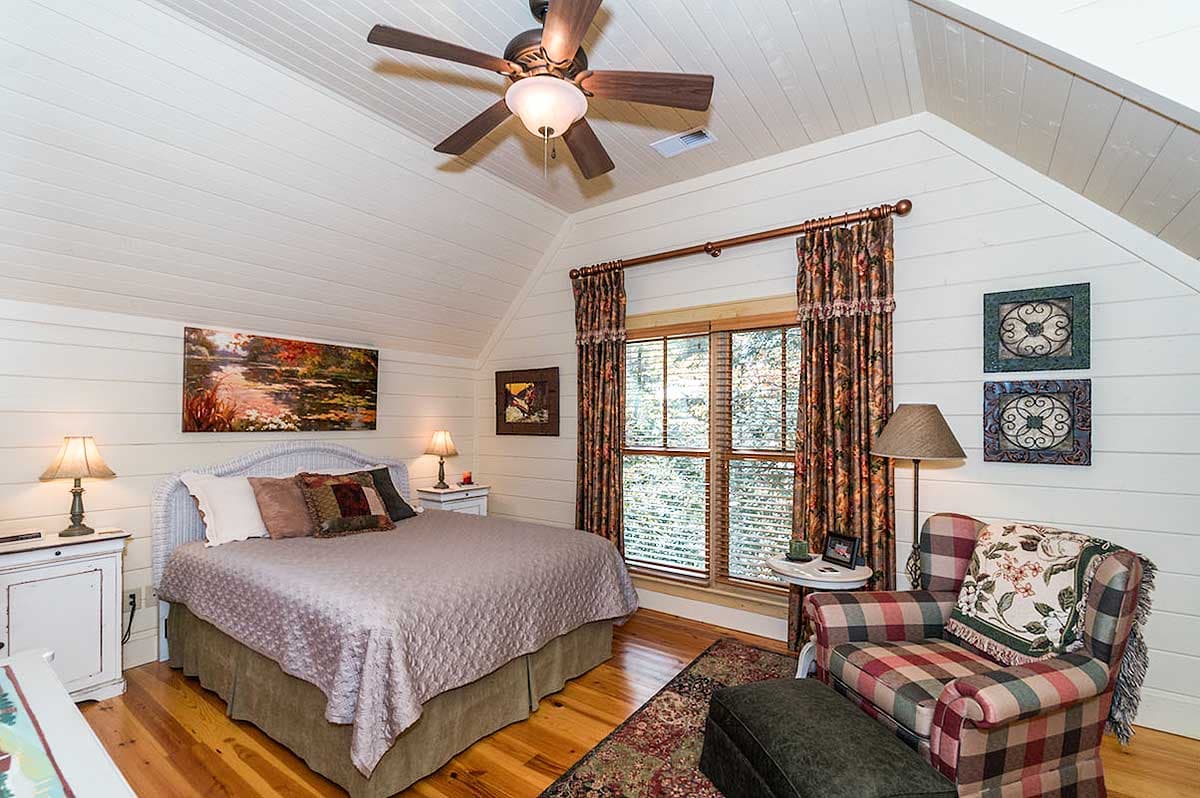

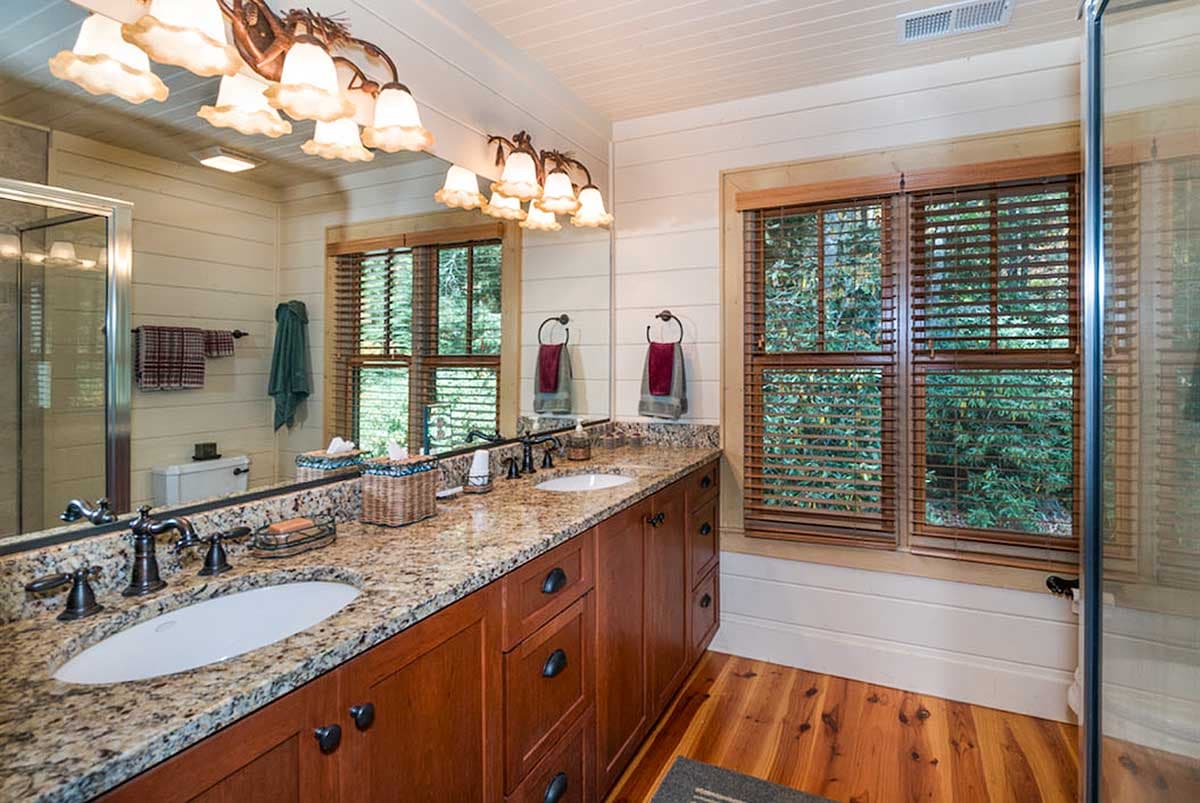

  • The master bedroom has ample amounts of windows bringing in lots of sunlight. The master bath has a spacious glass shower, large garden tub, double vanities and a compartmentalized toilet. The walk-in closet is tucked away and easily accessed from the bath.

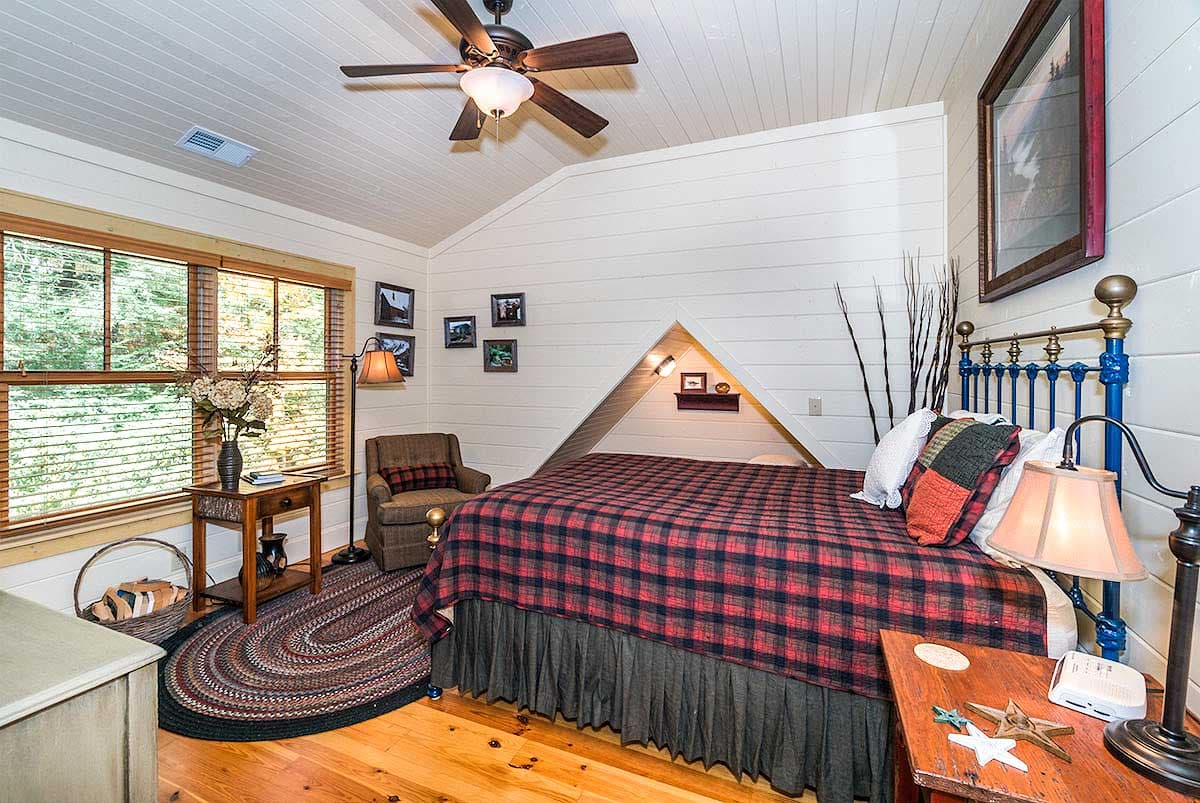

  • The upper level offers two bedrooms each with their own baths and an open balcony that looks down upon the family room.
  • The mechanicals fit in a recess in the crawl space or can be put in the attic instead.
  • An optional detached carport (400 sq. ft.) comes with the plans.
  • NOTE: Contact us if building in Jackson or Cashiers counties in North Carolina as certain restrictions may apply.

This plan has the following pages:

  • Main and upper level floor plans

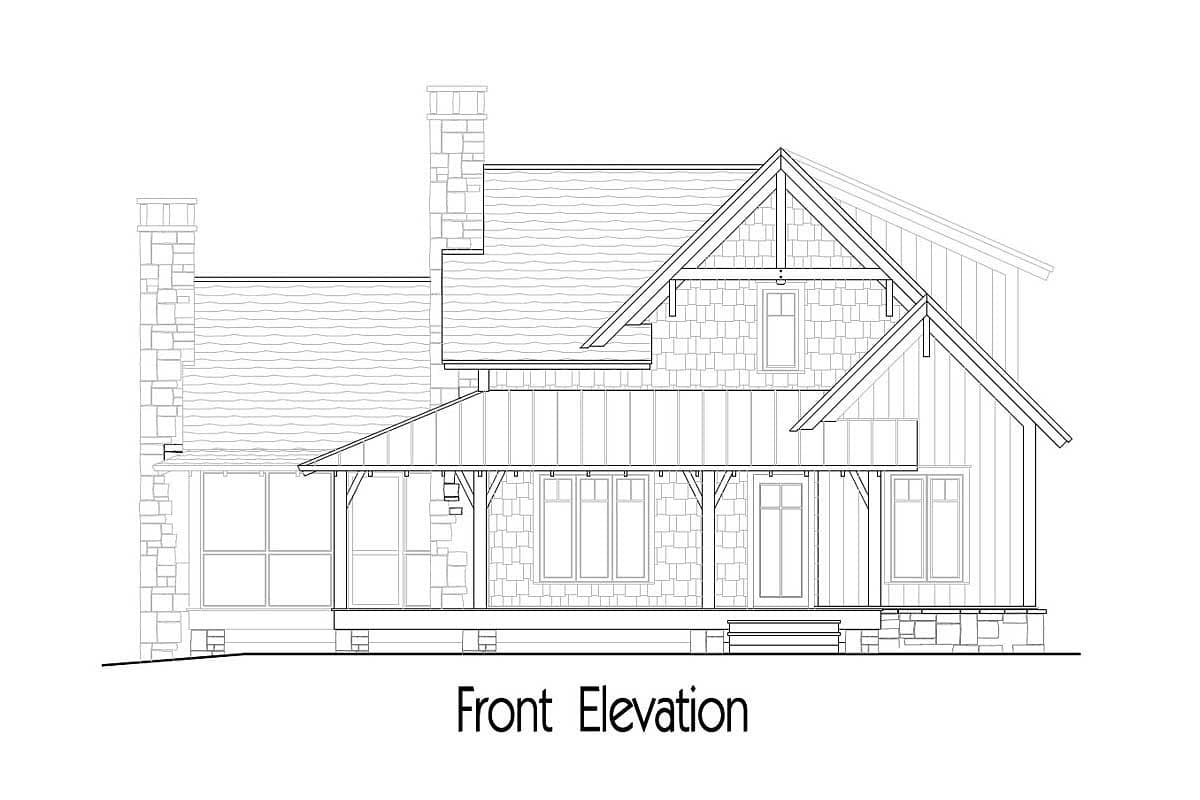

  • Front and left elevations and foundation plan

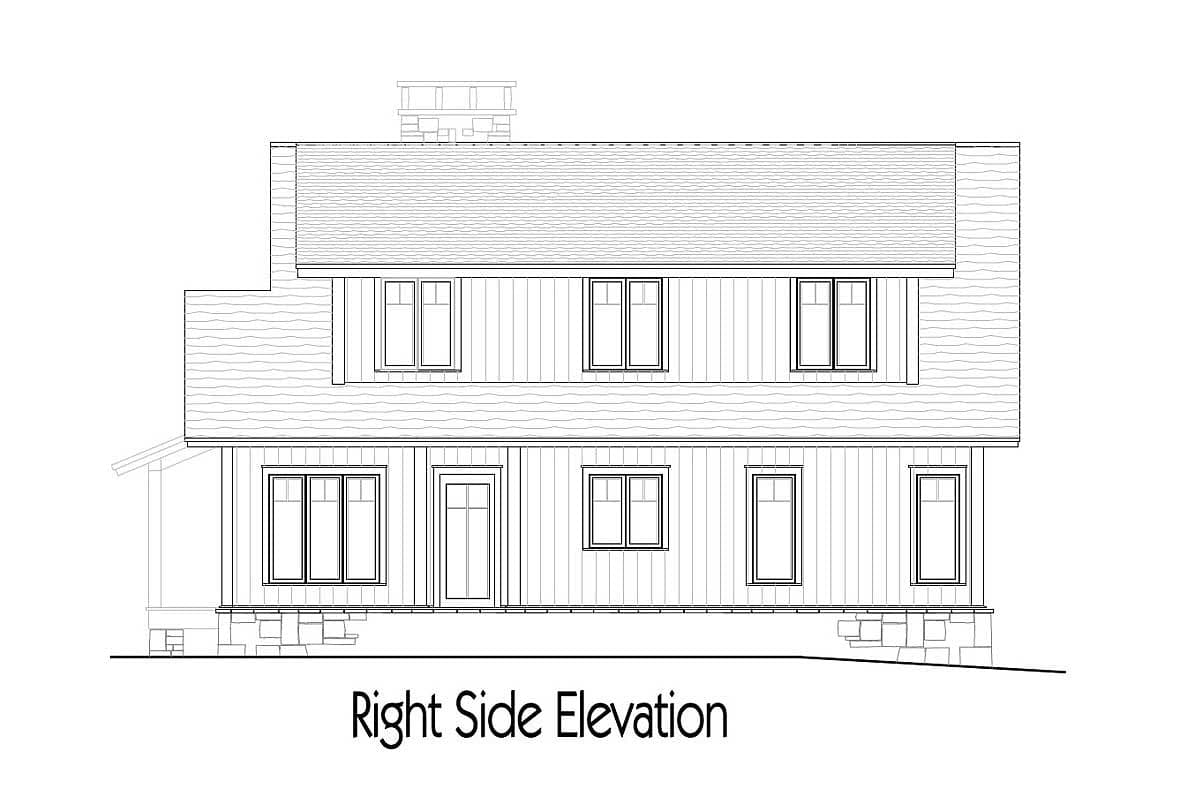

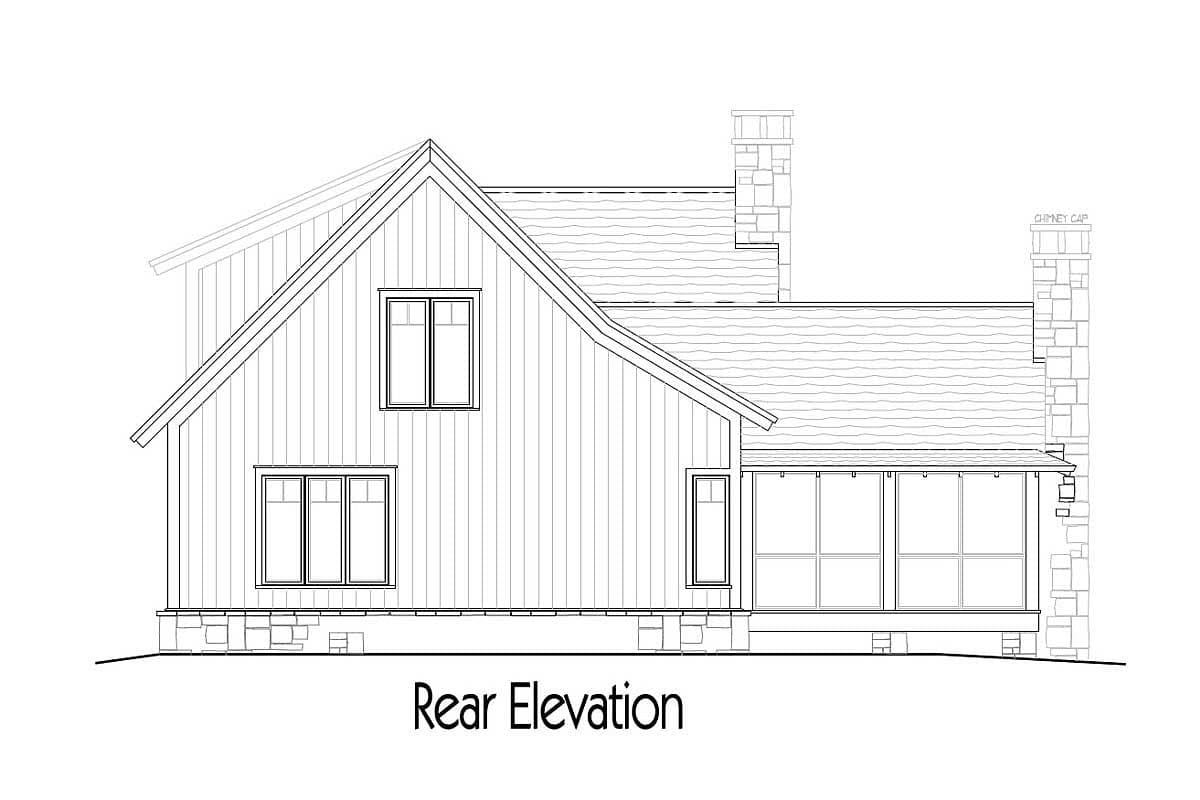

  • Rear and right elevations and roof plan; pier and foundation wall sections
  • Cross sections
  • Eave details
  • Deck rail details; false beam details; cross section; porch elevation; interior elevations
  • Details
  • Electrical plans; window and door schedules
  • Carport plans
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

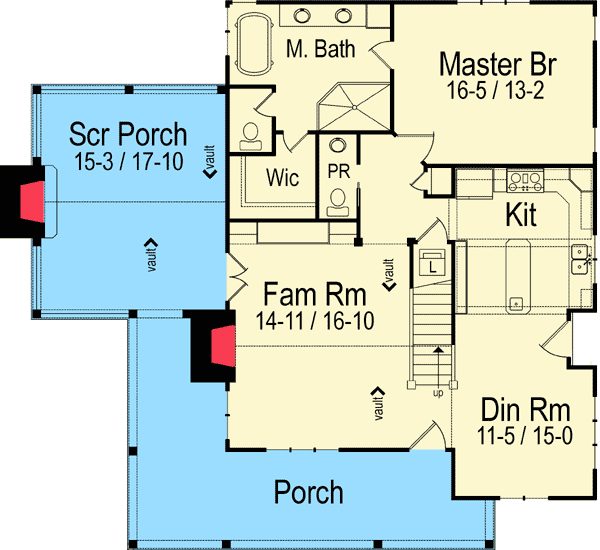

For the Laid Back Lifestyle - 26613GG floor plan - Main Level

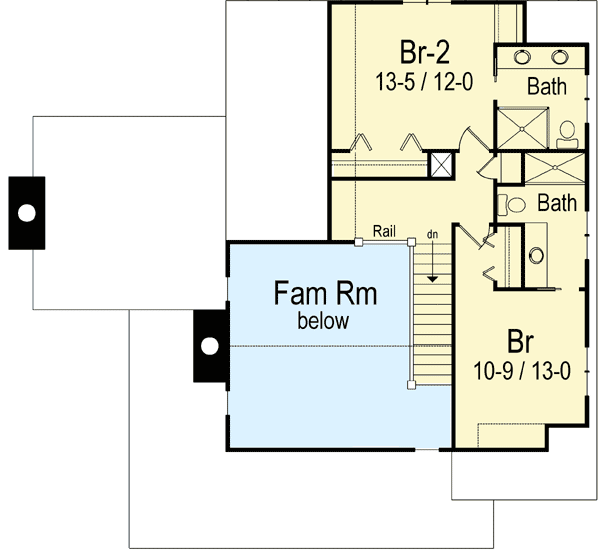

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
For the Laid Back Lifestyle - 26613GG floor plan - 2nd Floor

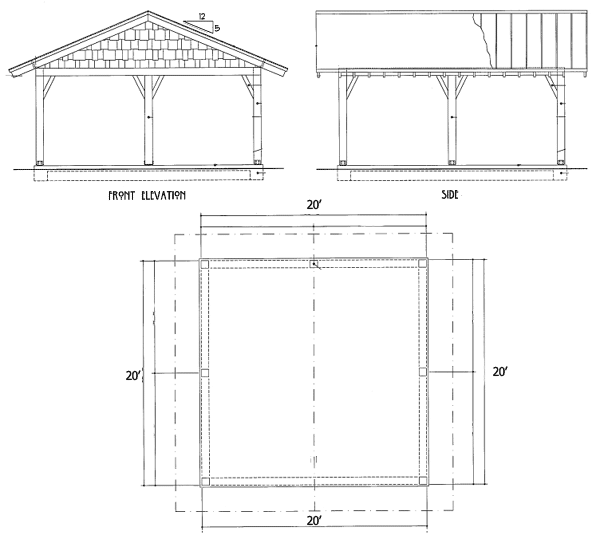

Optional Detached Carport

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
For the Laid Back Lifestyle - 26613GG floor plan - Optional Detached Carport

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,783 sq. ft.
  • 1st Floor: 1,199 sq. ft.
  • 2nd Floor: 584 sq. ft.
  • Porch, Combined: 620 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 49' 4"
  • Depth: 45' 4"
  • Max ridge height: 25' 4"

Garage

  • Type: Detached, Carport
  • Area: 400 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Other

Architectural Style

Special features

Plan Collections

For the Laid Back Lifestyle

  • 1,783

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,083
  • CAD - Single-Build $2,783
  • View all purchase option online

About This Plan

  • This house plan features a wraparound front porch that invites you to sit a while and relax. As you enter, the family room, with its stone fireplace and open stair railing, you are given a warm welcome.
  • Step out to the screened porch, with its 16'8" vaulted ceiling and exposed wood beam ceiling and cozy up to a glowing fire.
  • The dining room also enjoys an open stair railing with wood plank walls and ceiling to add warmth.
  • The kitchen, complete with island and generous cabinetry is open to the dining room with a workable configuration. The laundry closet and powder room are conveniently located just outside the kitchen area.
  • The master bedroom has ample amounts of windows bringing in lots of sunlight. The master bath has a spacious glass shower, large garden tub, double vanities and a compartmentalized toilet. The walk-in closet is tucked away and easily accessed from the bath.
  • The upper level offers two bedrooms each with their own baths and an open balcony that looks down upon the family room.
  • The mechanicals fit in a recess in the crawl space or can be put in the attic instead.
  • An optional detached carport (400 sq. ft.) comes with the plans.
  • NOTE: Contact us if building in Jackson or Cashiers counties in North Carolina as certain restrictions may apply.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Detached Carport

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,783 sq. ft.
  • 1st Floor: 1,199 sq. ft.
  • 2nd Floor: 584 sq. ft.
  • Porch, Combined: 620 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 49' 4"
  • Depth: 45' 4"
  • Max ridge height: 25' 4"

Garage

  • Type: Detached, Carport
  • Area: 400 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Other
