Plan 5972ND
Form and Function
Heated S.F.
1,732
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This home combines both form and function.
  • A covered porch protects visitors from the elements. Walking into the foyer, they are greeted with a stunning view of the great room that includes a ten-foot ceiling, inviting fireplace, entry to the screened porch and a smooth transition into the dining room and kitchen.
  • A sitting room adjoins the master suite for late-night reading after a relaxing bath in the whirlpool tub.
  • Foundation: slab or crawl space. Please specify your preference when ordering.
What's Included
Each plan set includes the following:
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Form and Function

  • 1,732

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

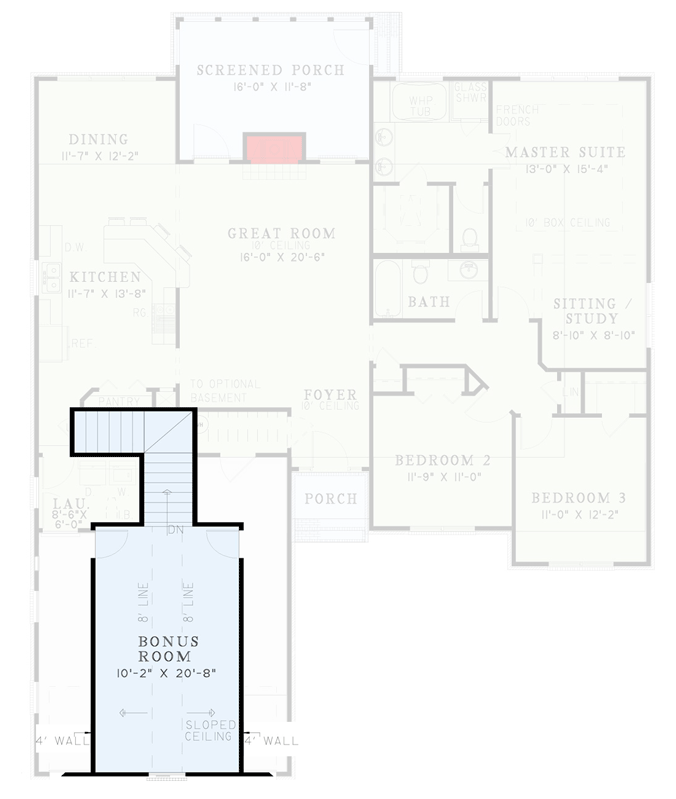

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 1,732 sq. ft.
  • 1st Floor: 1,732 sq. ft.

Dimensions

  • Width: 52' 0"
  • Depth: 63' 10"
  • Max ridge height: 28' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 585 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
