Plan 710298BTZ

Four Bed Traditional Home Plan with Vaulted Great Room

Heated S.F.
2,765
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 710298BTZ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 710298BTZ

M-F 9am-5pm EST |

1-203-761-8500

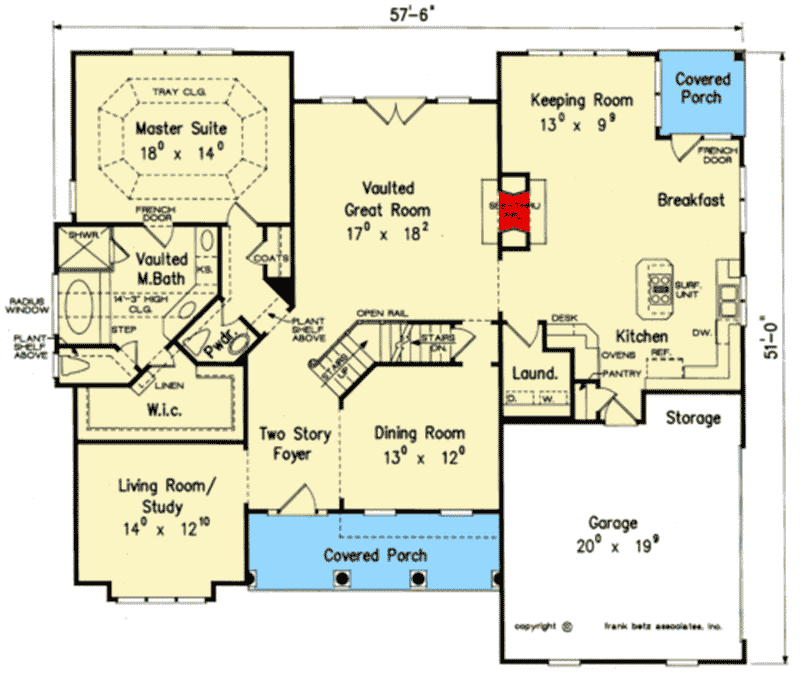

Main Level

Plan 710298BTZ: Four Bed Traditional Home Plan with Vaulted Great Room - Floor Plan - Main Level - Country, Traditional

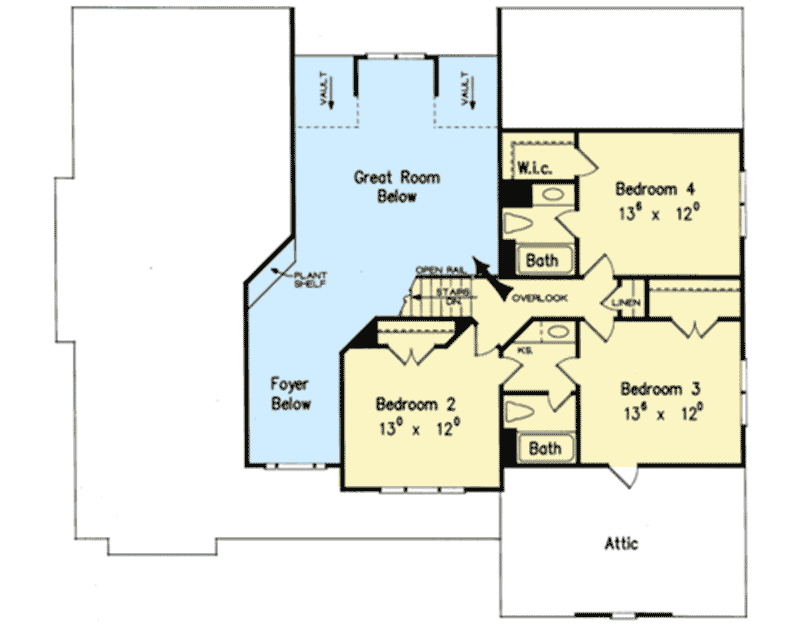

2nd Floor

Plan 710298BTZ: Four Bed Traditional Home Plan with Vaulted Great Room - Floor Plan - 2nd Floor - Country, Traditional

Plan Details

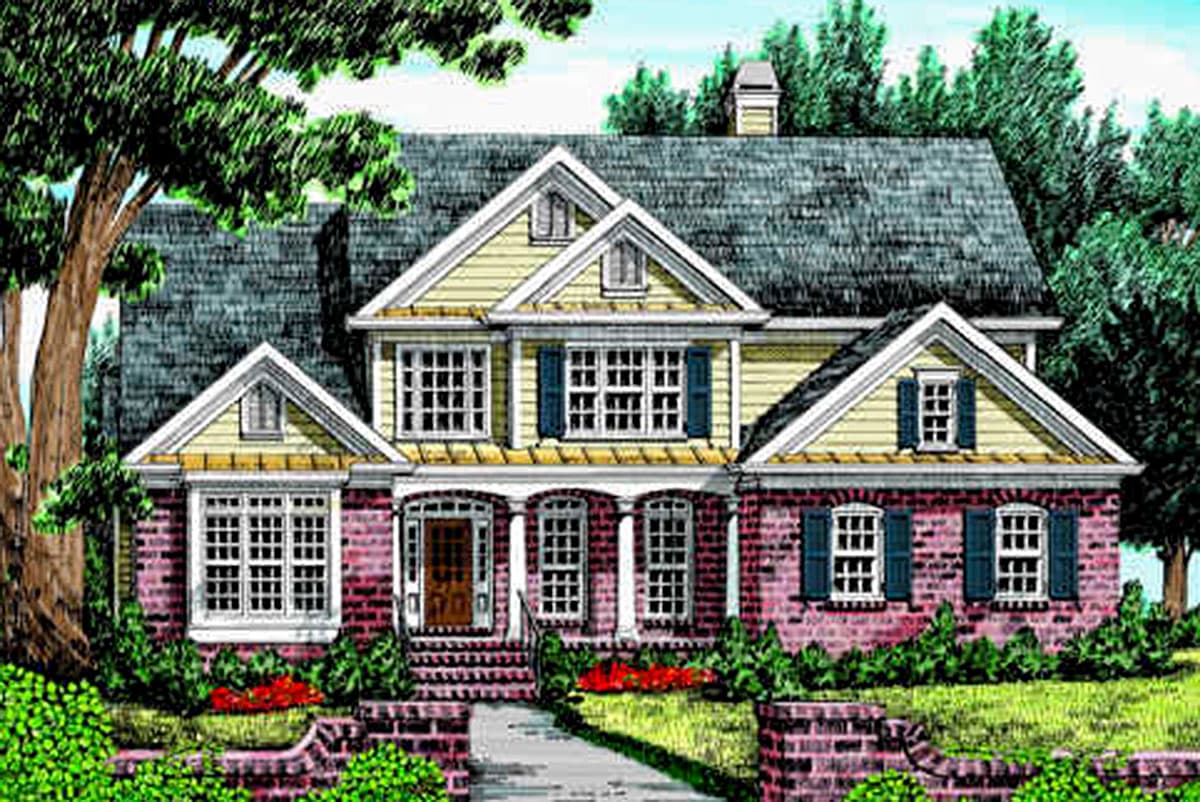

  • The multi-faceted façade of this home will catch the eye of passers by and neighbors alike.
  • Multiple gables and the classic combination of brick and siding make an impressive statement, ideal for any type of neighborhood.
  • Inside, an equally impressive floor plan awaits.

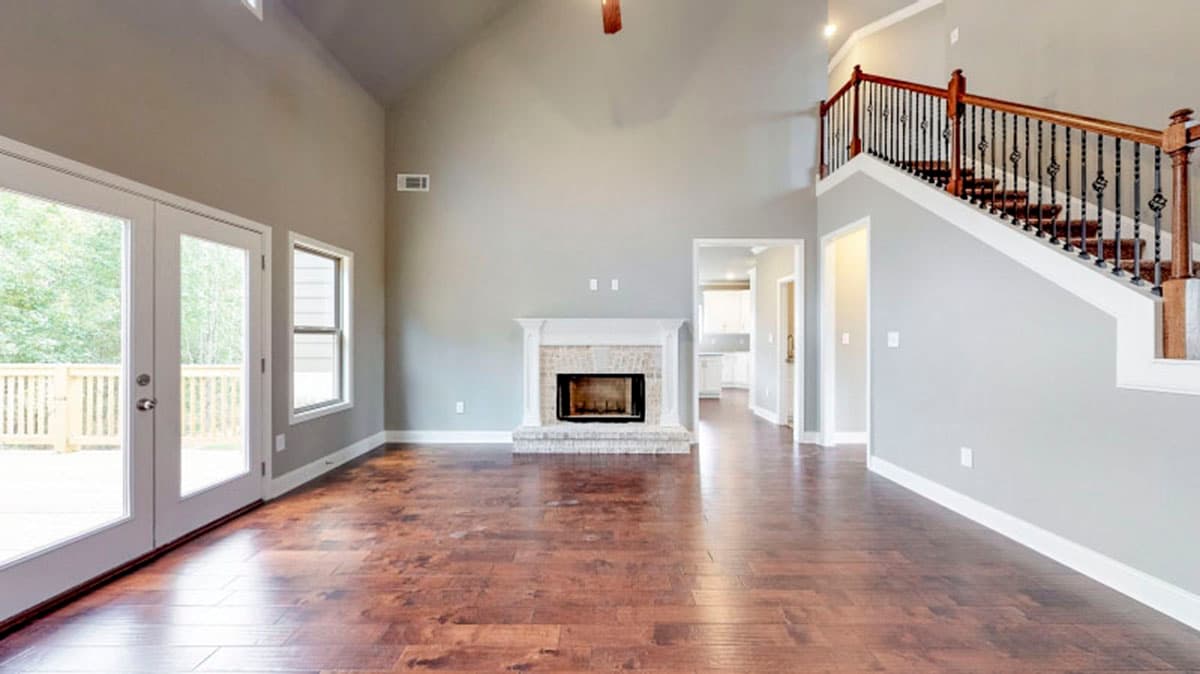

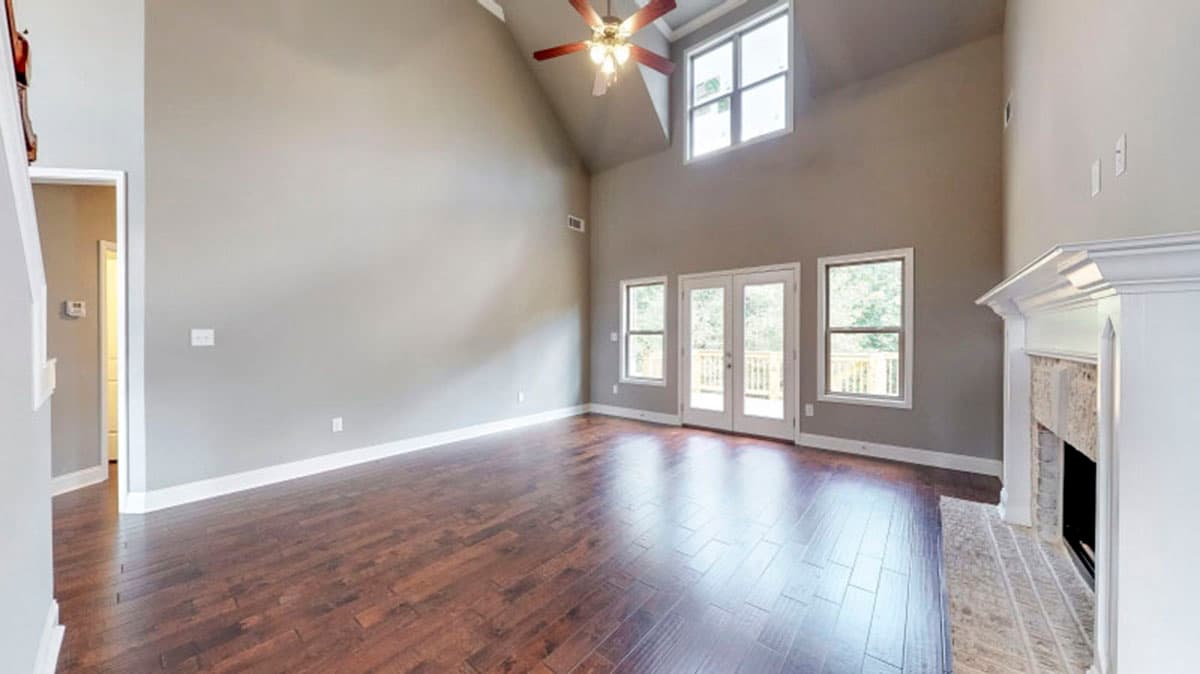

  • The two-story foyer gives the perfect introduction to a vaulted great room with a see-thru fireplace and wall of windows.

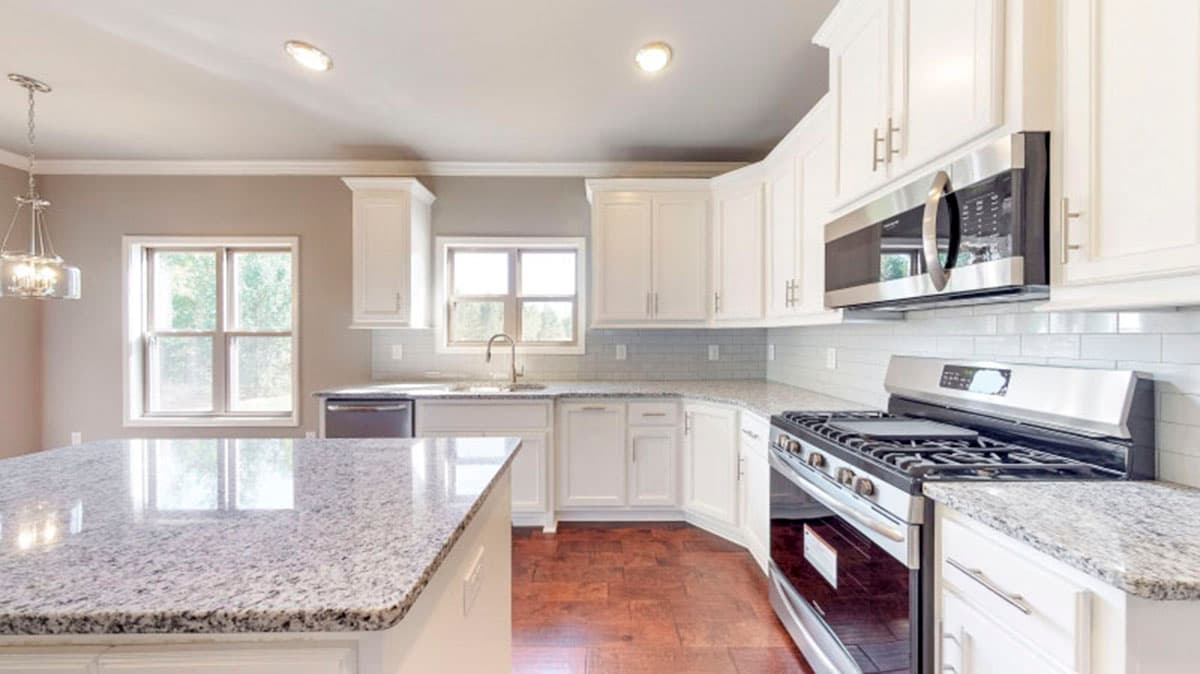

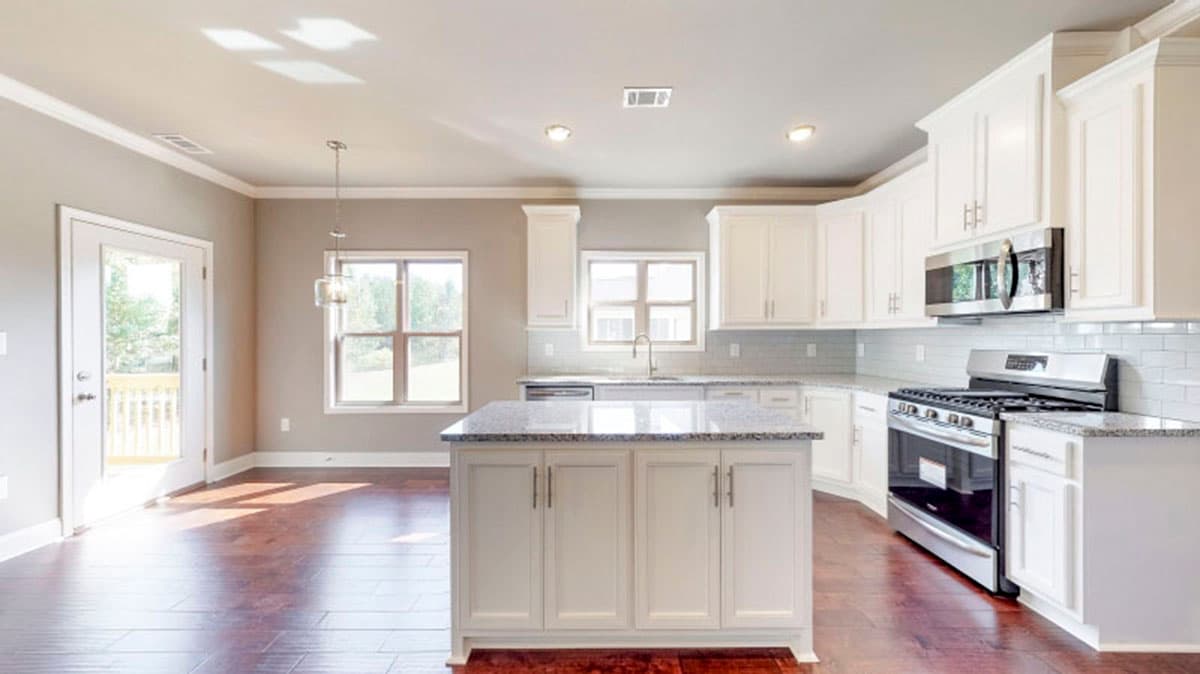

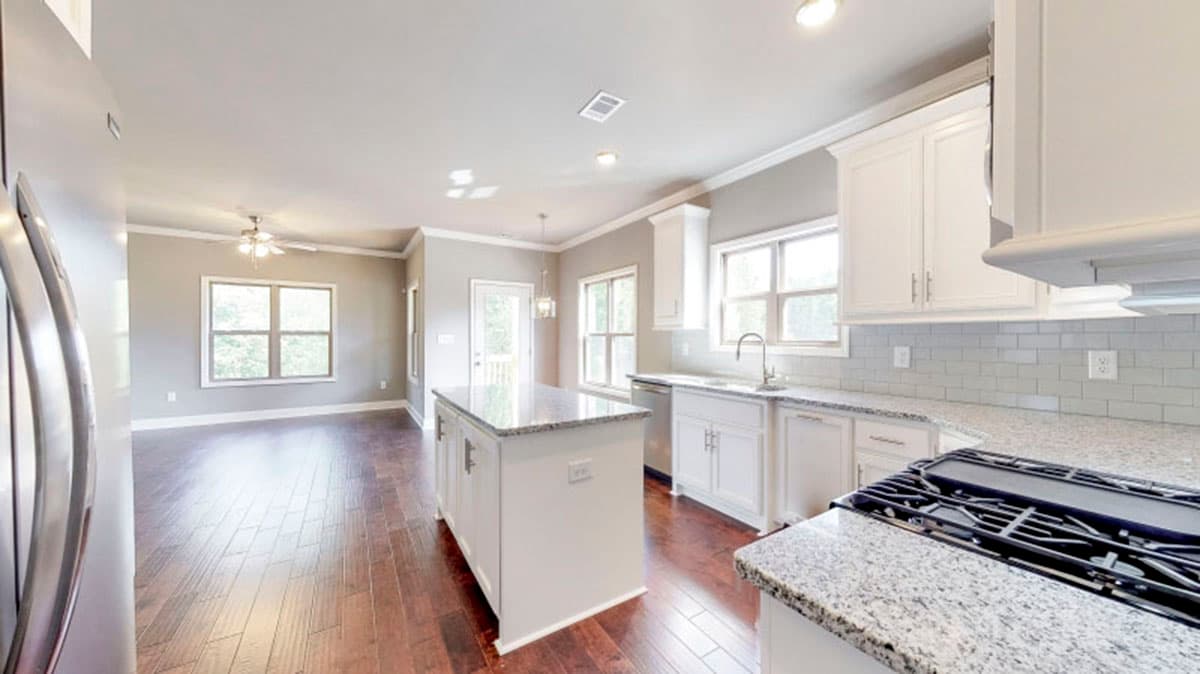

  • The spacious kitchen and keeping room are found nearby with a private covered porch off the attached breakfast area.

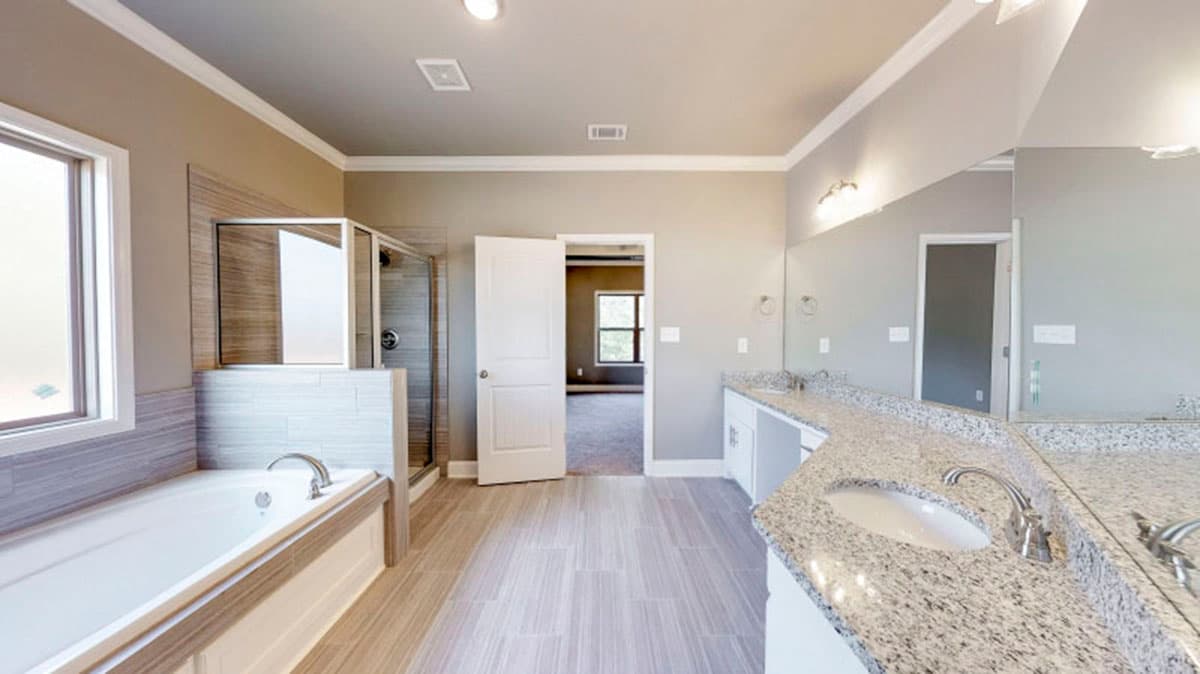

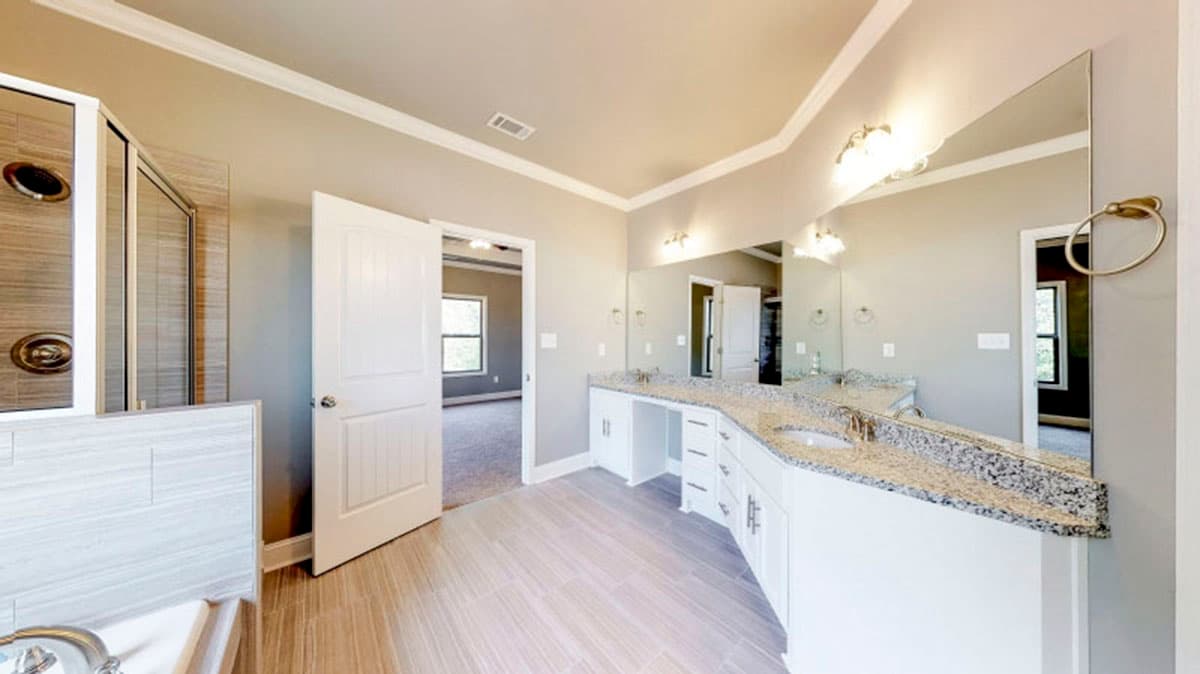

  • The master suite includes a vaulted master bath with a soaking tub and luxurious walk-in shower.
  • Three more roomy bedrooms are housed upstairs, with two additional full baths and a large attic space for extra storage.

What's Included

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house. Unless shown otherwise, all foundation options will show walkout basement elevations.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,765 sq. ft.

1st Floor

1,985 sq. ft.

2nd Floor

780 sq. ft.

Basement Unfinished

1,985 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

57' 6"

Depth

51' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

410 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,765 sq. ft.

1st Floor

1,985 sq. ft.

2nd Floor

780 sq. ft.

Basement Unfinished

1,985 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

57' 6"

Depth

51' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

410 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor
