Plan 51091MM

Four Bedroom House Plan with Closed Floor Plan - 2300 Sq Ft

Heated S.F.
2,300
Beds
4
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 51091MM

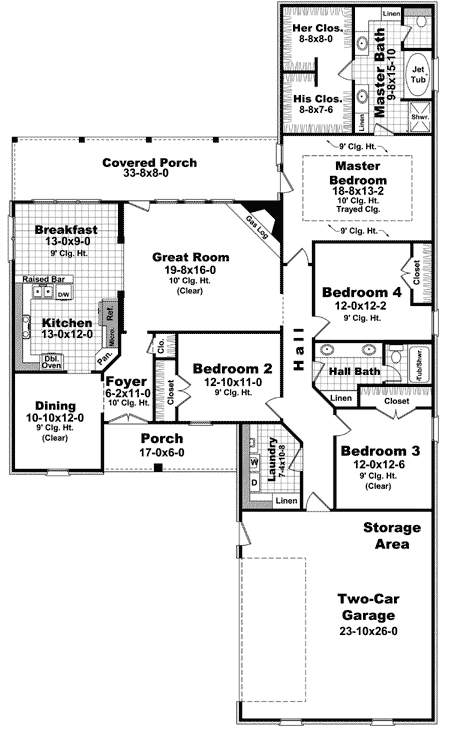

Main Level
Main Level

Plan 51091MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 51091MM: Four Bedroom House Plan with Closed Floor Plan - 2300 Sq Ft - Floor Plan - Main Level - Southern, Traditional

Plan Details

  • This beautiful country design features all the things that make a house a home. Four over-sized bedrooms are complimented by large closets, and the flex space provides a perfect spot for that home office, playroom, or fourth bedroom.
  • A formal dining room, breakfast area, and raised bar all provide spaces for those family meals with close access to the fully equipped kitchen.
  • The great room includes gas logs, raised ceilings, and beautiful views to the covered rear porch beyond.
  • The master bedroom features trayed ceilings and the master bathroom leaves nothing to be desired.
  • The expansive garage provides plenty of room for oversized trucks and SUV's and also includes a large storage area.
  • Related Plan: Get a front-facing garage with house plan 5161MM.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

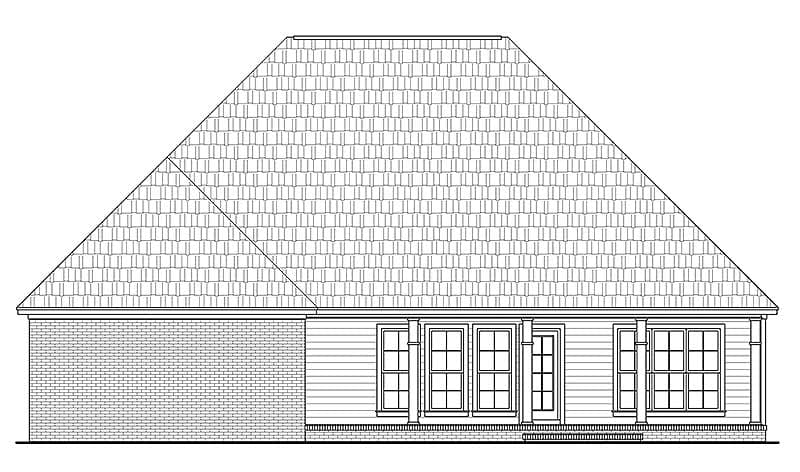

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,300 sq. ft.

1st Floor

2,300 sq. ft.

Porch, Front

102 sq. ft.

Porch, Rear

269 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 0"

Depth

90' 0"

Max Ridge Height

27' 11"

Garage

Type

Attached

Area

645 sq. ft.

Count

2 Cars

Entry Location

Courtyard, Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Closed Floor Plans

USDA Approved

Square Footage Breakdown

Total Heated Area

2,300 sq. ft.

1st Floor

2,300 sq. ft.

Porch, Front

102 sq. ft.

Porch, Rear

269 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 0"

Depth

90' 0"

Max Ridge Height

27' 11"

Garage

Type

Attached

Area

645 sq. ft.

Count

2 Cars

Entry Location

Courtyard, Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Closed Floor Plans

USDA Approved
