Plan 510032WDY

Four Bedroom Traditional House Plan

Heated S.F.
3,105
Beds
4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 510032WDY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 510032WDY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 510032WDY: Four Bedroom Traditional House Plan - Floor Plan - Main Level - Traditional

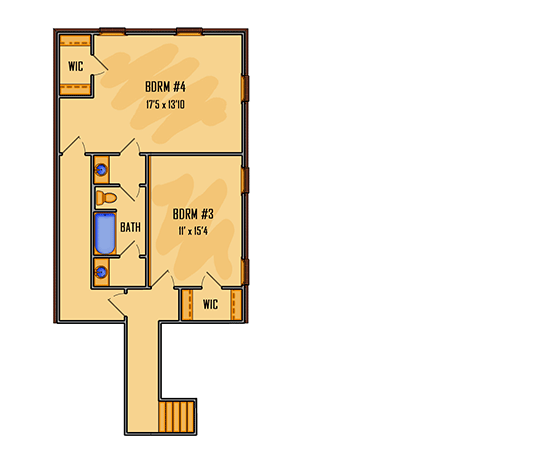

2nd Floor

Plan 510032WDY: Four Bedroom Traditional House Plan - Floor Plan - 2nd Floor - Traditional

Plan Details

  • A big, wide covered porch shelters your entry into this stately Traditional house plan.
  • The open floor plan is immediately evident as soon as you step into the foyer.

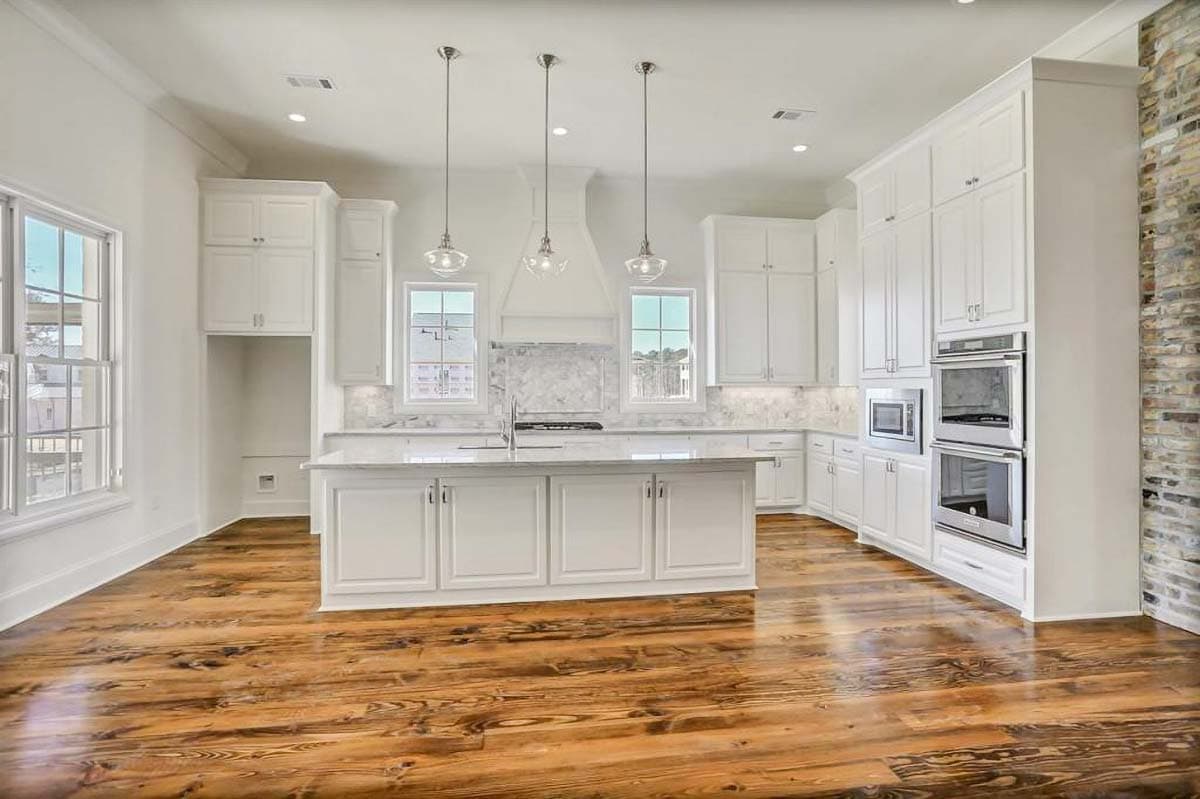

  • With the kitchen sink in the island facing the fireplace, you can enjoy the glow while cooking.
  • A screened porch is just steps away, with an outdoor kitchen for all your grilling.
  • There are two bedrooms on the first floor including the large master suite plus two more upstairs.
  • Every bedroom in the home has a walk-in closet.

What's Included

This plan has 15 pages as follows:
  1. Coversheet Color Rendering
  2. First Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. Second Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

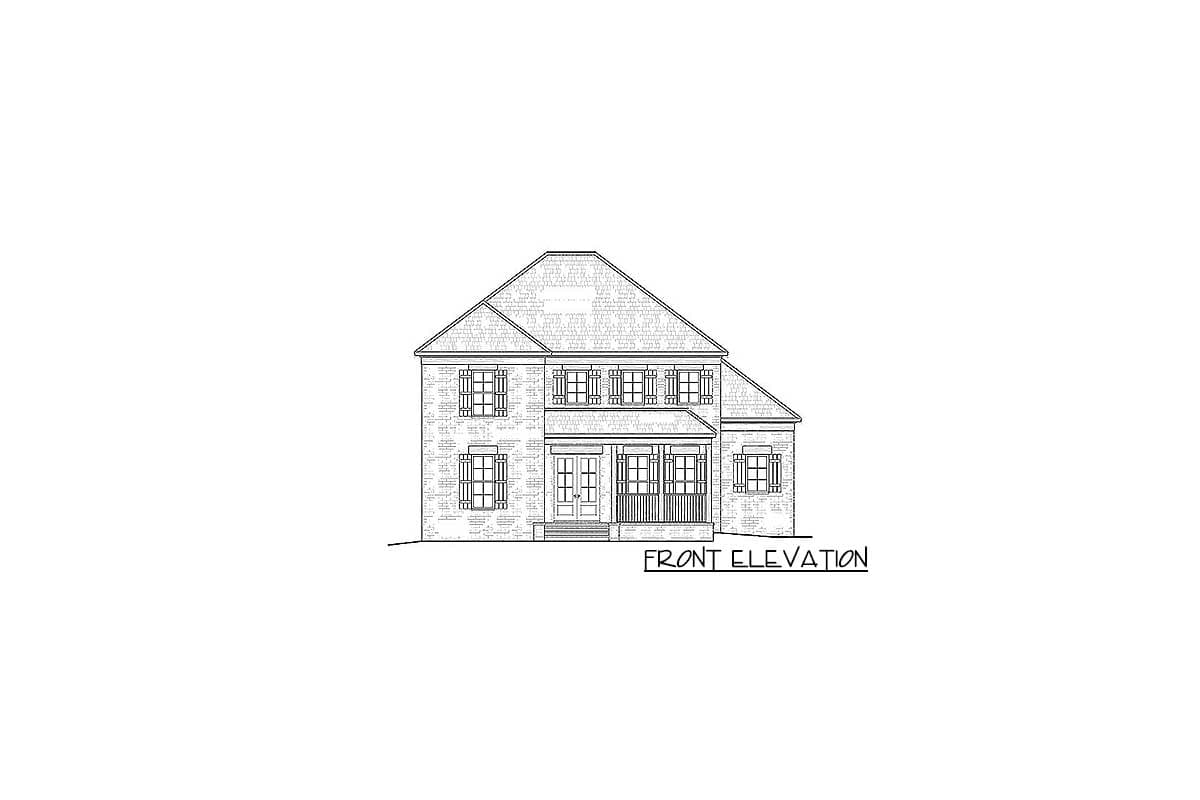

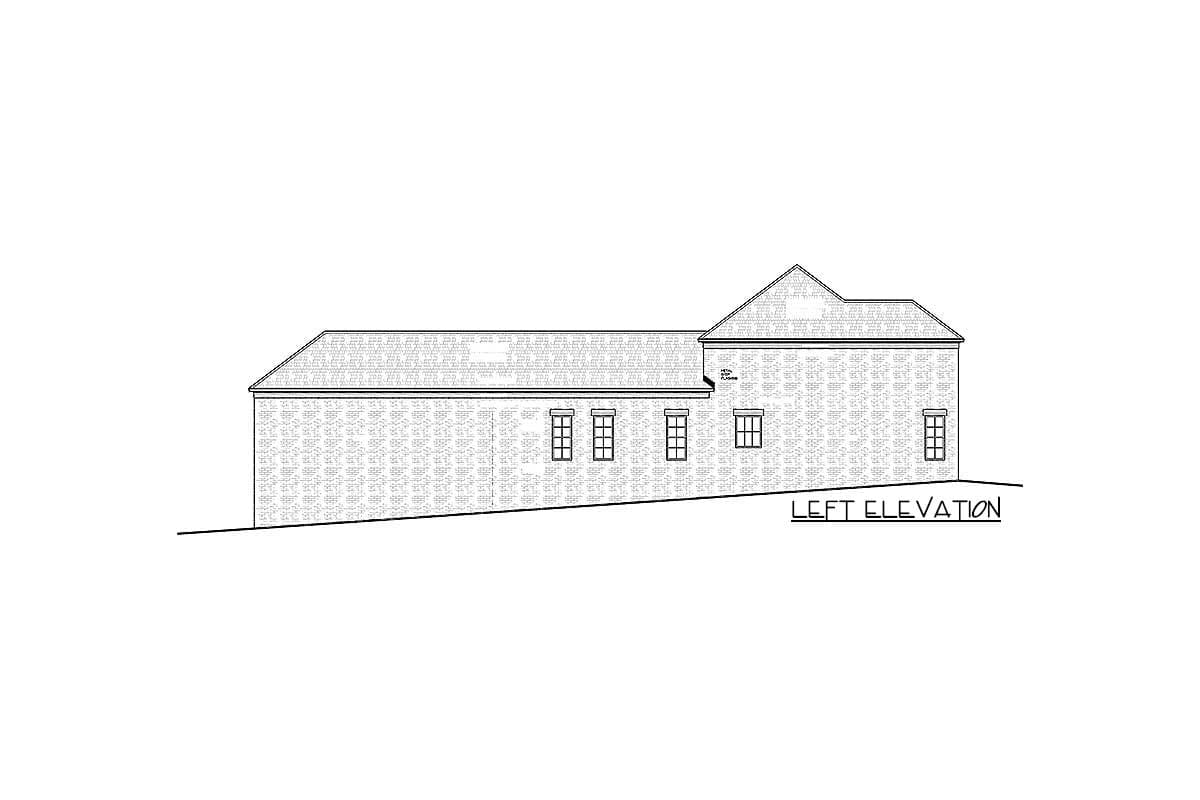

  4. Front & Left Exterior Elevations, Notes

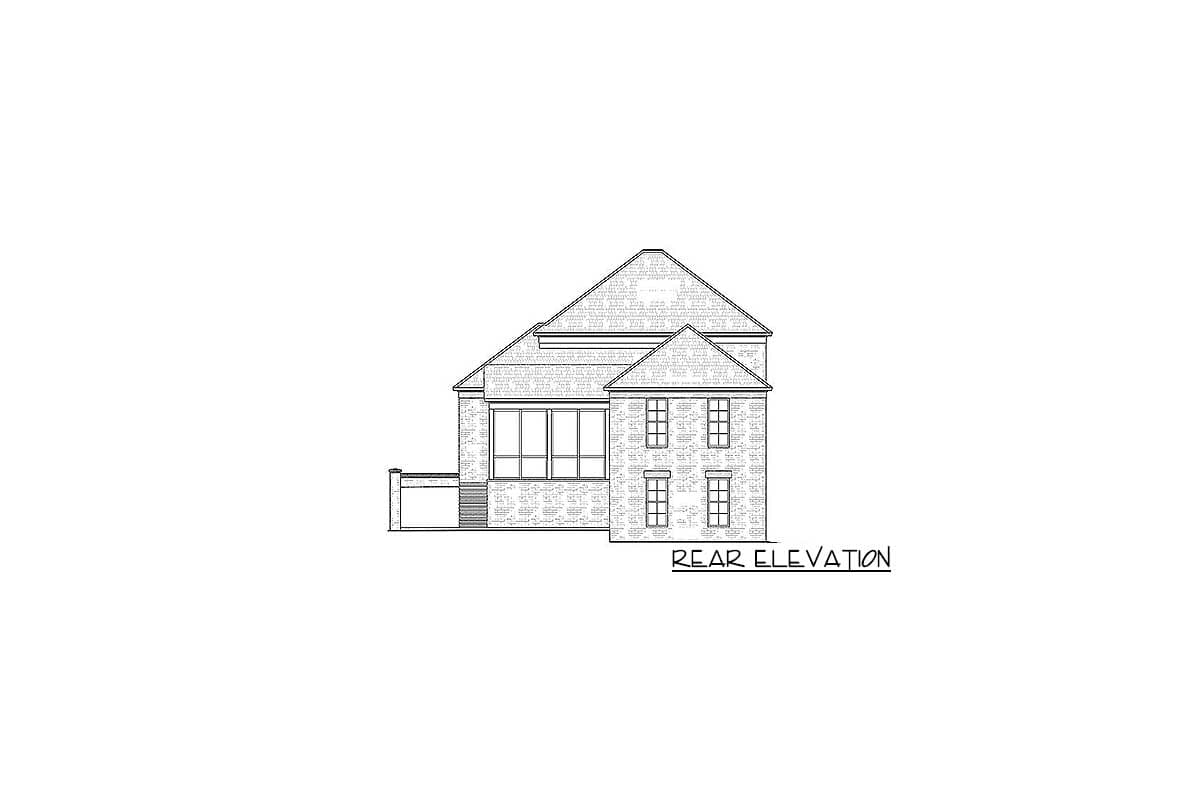

  5. Rear & Right Exterior Elevations, Window Details
  6. Masonry Fencing Details, Screen Porch Details, Rowlock over garage Detail
  7. Rafter Span Schedules Roof Plan, Window Details, Ridge Detail, Wall Flashing Detail
  8. Wall Sections
  9. Wall Sections
  10. Wall Sections
  11. Cornice Details, Chamfered Column Detail
  12. First Floor Electrical Plan and Schedules
  13. Second Floor Electrical Plan and Schedules
  14. Slab Foundation
  15. Footing Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,105 sq. ft.

1st Floor

2,281 sq. ft.

2nd Floor

863 sq. ft.

Porch, Front

200 sq. ft.

Porch, Rear

272 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

45' 0"

Depth

113' 0"

Max Ridge Height

32' 5"

Garage

Type

Attached

Area

883 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen
