French Country Elegance

Plan 48364FM

  • 3,017

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

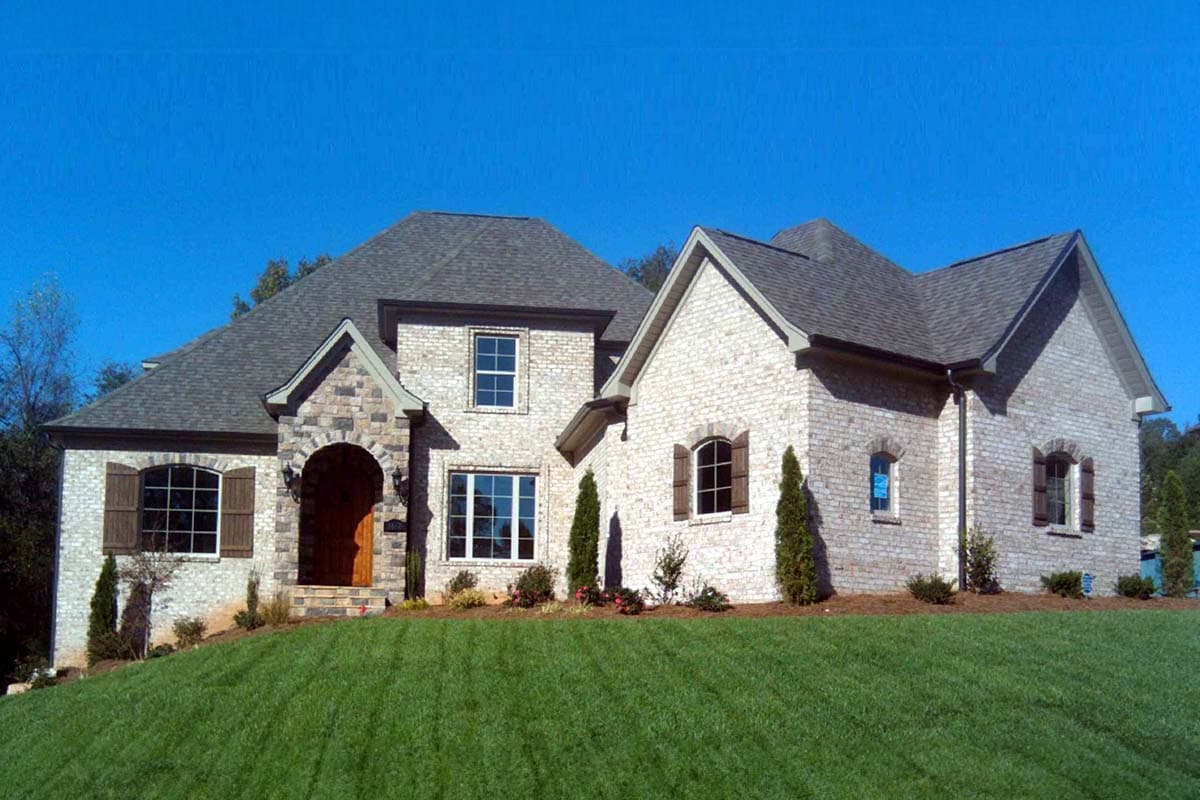

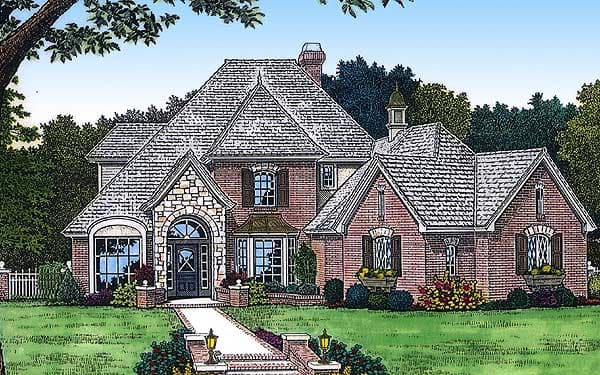

  • Stone and brick, a steep hip roof and decorative wooden shutters all add up to French Country appeal in this handsome home plan.
  • The formal dining room with tray ceiling is open to the foyer while across the way, the quiet study enjoys a bya window.
  • Most of your time will be spent in the huge open informal area in back.
  • Double doors in the great room lead to the rear covered patio where you can while away your leisure time.
  • The spacious master suite sports a tray ceiling and has its own covered patio.
  • On the second floor, three bedrooms have easy access to the large bonus room.
  • The garage has two openings - one 16'x7' and the other 8'x7' - and provides plenty of space for your vehicles.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation
Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

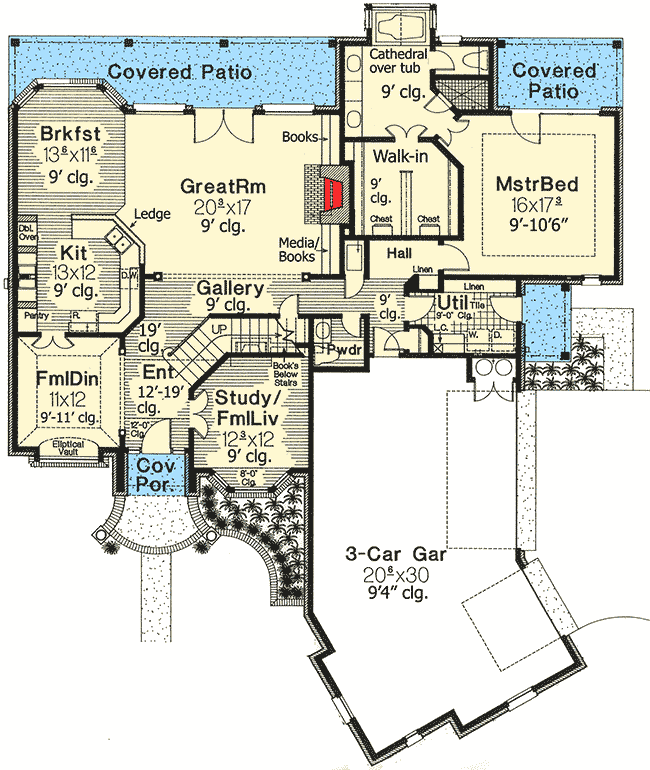

French Country Elegance - 48364FM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

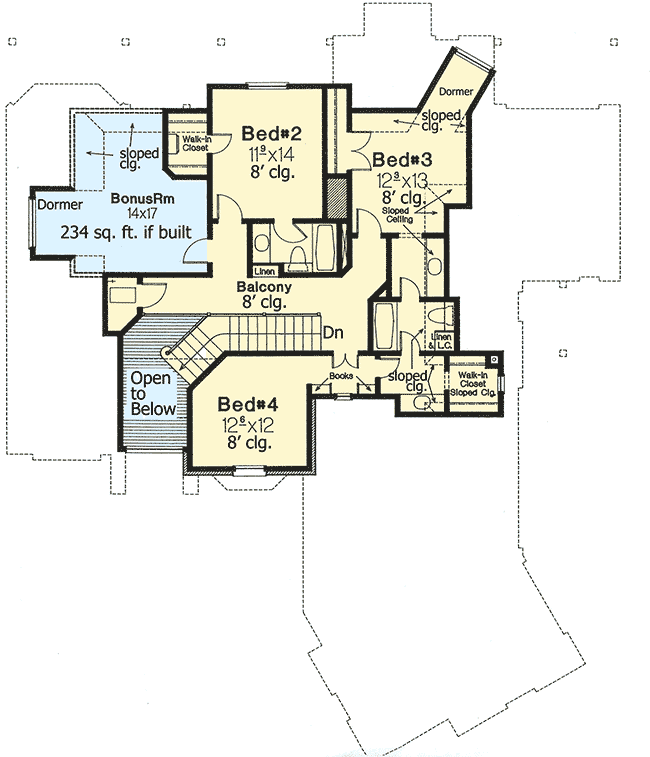

French Country Elegance - 48364FM floor plan - 2nd Floor

French Country Elegance

  • 3,017

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,017 sq. ft.
  • 1st Floor: 2,039 sq. ft.
  • 2nd Floor: 978 sq. ft.

Dimensions

  • Width: 62' 0"
  • Depth: 77' 6"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 817 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
