French Country Home Plan Grand Turret

Plan 48326FM

This plan plants 3 trees

3,643
Heated s.f.
3-4
Beds
3.5+
Baths
1-2
Stories
2
Cars

A grand turret houses the formal dining room with 14' ceiling in this elegant European house plan.
The open floor plan creates wonderful views between the rooms.
Built-in cabinets flank the fireplace in the great room that is open to the kitchen and informal breakfast nook.
A covered outdoor living area has both a fireplace and a cooking station, perfect for grilling.
Tray ceilings enhance the master suite that has access to the covered porch and backyard.
An elegant port cochere makes a dramatic curbside impression.
On the second floor, a raised area provides for theater seating in the great room with a wet bar and half bath.
French doors open to a balcony with wrought-iron railings.
Related Plan: Get a smaller version with house plan 48576FM (2,973 sq. ft.).

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

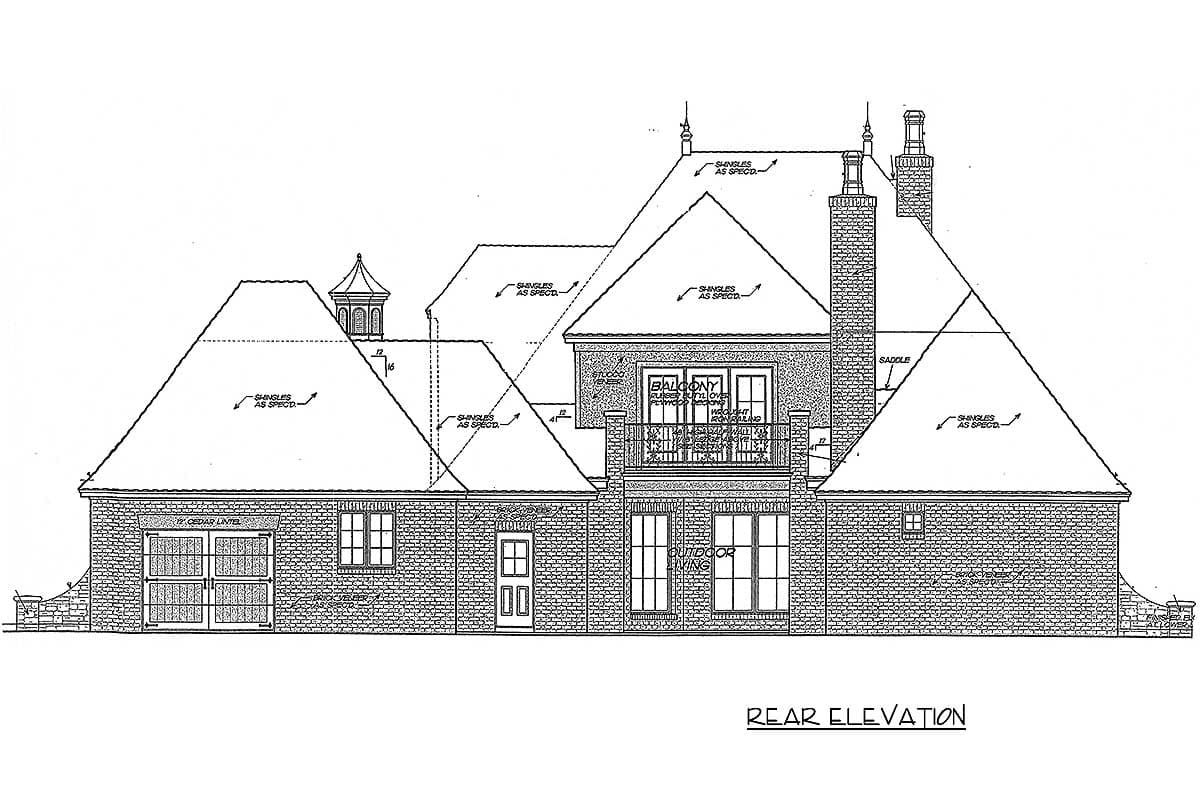

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

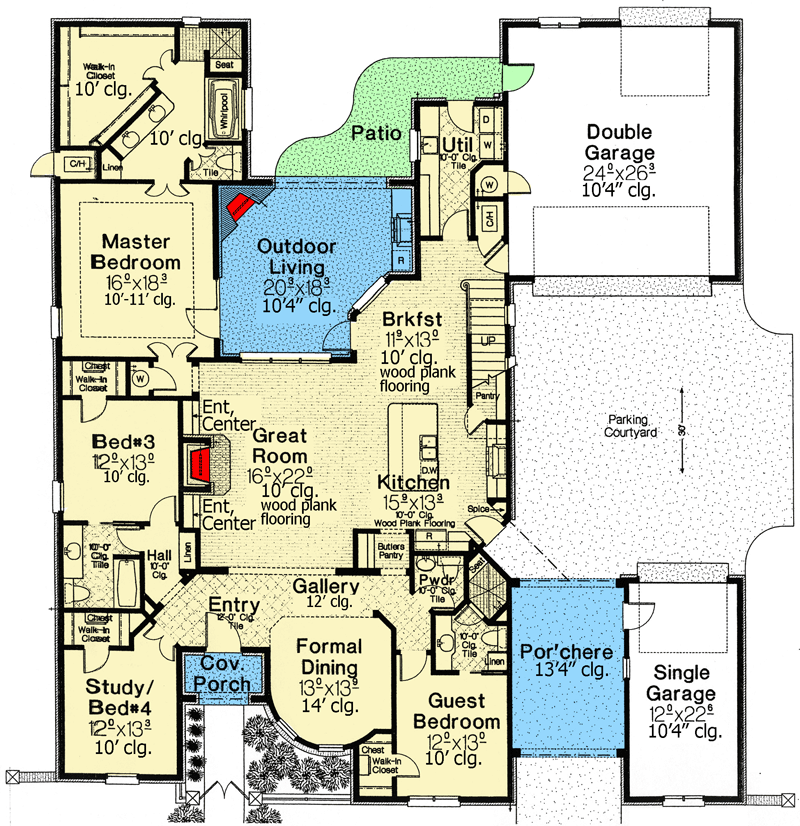

French Country Home Plan Grand Turret - 48326FM floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

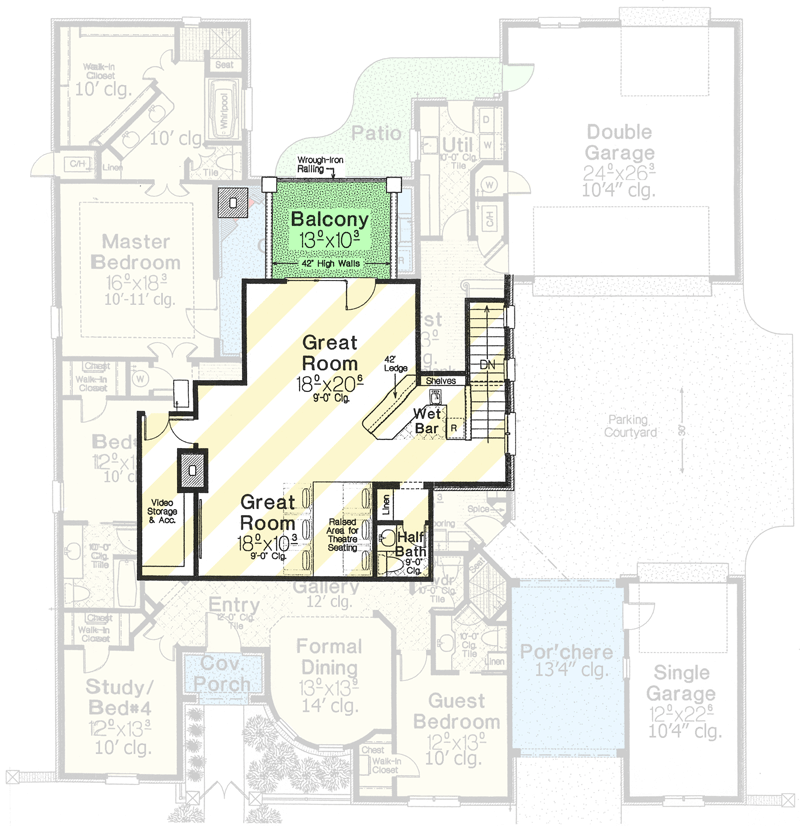

French Country Home Plan Grand Turret - 48326FM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 3,643 sq. ft.
1st Floor: 2,807 sq. ft.
2nd Floor: 836 sq. ft.

Beds/Baths

Bedrooms: 3 or 4

Full bathrooms: 3
Half bathrooms: 2

Foundation Type

Standard Foundations: Slab

Optional Foundations: Basement, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 70' 0"
Depth: 80' 0"
Max ridge height: 34' 0"

Garage

Type: Attached
Area: 971 sq. ft.
Count: 2 Cars
Entry Location: Front, Rear

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Room Details	Ceiling Type	Width	Depth	Height
Dining Room				14' 0"
Entry				12' 0"
Master Bedroom	Pullman

Roof Details

Framing Type: Stick

Architectural Style

Special features
